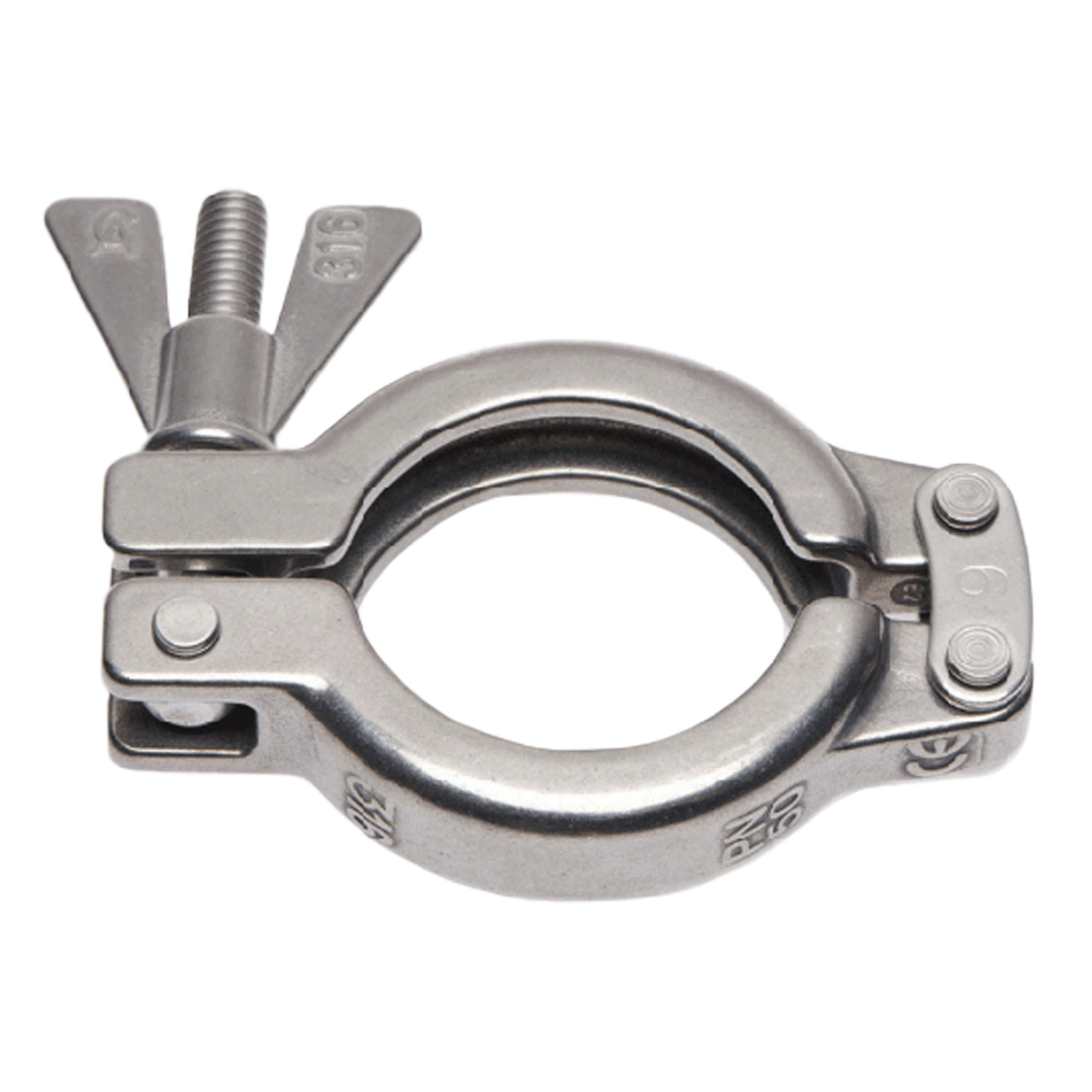

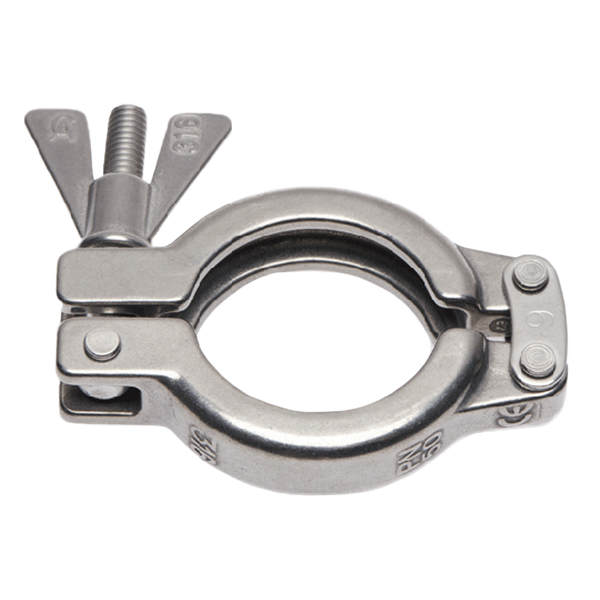

SAFETY CLAMP 1" 1.5" TC SAF TYPE CL.SAF.0100 C010.6.SAF ADVANCED COUPLINGS
SHSF0005006
Net Price: $25.68 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Advanced Couplings (ACL) |
|---|---|
| Product Type | Tube Fittings |
| Product Subtype | Clamps |
| Material | 316 Stainless Steel |
| Size 1 | 1"-1.5" |
| Connection Type 1 | Tri-Clamp |
| Fitting Design | SH Safety Clamp with Wing Nut |
| Weight | 0.58000 |
Dimensional Data
SH Safety Clamp 316 Wing Nut Dimensional Diagram
| Size | A | B | C | Width | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 0.50 | 12.70 | 1.00 | 25.40 | 2.48 | 63.00 | 2.95 | 75.00 | 0.67 | 17.00 |
| 2.00 | 50.80 | 2.52 | 64.00 | 3.66 | 93.00 | 4.84 | 123.00 | 0.67 | 17.00 |
| 1.50 | 38.10 | 1.99 | 50.50 | 3.03 | 77.00 | 4.02 | 102.00 | 0.67 | 17.00 |
| 2.50 | 63.50 | 3.05 | 77.50 | 3.94 | 100.00 | 5.51 | 140.00 | 0.67 | 17.00 |
| 3.00 | 76.20 | 3.58 | 91.00 | 4.13 | 105.00 | 5.91 | 150.00 | 0.67 | 17.00 |
| 4.00 | 101.60 | 4.69 | 119.00 | 4.69 | 119.00 | 7.28 | 185.00 | 0.67 | 17.00 |
| 6.00 | 152.40 | 6.57 | 167.00 | 5.98 | 152.00 | 10.91 | 277.00 | 0.94 | 24.00 |
ACL Clamp Anti-galling Datasheet
