Alfa Laval

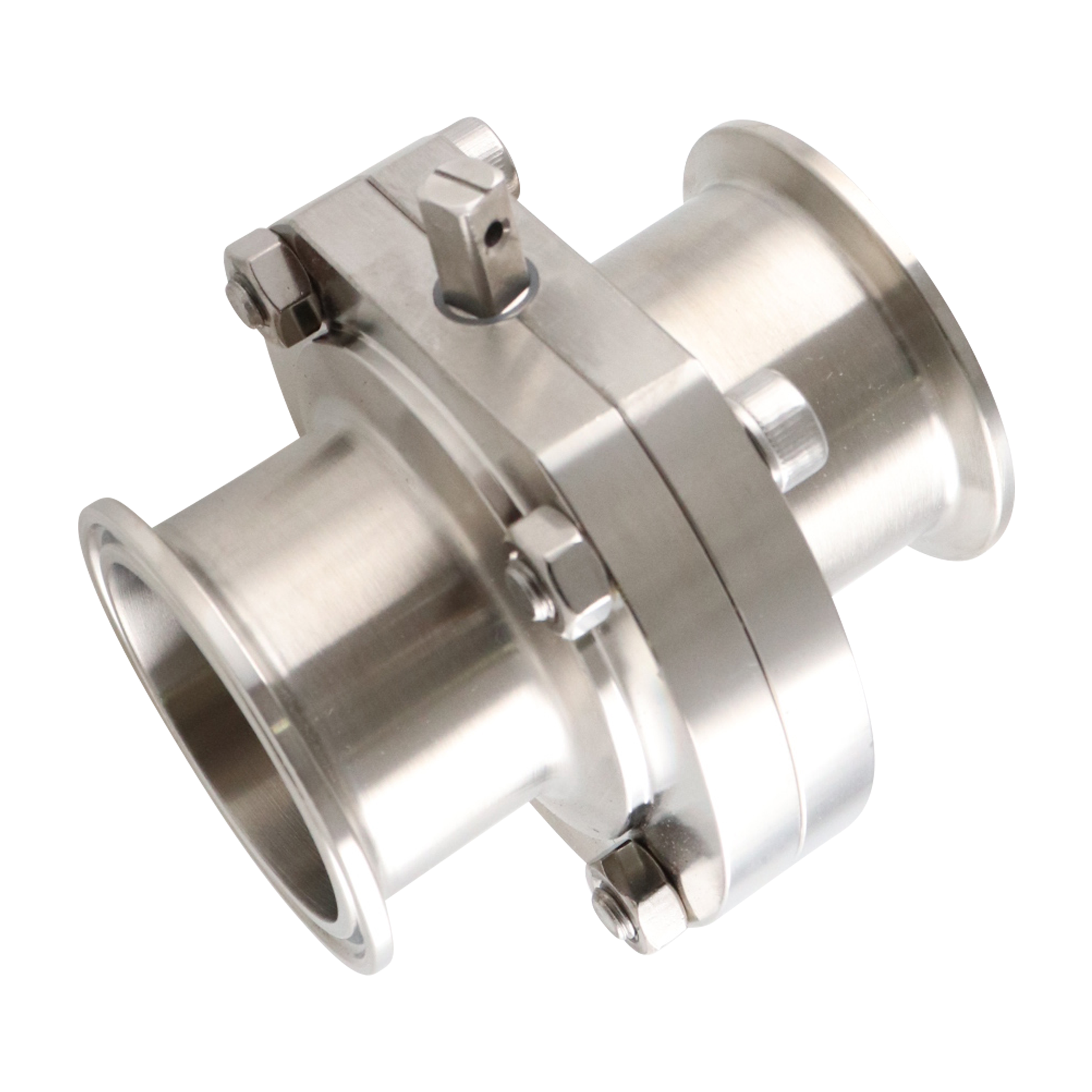

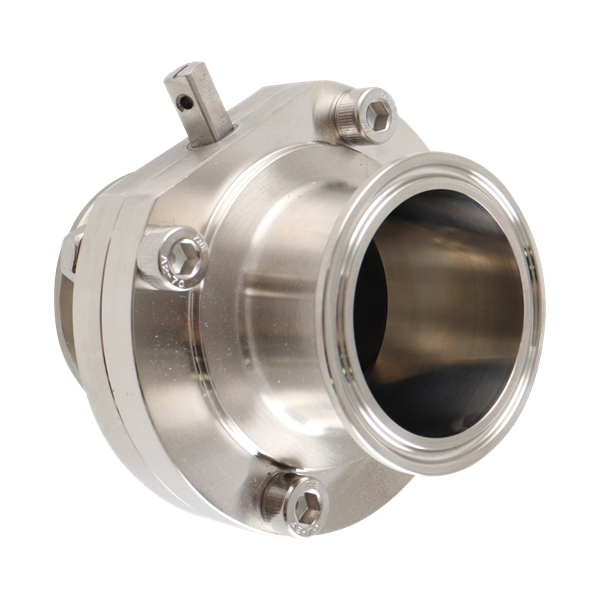

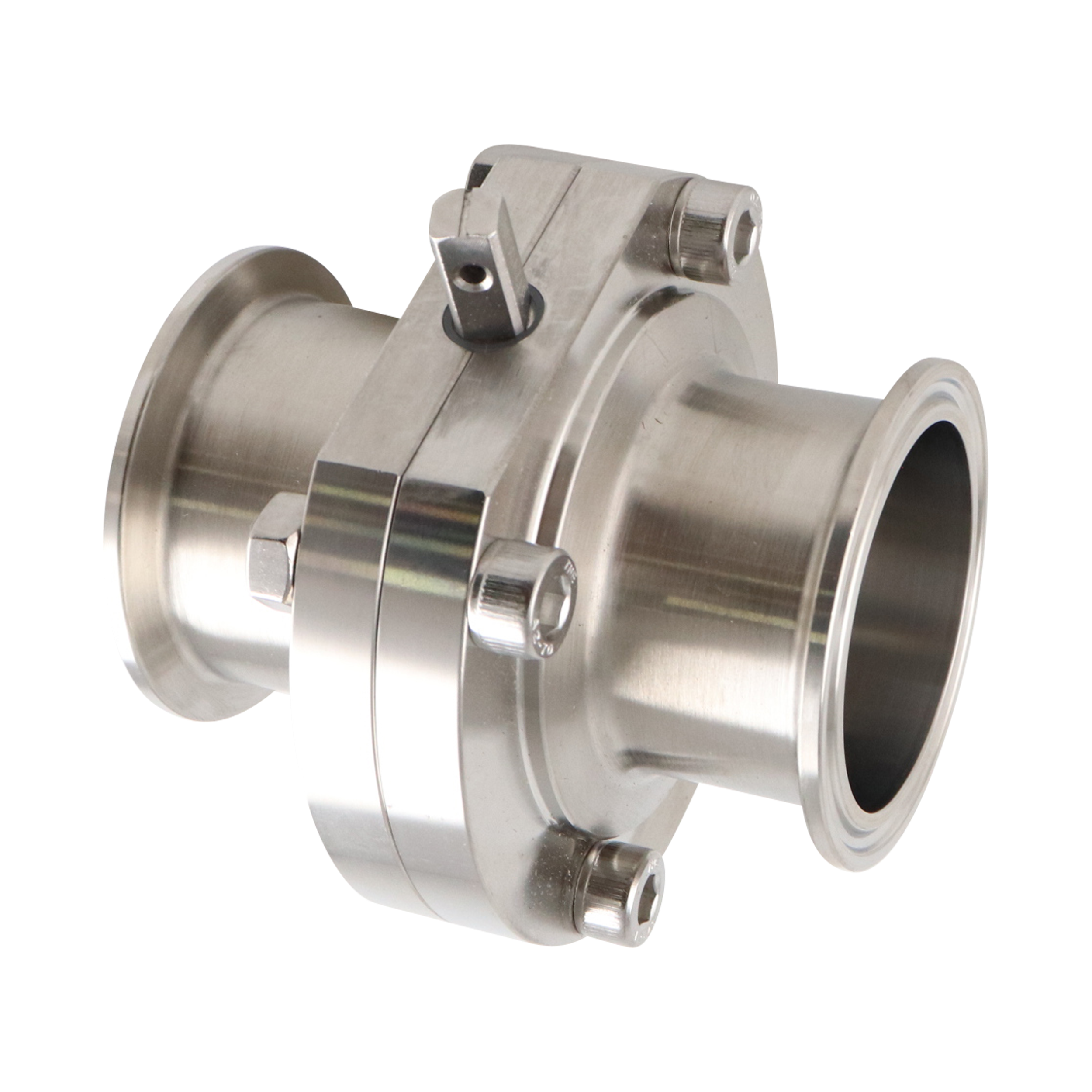

Alfa Laval LKB Butterfly Valve 2" Tri-Clamp 316L EPDM Seat No Handle
LKB51A-2-E-316L-NH
- MPN:
- 9611445175
Net Price: $129.62 / EA
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

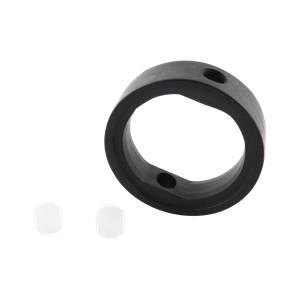

| Alfa Laval Service Kit 2" EPDM for LKB Valves |
$67.53 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Butterfly Valves |
| Series | LKB Series |
| Model | LKB51 |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Actuator / Handle | No Handle |
| Weight | 2.95000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9611445175
Dimensional Data
LKB Tri-Clamp Butterfly Valve, No Handle
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 3.54 | 90.00 | 1.28 | 32.50 |
| 1½ | 38.10 | 3.54 | 90.00 | 1.28 | 32.50 |
| 2 | 50.80 | 3.74 | 95.00 | 1.65 | 42.00 |
| 2½ | 63.50 | 3.82 | 97.00 | 2.05 | 52.00 |
| 3 | 76.20 | 4.13 | 105.00 | 2.24 | 57.00 |
| 4 | 101.60 | 4.84 | 123.00 | 3.03 | 77.00 |
| 6 | 152.40 | 6.15 | 156.20 | 4.09 | 104.00 |
Resources
0Data Sheets
1Manuals
5Spare Part Lists
6Part Configuration
Videos
Alfa Laval LKB LKB-F Data Sheet
