Alfa Laval
Alfa Laval Throttling Shutoff Valve 2" Tri-Clamp 316L FKM (Viton) Seal N/C Actuator Moore KV52
7710-200SM2H202SRSLYS
- MPN:
- 9634098982
Net Price: $7,965.58 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SERVICE KIT ACTUATOR UNIQUE SSV N/O N/C 2" 2.5" MAINTAINABLE |
$53.73 / EA |
|
||

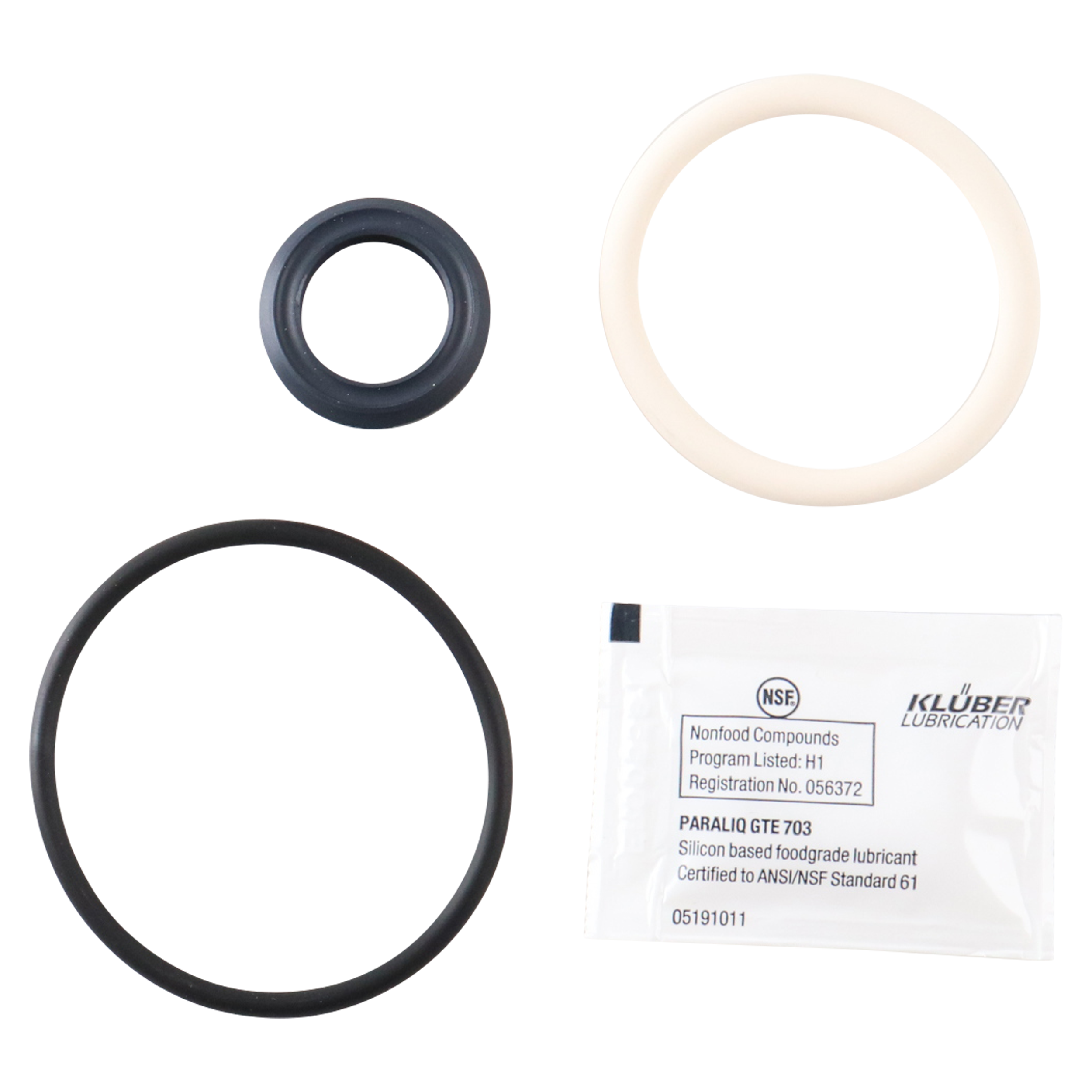

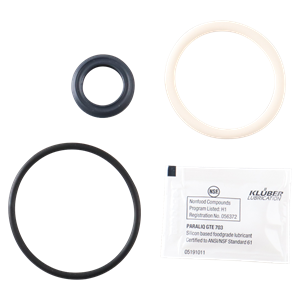

| SERVICE KIT 2" VITON FOR UNIQUE SSV STANDARD LONG STROKE MANUAL REG SHUTOFF VALVE |
$366.31 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | Unique RV-ST Series |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | FKM (Viton) |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Weight | 0.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9634098982
Dimensional Data
Unique SSV Regulating Tri-Clamp Single Seat Valve
| Nominal Size | A | E | H | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1½ | 38.10 | 21.40 | 543.56 | 2.45 | 62.23 | 3.35 | 85.09 |
| 2 | 50.80 | 23.37 | 593.60 | 2.94 | 74.68 | 4.52 | 114.81 |
| 2½ | 63.50 | 24.40 | 619.76 | 3.73 | 94.74 | 4.52 | 114.81 |
| 3 | 76.20 | 25.71 | 653.03 | 3.93 | 99.82 | 6.07 | 154.18 |
| 4 | 101.60 | 27.50 | 698.50 | 5.22 | 132.59 | 6.07 | 154.18 |
Resources
0Data Sheets
Alfa Laval Unique SSV Standard Data Sheet
1Manuals
