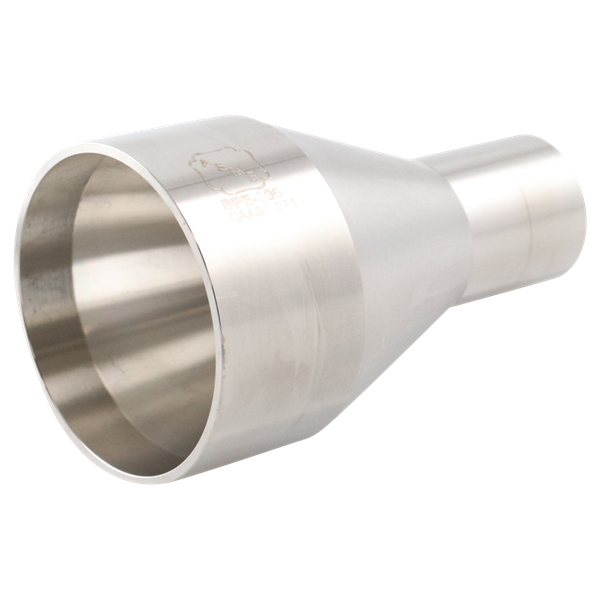

CONCENTRIC REDUCER 2X1 BW 316L 3.375" OAL 20RA ID 32RA OD SF1 BPE

C31-2X1-316L-PL

$60.42 / EA

Have an account? Login now.

Availability:

Springfield, MO	13 EA
Durham, NC	11 EA
Modesto, CA	0 EA
Grand Prairie, TX	1 EA

Spare Parts

Dimensional Data

C31 Dimensional Diagram

Butt Weld Concentric Reducer | C31-Size-Material-Finish

Nominal Size		A
(in)	(mm)	(in)	(mm)
⅜ x ¼	9.53 x 6.35	1.625	41.28
½ x ¼	12.70 x 6.35	1.875	47.63
½ x ⅜	12.70 x 9.53	1.875	47.63
¾ x ⅜	19.05 x 9.53	2.000	50.80
¾ x ½	19.05 x 12.70	2.125	53.98
1 x ½	25.40 x 12.70	2.500	63.50
1 x ¾	25.40 x 19.05	2.125	53.98
1½ x ¾	38.10 x 19.05	3.000	76.20
1½ x 1	38.10 x 25.40	2.500	63.50
2 x 1	50.80 x 25.40	3.375	85.73
2 x 1½	50.80 x 38.10	2.500	63.50
2½ x 1½	63.50 x 38.10	3.375	85.73
2½ x 2	63.50 x 50.80	2.500	63.50
3 x 1½	76.20 x 38.10	4.250	107.95
3 x 2	76.20 x 50.80	3.375	85.73
3 x 2½	76.20 x 63.50	2.625	66.68
4 x 2	101.60 x 50.80	5.125	130.18
4 x 2½	101.60 x 63.50	4.250	107.95
4 x 3	101.60 x 76.20	3.875	98.43
6 x 3	152.40 x 76.20	7.250	184.15
6 x 4	152.40 x 101.60	5.625	142.88
2019 BPE DT-4.1.3-1

Resources

Literature

Alfa Laval Complete Fittings Catalog

Alfa Laval Biopharmaceutical Fittings Catalog

Fittings Reference Sheet

Alfa Laval Fittings Overview

CSI Fittings Poster

Blog Posts

What is BPE?

Videos

BPE Overview

Attributes

Alloy/Material:: 316 / 316L
Connection Type:: Weld
Finish:: 20Ra ID / 32Ra OD
Reducing Size:: 1"
Size:: 2"
Specification/Standard:: BPE Mechanical Polished
Weight:: 0.6
