CLAMP HIGH PRESSURE 3" TC DOUBLE BOLT WITH BRASS NUTS 304
A13MHP-3
Net Price: $20.26 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Clamps |
| Material | 304 Stainless Steel |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Fitting Design | A13MHP |
| Weight | 1.80000 |
Dimensional Data

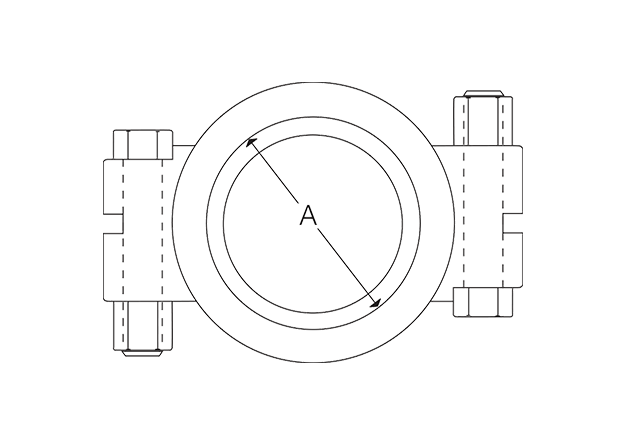

Tri-Clamp High Pressure Block Style | A13MHP-Size-Material
| Nominal Size | A | Bolt | ||
|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |
|
½ or ¾ (Block Style) |
12.70 or 19.05 | 1.04 | 26.42 | 3/8-16 |
| ½ or ¾ | 12.70 or 19.05 | 1.04 | 26.42 | 1/4-20 |
| 1 or 1½ | 25.40 or 38.10 | 2.05 | 52.07 | 3/8-16 |
| 2 | 50.80 | 2.58 | 65.53 | 3/8-16 |
| 2½ | 63.50 | 3.11 | 78.99 | 3/8-16 |
| 3 | 76.20 | 3.64 | 92.46 | 3/8-16 |
| 4 | 101.60 | 4.73 | 120.14 | 3/8-16 |
| 6 | 152.40 | 6.63 | 168.40 | 3/8-16 |
| 8 | 203.20 | 8.69 | 220.73 | 3/8-16 |
| 10 | 254 | 10.90 | 276.86 | 3/8-16 |
| 12 | 304.80 | 12.90 | 327.66 | 3/8-16 |
Fittings Reference Sheet
