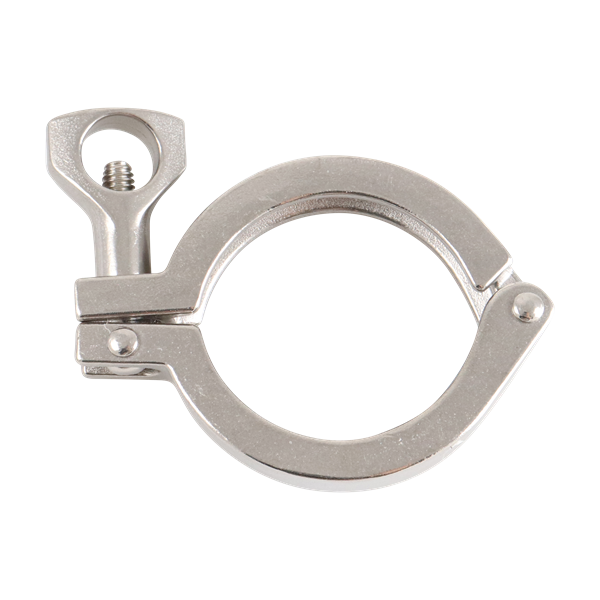

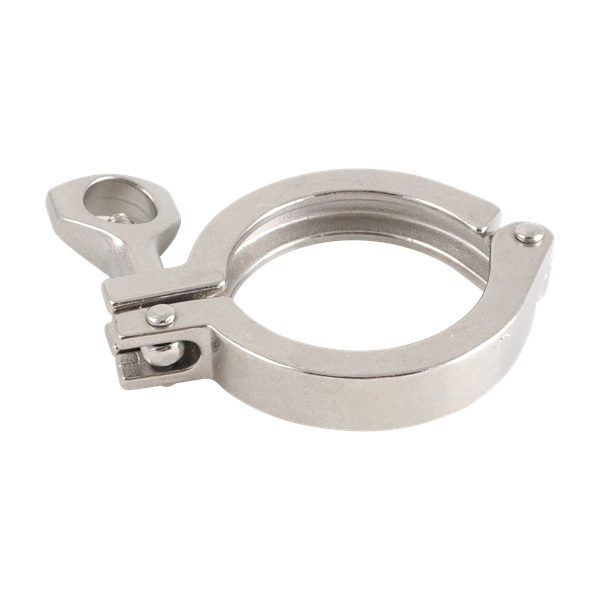

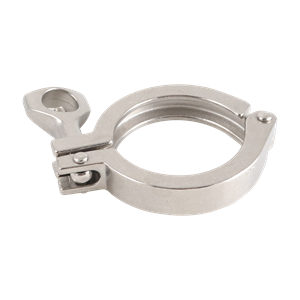

CLAMP TWO PIECE 3" TC DN65 DIN 32676 2.5" DN65 DIN 11864-3A SINGLE PIN 304
A13MHM-3-S
Net Price: $7.54 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Clamps |
| Material | 304 Stainless Steel |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | DIN 11864 / DIN 32676 |
| Fitting Design | A13MHM |
| Weight | 0.85000 |
Dimensional Data
Tri-Clamp Clamp | A13MHM-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1½ | 38.10 | 2.13 | 54.10 |
| 2 | 50.80 | 2.64 | 67.06 |
| 2½ | 63.50 | 3.19 | 81.03 |
| 3 | 76.20 | 3.72 | 94.49 |
| 4 | 101.60 | 4.83 | 122.68 |
| 6 | 152.40 | 6.69 | 169.93 |
| 8 | 203.20 | 8.66 | 219.96 |
