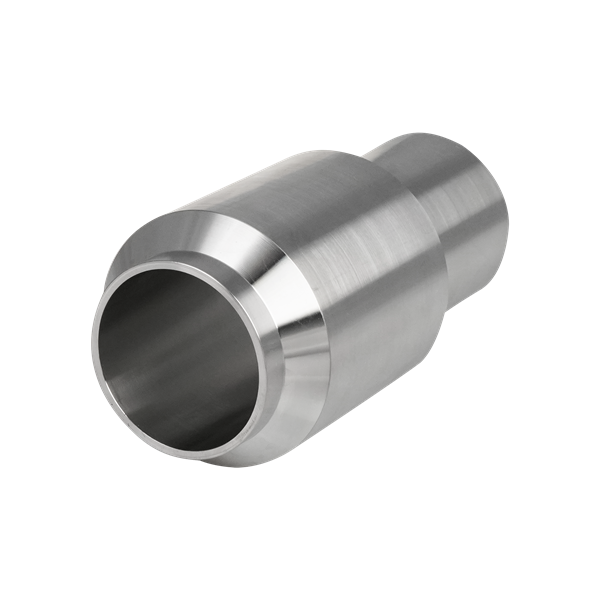

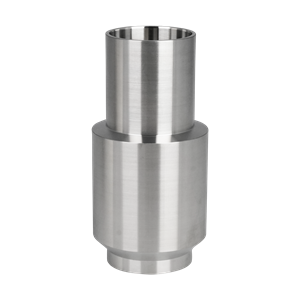

COLLARED SPOOL FOR TRANSFER PANEL FLOW VERTER FERRULE 1.5" BW X BW EP 316L ONE PIECE 15RA ID 32RA OD
FVSPC-1.5-BW-316L-PM
Net Price: $177.91 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Collared Spools |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 1.5" |
| Connection Type 1 | Butt Weld |
| Size 2 | 1.5" |
| Connection Type 2 | Butt Weld |
| Fitting Design | FVSPC |
| Weight | 1.10000 |
Dimensional Data
FVSPC-BW
| Tube OD | B | C | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 4.00 | 101.60 | 0.98 | 24.99 |
| ¾ | 19.05 | 4.00 | 101.60 | 0.98 | 24.99 |
| 1 | 25.40 | 4.00 | 101.60 | 1.98 | 50.39 |
| 1½ | 38.10 | 4.00 | 101.60 | 1.98 | 50.39 |
| 2 | 50.80 | 4.00 | 101.60 | 2.52 | 63.91 |
| 2½ | 63.50 | 4.00 | 101.60 | 3.05 | 77.39 |
| 3 | 76.20 | 4.00 | 101.60 | 3.58 | 90.91 |
| 4 | 101.60 | 4.00 | 101.60 | 4.68 | 118.92 |
FVSPC-BW 2D Drawing
FVSPC-1.5-BW 3D Model
