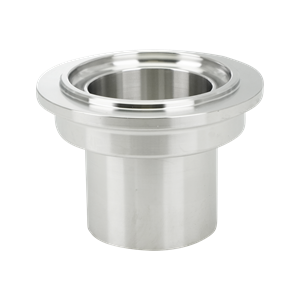

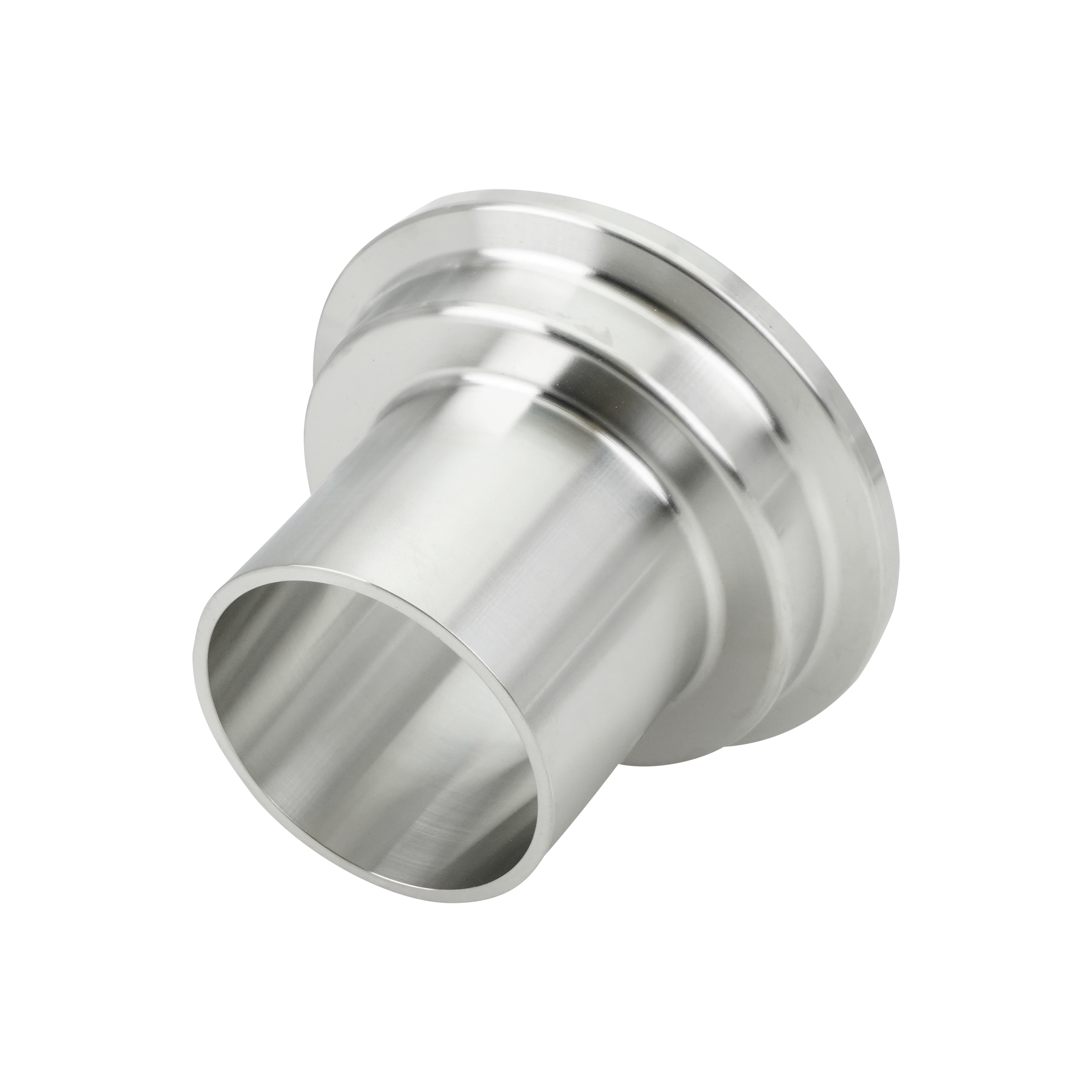

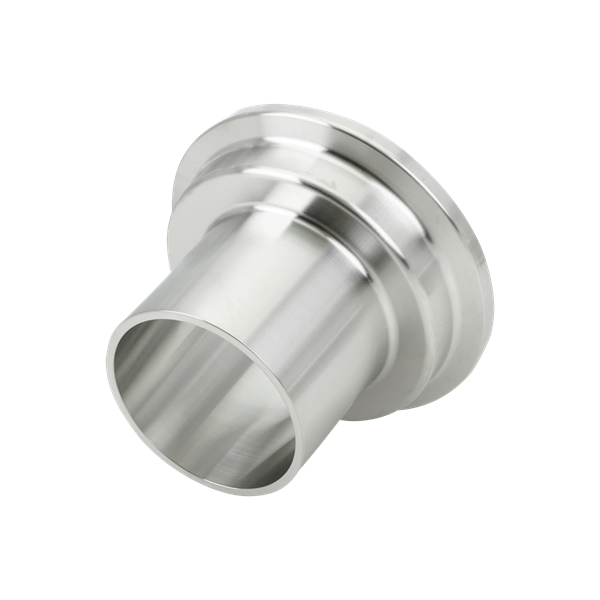

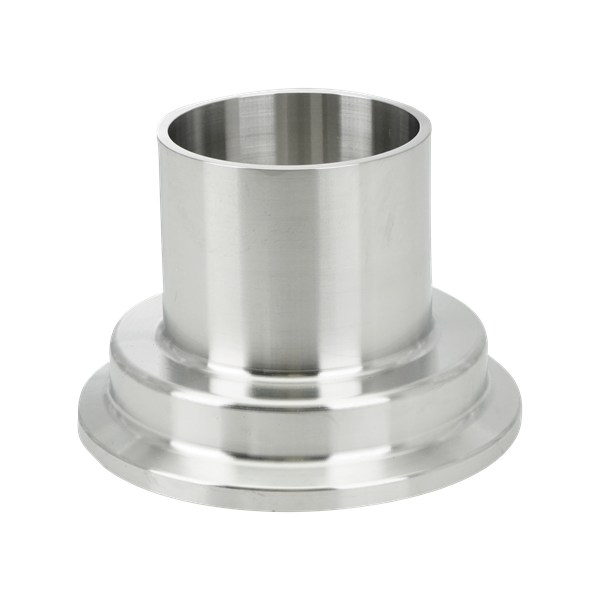

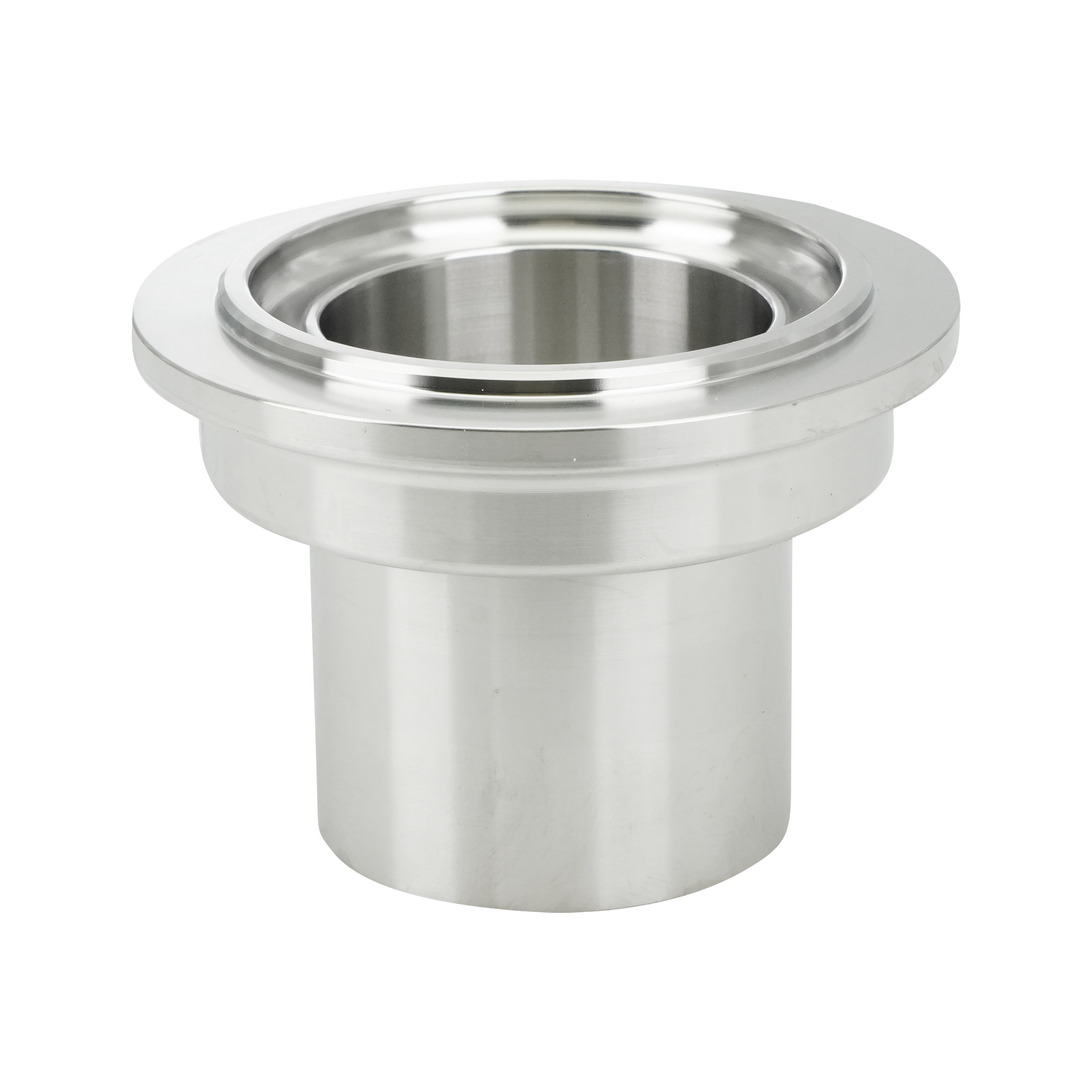

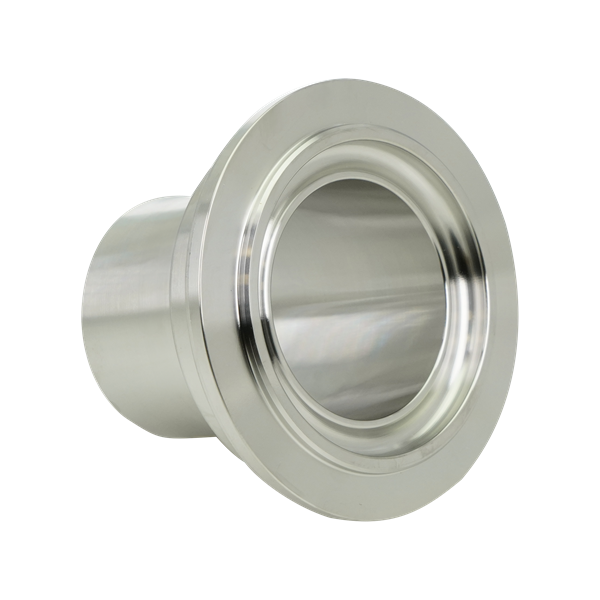

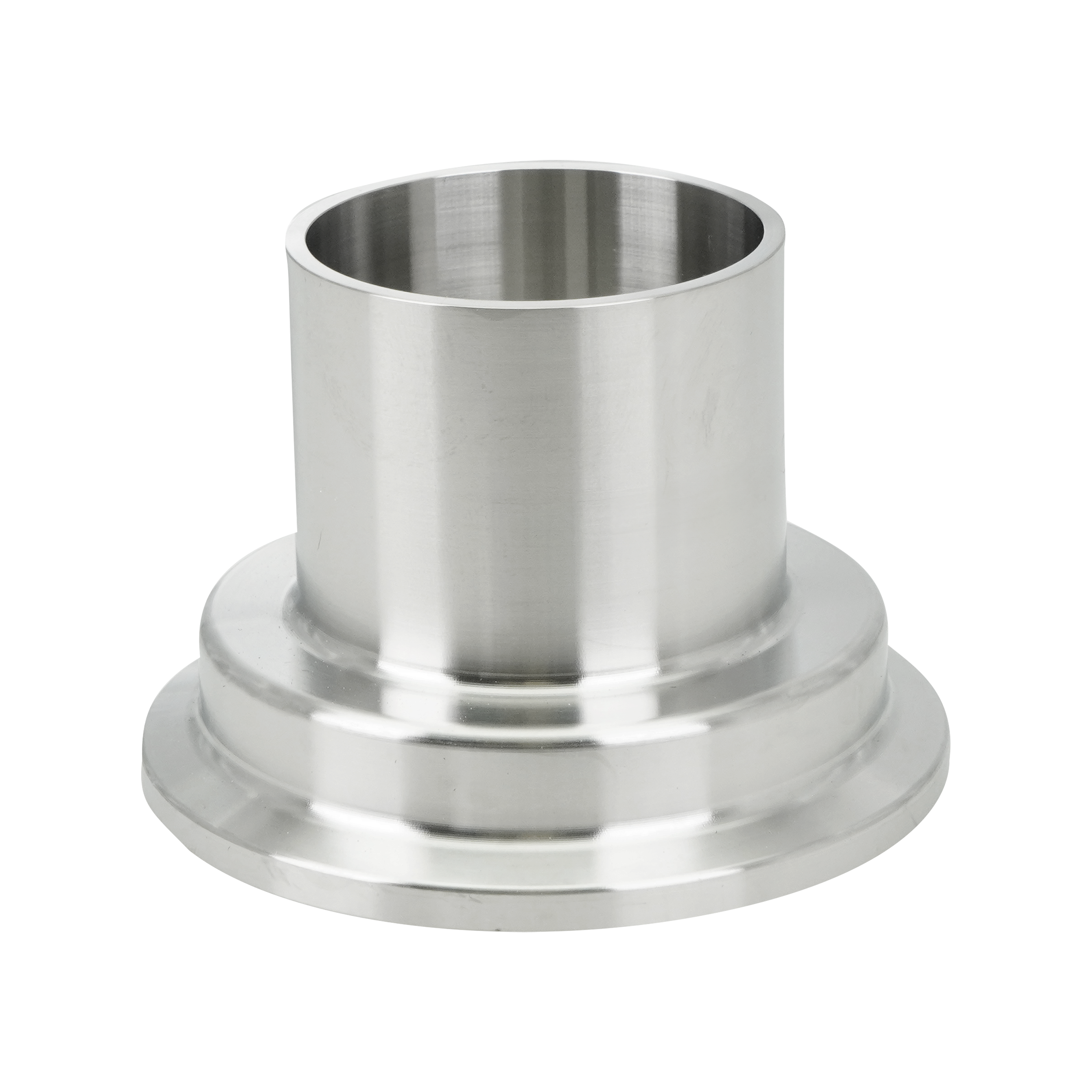

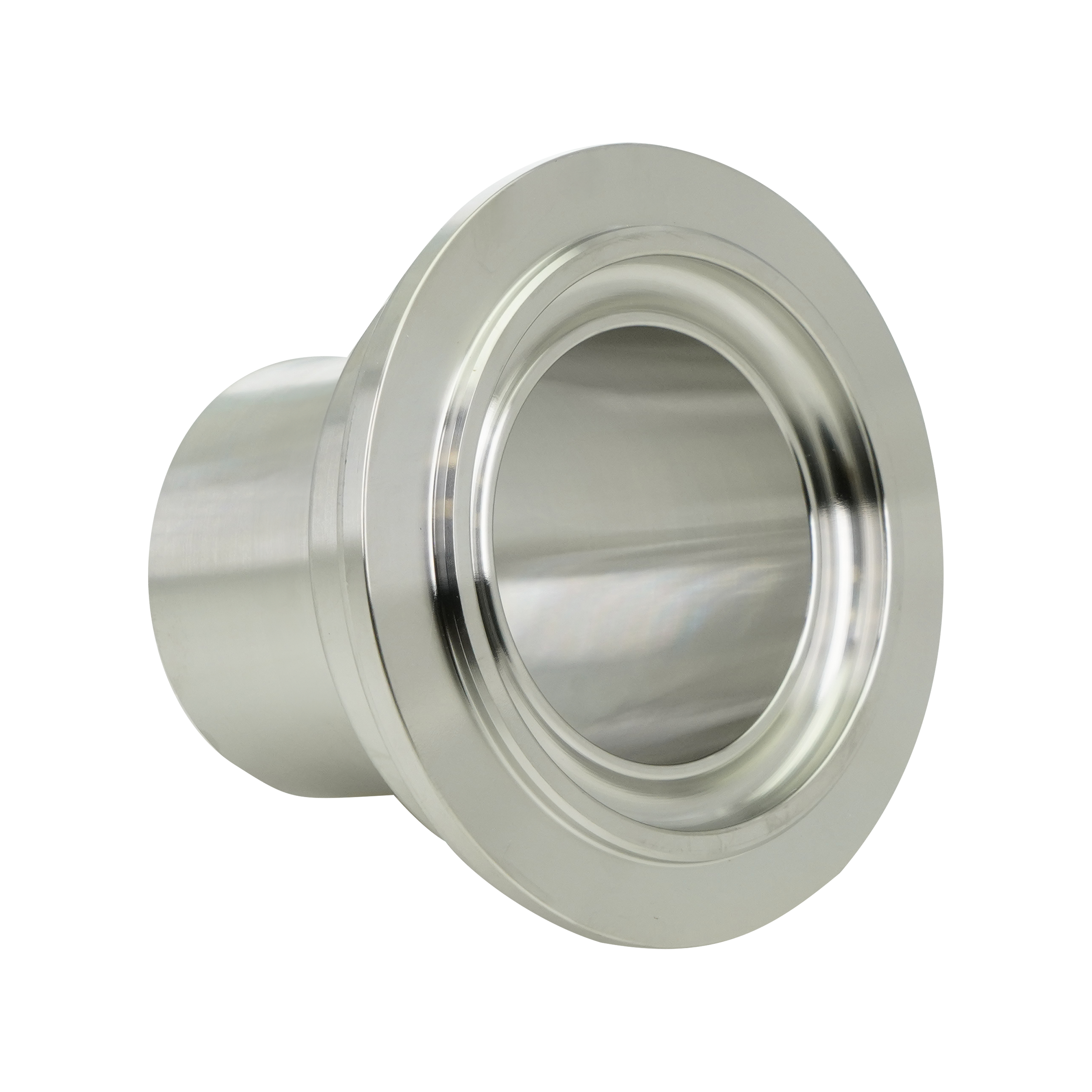

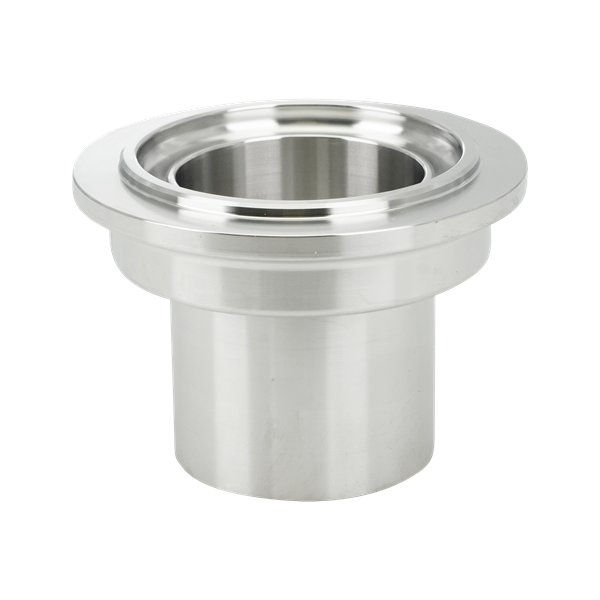

ASEPTIC MALE CLAMP NKS 1.5" 0.065" WALL 45.5MM 1.791" OAL BPE DIN 11864-3A SERIES C 316L 32RA ID 32RA OD

BPENKS-1.5-316L-11864-3A

Net Price: $101.15 / EA

Have an account? Login now.

Availability:
Product Type Tube Fittings
Product Subtype Ferrules
Material 316L Stainless Steel
Finish 32Ra ID / 32Ra OD
Size 1 1.5"
Connection Type 1 DIN
Length 45.5mm OAL
Specification / Standard ASME BPE
Fitting Design BPENKS
Wall Thickness 0.065"
Weight 0.60000

BPENKS-0.5-316L-11864-3A Dimesional Diagram

Asetic Male Clamp NKS BPE
Nominal SizeAB
(in)(mm)(in)(mm)(in)(mm)
0.5012.71.5639.50.071.65
0.7519.11.5639.50.071.65
1.025.41.5840.00.071.65
1.538.11.7945.50.051.15
2.050.81.8146.00.071.65
2.563.52.3259.00.071.65
3.076.22.3660.00.071.65
4.0101.62.406100.082.1
