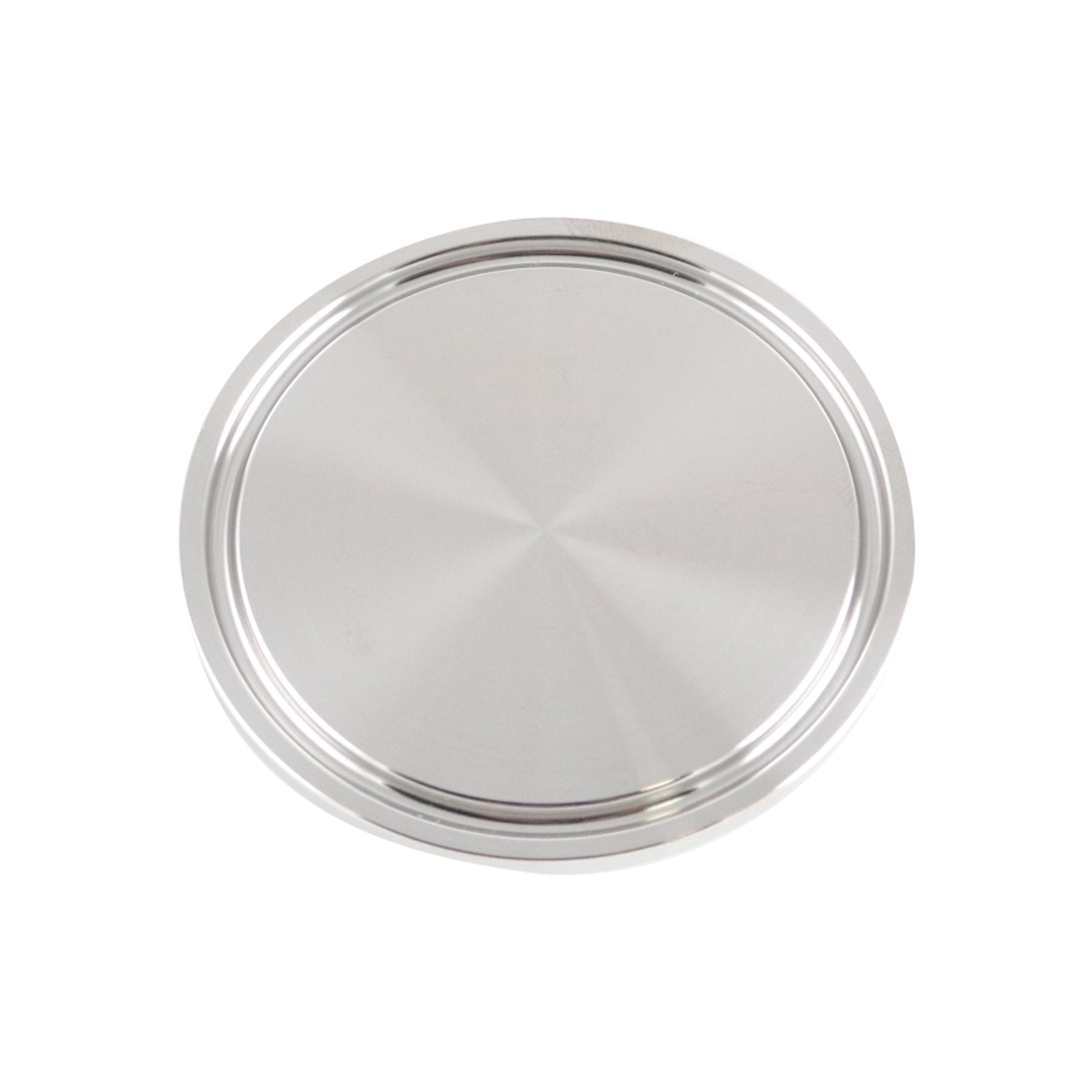

CAP 2" TC 316L 32RA ID 32RA OD

16AMP-2-316L-7

Availability:
Springfield, MO 559 EA
Durham, NC 0 EA
Modesto, CA 27 EA
Grand Prairie, TX 1,023 EA
Alloy/Material:
316 / 316L
Connection Type:
Tri-Clamp
Finish:
32Ra ID / 32Ra OD
Size:
2"
Specification/Standard:
Sanitary Fittings
Weight:
0.31

16AMP Dimensional Diagram

Tri-Clamp Solid End Cap | 16AMP-Size-Material-Finish
Nominal SizeAB
(in)(mm)(in)(mm)(in)(mm)
¼6.350.1874.750.98425.00
9.530.1874.750.98425.00
½12.700.1874.750.98425.00
¾19.050.1874.750.98425.00
125.400.2506.351.98450.40
38.100.2506.351.98450.40
250.800.2506.352.51663.90
63.500.2506.353.04777.40
376.200.2506.353.57990.00
4101.600.3127.924.682119.10
6152.400.43711.106.575167.01
