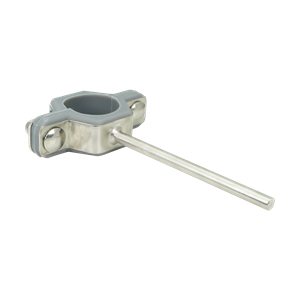

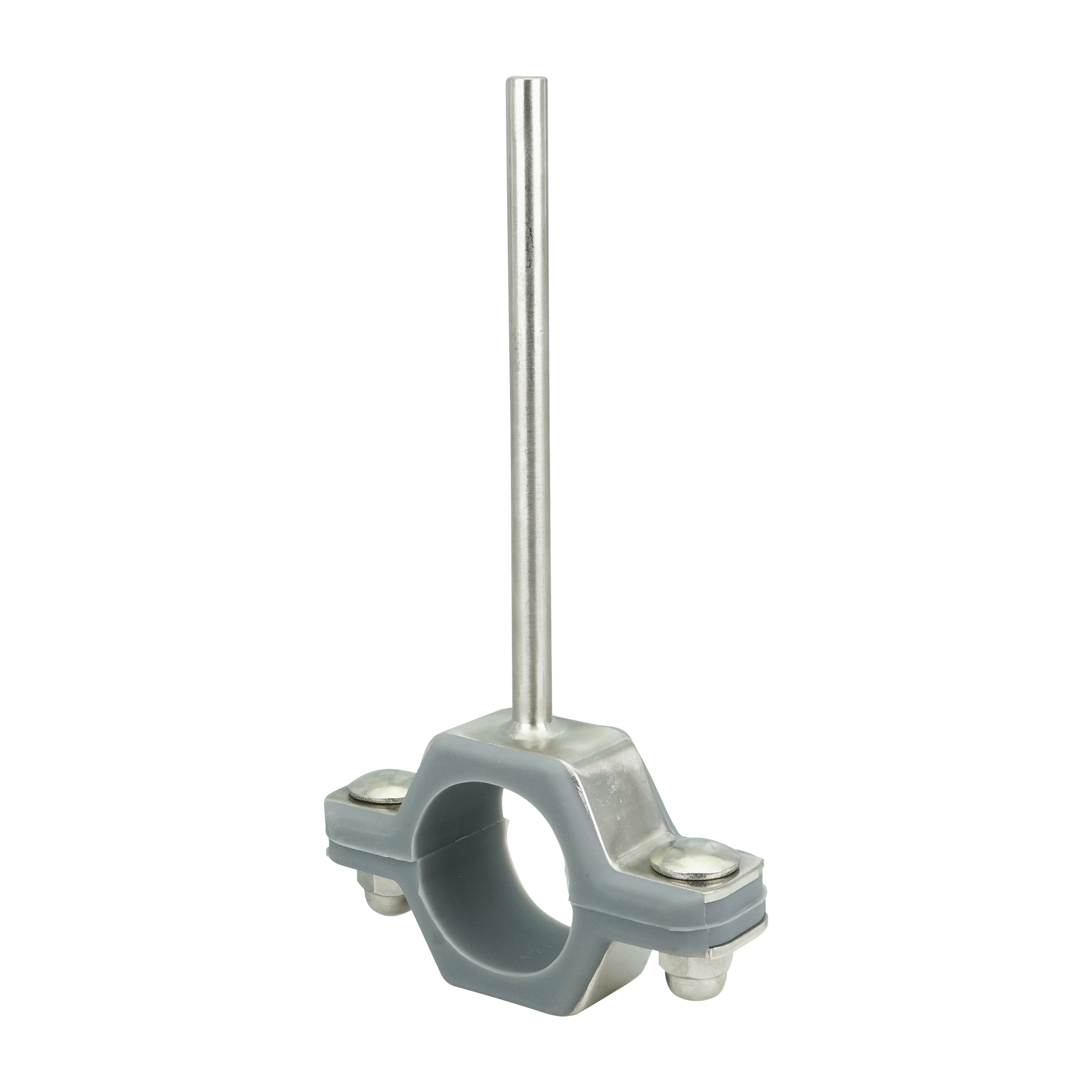

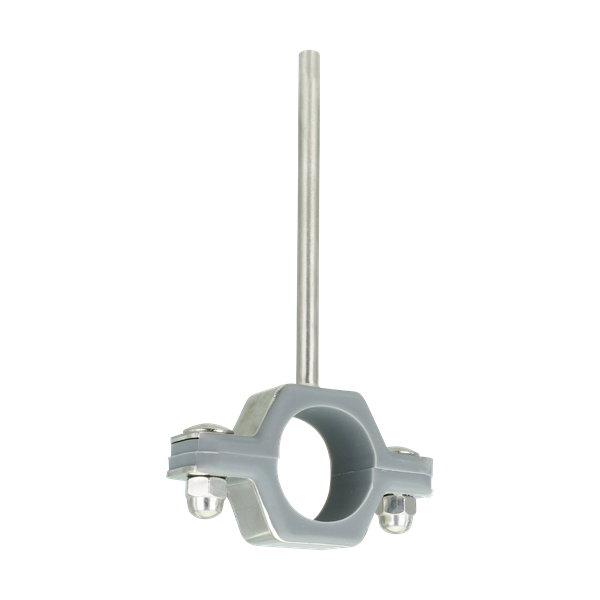

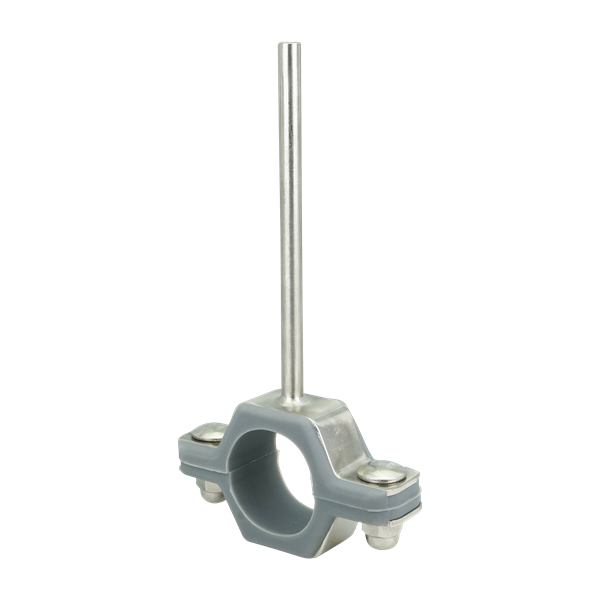

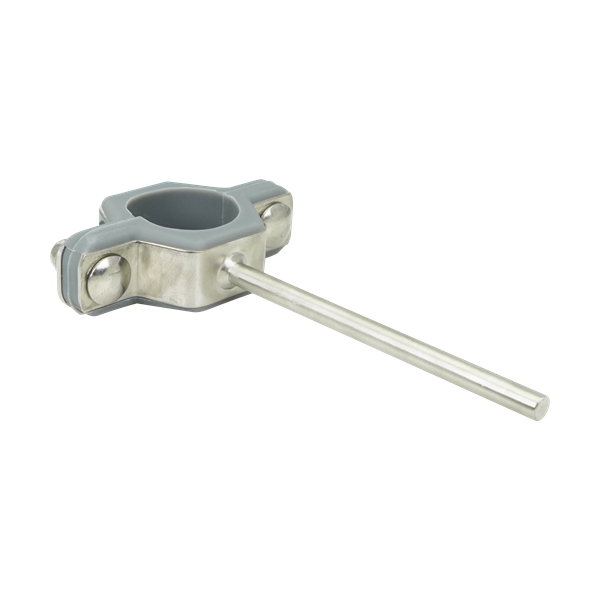

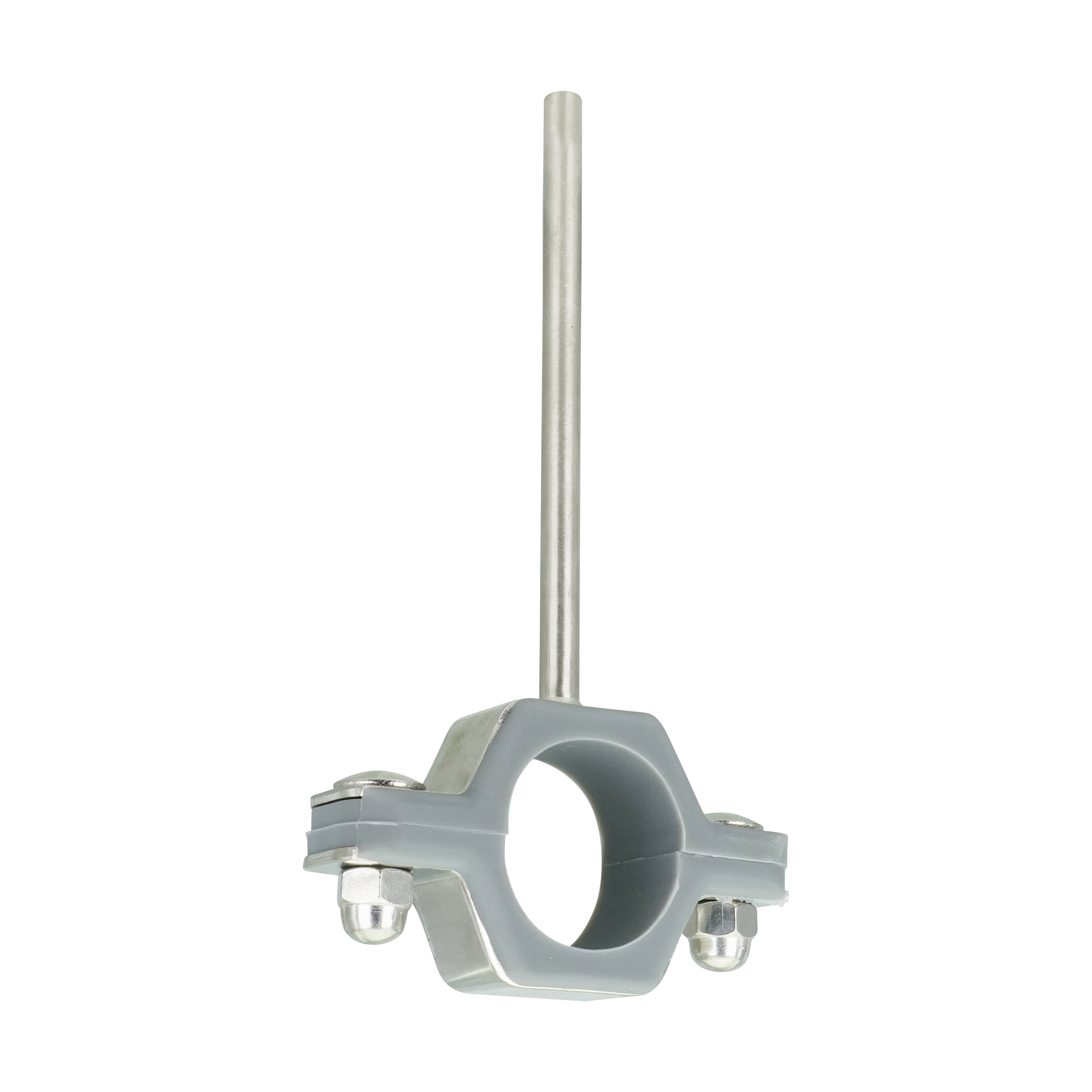

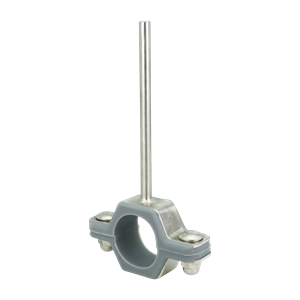

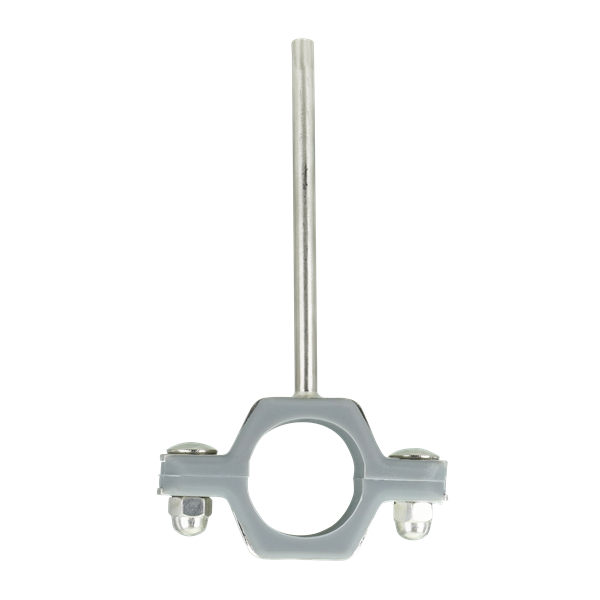

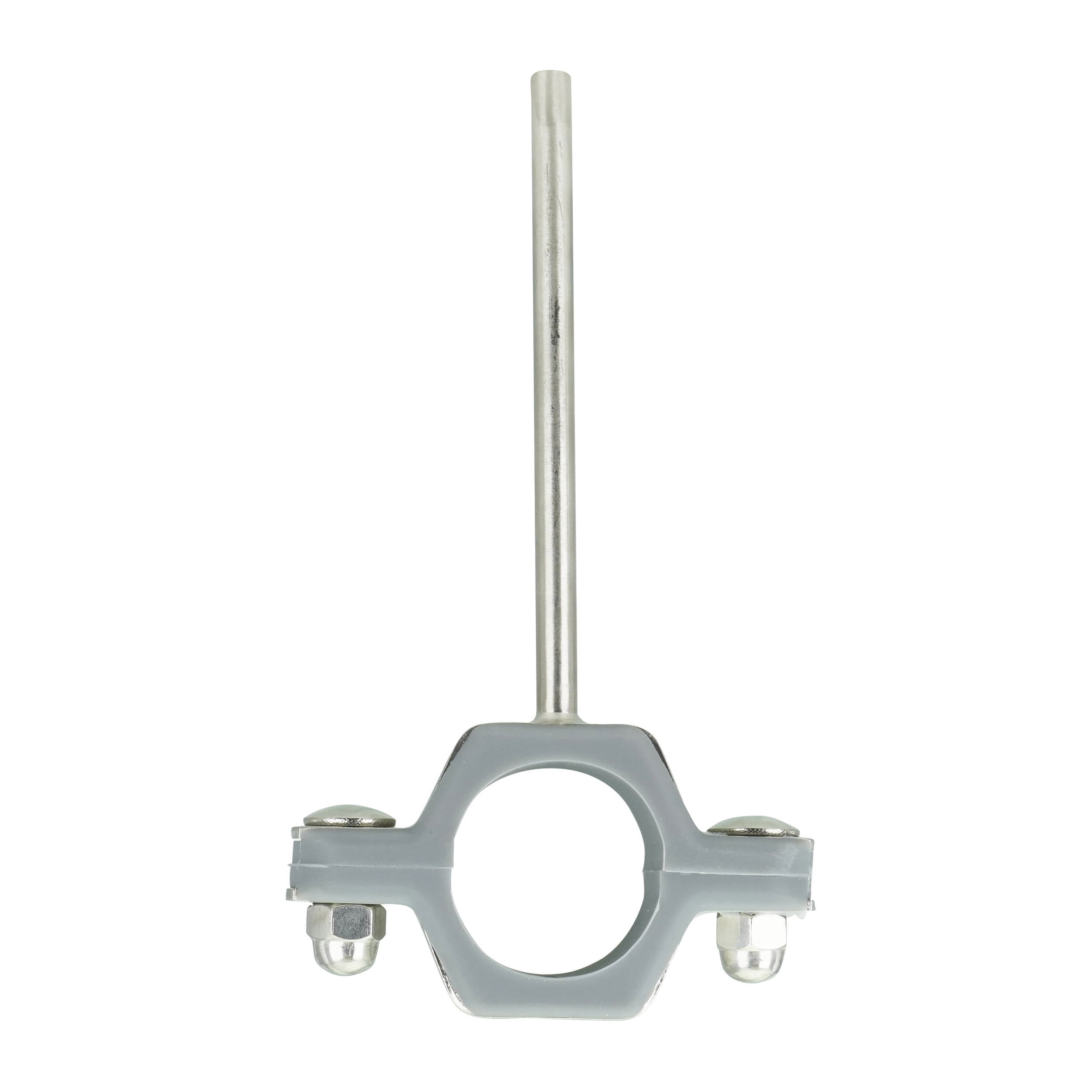

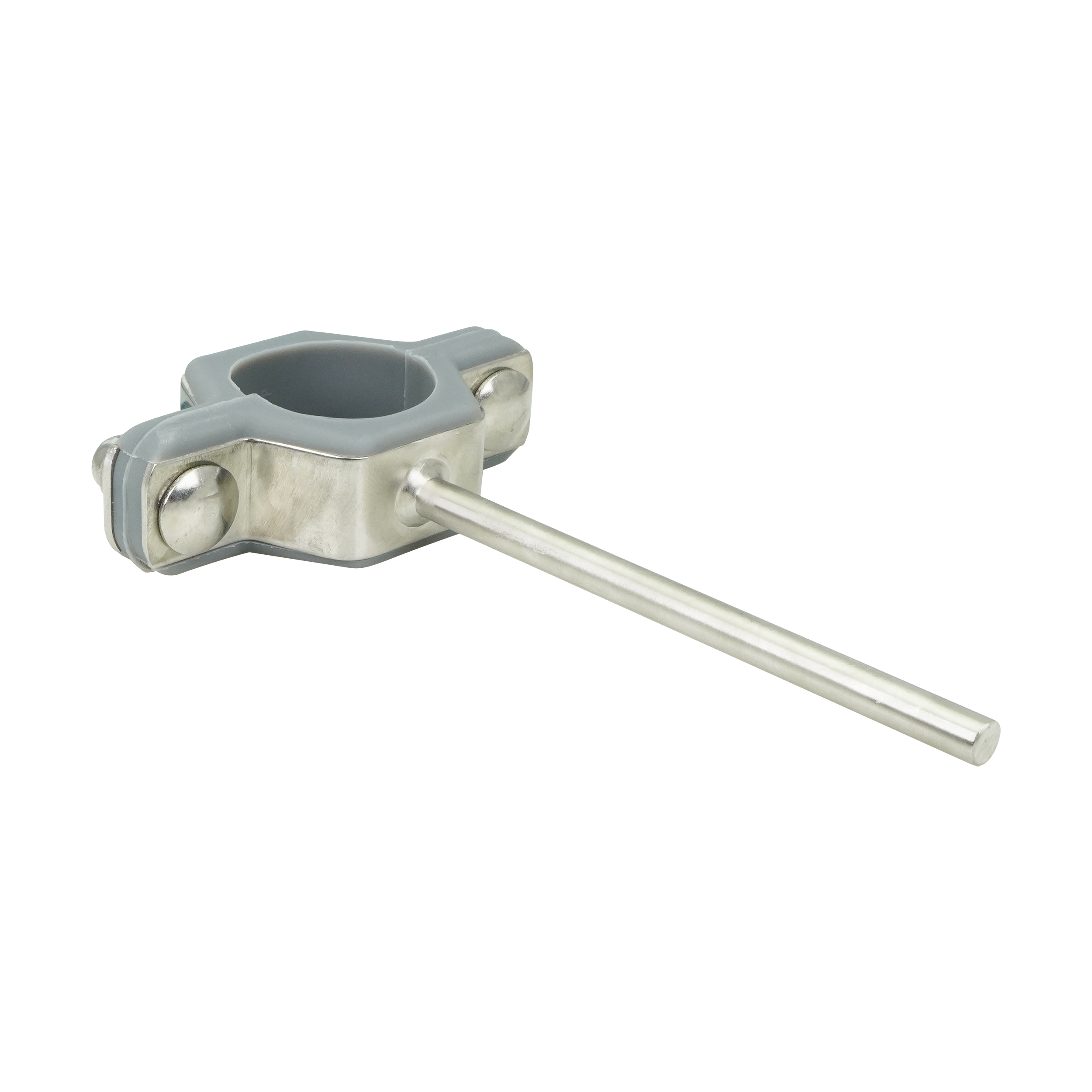

PROCESS HEX HANGER ROD MOUNT ASSEMBLY 1.5" PIPE 6" LONG 3/8" OD ROD 304 SILICONE ANCHOR LIGHT GREY ACORN NUT GROUP 4
PHH6R1.5P304SAN
Net Price: $52.60 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Syntiro |
|---|---|
| Product Type | Hangers |
| Product Subtype | Hex Hangers |
| Series | PHH Series |
| Model | PHH6R |
| Material | 304 Stainless Steel |
| Size 1 | 1.5" |
| Color | Gray |
| Orientation / Mount | Welded Rod |
| Insert Material | Silicone |
| Rod Length | 6" |
| Weight | 0.80000 |
Dimensional Data
PHHR Pipe Dimensional Diagram
| Pipe Size | Line OD | H | L | W | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 0.84 | 21.34 | 1.45 | 36.83 | 3.00 | 76.20 | 1.10 | 27.94 |
| ¾ | 19.05 | 1.05 | 26.67 | 1.45 | 36.83 | 3.00 | 76.20 | 1.10 | 27.94 |
| 1 | 25.40 | 1.32 | 33.53 | 1.96 | 49.78 | 4.00 | 101.60 | 1.42 | 36.07 |
| 1¼ | 31.75 | 1.66 | 42.16 | 2.50 | 63.50 | 4.60 | 116.84 | 1.42 | 36.07 |
| 1½ | 38.10 | 1.90 | 48.26 | 2.50 | 63.50 | 4.60 | 116.84 | 1.42 | 36.07 |
| 2 | 50.80 | 2.375 | 60.33 | 3.00 | 76.20 | 5.10 | 129.54 | 1.42 | 36.07 |
| 2½ | 63.50 | 2.875 | 73.03 | 3.50 | 88.90 | 5.60 | 142.24 | 1.42 | 36.07 |
| 3 | 76.20 | 3.50 | 88.90 | 4.13 | 104.90 | 6.33 | 160.78 | 1.42 | 36.07 |
| 4 | 101.60 | 4.50 | 114.30 | 5.07 | 128.78 | 7.52 | 191.01 | 1.42 | 36.07 |
| 6 | 152.40 | 6.625 | 168.28 | 7.20 | 182.88 | 9.25 | 234.95 | 1.74 | 44.20 |
Resources
0Data Sheets
Syntiro PHH6 Data Sheet
33D Models
Syntiro PHH6 1.5P 3D Model
8Other Literature
