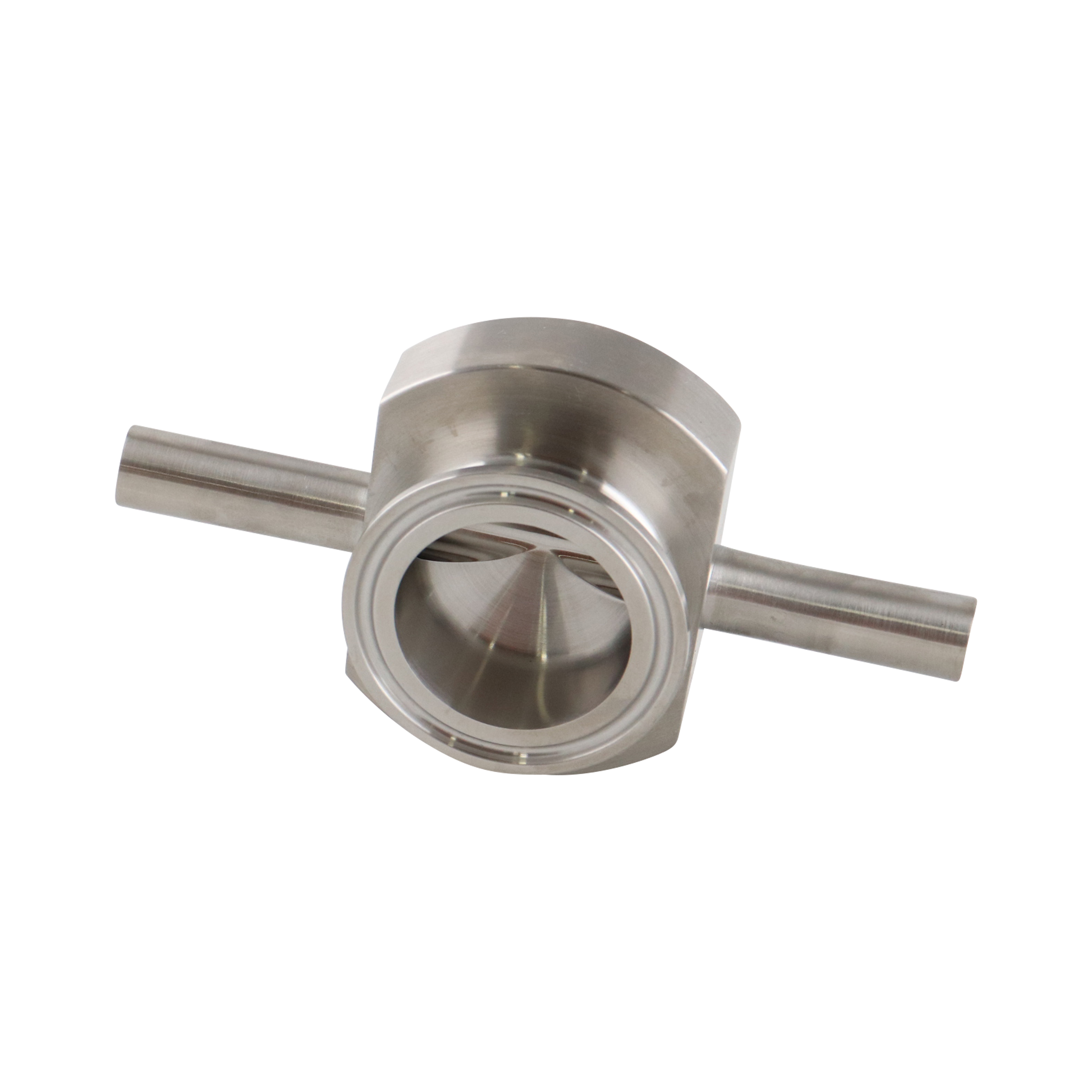

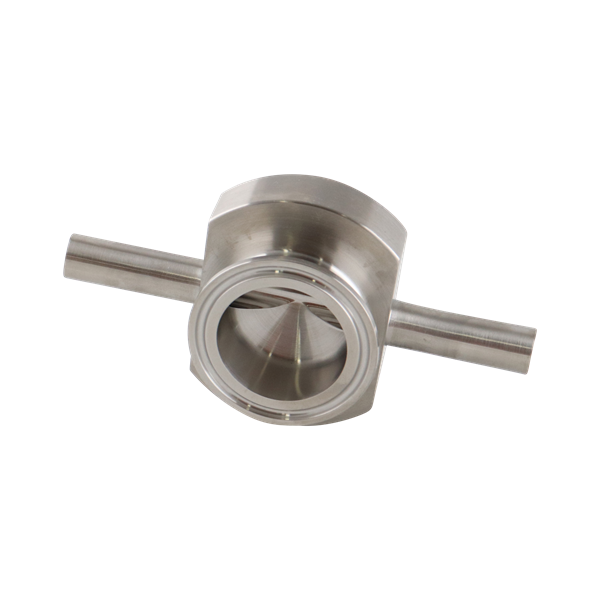

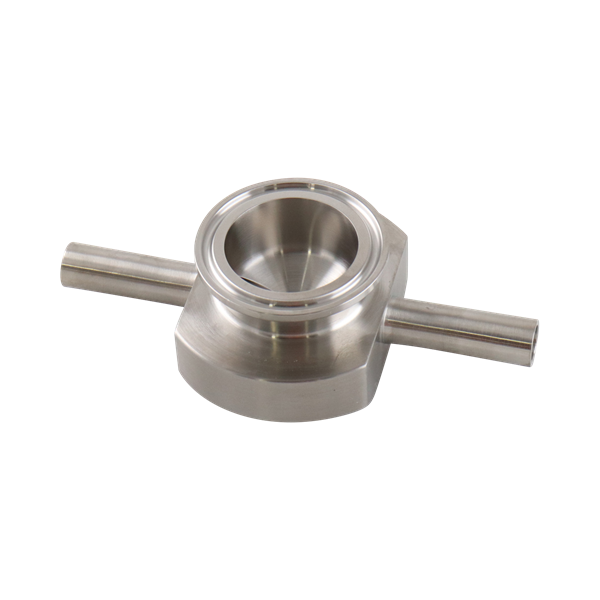

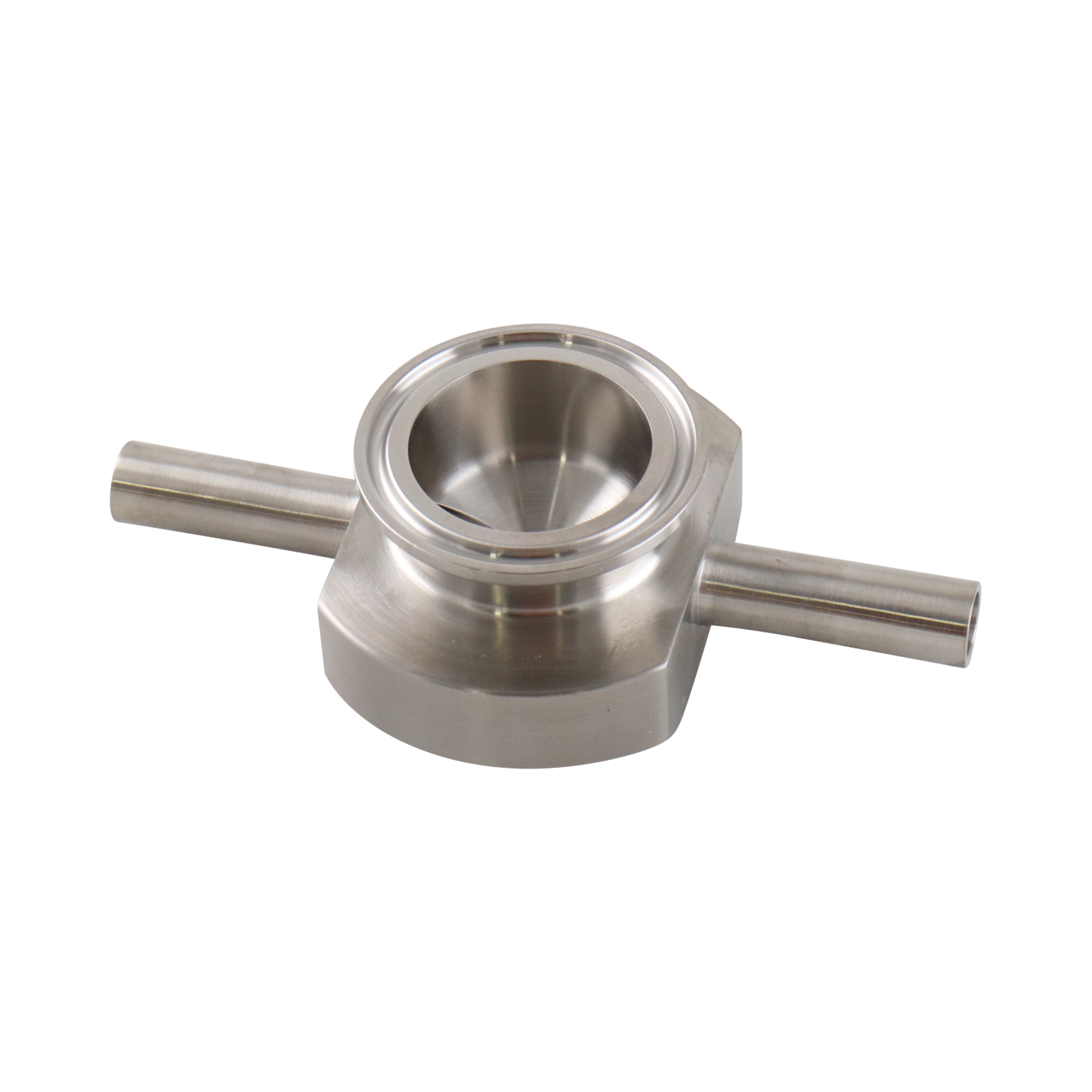

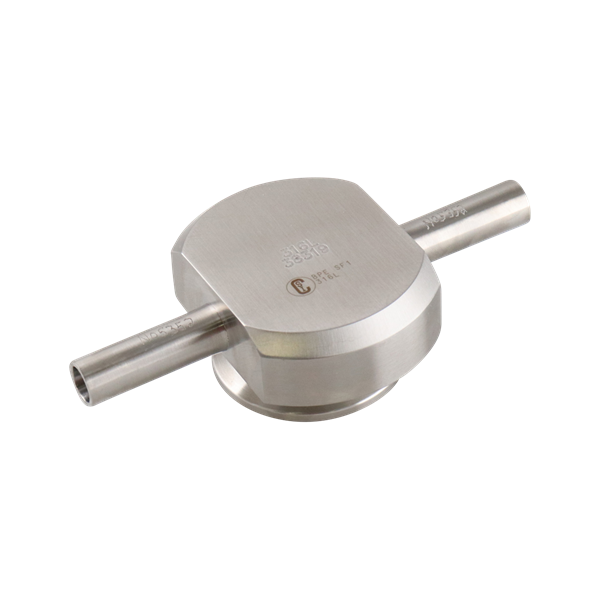

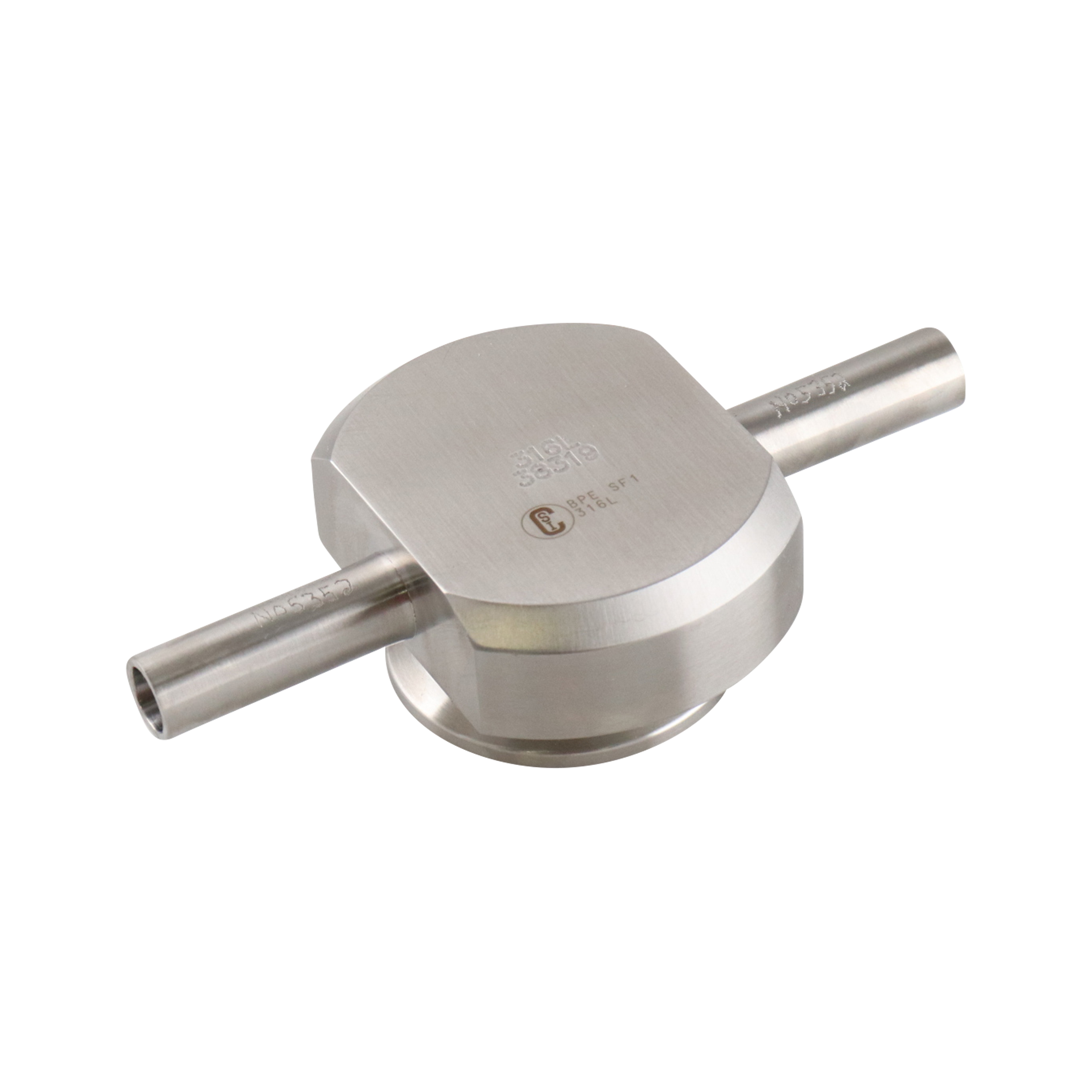

INSTRUMENT TEE 0.5X1.5 BW X TC 316L 20RA ID 32RA OD SF1 BPE
B7IWWMS-0.5X1.5-316L-PL
Net Price: $325.31 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Instrument Tees |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 0.5" |
| Connection Type 1 | Butt Weld |
| Size 2 | 1.5" |
| Connection Type 2 | Tri-Clamp |
| Specification / Standard | ASME BPE |
| Fitting Design | B7IWWMS |
| Weight | 0.80000 |
Dimensional Data
Butt Weld Instrument Tee | B7IWWMS-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ x 1½ | 12.70 x 38.10 | 2.500 | 62.50 | 0.875 | 22.23 |
| ½ x 2 | 12.70 x 50.80 | 2.750 | 69.85 | 1.000 | 25.40 |
| ¾ x 1½ | 19.05 x 38.10 | 2.500 | 63.50 | 1.000 | 25.40 |
| ¾ x 2 | 19.05 x 50.80 | 2.750 | 69.85 | 1.125 | 28.58 |
| 1 x 1½ | 25.40 x 38.10 | 2.500 | 63.50 | 1.125 | 28.58 |
| 1 x 2 | 25.40 x 50.80 | 2.750 | 69.85 | 1.250 | 31.75 |
| 1½ x 2 | 38.10 x 50.80 | 2.750 | 69.85 | 1.500 | 38.10 |
| BPE DT-4.1.2-10 | 2009 BPE DT-28 | |||||
B7IWWMS 2D Drawing
B7IMPS-0.5X1.5 3D Model
