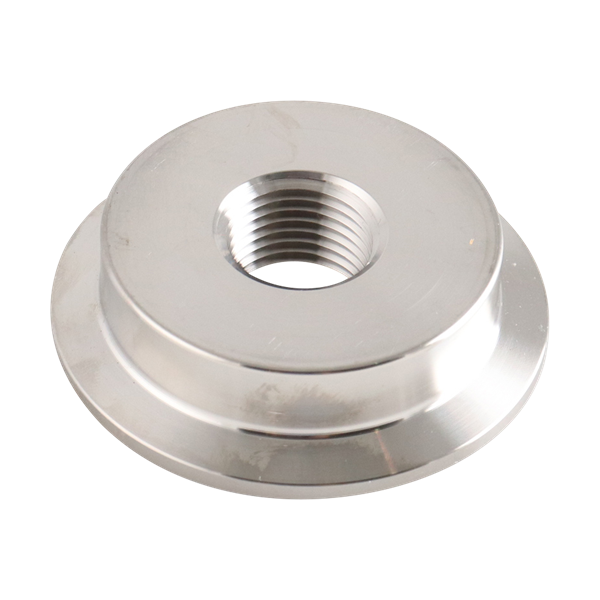

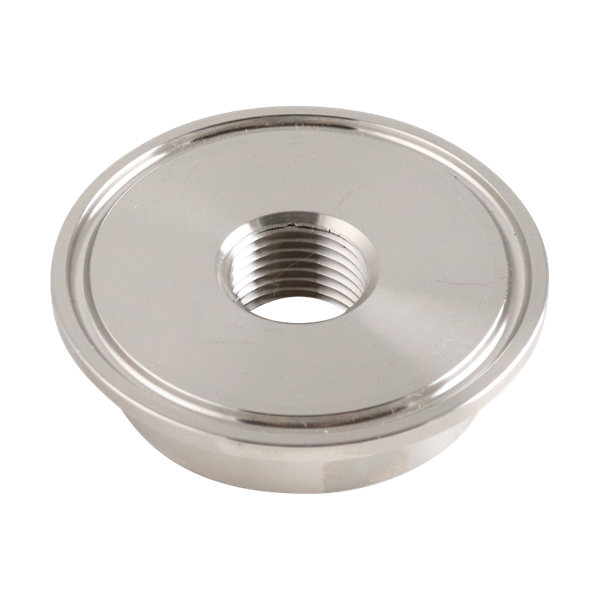

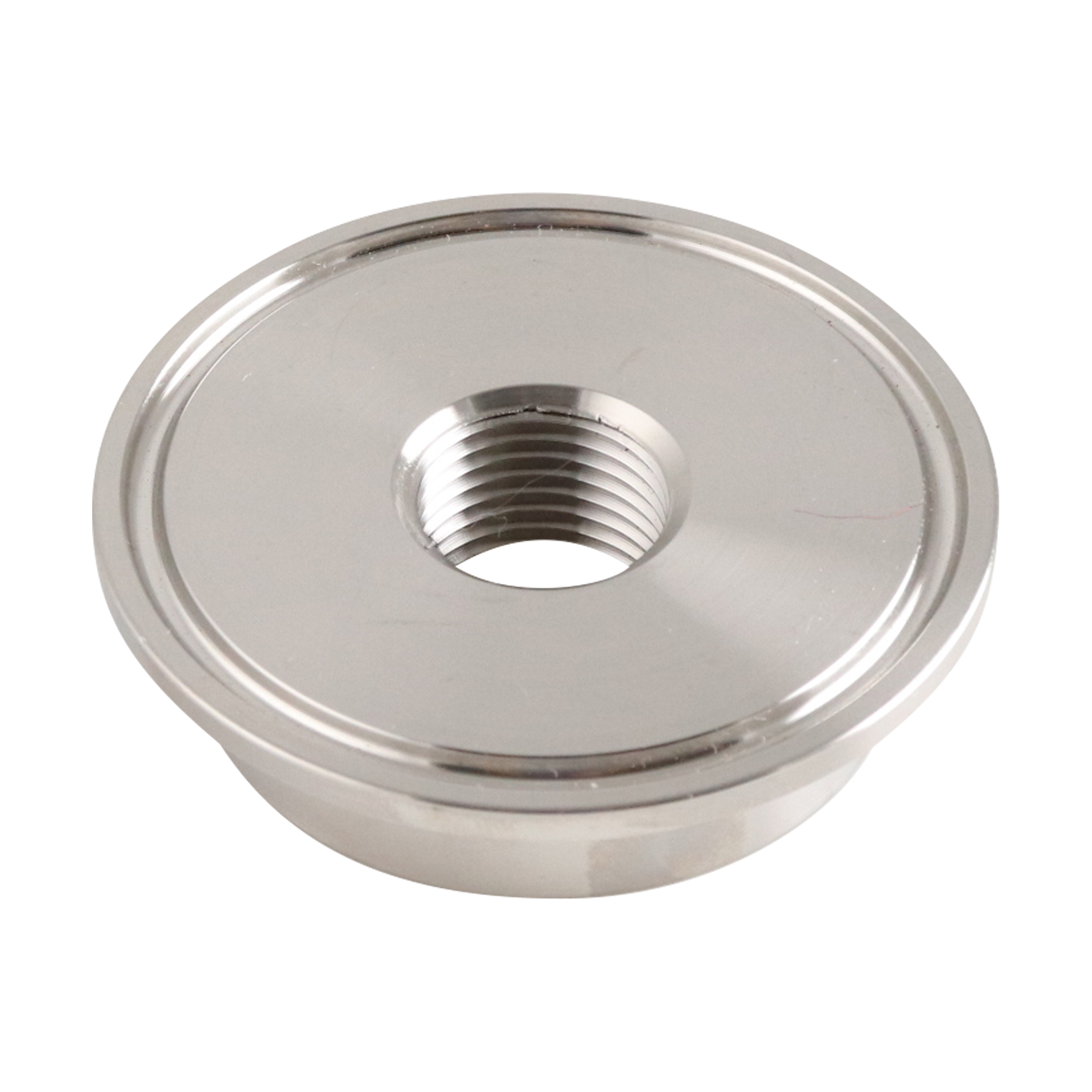

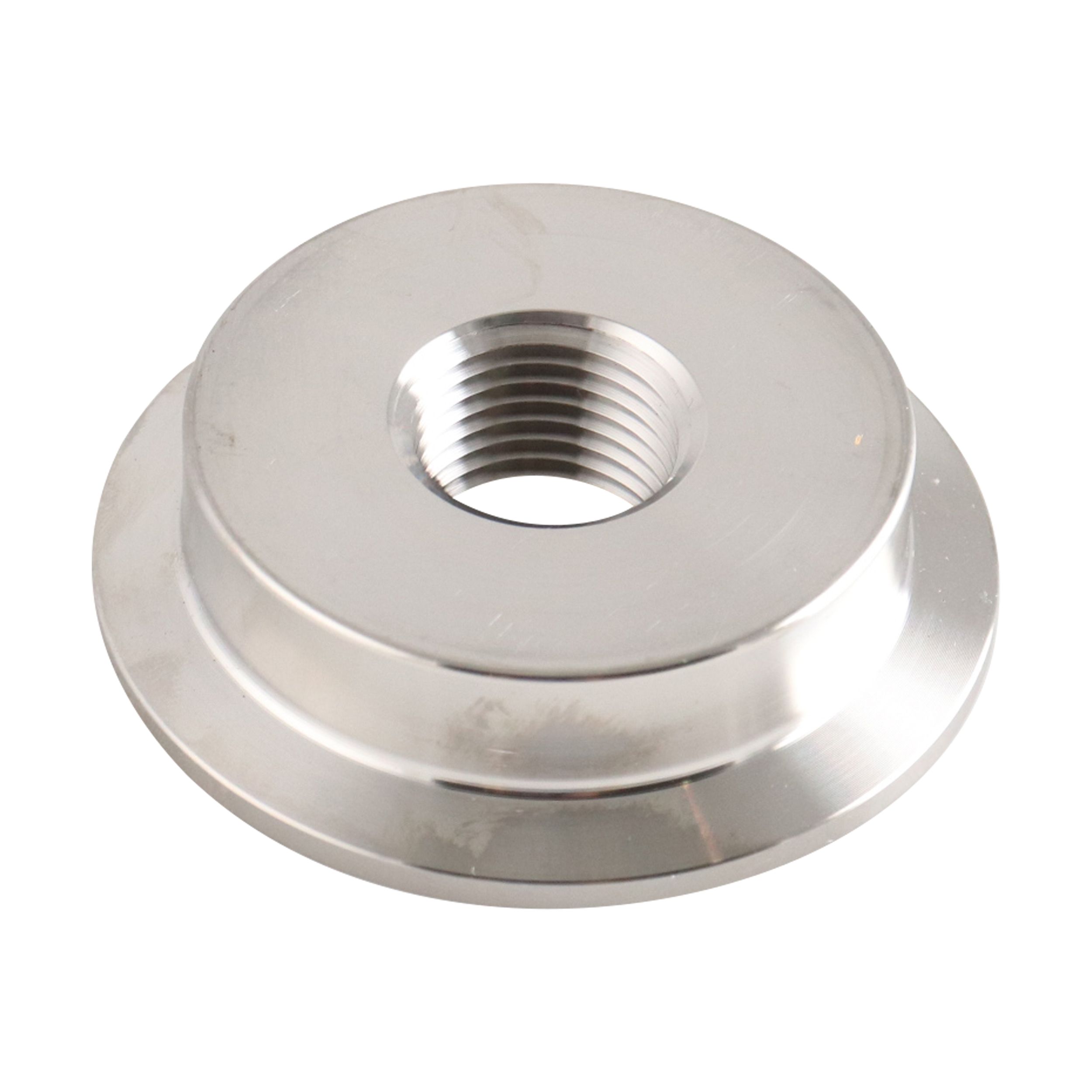

THERMOMETER CAP 2" TC X 0.5" FPT 316L 32RA ID 32RA OD
23BMP-2X0.5-316L
Net Price: $44.08 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Caps |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 0.5" |
| Connection Type 2 | FNPT |
| Fitting Design | 23BMP |
| Weight | 0.57500 |
Dimensional Data
Tri-Clamp Thermometer Caps, Tapped with NPT Threads | 23BMP-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ x ⅛ | 19.05 x 3.18 | 0.50 | 12.70 |
| ¾ x ¼ | 19.05 x 6.35 | 0.50 | 12.70 |
| ¾ x ⅜ | 19.05 x 9.53 | 0.50 | 12.70 |
| 1½ x ⅛ | 38.10 x 3.18 | 0.50 | 12.70 |
| 1½ x ⅜ | 38.10 x 9.53 | 0.50 | 12.70 |
| 1½ x ½ | 38.10 x 12.70 | 0.50 | 12.70 |
| 1½ x ¾ | 38.10 x 19.05 | 0.50 | 12.70 |
| 2 x ⅛ | 50.80 x 3.18 | 0.50 | 12.70 |
| 2 x ⅜ | 50.80 x 9.53 | 0.50 | 12.70 |
| 2 x ½ | 50.80 x 12.70 | 0.50 | 12.70 |
| 2 x ¾ | 50.80 x 19.05 | 0.50 | 12.70 |
| 2 x 1 | 50.80 x 25.40 | 0.50 | 12.70 |
| 2 x 1½ | 50.80 x 38.10 | 0.50 | 12.70 |
| 2½ x ⅛ | 63.50 x 3.18 | 0.50 | 12.70 |
| 2½ x ⅜ | 63.50 x 9.53 | 0.50 | 12.70 |
| 2½ x ½ | 63.50 x 12.70 | 0.50 | 12.70 |
| 2½ x ¾ | 63.50 x 19.05 | 0.50 | 12.70 |
| 2½ x 1 | 63.50 x 25.40 | 0.50 | 12.70 |
| 2½ x 1½ | 63.50 x 38.10 | 0.50 | 12.70 |
| 3 x ¼ | 76.20 x 6.35 | 0.50 | 12.70 |
| 3 x ⅜ | 76.20 x 9.53 | 0.50 | 12.70 |
| 3 x ½ | 76.20 x 12.70 | 0.50 | 12.70 |
| 3 x ¾ | 76.20 x 19.05 | 0.50 | 12.70 |
| 3 x 1 | 76.20 x 25.40 | 0.50 | 12.70 |
| 3 x 1½ | 76.20 x 38.10 | 0.50 | 12.70 |
| 4 x ¼ | 101.60 x 6.35 | 0.50 | 12.70 |
| 4 x ½ | 101.60 x 12.70 | 0.50 | 12.70 |
| 4 x ¾ | 101.60 x 19.05 | 0.50 | 12.70 |
| 4 x 1 | 101.60 x 25.40 | 0.50 | 12.70 |
| 4 x 1½ | 101.60 x 38.10 | 0.50 | 12.70 |
| 4 x 2 | 101.60 x 50.80 | 0.50 | 12.70 |
