Pipetite®

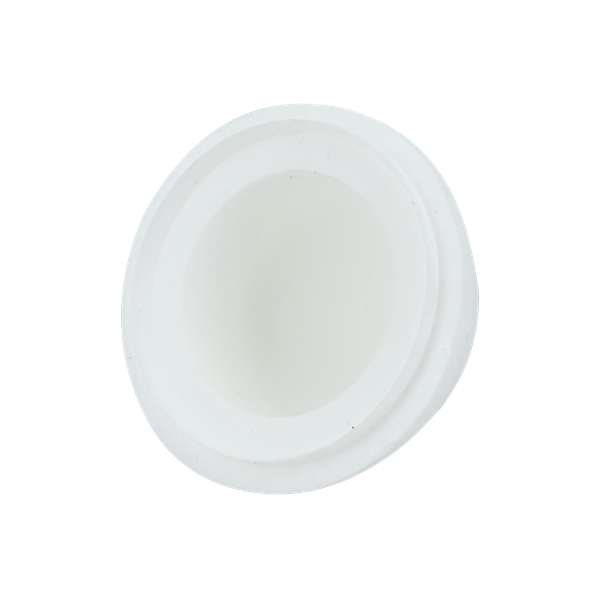

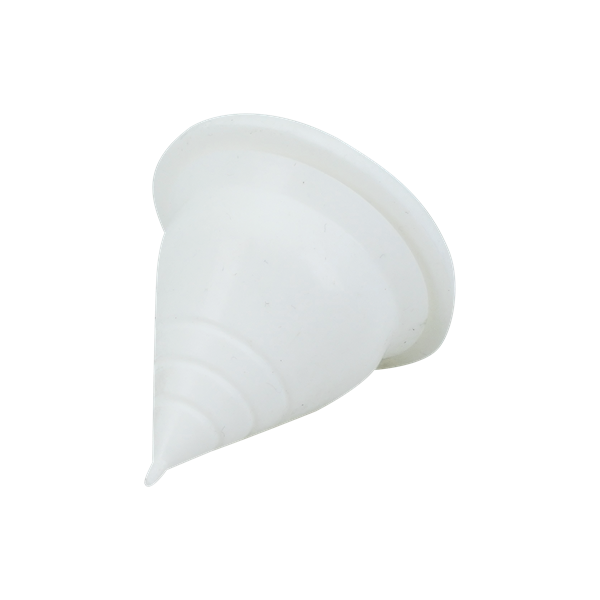

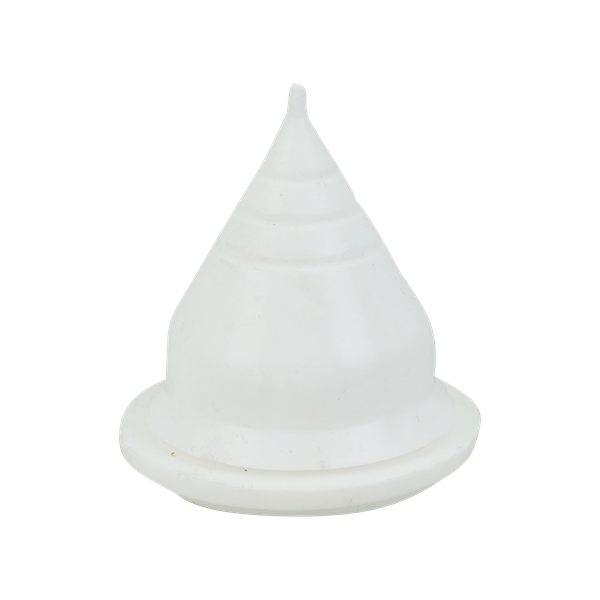

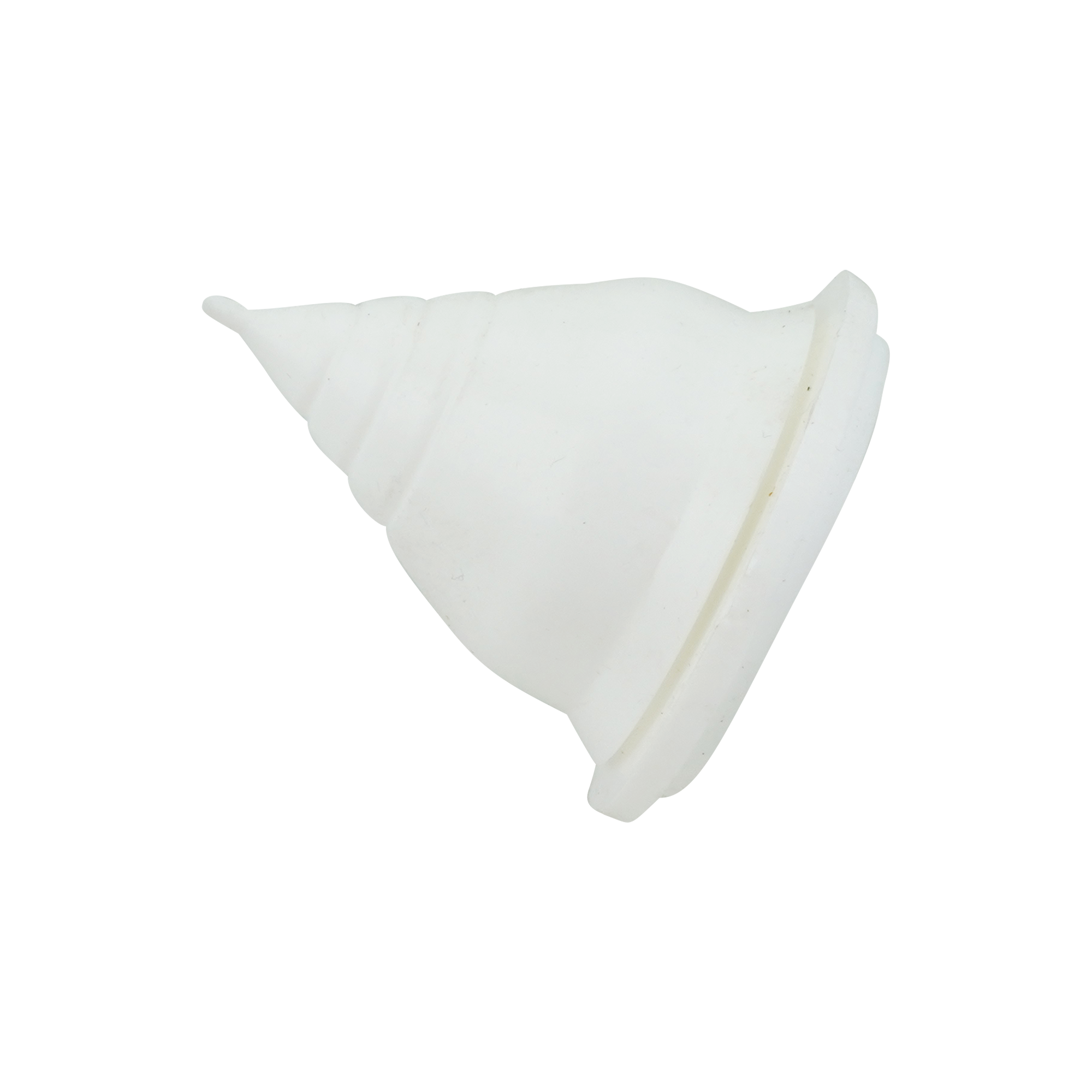

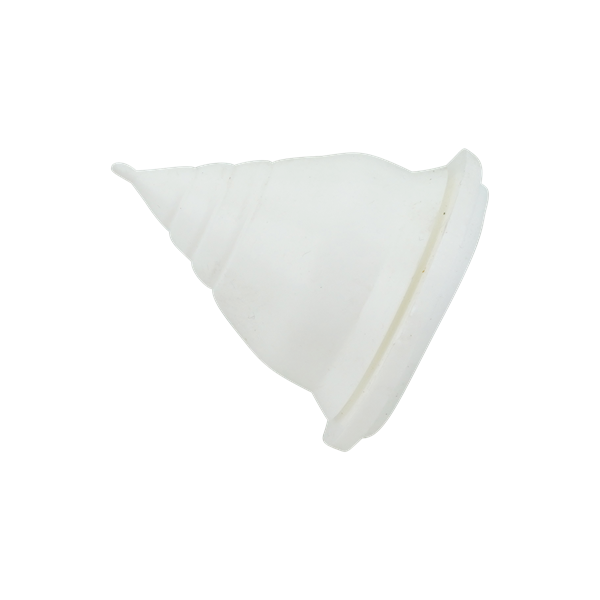

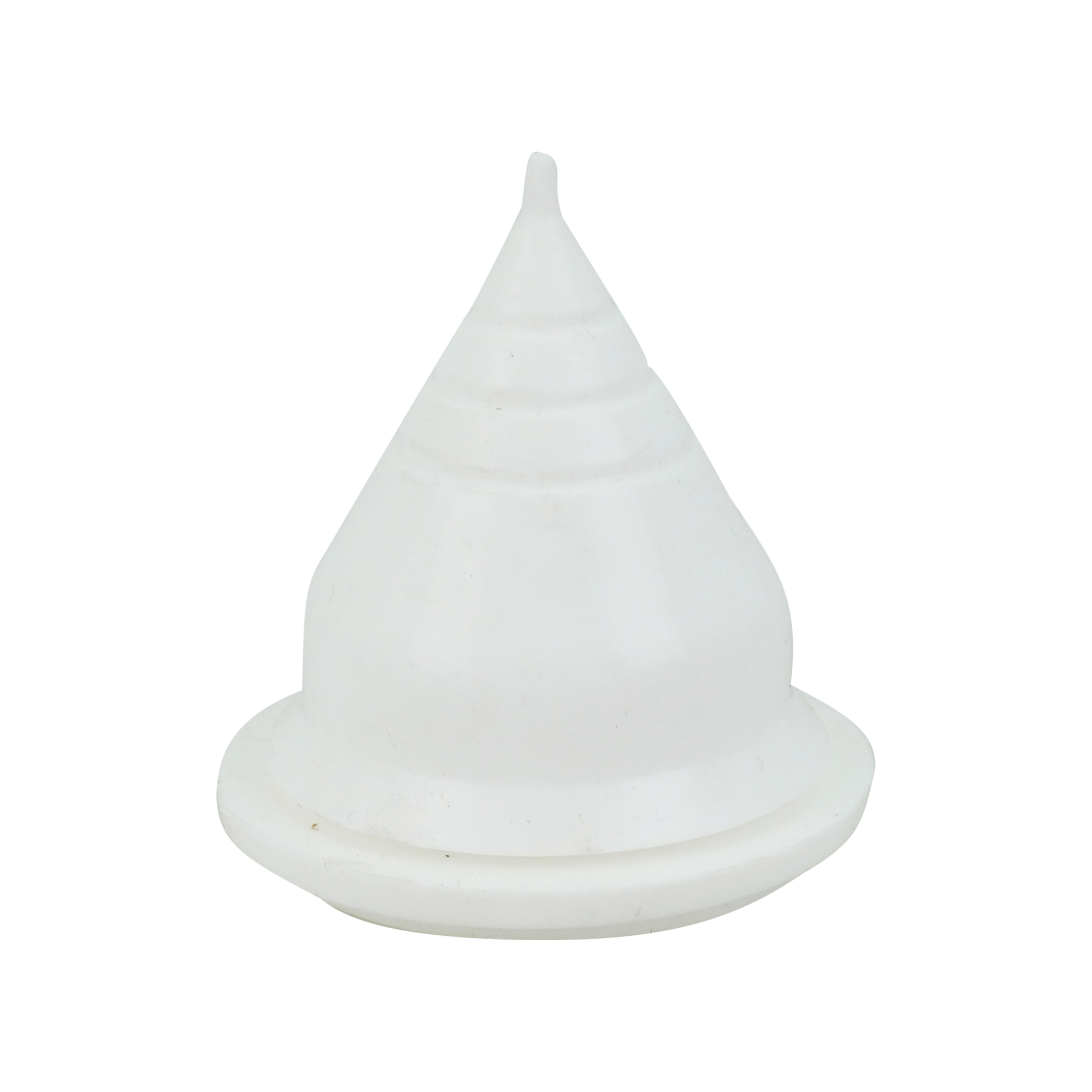

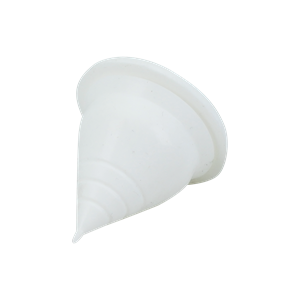

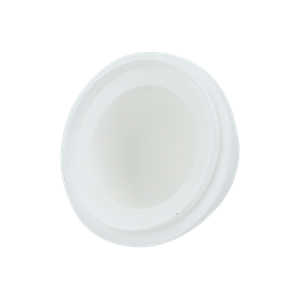

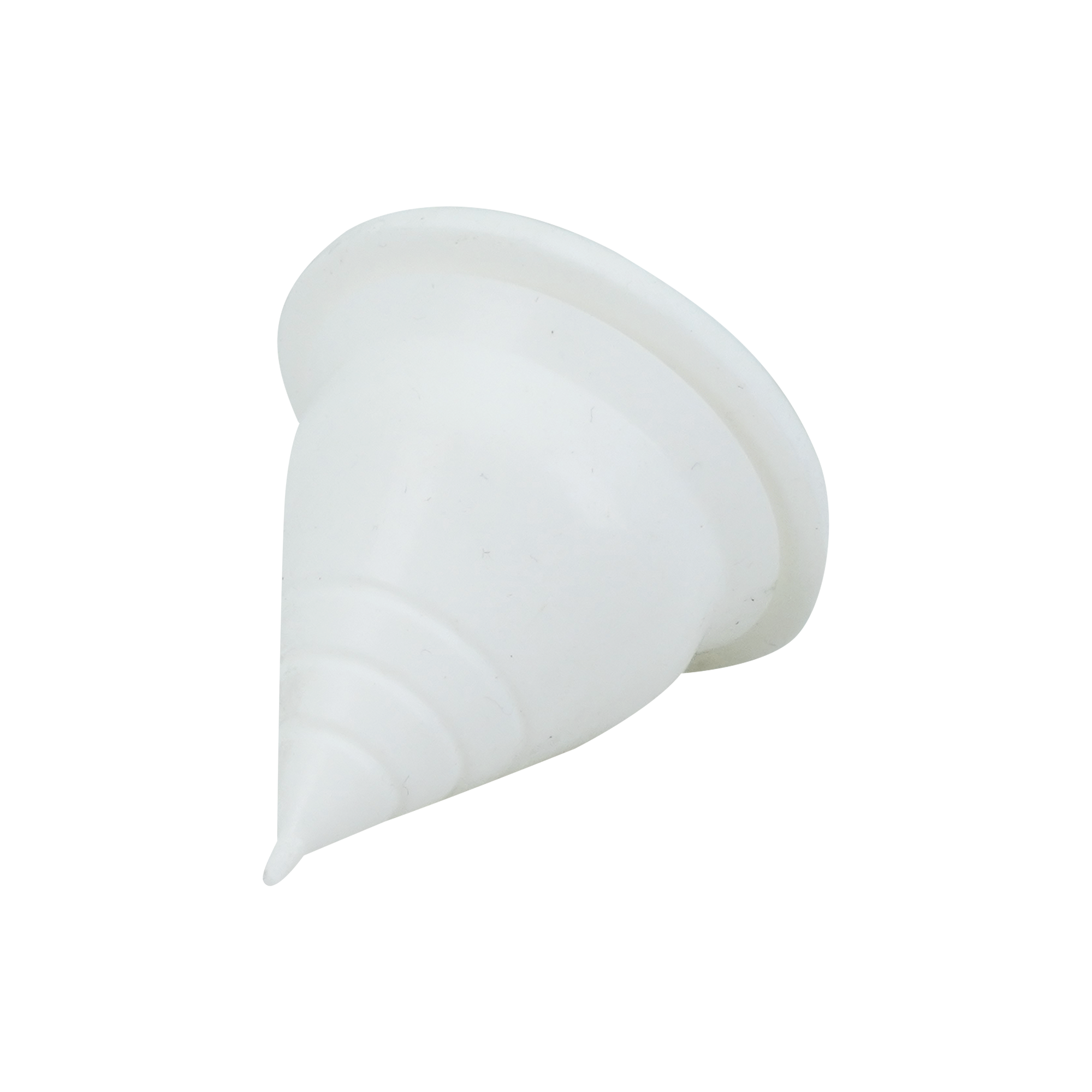

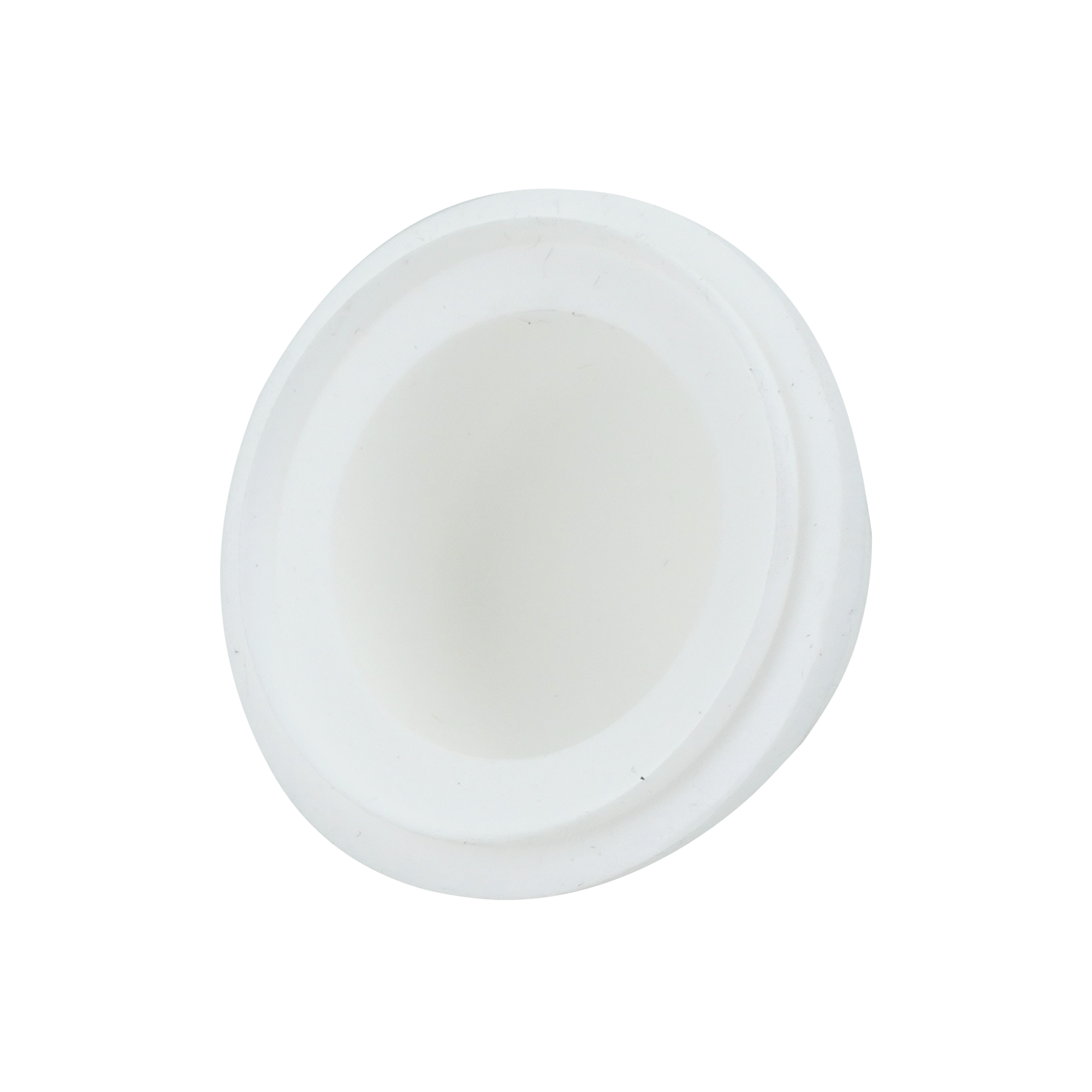

Pipetite Grommet Size 1 Full Cone 0 - 1" for 1.375" Hole White Silicone FDA
PTG1-000
- MPN:
- 317 130
Pipetite Grommet is ideal for creating watertight seals around wires and tubing as they enter cabinets, panels, and enclosures. Perfect for electrical contractors, they provide a tight, reliable seal for penetrations in cabinets, panels, and enclosures. The flexible lip seal makes installation fast and easy.
Net Price: $24.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Pipetite® |
|---|---|
| Product Type | Pipetite |
| Product Subtype | Grommets |
| Material | Silicone |
| Elastomer | Silicone |
| Size 1 | Size 1 |
| Color | White |
| Specification / Standard | FDA 21 CFR 177.2600 |
| Weight | 0.05000 |
- Manufacturer:
- Lake Products LTD
- MPN:
- 317 130
Dimensional Data
Pipetite Grommet | Size 1-Size-Material-Finish
| Nominal Size | A | B | C | ||||
|---|---|---|---|---|---|---|---|
| (in) | Tube OD (in) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 0.00-1.00 | 1.89 | 48.0 | 1.38 | 35.1 | 2.12 | 54.0 |
| 2 | 0.00-2.56 | 3.23 | 82.0 | 2.75 | 70.0 | 2.50 | 63.5 |
| 3 | 0.00-3.74 | 4.72 | 120.0 | 4.00 | 102.0 | 3.25 | 83.0 |
| 4 | 2.76-5.31 | 6.30 | 160.0 | 5.75 | 146.0 | 2.50 | 63.5 |
| 5 | 3.94-7.09 | 7.95 | 202.0 | 7.25 | 184.1 | 3.12 | 79.2 |
Resources
0Data Sheets
33D Models
Pipetite PTG1-000 3D Model
7Standards and Certifications
-
Pipetite AD DSL Conformance
-
Pipetite BfR Recommendation XV-CoC
-
Pipetite Declaration of Compliance of BfR Section XV
-
Pipetite Declaration of Compliance on Food Contact Materials
-
Pipetite Declaration RoHS Free
-
Pipetite FDA General Certificate of Conformance
-
Pipetite FDA Signed Letter
-
Pipetite FDA Test 2014
-
Pipetite FDA Test and Certificate of Conformance
-
Pipetite ISO 14001 Environmental Certification
-
Pipetite Letter of Conformity
-
Pipetite Rings Stainless Steel Certification 1-21-21
-
Pipetite SGS Institute Fresenius Compliance of BfR Section XV
-
Pipetite UV Testing Report
8Other Literature
-
Pipetite and Fire-Rated Installations
-
Pipetite Applications
-
Pipetite MSDS Silicone Safety Data Sheet
-
Pipetite MSDS Stainless Steel Rings Safety Data Sheet
9Spanish Documents
Blog Posts
Features
- Available in sizes to fit up to 7 inch OD pipe, tubing or hose
- Flexible lip seal fits wall thickness from 18 gauge to 11 gauge (0.048 - 0.120 inches)
- Constructed of hygienic white silicone
- Totally self-sealing—no sealant required
- Flexible seal allows movement without damage or loss of seal
- Materials compatible with cleaning solution
Technical Data
| Material | Hygienic white silicone |
| Tube OD size range | 0 – 7 inch |
| Temperature (min) | -40°F |
| Temperature (max) | 500°F |
| Patents | 9255412, 10000934, 9581271 |
| Registered Designs | 699328 |
