Pipetite®

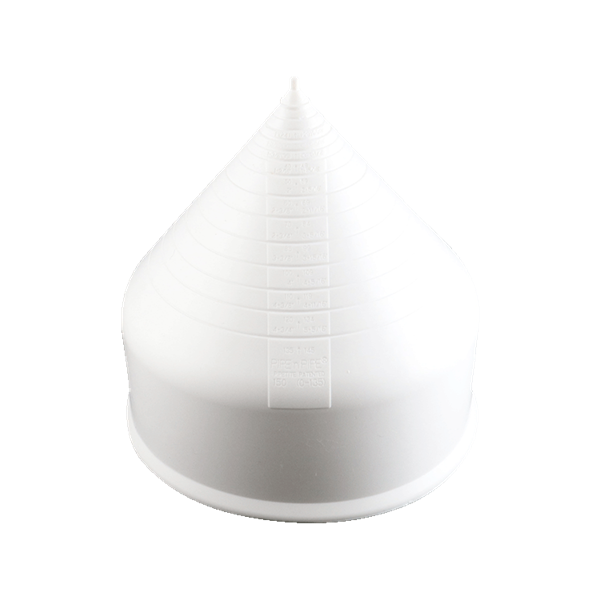

Pipetite Sleeve Boot Size 2 Full Cone 6" X 0 - 5.71" White Silicone FDA
PTS2-000
- MPN:
- 319 011
Constructed of hygienic white silicone, the Pipetite Sleeve Boot is ideal for floor penetrations and tube-in-tube transitions.
Robust lip seals provide excellent surface contact and eliminate the need for sealants, clamps, or fasteners. Superior flexibility allows the pipes to move significantly without causing damage or breaking the seal.
Net Price: $77.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Pipetite® |
|---|---|
| Product Type | Pipetite |
| Product Subtype | Sleeve Boots |
| Material | Silicone |
| Elastomer | Silicone |
| Size 1 | Size 2 |
| Color | White |
| Specification / Standard | FDA 21 CFR 177.2600 |
| Weight | 0.40000 |
- Manufacturer:
- Lake Products LTD
- MPN:
- 319 011
Dimensional Data
Pipetite Sleeve Boot
| Size | Sleeve OD | Tube OD | A | B | C | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 1 | 4.00 | 101.60 | 0.00-3.50 | 0.00-88.90 | 3.54 | 90.00 | 4.02 | 102.00 | 4.41 | 112.00 |
| 2 | 6.00 | 152.40 | 0.00-5.50 | 0.00-139.70 | 5.55 | 141.00 | 6.02 | 153.00 | 5.91 | 150.00 |
| 3 | 8.00 | 203.20 | 0.00-7.00 | 0.00-177.80 | 7.76 | 197.00 | 8.23 | 209.00 | 7.52 | 191.00 |
Resources
0Data Sheets
7Standards and Certifications
-
Pipetite AD DSL Conformance
-
Pipetite BfR Recommendation XV-CoC
-
Pipetite Declaration of Compliance of BfR Section XV
-
Pipetite Declaration of Compliance on Food Contact Materials
-
Pipetite Declaration RoHS Free
-
Pipetite FDA General Certificate of Conformance
-
Pipetite FDA Signed Letter
-
Pipetite FDA Test 2014
-
Pipetite FDA Test and Certificate of Conformance
-
Pipetite ISO 14001 Environmental Certification
-
Pipetite Letter of Conformity
-
Pipetite Rings Stainless Steel Certification 1-21-21
-
Pipetite SGS Institute Fresenius Compliance of BfR Section XV
-
Pipetite UV Testing Report
8Other Literature
-
Pipetite and Fire-Rated Installations
-
Pipetite Applications
-
Pipetite MSDS Silicone Safety Data Sheet
-
Pipetite MSDS Stainless Steel Rings Safety Data Sheet
9Spanish Documents
Blog Posts
Features
- Ideal for floor penetrations
- Available in three size ranges to fit 4, 6, or 8 inch tube floor sleeves
- Constructed of hygienic white silicone
- Totally self-sealing—no sealant required
- Easily trimmed to fit any diameter process line up to 7 inches
- Flexible seal allows movement without damage or loss of seal
- Materials compatible with cleaning solution
Technical Data
| Material | Hygienic white silicone |
| Tube OD size range | 0 – 7 inch |
| Sleeve OD sizes | 4, 6, and 8 inch |
| Temperature (min) | -40°F |
| Temperature (max) | 500°F |
| Patents | 9255412, 10000934 |
| Registered Designs | 699328, D796013 |
