Ampco

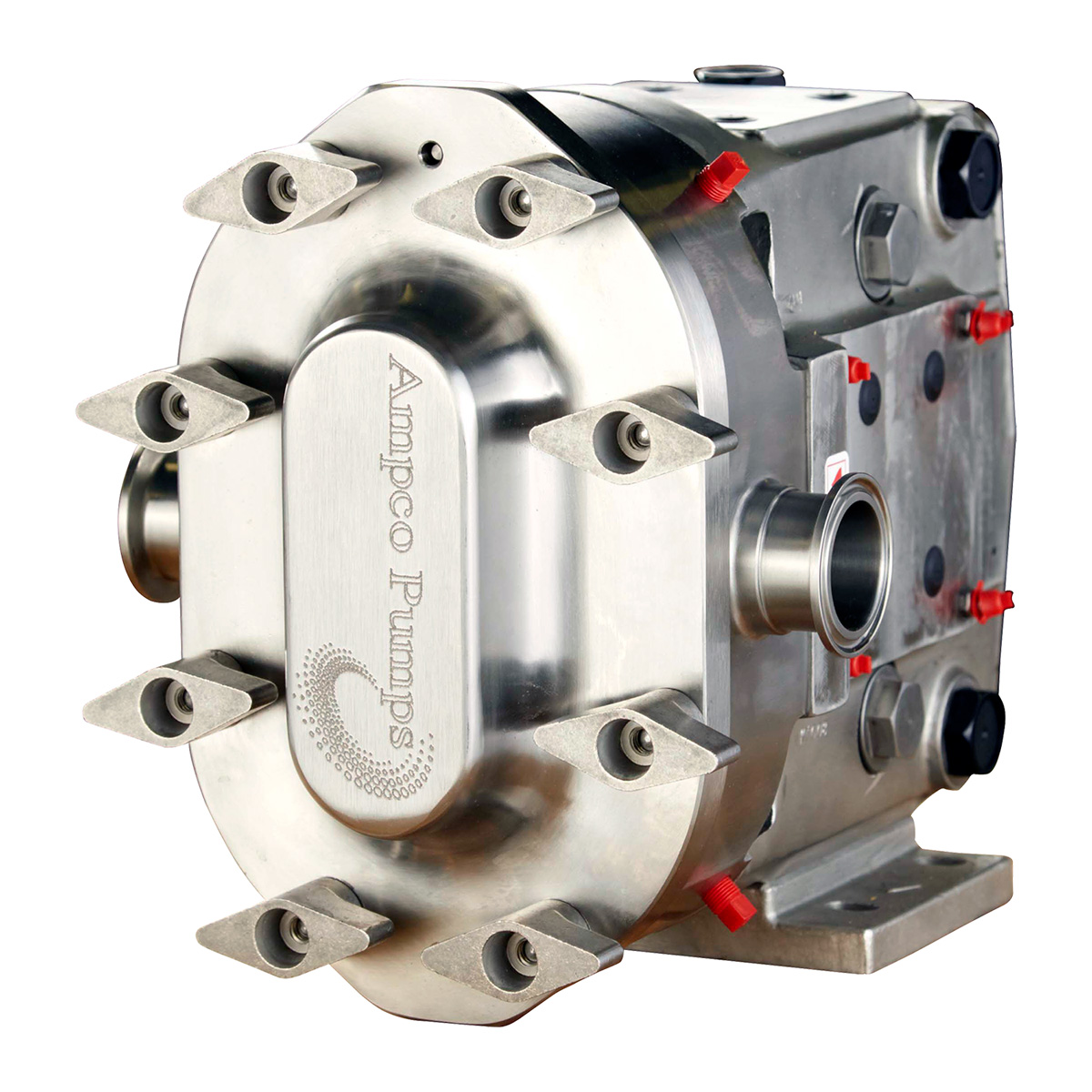

ZP1 030 CIRCUMFERENTIAL PISTON PUMP 2" TC HORIZONTAL PORTS BOTTOM DRIVE STAINLESS GEAR CASE SINGLE O-RING SEAL STAINLESS SLEEVE BUNA BI-WING COLD ALLOY 88 ROTORS AMPCO
ZP1030M20CS-SOSSU-2C8
- MPN:
- ZP1030M20CS-SOSSU-2C8
Net Price: $10,210.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

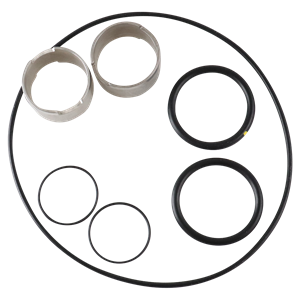

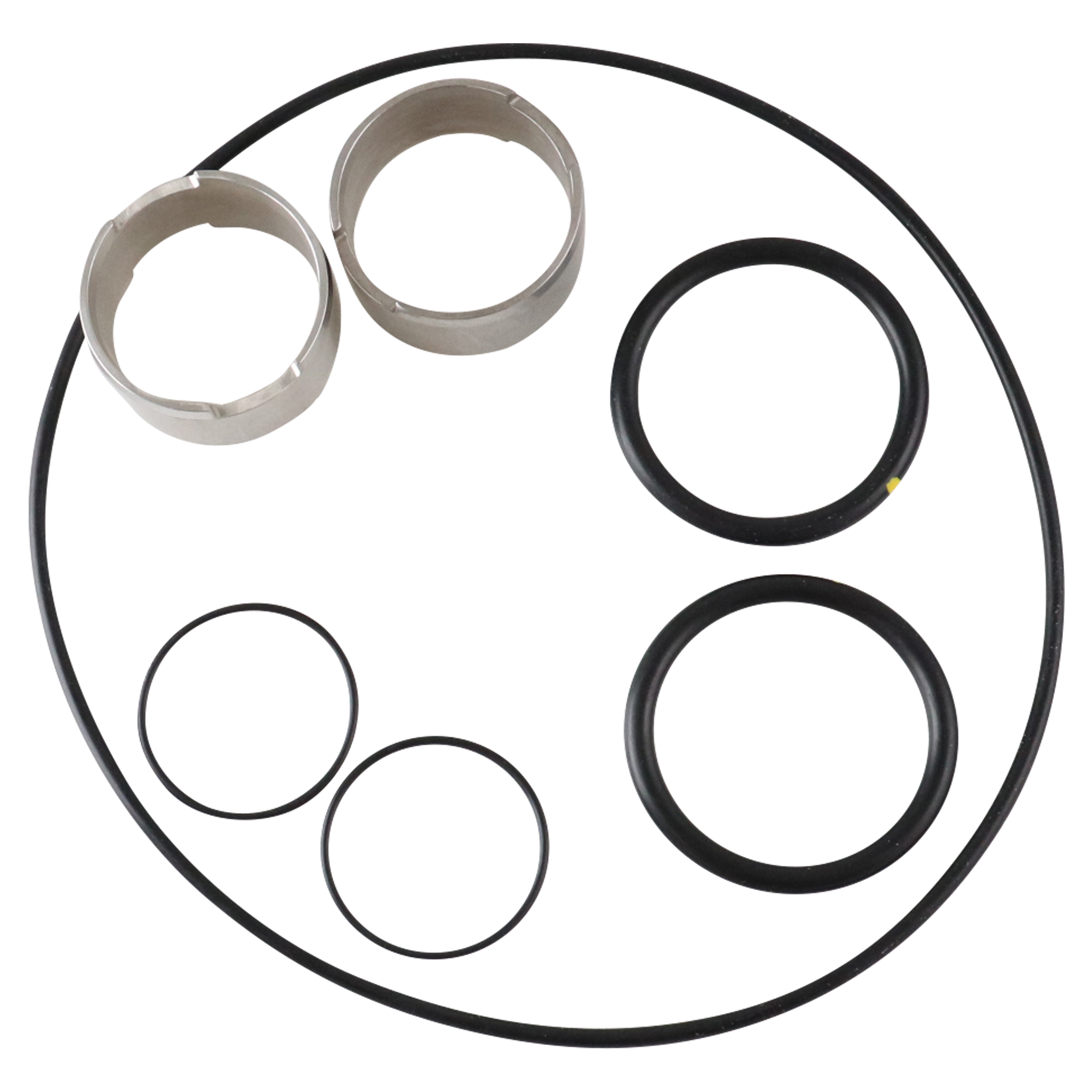

| SEAL KIT U1 ZP1 MODEL 30 SINGLW O-RING BUNA SS AMPCO |
$91.00 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Ampco |
|---|---|
| Product Type | Pumps |
| Product Subtype | Circumferential Piston Pumps |
| Series | ZP1 Series |
| Model | 030 |
| Material | 316L Stainless Steel |
| Finish | 32Ra |
| Elastomer | Buna |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2" |
| Connection Type 2 | Tri-Clamp |
| Orientation / Mount | Horizontal / Bottom |
| Seal Type | Single O-Ring |
| Seal Material | Stainless Steel Sleeve |
| Weight | 170.00000 |
- Manufacturer:
- Ampco Pumps Company
- MPN:
- ZP1030M20CS-SOSSU-2C8
Dimensional Data
Circumferential Piston Pump | ZP1
| Size (Model) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O (Port) | P | Q | R (Key) | S | T | U | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1.00 (6) | 25.40 | 4.75 | 120.65 | 1.95 | 49.53 | 3.75 | 95.25 | 12.04 | 305.82 | 5.50 | 139.70 | 1.94 | 49.28 | 2.31 | 58.67 | 0.41 | 10.41 | 6.82 | 173.23 | 2.93 | 74.42 | 9.61 | 244.09 | 2.12 | 53.85 | 2.00 | 50.80 | 4.21 | 106.93 | 1.00 | 25.40 | 2.79 | 70.87 | 0.88 | 22.23 | 0.19 | 4.76 | 3.49 | 88.65 | 6.97 | 177.04 | 8.30 | 210.82 |
| 1.50 (15) | 38.10 | 4.75 | 120.65 | 1.95 | 49.53 | 3.75 | 95.25 | 12.04 | 305.82 | 5.50 | 139.70 | 1.94 | 49.28 | 2.31 | 58.67 | 0.41 | 10.41 | 6.82 | 173.23 | 2.93 | 74.42 | 9.61 | 244.09 | 2.12 | 53.85 | 2.00 | 50.80 | 4.21 | 106.93 | 1.50 | 38.10 | 2.79 | 70.87 | 0.88 | 22.23 | 0.19 | 4.76 | 3.49 | 88.65 | 6.97 | 177.04 | 8.30 | 210.82 |
| 1.50 (18) | 38.10 | 4.75 | 120.65 | 2.18 | 55.37 | 3.75 | 95.25 | 12.46 | 316.48 | 5.50 | 139.70 | 1.94 | 49.28 | 2.31 | 58.67 | 0.41 | 10.41 | 6.82 | 173.23 | 2.93 | 74.42 | 9.84 | 249.94 | 2.12 | 53.85 | 2.00 | 50.80 | 4.21 | 106.93 | 1.50 | 38.10 | 3.02 | 76.71 | 0.88 | 22.23 | 0.19 | 4.76 | 3.55 | 90.17 | 7.09 | 180.09 | 8.30 | 210.82 |
| 1.50 (30) | 38.10 | 6.25 | 158.75 | 2.78 | 70.61 | 4.25 | 107.95 | 14.58 | 370.33 | 6.86 | 174.24 | 2.31 | 58.67 | 2.56 | 65.02 | 0.41 | 10.41 | 7.77 | 197.36 | 3.56 | 90.42 | 11.61 | 294.89 | 2.62 | 66.55 | 2.32 | 58.93 | 5.21 | 132.33 | 1.50 | 38.10 | 3.84 | 97.54 | 1.25 | 31.75 | 0.25 | 6.35 | 4.25 | 107.95 | 8.50 | 215.90 | 10.29 | 261.37 |
| 2.00 (40) | 50.80 | 6.25 | 158.75 | 2.94 | 74.68 | 4.25 | 107.95 | 14.96 | 379.98 | 6.86 | 174.24 | 2.31 | 58.67 | 2.56 | 65.02 | 0.41 | 10.41 | 7.77 | 197.36 | 3.56 | 90.42 | 11.99 | 304.55 | 2.62 | 66.55 | 2.32 | 58.93 | 5.21 | 132.33 | 2.00 | 50.80 | 4.00 | 101.60 | 1.25 | 31.75 | 0.25 | 6.35 | 4.31 | 109.47 | 8.62 | 218.95 | 10.29 | 261.37 |
| 2.50 (60) | 63.50 | 8.25 | 209.55 | 4.14 | 105.16 | 5.87 | 149.10 | 18.91 | 480.31 | 9.56 | 242.82 | 3.50 | 88.90 | 4.12 | 104.65 | 0.53 | 13.46 | 10.13 | 257.30 | 5.06 | 128.52 | 15.14 | 384.56 | 3.50 | 88.90 | 2.25 | 57.15 | 7.31 | 185.67 | 2.50 | 63.50 | 5.01 | 127.25 | 1.63 | 41.28 | 0.38 | 9.53 | 5.37 | 136.40 | 10.75 | 273.05 | 15.31 | 388.87 |
| 2.50 (64) | 63.50 | 8.25 | 209.55 | 4.12 | 104.65 | 5.88 | 149.35 | 18.73 | 475.74 | 5.06 | 128.52 | 3.50 | 88.90 | 4.12 | 104.65 | 0.53 | 13.46 | 10.14 | 257.56 | 5.06 | 128.52 | 15.14 | 384.56 | 3.50 | 88.90 | 2.25 | 57.15 | 4.12 | 104.65 | 2.50 | 63.50 | 5.00 | 127.00 | 1.63 | 41.28 | 0.38 | 9.53 | 5.37 | 136.40 | 10.31 | 261.87 | 13.23 | 336.04 |
| 3.00 (130) | 76.20 | 8.25 | 209.55 | 4.78 | 121.41 | 5.87 | 149.10 | 19.85 | 504.19 | 9.56 | 242.82 | 3.50 | 88.90 | 4.12 | 104.65 | 0.53 | 13.46 | 10.13 | 257.30 | 5.06 | 128.52 | 15.77 | 400.56 | 3.50 | 88.90 | 2.25 | 57.15 | 7.31 | 185.67 | 3.00 | 76.20 | 5.65 | 143.51 | 1.63 | 41.28 | 0.38 | 9.53 | 5.37 | 136.40 | 10.75 | 273.05 | 15.31 | 388.87 |
| 3.00 (134) | 76.20 | 8.25 | 209.55 | 4.75 | 120.65 | 5.88 | 149.35 | 19.67 | 499.62 | 5.06 | 128.52 | 3.50 | 88.90 | 4.12 | 104.65 | 0.53 | 13.46 | 10.14 | 257.56 | 5.06 | 128.52 | 15.77 | 400.56 | 3.50 | 88.90 | 2.25 | 57.15 | 4.75 | 120.65 | 3.00 | 76.20 | 5.63 | 143.00 | 1.63 | 41.28 | 0.38 | 9.53 | 5.37 | 136.40 | 10.31 | 261.87 | 15.25 | 387.35 |
| 4.00 (220) | 101.60 | 8.50 | 215.90 | 3.69 | 93.73 | 9.00 | 228.60 | 23.37 | 593.60 | 12.38 | 314.45 | 3.75 | 95.25 | 7.25 | 184.15 | 0.53 | 13.46 | 14.05 | 356.87 | 6.38 | 162.05 | 18.49 | 469.65 | 3.75 | 95.25 | 2.75 | 69.85 | 9.38 | 238.25 | 4.00 | 101.60 | 4.44 | 112.78 | 2.00 | 50.80 | 0.50 | 12.70 | 6.63 | 168.40 | 13.25 | 336.55 | 19.13 | 485.90 |
| 4.00 (224) | 101.60 | 8.50 | 215.90 | 3.58 | 90.81 | 9.00 | 228.60 | 23.28 | 591.31 | 6.38 | 162.05 | 3.75 | 95.25 | 7.25 | 184.15 | 0.53 | 13.46 | 14.06 | 357.12 | 6.38 | 162.05 | 18.51 | 470.15 | 3.75 | 95.25 | 2.75 | 69.85 | 3.58 | 90.81 | 4.00 | 101.60 | 4.45 | 113.03 | 2.00 | 50.80 | 0.50 | 12.70 | 6.63 | 168.40 | 12.88 | 327.15 | 18.00 | 457.20 |
