Ampco

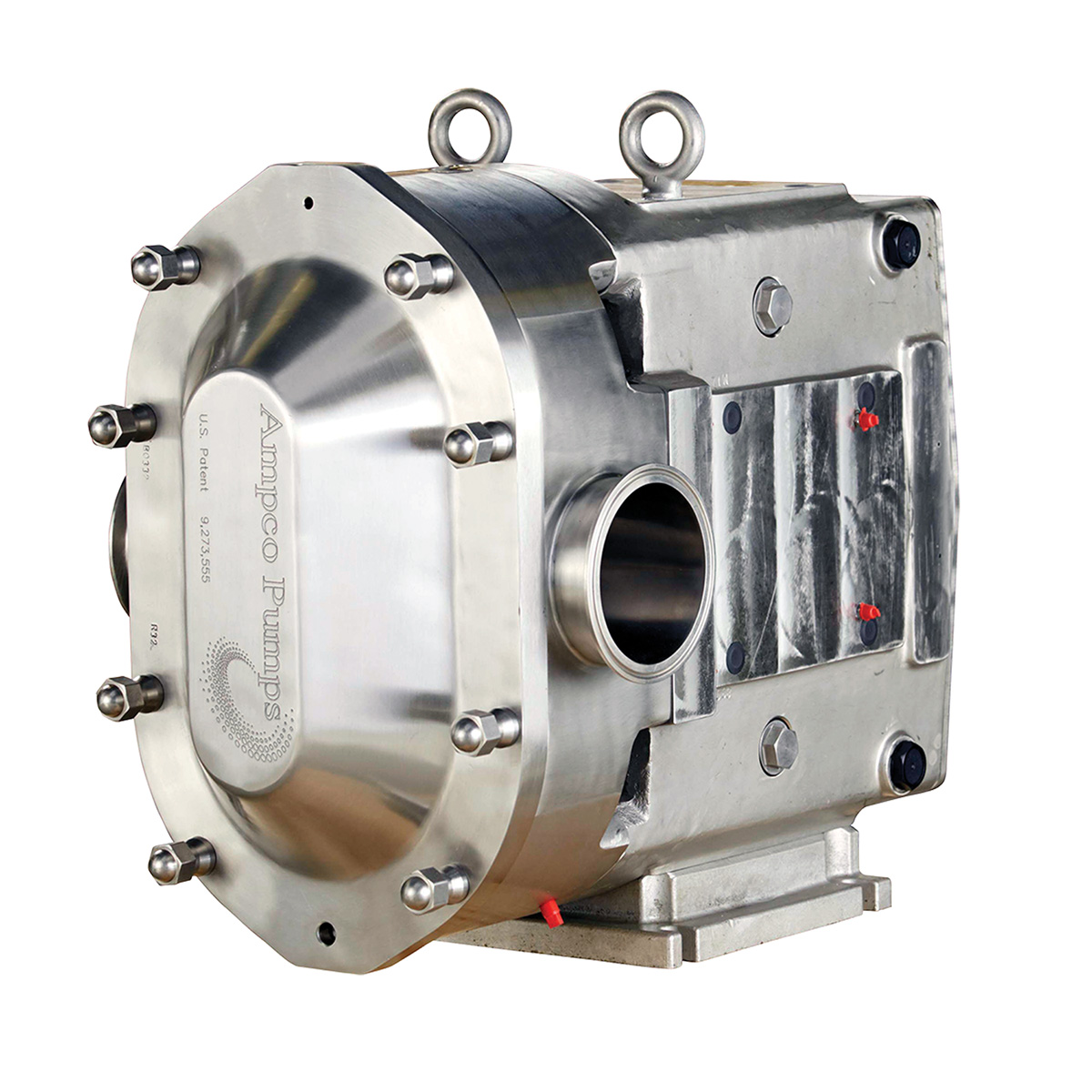

ZP3 130 CIRCUMFERENTIAL PISTON PUMP 3" BEVEL SEAT HORIZONTAL PORTS TOP DRIVE STAINLESS GEAR CASE DOUBLE MECHANICAL WITH FLUSH SEAL TC/SC VITON BI-WING COLD ALLOY 88 ROTORS AMPCO

ZP3130T30DS-DM9Y-2C8

MPN:: ZP3130T30DS-DM9Y-2C8

Net Price: $25,533.00 / EA

Have an account? Login now.

This item is non-returnable.

Availability:

Spare Parts

Page size:

Total: 1

	Product	Item Number	Availability		Price
	SEAL KIT ZP3 MODEL 45 60 130 DOUBLE FLUSH MECHANICAL VITON TC/SC SC/C AMPCO	WK3-60-DM-9Y		$3,454.00 / EA	Quantity

Total: 1

Suggested products

Attributes

Brand	Ampco
Product Type	Pumps
Product Subtype	Circumferential Piston Pumps
Series	ZP3 Series
Model	130
Material	316L Stainless Steel
Finish	32Ra
Elastomer	FKM (Viton)
Size 1	3"
Connection Type 1	Tri-Clamp
Size 2	3"
Connection Type 2	Tri-Clamp
Orientation / Mount	Horizontal / Top
Seal Type	Double Mechanical with Flush
Seal Material	Tungsten Carbide / Silicon Carbide
Weight	370.00000

Manufacturer:: Ampco Pumps Company
MPN:: ZP3130T30DS-DM9Y-2C8

Dimensional Data

ZP Dimensional Diagram (Dimensions A, F, H, J, N, S, T, U)

Circumferential Piston Pump | ZP3

Size (Model)		A		B		C		D		E		F		G		H		I		J		K		L		M		N		O (Port)		P		Q		R (Key)		S		T		U
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
1.00 (6)	25.40	4.75	120.65	1.95	49.53	3.75	95.25	11.80	299.72	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.61	244.09	2.12	53.85	2.00	50.80	4.21	106.93	1.00	25.40	2.79	70.87	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (15)	38.10	4.75	120.65	1.95	49.53	3.75	95.25	11.80	299.72	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.61	244.09	2.12	53.85	2.00	50.80	4.21	106.93	1.50	38.10	2.79	70.87	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (18)	38.10	4.75	120.65	2.18	55.37	3.75	95.25	12.49	317.25	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.84	249.94	2.12	53.85	2.00	50.80	4.21	106.93	1.50	38.10	3.02	76.71	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (30)	38.10	6.25	158.75	2.78	70.61	4.24	107.70	14.58	370.33	6.86	174.24	2.31	58.67	2.56	65.02	0.41	10.41	7.77	197.36	3.56	90.42	11.61	294.89	2.62	66.55	2.32	58.93	5.21	132.33	1.50	38.10	3.84	97.54	1.25	31.75	0.25	6.35	4.25	107.95	8.50	215.90	10.29	261.37
2.00 (45)	50.80	8.25	209.55	3.86	98.04	5.87	149.10	18.56	471.42	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	14.86	377.44	3.50	88.90	2.25	57.15	7.31	185.67	2.00	50.80	4.73	120.14	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.50	15.31	388.87
2.50 (60)	63.50	8.25	209.55	4.14	105.16	5.87	149.10	19.32	490.73	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	15.14	384.56	3.50	88.90	2.25	57.15	7.31	185.67	2.50	63.50	5.01	127.25	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.50	15.31	388.87
3.00 (130)	76.20	8.25	209.55	4.78	121.41	5.87	149.10	20.33	516.38	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	15.77	400.56	3.50	88.90	2.25	57.15	7.31	185.67	3.00	76.20	5.65	143.51	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.50	15.31	388.87
3.00 (134)	76.20	8.26	209.80	4.75	120.65	5.88	149.35	20.15	511.81	5.06	128.52	3.50	88.90	4.12	104.65	0.53	13.46	10.14	257.56	5.06	128.52	15.77	400.56	3.50	88.90	2.25	57.15	4.75	120.65	3.00	76.20	5.63	143.00	1.63	41.28	0.38	9.53	5.37	136.40	10.31	261.87	15.25	387.35
3.00 (180)	76.20	8.50	215.90	3.45	87.63	9.00	228.60	23.53	597.66	12.38	314.45	3.75	95.25	7.25	184.15	0.53	13.46	14.05	356.87	6.38	162.05	18.25	463.55	4.50	114.30	2.75	69.85	9.38	238.25	3.00	76.20	4.20	106.68	2.00	50.80	0.50	12.70	6.53	165.86	13.06	331.72	19.13	485.90
4.00 (210)	101.60	12.00	304.80	3.45	87.63	11.63	295.40	27.08	687.83	13.88	352.55	5.25	133.35	8.00	203.20	0.66	16.76	16.51	419.35	6.88	174.75	21.24	539.50	5.06	128.52	4.06	103.13	10.38	263.65	4.00	101.60	4.70	119.38	2.38	60.45	0.63	15.88	7.38	187.45	14.75	374.65	22.38	568.45
4.00 (220)	101.60	8.50	215.90	3.69	93.73	9.00	228.60	24.27	616.46	12.38	314.45	3.75	95.25	7.25	184.15	0.53	13.46	14.05	356.87	6.38	162.05	18.49	469.65	4.50	114.30	2.75	69.85	9.38	238.25	4.00	101.60	4.44	112.78	2.00	50.80	0.50	12.70	6.63	168.40	13.25	336.55	19.13	485.90
4.00 (224)	101.60	8.50	215.90	3.58	90.81	9.00	228.60	23.28	591.31	6.38	162.05	3.75	95.25	7.25	184.15	0.53	13.46	14.06	357.12	6.25	158.75	18.51	470.15	4.50	114.30	2.75	69.85	3.58	90.81	4.00	101.60	4.45	113.03	2.00	50.80	0.50	12.70	6.63	168.40	12.88	327.15	18.00	457.20
6.00 (324)	152.40	12.00	304.80	2.13	54.10	11.63	295.40	27.99	710.95	9.01	228.85	5.25	133.35	8.00	203.20	0.66	16.76	16.55	420.37	6.87	174.50	21.92	556.77	5.06	128.52	4.06	103.12	2.13	54.10	6.00	152.40	5.37	136.40	2.38	60.45	0.63	15.88	9.00	228.60	17.81	452.37	18.00	457.20

Resources

0Data Sheets

Ampco ZP Data Sheet

1Manuals

Ampco ZP3 Manual

4Performance Curves

Ampco ZP3 130 Performance Curve

5Spare Part Lists

Ampco ZP3 Series Spare Parts List

8Other Literature

Best Practices for Pumps

Blog Posts

How to Read a Pump Curve

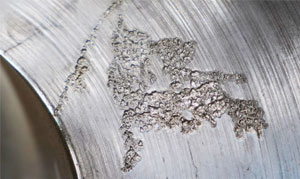

What is Pump Cavitation?
