ZP3 130 CIRCUMFERENTIAL PISTON PUMP 3" BEVEL SEAT HORIZONTAL PORTS TOP DRIVE SS GEAR CASE DOUBLE MECHANICAL SEAL TC/SC VITON BI-WING COLD ALLOY 88 ROTORS AMPCO

ZP3130T30DS-DM9Y-2C8

This item is non-returnable.

$21,617.00 / EA

Have an account? Login now.

Availability:

Springfield, MO	0 EA
Durham, NC	0 EA
Modesto, CA	0 EA
Grand Prairie, TX	0 EA

Spare Parts

Page size:

Total: 1

Product

Item Number

Availability

Price

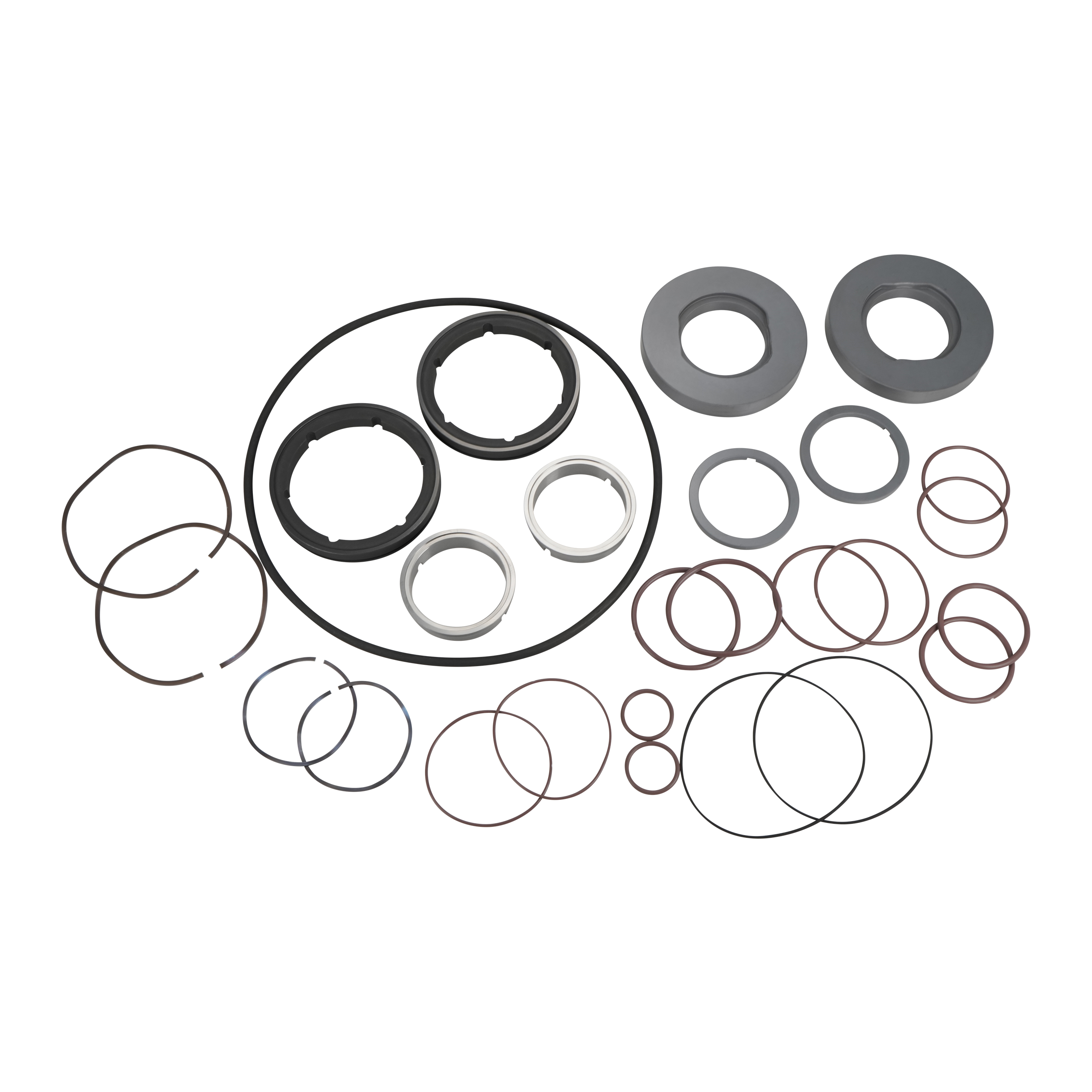

SEAL KIT ZP3 MODEL 45 60 130 DOUBLE FLUSH MECHANICAL VITON TC/SC SC/C AMPCO

WK3-60-DM-9Y

Springfield, MO	0 EA
Durham, NC	0 EA
Modesto, CA	0 EA
Grand Prairie, TX	2 EA

$2,738.00 / EA

Total: 1

Attributes

Alloy/Material:: 316 / 316L
Connection Type:: Tri-Clamp
Finish:: 32Ra
Reducing Size:: 3"
Size:: 3"
Weight:: 370

Manufacturer:: Ampco Pumps Company
Manufacturer part number:: ZP3130T30DS-DM9Y-2C8

Dimensional Data

ZP Dimensional Diagram (Dimensions A, F, H, J, N, S, T, U)

Circumferential Piston Pump | ZP3

Size (Model)		A		B		C		D		E		F		G		H		I		J		K		L		M		N		O (Port)		P		Q		R (Key)		S		T		U
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
1.00 (6)	25.40	4.75	120.65	1.95	49.53	3.75	95.25	11.80	299.72	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.61	244.09	2.12	53.85	2.00	50.80	4.21	106.93	1.00	25.40	2.79	70.87	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (15)	38.10	4.75	120.65	1.95	49.53	3.75	95.25	11.80	299.72	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.61	244.09	2.12	53.85	2.00	50.80	4.21	106.93	1.50	38.10	2.79	70.87	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (18)	38.10	4.75	120.65	2.18	55.37	3.75	95.25	12.49	317.25	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.84	249.94	2.12	53.85	2.00	50.80	4.21	106.93	1.50	38.10	3.02	76.71	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (30)	38.10	6.25	158.75	2.78	70.61	4.24	107.70	14.58	370.33	6.86	174.24	2.31	58.67	2.56	65.02	0.41	10.41	7.77	197.36	3.56	90.42	11.61	294.89	2.62	66.55	2.32	58.93	5.21	132.33	1.50	38.10	3.84	97.54	1.25	31.75	0.25	6.35	4.25	107.95	8.50	215.90	10.29	261.37
2.00 (45)	50.80	8.25	209.55	3.86	98.04	5.87	149.10	18.56	471.42	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	14.86	377.44	3.50	88.90	2.25	57.15	7.31	185.67	2.00	50.80	4.73	120.14	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.50	15.31	388.87
2.50 (60)	63.50	8.25	209.55	4.14	105.16	5.87	149.10	19.32	490.73	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	15.14	384.56	3.50	88.90	2.25	57.15	7.31	185.67	2.50	63.50	5.01	127.25	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.50	15.31	388.87
3.00 (130)	76.20	8.25	209.55	4.78	121.41	5.87	149.10	20.33	516.38	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	15.77	400.56	3.50	88.90	2.25	57.15	7.31	185.67	3.00	76.20	5.65	143.51	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.50	15.31	388.87
3.00 (134)	76.20	8.26	209.80	4.75	120.65	5.88	149.35	20.15	511.81	5.06	128.52	3.50	88.90	4.12	104.65	0.53	13.46	10.14	257.56	5.06	128.52	15.77	400.56	3.50	88.90	2.25	57.15	4.75	120.65	3.00	76.20	5.63	143.00	1.63	41.28	0.38	9.53	5.37	136.40	10.31	261.87	15.25	387.35
3.00 (180)	76.20	8.50	215.90	3.45	87.63	9.00	228.60	23.53	597.66	12.38	314.45	3.75	95.25	7.25	184.15	0.53	13.46	14.05	356.87	6.38	162.05	18.25	463.55	4.50	114.30	2.75	69.85	9.38	238.25	3.00	76.20	4.20	106.68	2.00	50.80	0.50	12.70	6.53	165.86	13.06	331.72	19.13	485.90
4.00 (210)	101.60	12.00	304.80	3.45	87.63	11.63	295.40	27.08	687.83	13.88	352.55	5.25	133.35	8.00	203.20	0.66	16.76	16.51	419.35	6.88	174.75	21.24	539.50	5.06	128.52	4.06	103.13	10.38	263.65	4.00	101.60	4.70	119.38	2.38	60.45	0.63	15.88	7.38	187.45	14.75	374.65	22.38	568.45
4.00 (220)	101.60	8.50	215.90	3.69	93.73	9.00	228.60	24.27	616.46	12.38	314.45	3.75	95.25	7.25	184.15	0.53	13.46	14.05	356.87	6.38	162.05	18.49	469.65	4.50	114.30	2.75	69.85	9.38	238.25	4.00	101.60	4.44	112.78	2.00	50.80	0.50	12.70	6.63	168.40	13.25	336.55	19.13	485.90
4.00 (224)	101.60	8.50	215.90	3.58	90.81	9.00	228.60	23.28	591.31	6.38	162.05	3.75	95.25	7.25	184.15	0.53	13.46	14.06	357.12	6.25	158.75	18.51	470.15	4.50	114.30	2.75	69.85	3.58	90.81	4.00	101.60	4.45	113.03	2.00	50.80	0.50	12.70	6.63	168.40	12.88	327.15	18.00	457.20
6.00 (324)	152.40	12.00	304.80	2.13	54.10	11.63	295.40	27.99	710.95	9.01	228.85	5.25	133.35	8.00	203.20	0.66	16.76	16.55	420.37	6.87	174.50	21.92	556.77	5.06	128.52	4.06	103.12	2.13	54.10	6.00	152.40	5.37	136.40	2.38	60.45	0.63	15.88	9.00	228.60	17.81	452.37	18.00	457.20
