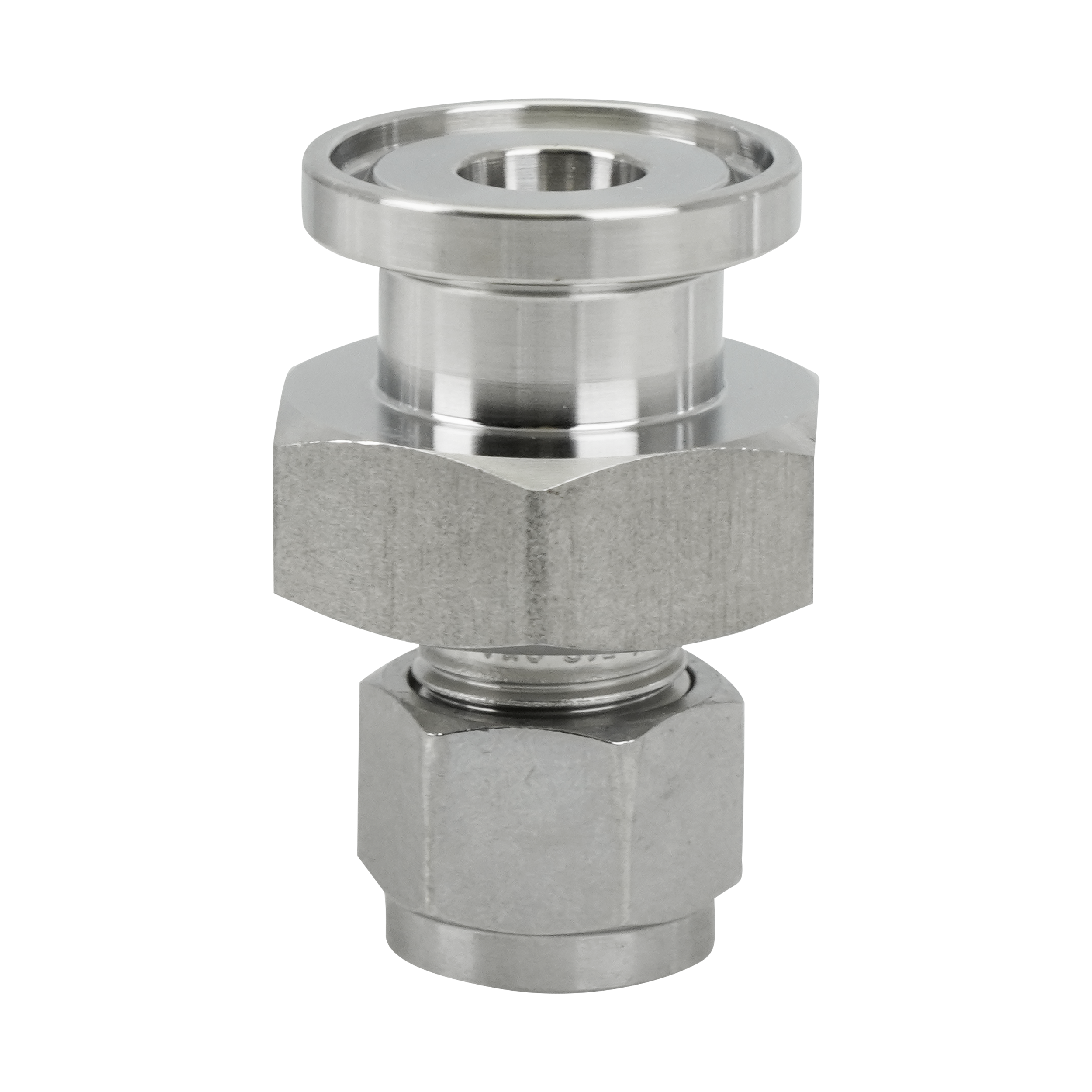

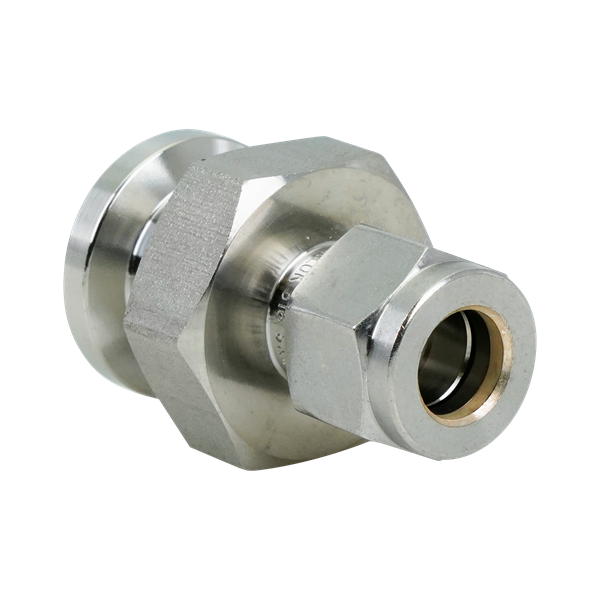

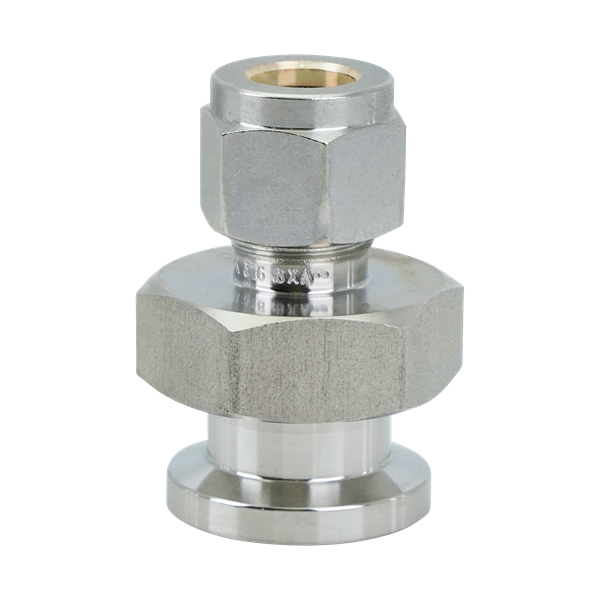

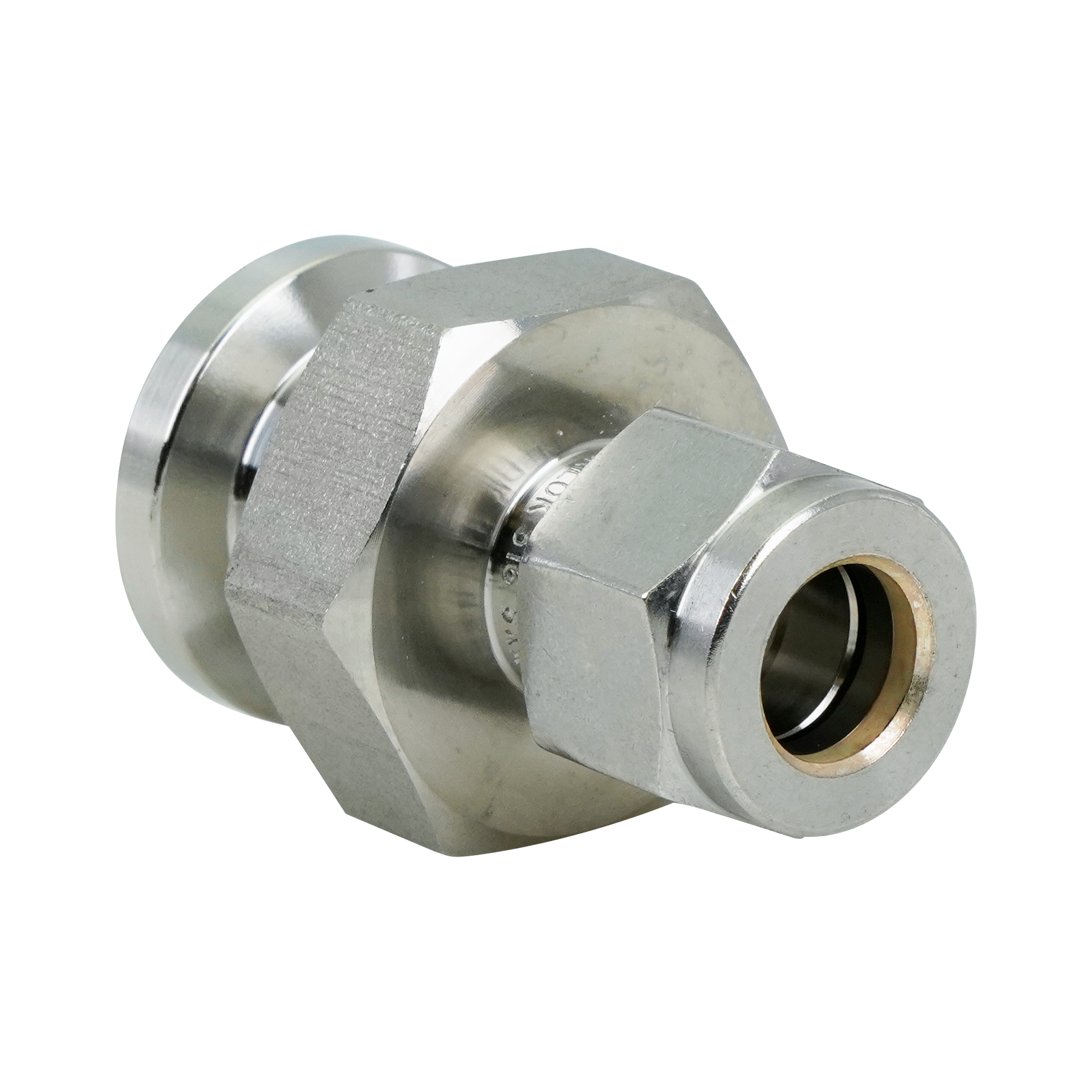

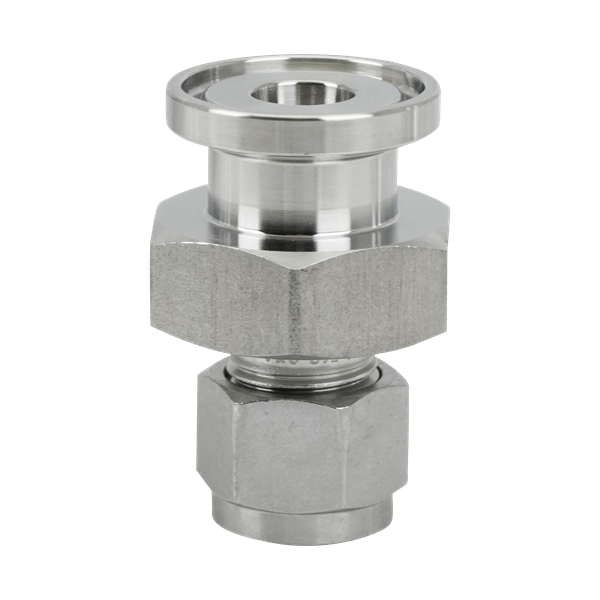

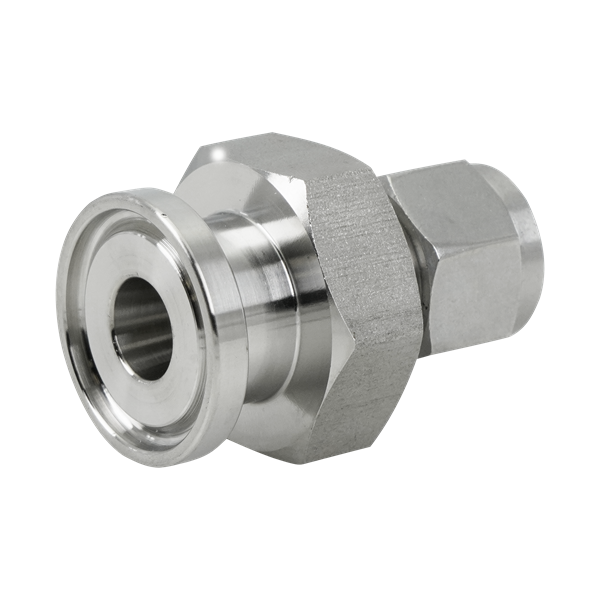

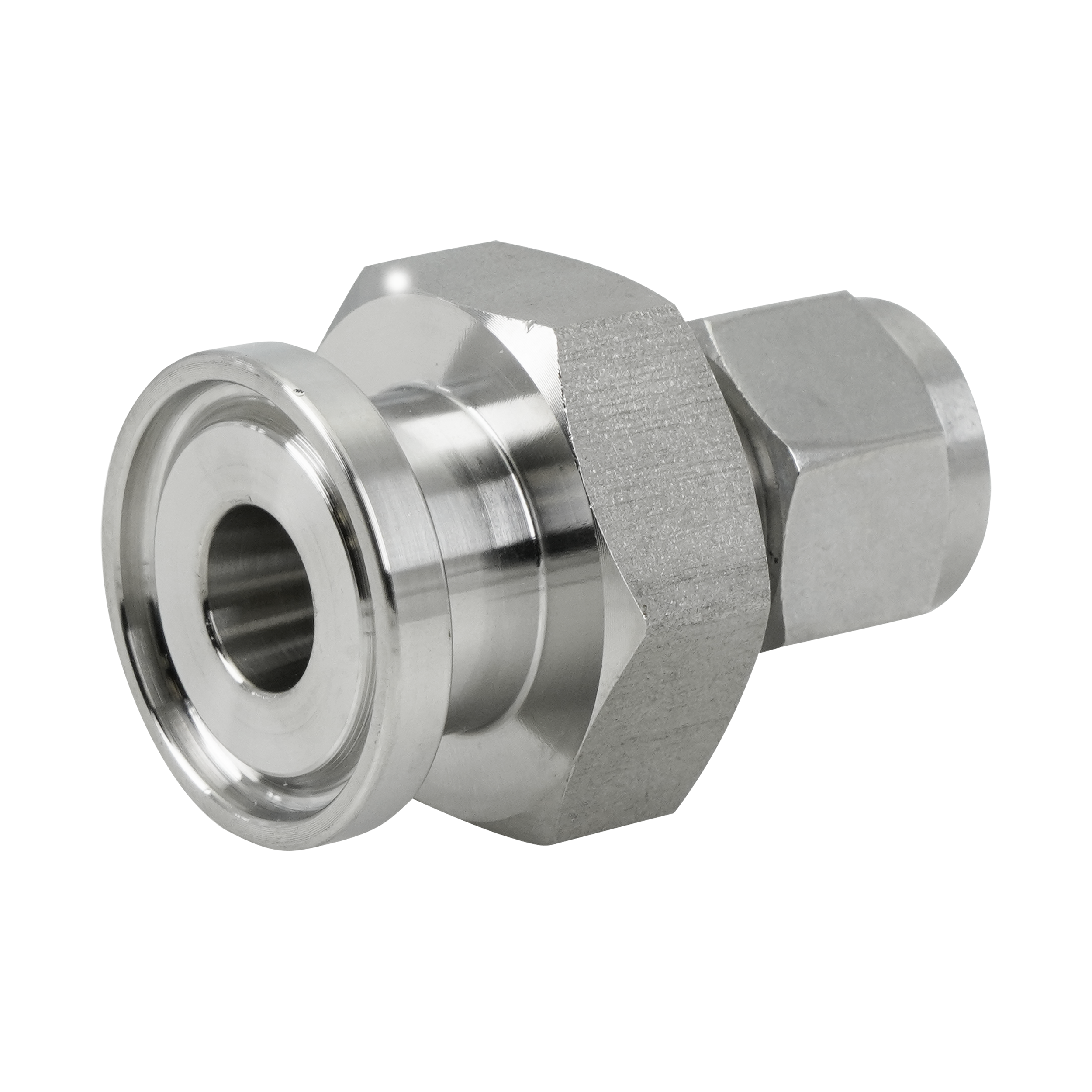

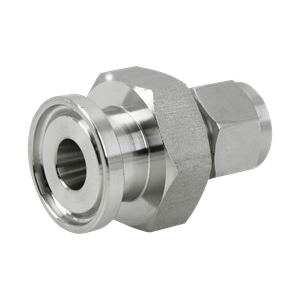

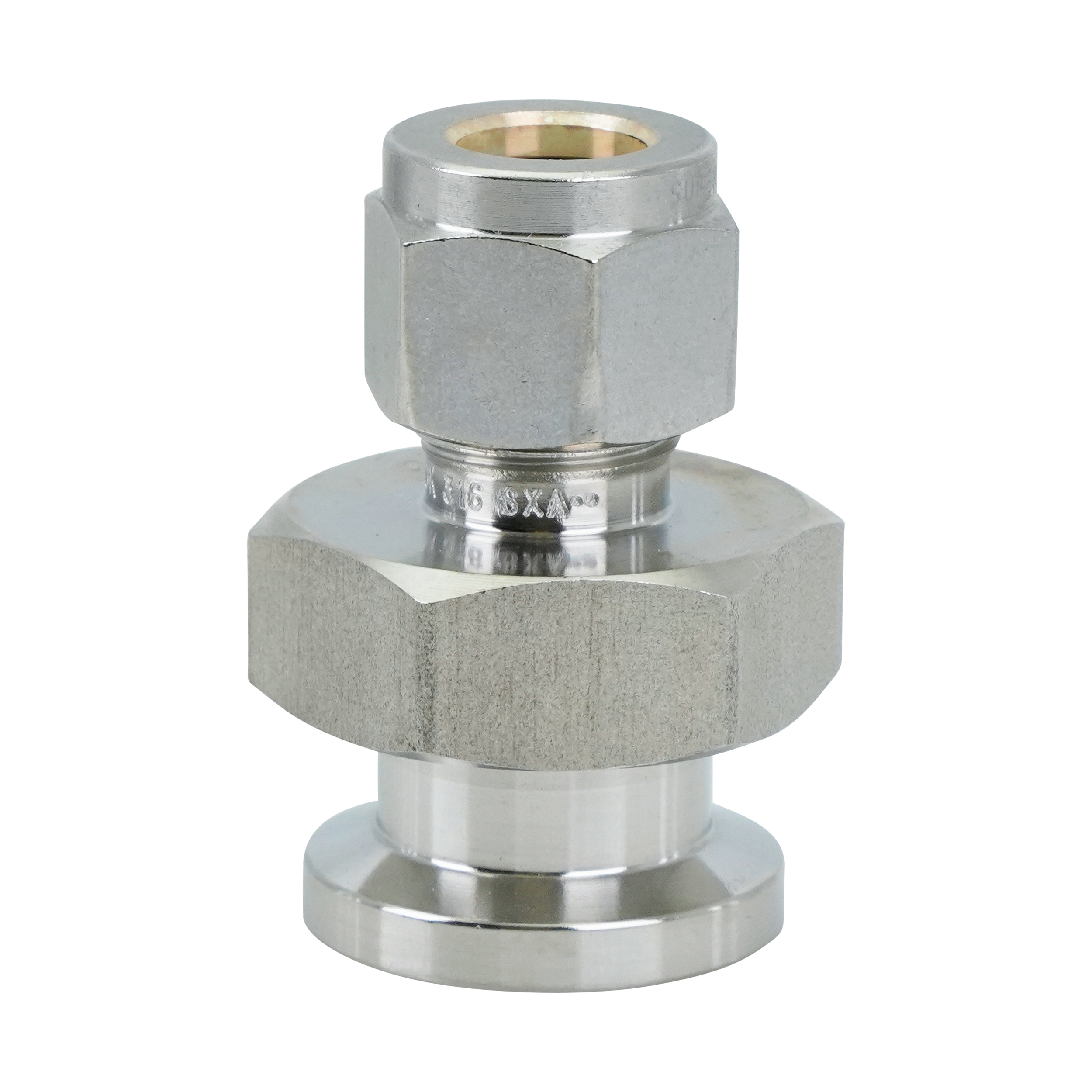

Adapter 0.5" Tri-Clamp x 0.375" Compression Set with Nut and Washer 316 SSFA-6-8SA Equal to SS-600-SC-8

31-14CA-0.5X0.375-316

Net Price: $46.00 / EA

Have an account? Login now.

Availability:
Product Type Compression Fittings
Product Subtype Adapters
Material 316 Stainless Steel
Size 1 0.5"
Connection Type 1 Tri-Clamp
Size 2 0.375"
Connection Type 2 Compression Tube
Fitting Design 31-14CA
Weight 0.20000

31-14CA Dimensional Diagram

31-14CA
TC A B C
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
0.50 12.70 1.57 40.00 0.61 15.50 0.25 6.35
0.75 19.05 1.57 40.00 0.61 15.50 0.25 6.35
1.00 25.40 1.57 40.00 0.61 15.50 0.25 6.35
1.50 38.10 1.57 40.00 0.61 15.50 0.25 6.35
0.50 12.70 1.63 41.50 0.67 17.00 0.375 9.53
0.75 19.05 1.63 41.50 0.67 17.00 0.375 9.53
1.00 25.40 1.63 41.50 0.67 17.00 0.375 9.53
1.50 38.10 1.63 41.50 0.67 17.00 0.375 9,53
0.50 12.70 1.74 44.20 0.90 22.90 0.50 12.70
0.75 19.05 1.74 44.20 0.90 22.90 0.50 12.70
1.00 25.40 1.74 44.20 0.90 22.90 0.50 12.70
1.50 38.10 1.74 44.20 0.90 22.90 0.50 12.70
0.75 19.05 1.75 44.40 0.97 24.60 0.75 19.05
1.00 25.40 1.74 44.20 0.97 24.60 0.75 19.05
1.00 25.40 1.92 48.80 1.24 31.40 1.00 25.40
1.50 38.10 1.92 48.80 1.24 31.40 1.00 25.40
