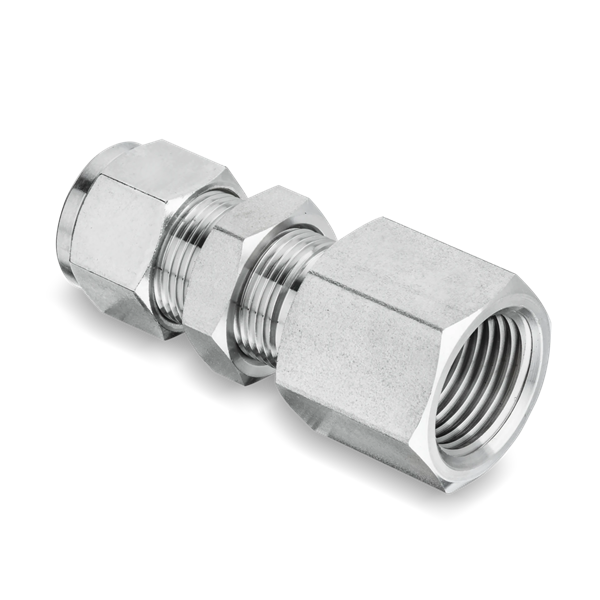

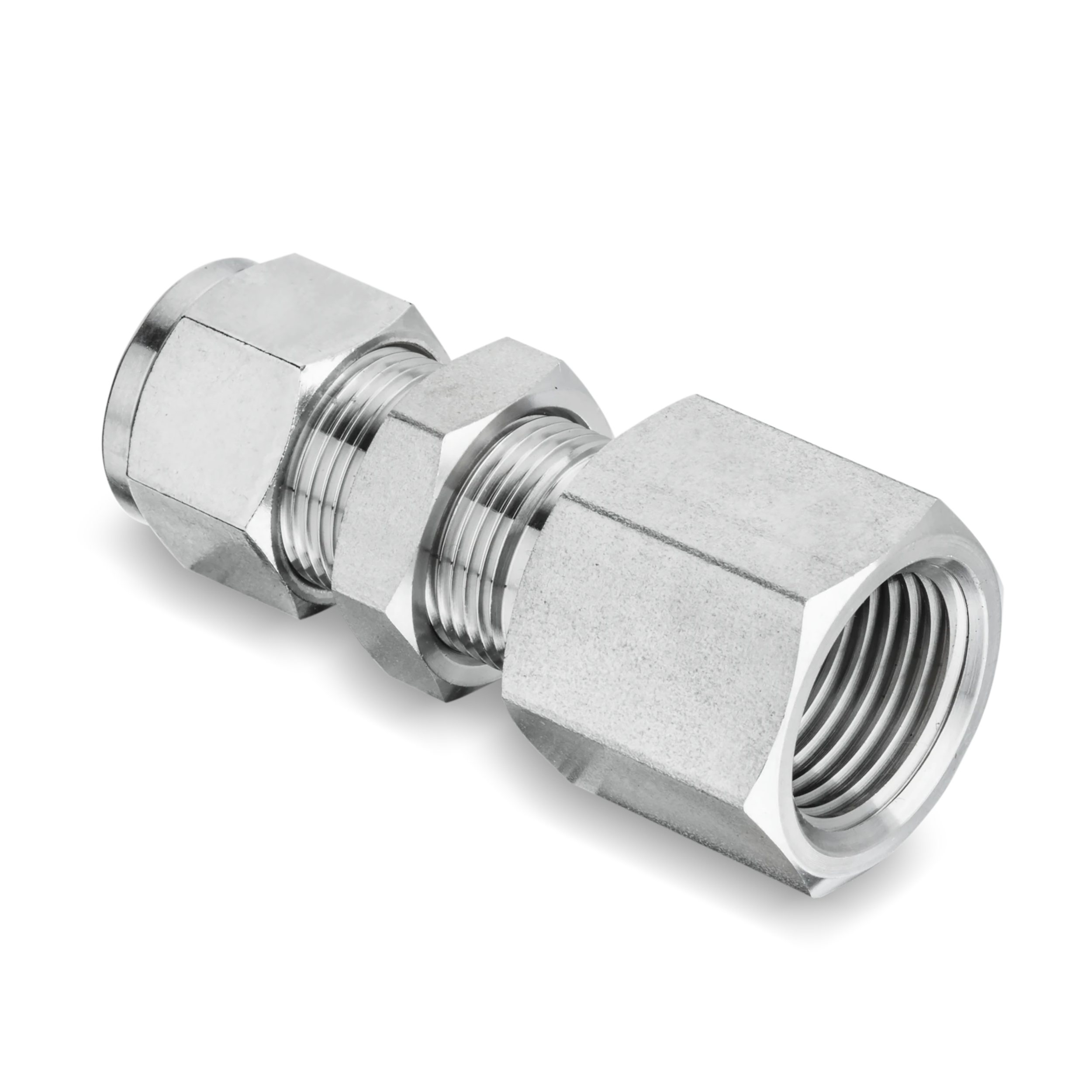

Superlok Bulkhead Female Connector 3/8" Compression Tube x 1/2" FNPT 316 Equal to SS-600-71-8

SBFC-6-8N

Net Price: $36.34 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Bulkhead Connectors
Material 316 Stainless Steel
Size 1 0.375"
Connection Type 1 Compression Tube
Size 2 0.5"
Connection Type 2 FNPT
Fitting Design SBFC
Weight 0.10000

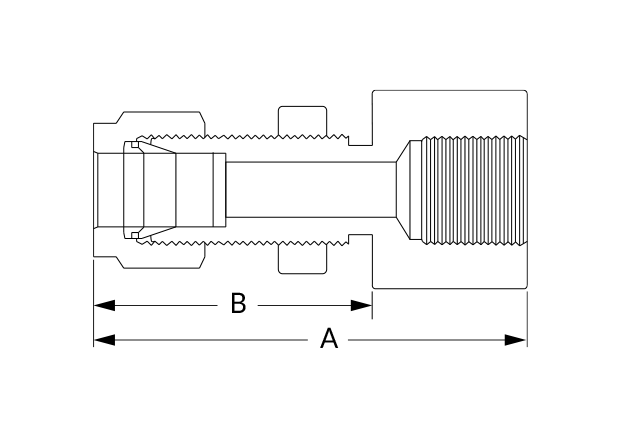

Superlok SBFC Dimensional Diagram

Female NPT x Compression Tube Bulkhead Connector | SBFC-Tube Size-NPT Size
Tube Size NPT A B
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
⅛ 3.175 ⅛ 3.175 1.76 44.70 1.23 31.24
¼ 6.35 ⅛ 3.175 1.85 46.99 1.32 33.52
¼ 6.35 ¼ 6.35 2.04 51.81 1.32 33.52
⅜ 9.525 ¼ 6.35 2.17 55.11 1.45 36.83
½ 12.70 ⅜ 9.525 2.43 61.72 1.65 41.91
½ 12.70 ½ 12.70 2.62 66.54 1.65 41.91
¾ 19.05 ¾ 19.05 2.89 73.51 1.87 47.49
