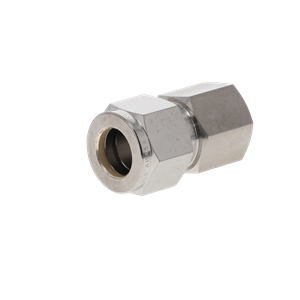

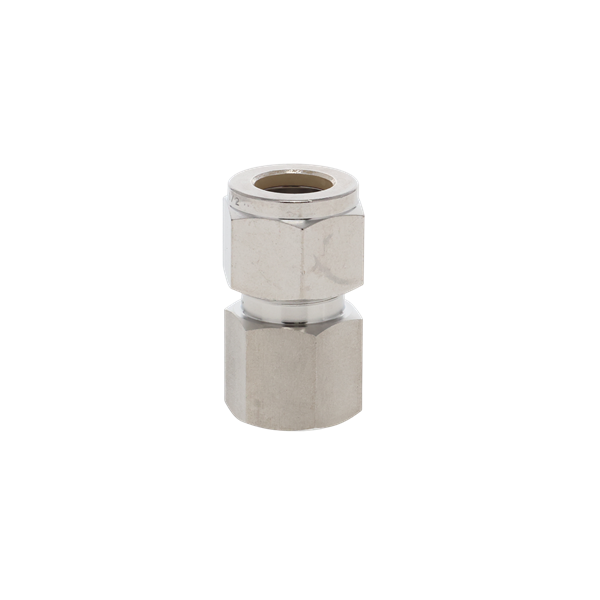

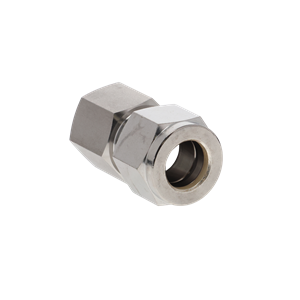

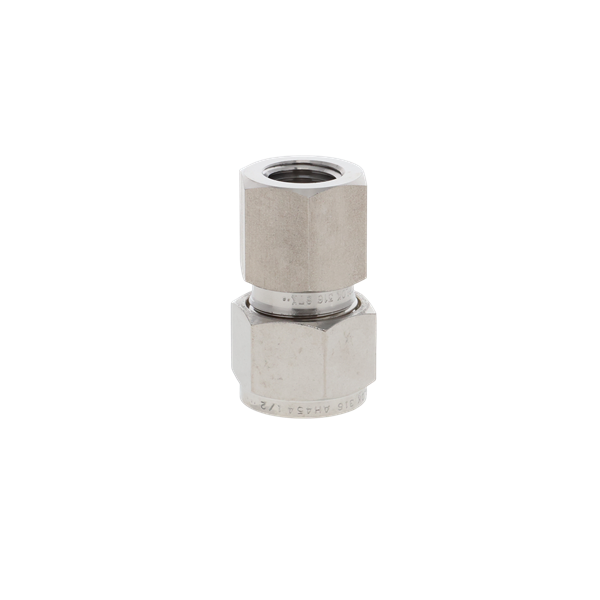

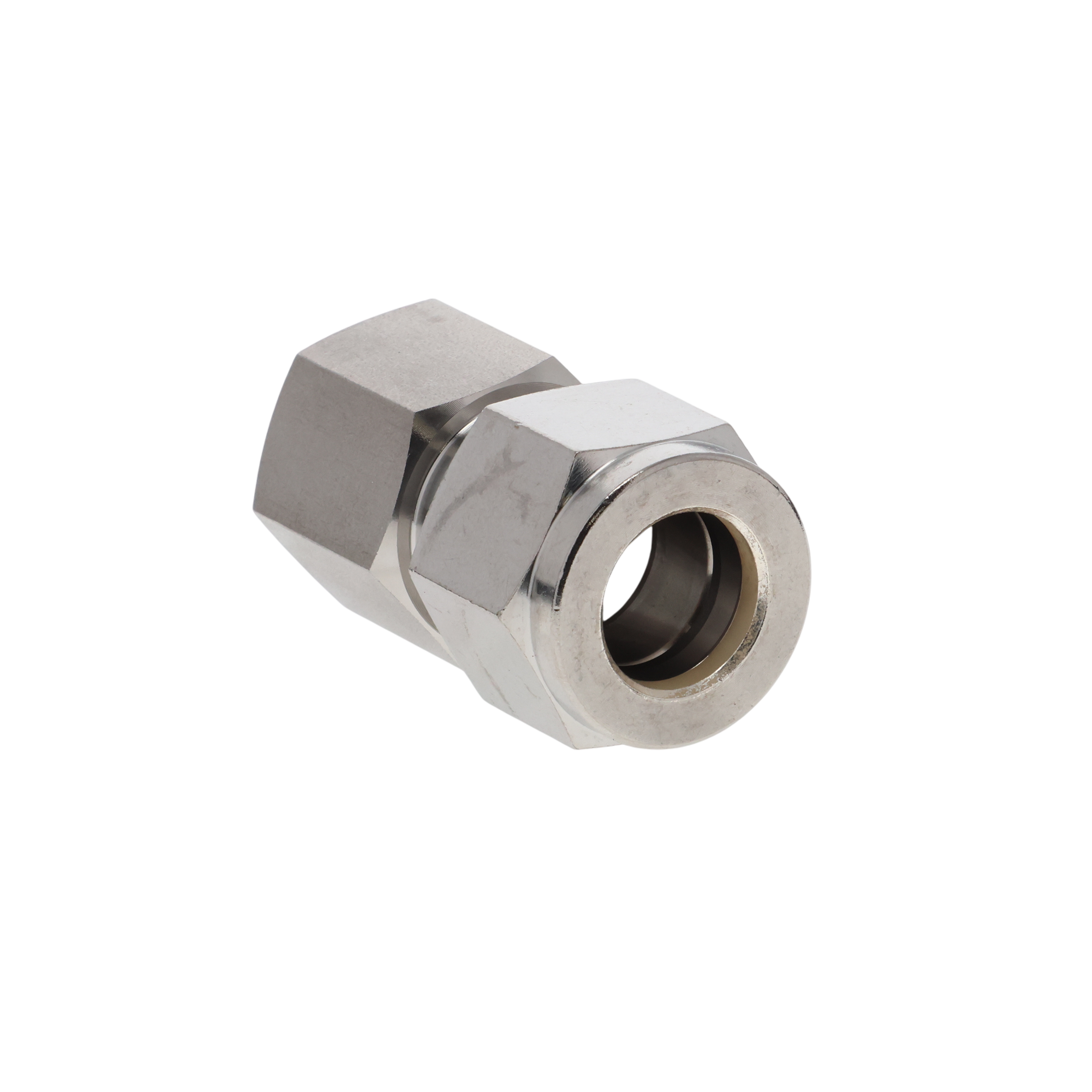

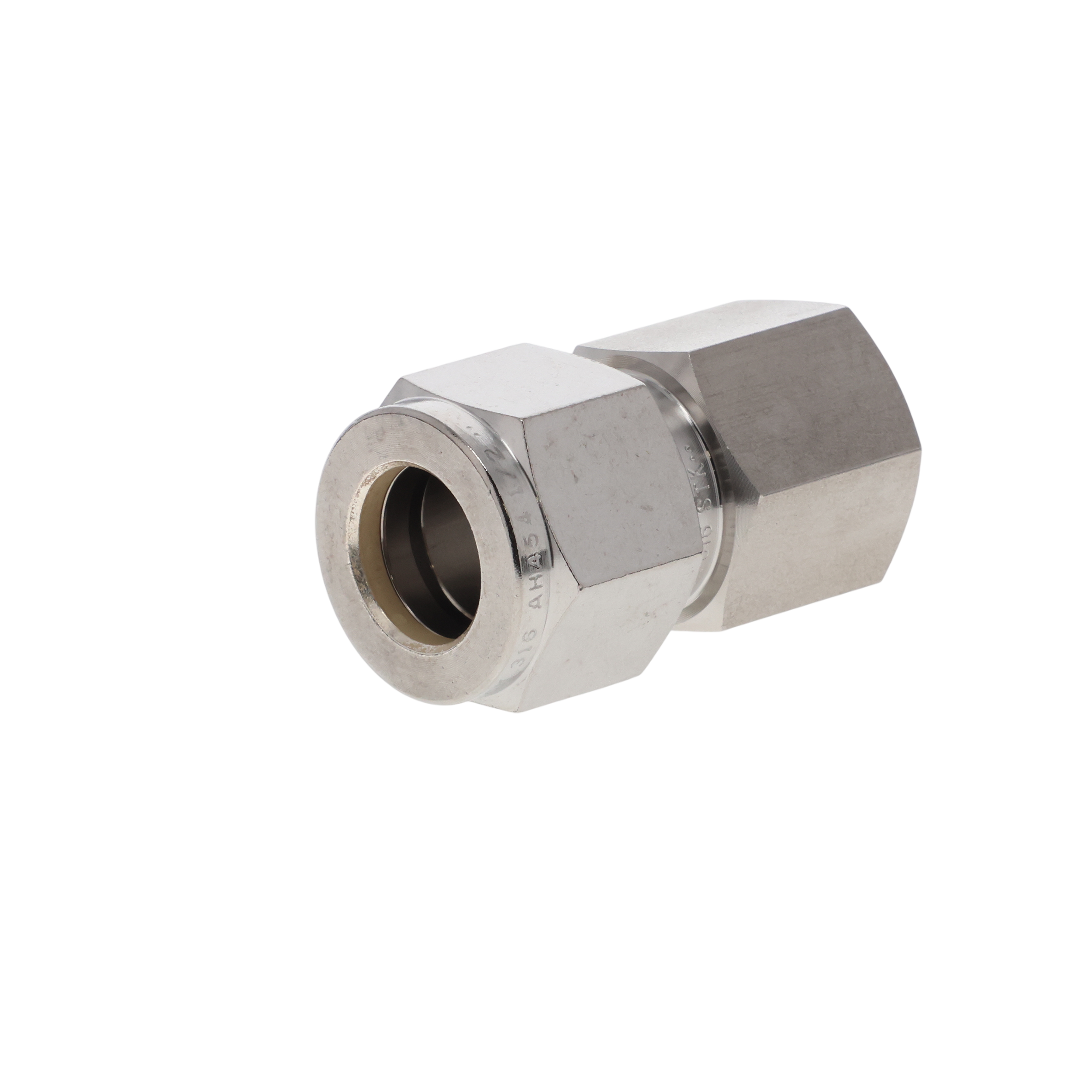

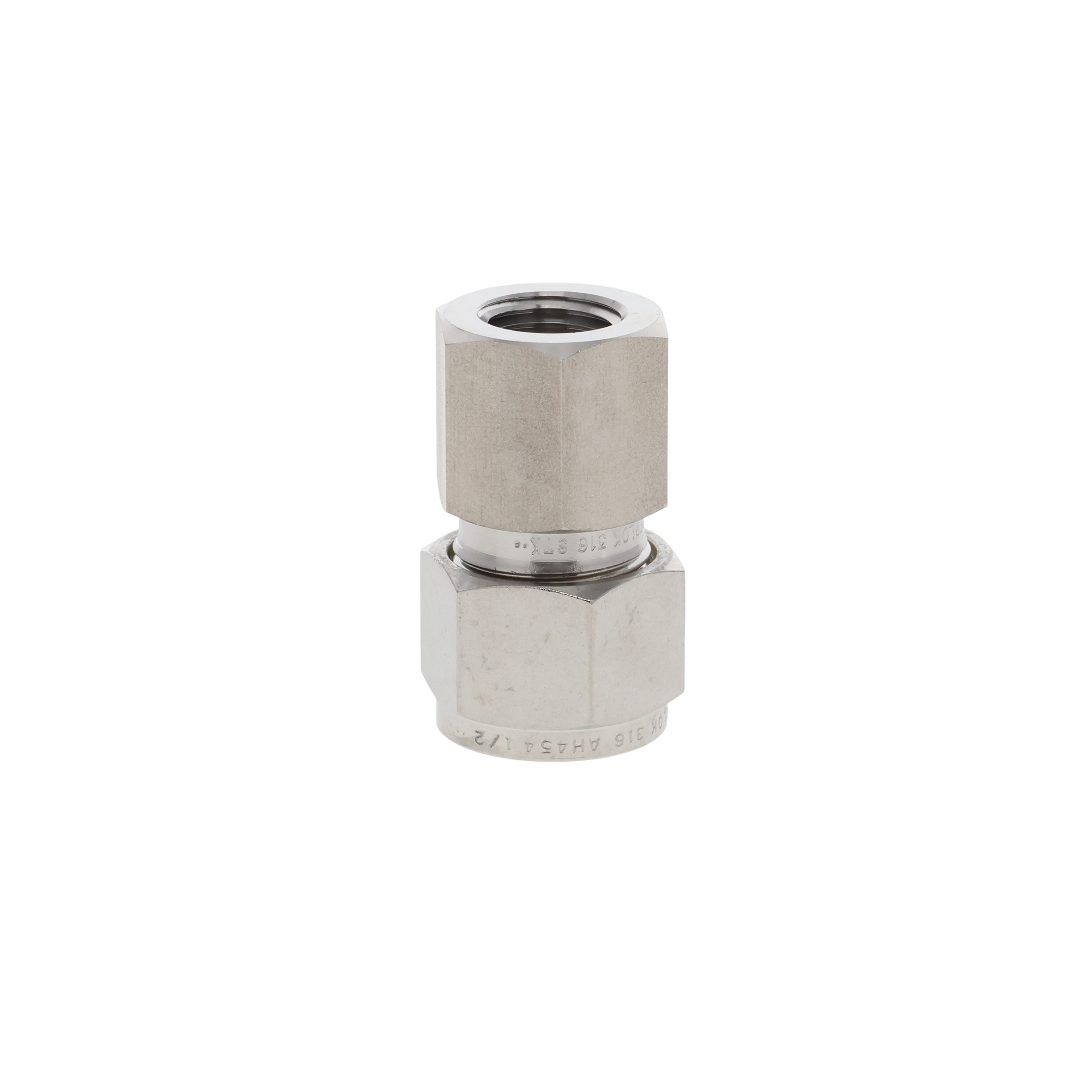

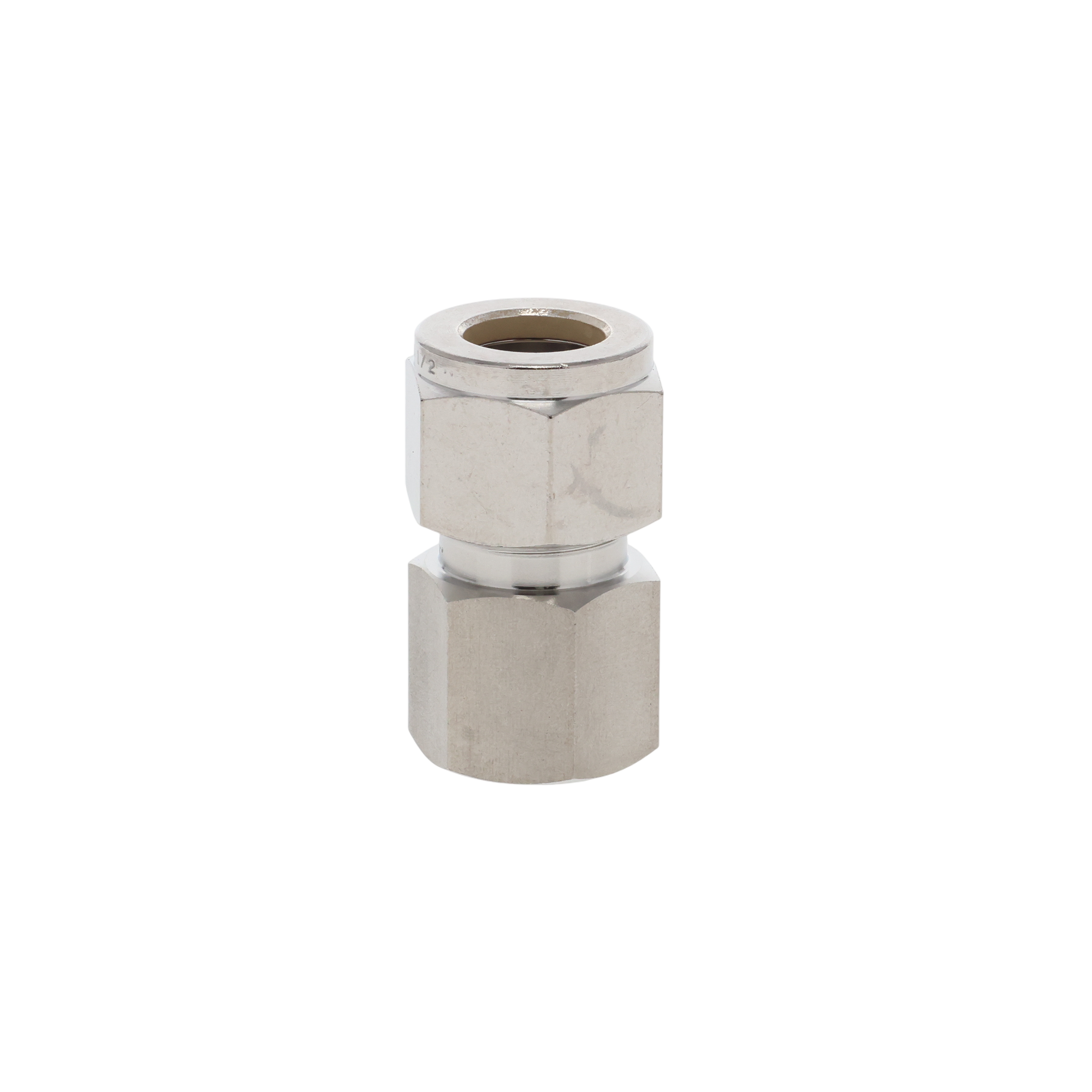

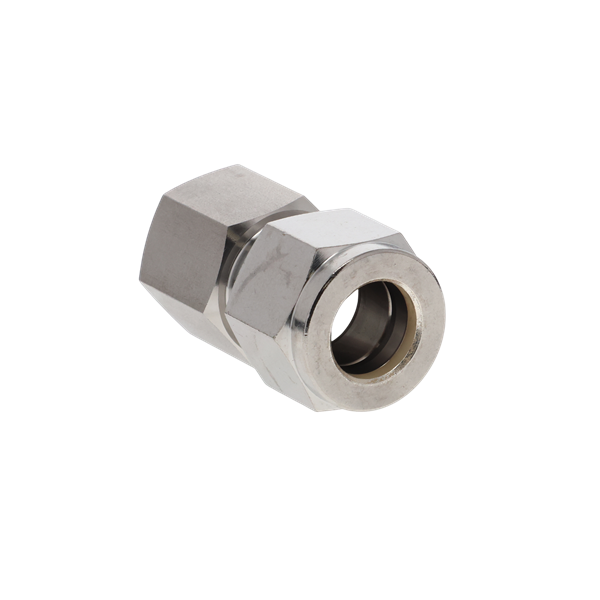

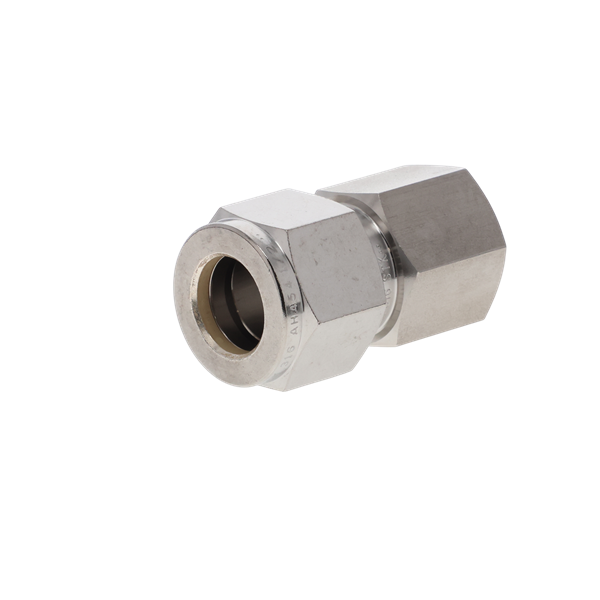

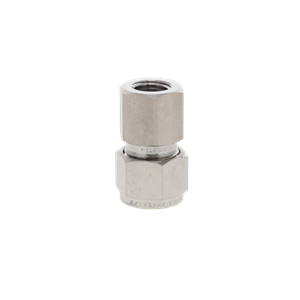

Superlok Female Connector 1/2" Compression Tube x 1/4" FNPT 316 Equal to SS-810-7-4

SFC-8-4N

Net Price: $15.47 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Connectors
Material 316 Stainless Steel
Size 1 0.5"
Connection Type 1 Compression Tube
Size 2 0.25"
Connection Type 2 FNPT
Fitting Design SFC
Weight 0.10000

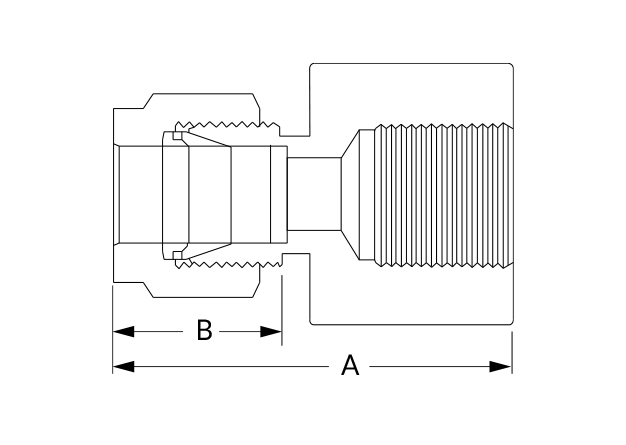

Superlok SFC Dimensional Diagram

Female NPT x Compression Tube Connector | SFC-Size
Tube Size NPT A B
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
⅛ 3.175 ⅛ 3.175 1.13 28.70 0.50 12.70
⅛ 3.175 ¼ 6.35 1.32 33.52 0.50 12.70
³⁄₁₆ 4.76 ⅛ 3.175 1.17 29.71 0.54 13.71
¼ 6.35 ⅛ 3.175 1.23 31.24 0.60 15.24
¼ 6.35 ¼ 6.35 1.41 35.81 0.60 15.24
¼ 6.35 ⅜ 9.525 1.48 37.59 0.60 15.24
¼ 6.35 ½ 12.70 1.67 42.41 0.60 15.24
⁵⁄₁₆ 7.938 ⅛ 3.175 1.26 32.00 0.64 16.25
⁵⁄₁₆ 7.938 ¼ 6.35 1.45 36.83 0.64 16.25
⅜ 9.525 ⅛ 3.175 1.29 32.76 0.66 16.76
⅜ 9.525 ¼ 6.35 1.48 37.59 0.66 16.76
⅜ 9.525 ⅜ 9.525 1.54 39.11 0.66 16.76
⅜ 9.525 ½ 12.70 1.73 43.94 0.66 16.76
⅜ 9.525 ¾ 19.05 1.88 47.75 0.66 16.76
½ 12.70 ¼ 6.35 1.59 40.38 0.90 22.86
½ 12.70 ⅜ 9.525 1.65 41.91 0.90 22.86
½ 12.70 ½ 12.70 1.84 46.73 0.90 22.86
½ 12.70 ¾ 19.05 1.90 48.26 0.90 22.86
⅝ 15.88 ⅜ 9.525 1.65 41.91 0.96 24.38
⅝ 15.88 ½ 12.70 1.84 46.73 0.96 24.38
¾ 19.05 ½ 12.70 1.84 46.73 0.96 24.38
¾ 19.05 ¾ 19.05 1.90 48.26 0.96 24.38
⅞ 0.875 ¾ 19.05 1.96 49.78 1.02 25.90
1 25.40 ¾ 19.05 2.10 53.34 1.23 31.24
1 25.40 1 25.40 2.45 62.23 1.23 31.24
