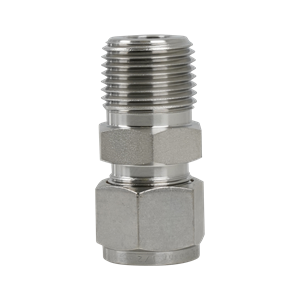

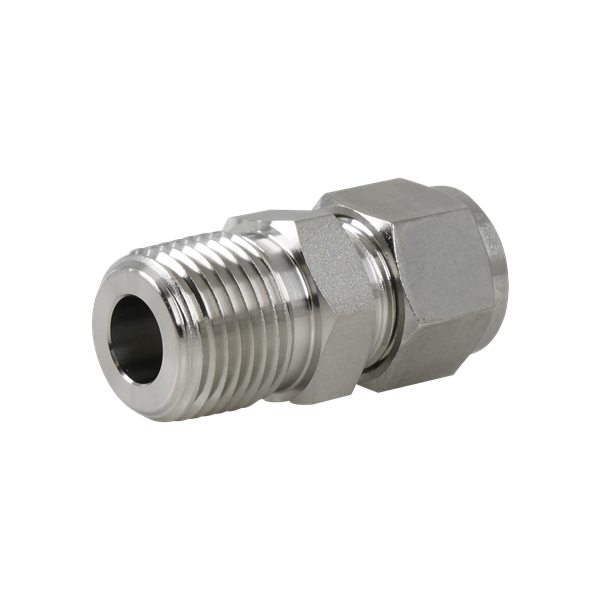

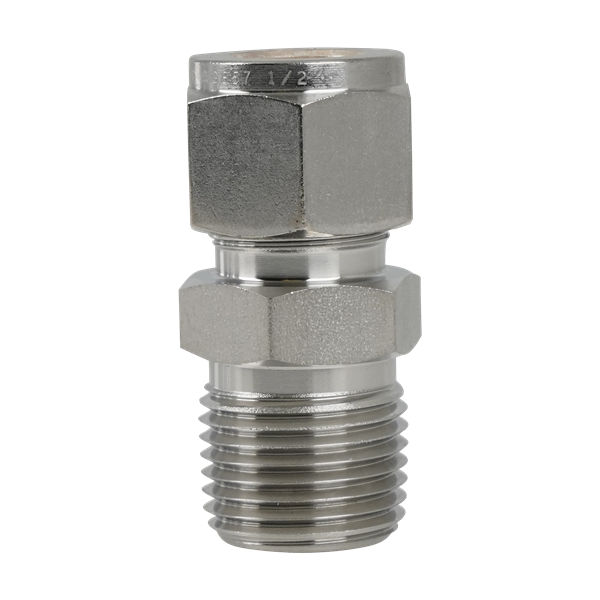

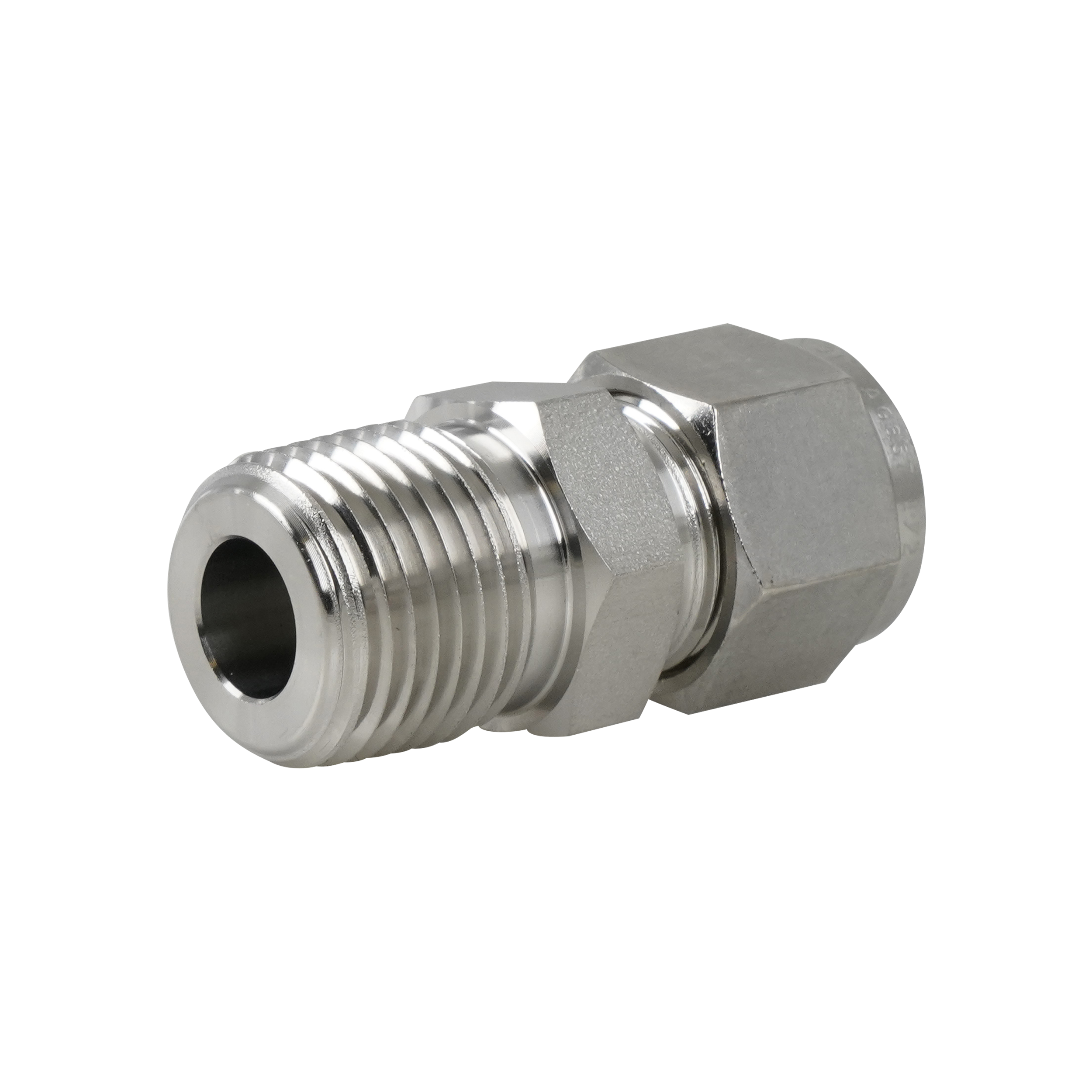

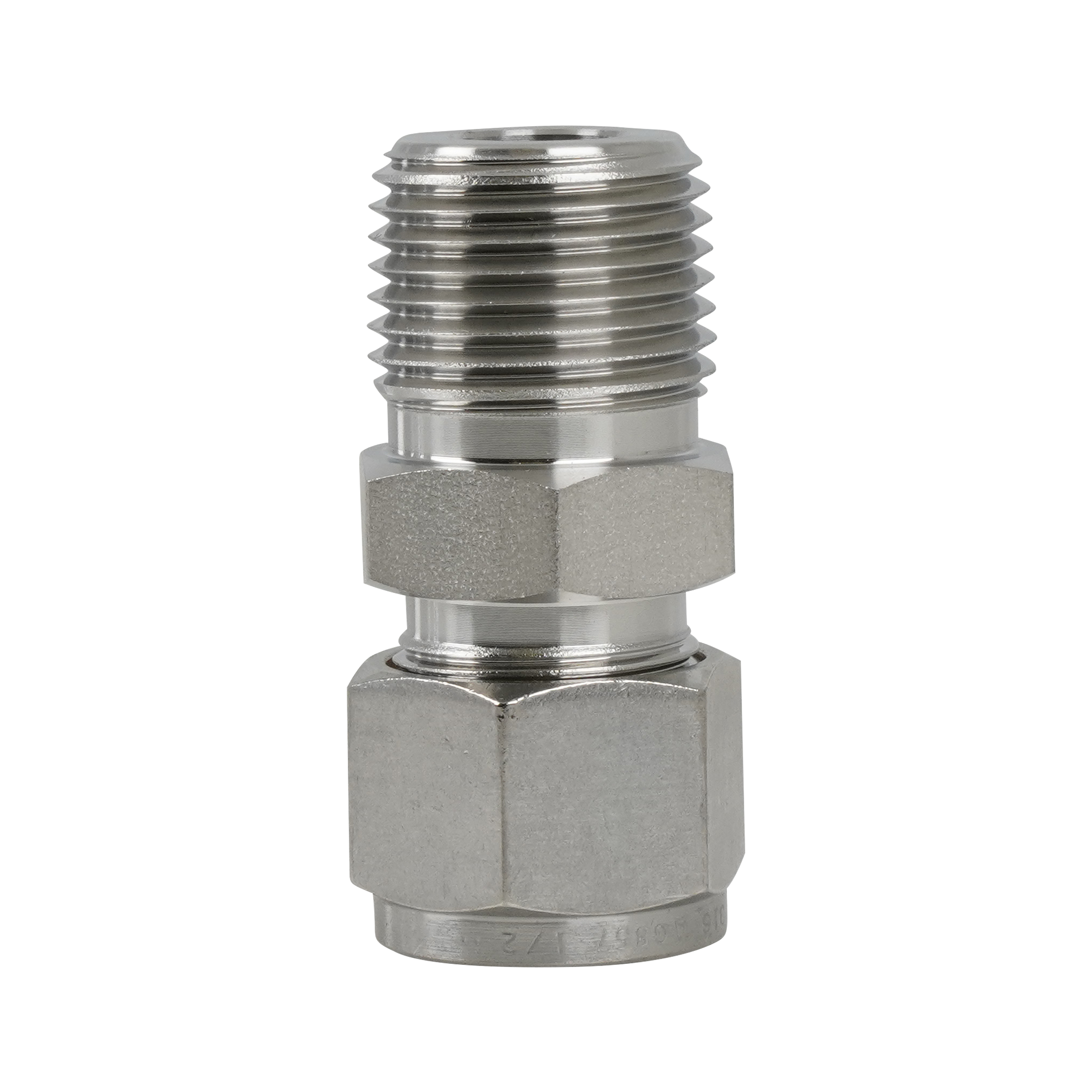

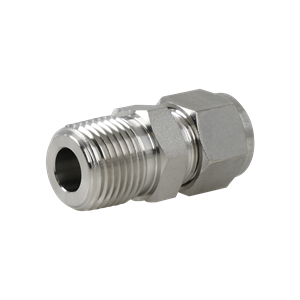

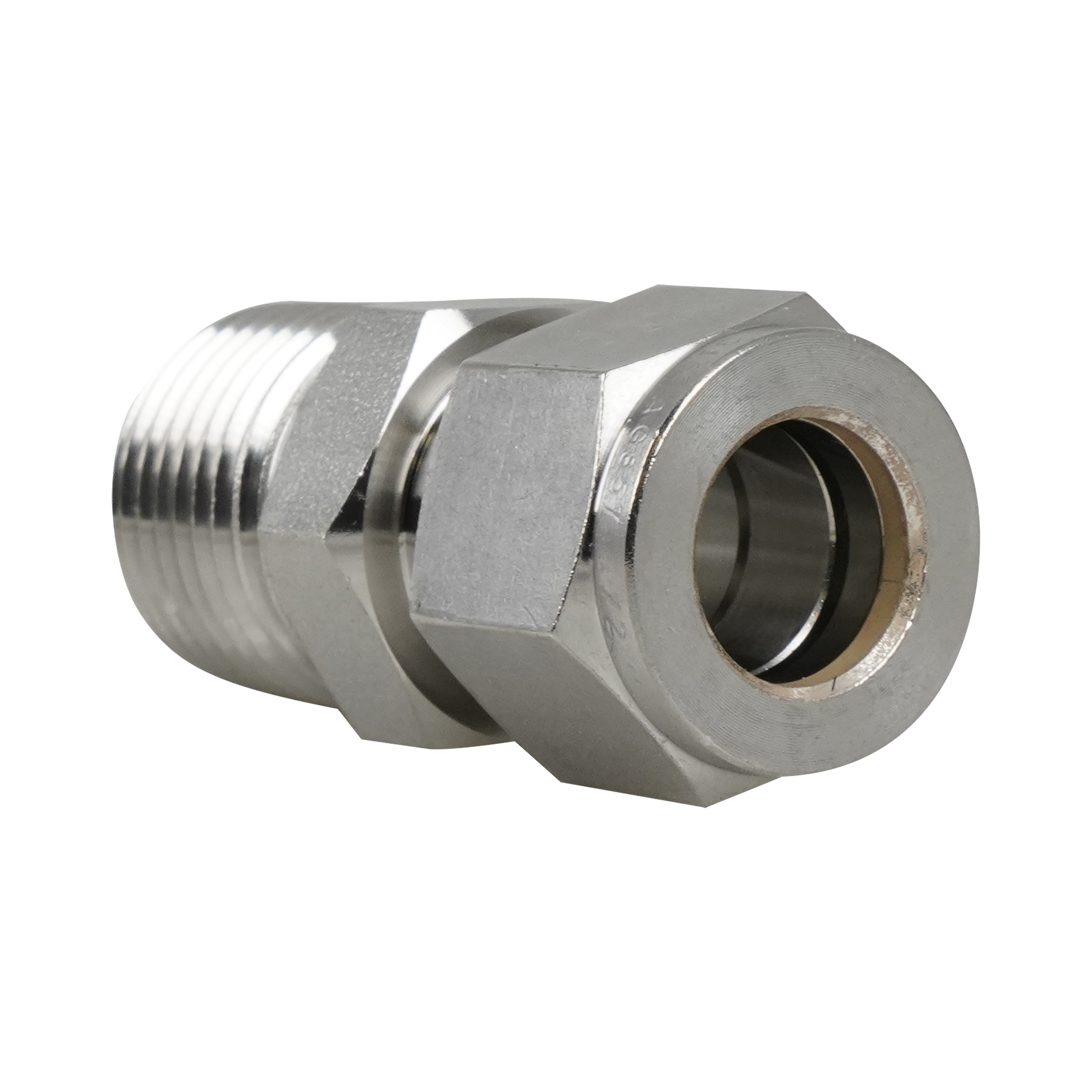

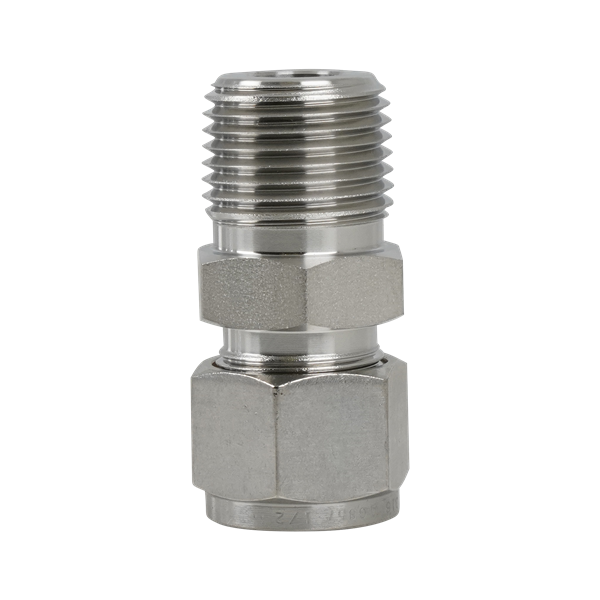

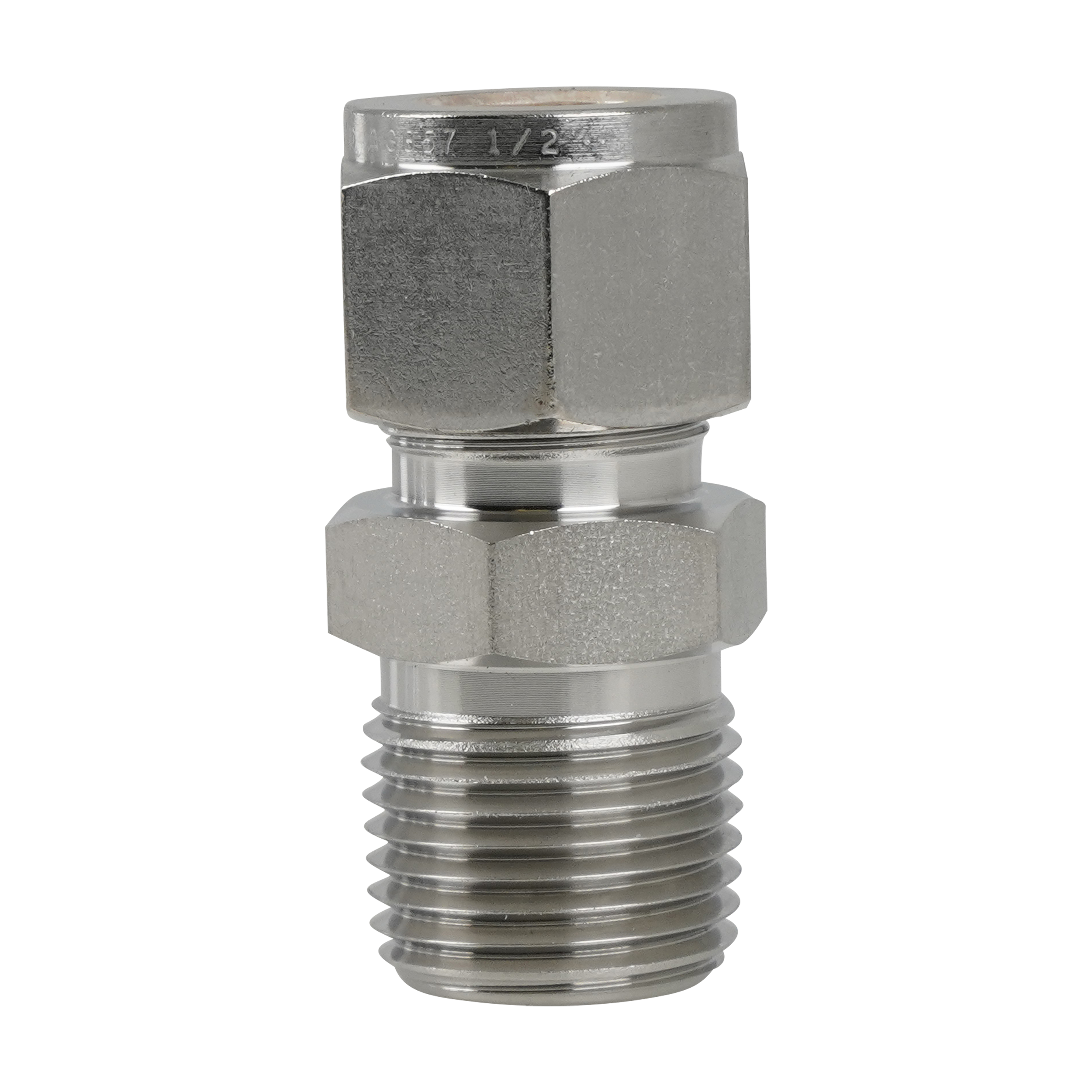

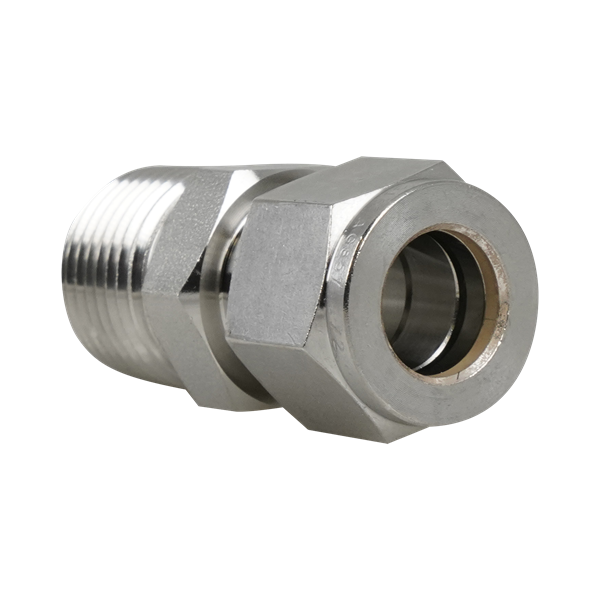

Superlok Male Connector 1/2" Compression Tube x 1/2" MNPT 316 Equal to SS-810-1-8

SMC-8-8N

Net Price: $14.73 / EA

Superlok SMC Dimensional Diagram

Tube Size		NPT		A		B
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
¹⁄₁₆	1.59	¹⁄₁₆	1.59	0.94	23.83	0.43	10.92
¹⁄₁₆	1.59	⅛	3.175	1.03	26.23	0.43	10.92
⅛	3.175	⅛	3.175	1.20	30.48	0.60	15.24
⅛	3.175	¼	6.35	1.40	35.56	0.60	15.24
⅛	3.175	⅜	9.525	1.41	35.81	0.60	15.24
⅛	3.175	½	12.70	1.66	42.16	0.60	15.24
³⁄₁₆	4.76	⅛	3.175	1.23	31.24	0.63	16.00
³⁄₁₆	4.76	¼	6.35	1.43	36.32	0.63	16.00
¼	6.35	⅛	3.175	1.29	32.76	0.70	17.78
¼	6.35	¼	6.35	1.49	37.84	0.70	17.78
¼	6.35	⅜	9.525	1.51	38.35	0.70	17.78
¼	6.35	½	12.70	1.76	44.70	0.70	17.78
¼	6.35	¾	19.05	1.82	46.22	0.70	17.78
⁵⁄₁₆	7.938	⅛	3.175	1.34	34.03	0.73	18.54
⁵⁄₁₆	7.938	¼	6.35	1.52	38.60	0.73	18.54
⁵⁄₁₆	7.938	⅜	9.525	1.54	39.11	0.73	18.54
⅜	9.525	⅛	3.175	1.39	35.30	0.76	19.30
⅜	9.525	¼	6.35	1.57	39.87	0.76	19.30
⅜	9.525	⅜	9.525	1.57	39.87	0.76	19.30
⅜	9.525	½	12.70	1.82	46.22	0.76	19.30
⅜	9.525	¾	19.05	1.88	47.75	0.76	19.30
½	12.70	⅛	3.175	1.53	38.86	0.86	21.84
½	12.70	¼	6.35	1.71	43.43	0.86	21.84
½	12.70	⅜	9.525	1.71	43.43	0.86	21.84
½	12.70	½	12.70	1.93	49.02	0.86	21.84
½	12.70	¾	19.05	1.99	50.54	0.86	21.84
½	12.70	1	25.40	2.25	57.15	0.86	21.84
⅝	15.88	⅜	9.525	1.74	44.19	0.86	21.84
⅝	15.88	½	12.70	1.93	49.02	0.86	21.84
⅝	15.88	¾	19.05	1.99	50.54	0.86	21.84
¾	19.05	½	12.70	1.99	50.54	0.86	21.84
¾	19.05	¾	19.05	1.99	50.54	0.86	21.84
¾	19.05	1	25.40	2.25	57.15	0.86	21.84
⅞	0.875	¾	19.05	1.99	50.54	0.86	21.84
⅞	0.875	1	25.40	2.25	57.15	0.86	21.84
1	25.40	½	12.70	2.26	57.40	1.04	26.41
1	25.40	¾	19.05	2.26	57.40	1.04	26.41
1	25.40	1	25.40	2.45	62.23	1.04	26.41
1¼	31.75	1	25.40	3.04	77.22	1.53	38.86
1¼	31.75	1¼	31.75	3.04	77.22	1.53	38.86
1½	38.10	1½	38.10	3.50	88.90	1.66	42.21
2	50.80	2	50.80	4.47	113.54	2.47	62.74
