Alfa Laval

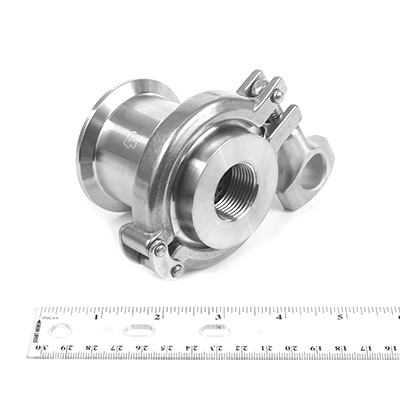

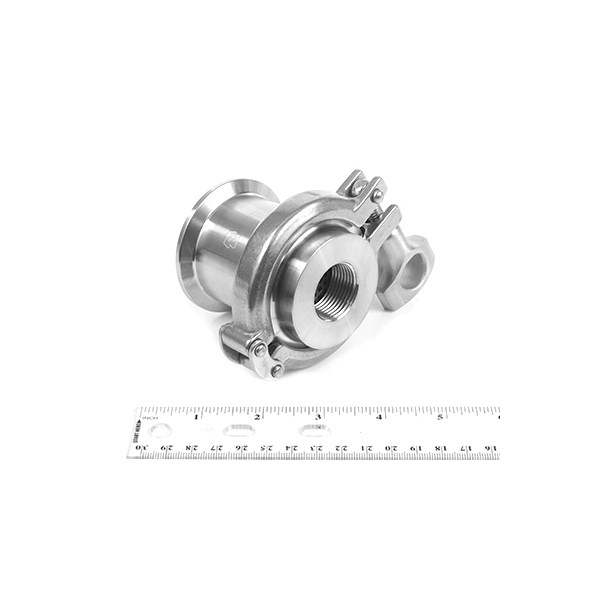

AIR BLOW CHECK VALVE 2" TC 0.75" FPT VITON HIGH VOLUME ALFA LAVAL
62-326C-2-SFY-316
- MPN:
- 830145
Net Price: $1,104.00 / EA
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| PLUG ASSEMBLY VITON FOR 62-326 AIR BLOW CHECK VALVE ALFA LAVAL |
$204.62 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Air Blow Check Valves |
| Series | 62-326 Series |
| Material | 316L Stainless Steel |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 0.75" |
| Connection Type 2 | FNPT |
| Weight | 2.48000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 830145
Dimensional Data
62-326 Air Blow Check Valve
| Nominal Size | A | B | |||||||
|---|---|---|---|---|---|---|---|---|---|
| "A" Adapter | "B" Adapter | "C" or "C1" Adapter | |||||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2 | 50.80 | 2.50 | 63.50 | 3.69 | 93.73 | 3.56 | 90.42 | 2.69 | 66.55 |
| 2½ | 63.50 | 2.06 | 52.32 | 3.69 | 93.73 | 3.56 | 90.42 | 2.69 | 66.55 |
| 3 | 76.20 | 3.56 | 90.42 | 3.69 | 93.73 | 3.56 | 90.42 | 2.69 | 66.55 |
| 4 | 101.60 | 4.69 | 119.13 | 3.69 | 93.73 | 3.56 | 90.42 | 2.69 | 66.55 |
| 4½ | 114.30 | 5.13 | 130.30 | 3.69 | 93.73 | 3.56 | 90.42 | 2.69 | 66.55 |
Resources
0Data Sheets
Alfa Laval 62-174 326 Data Sheet
5Spare Part Lists
Videos
