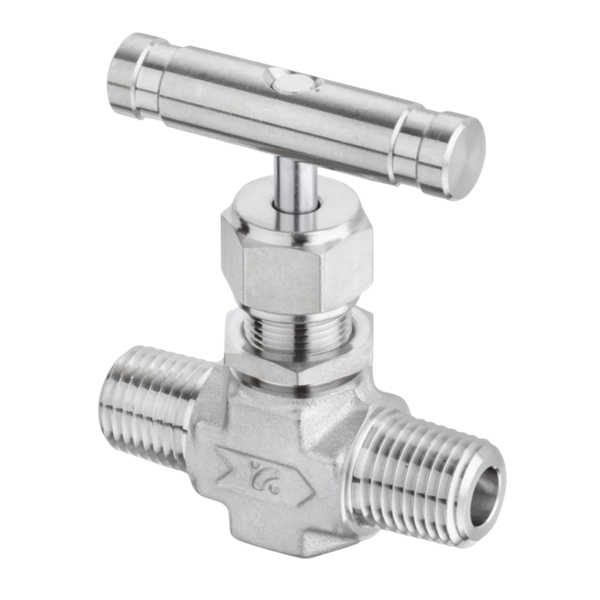

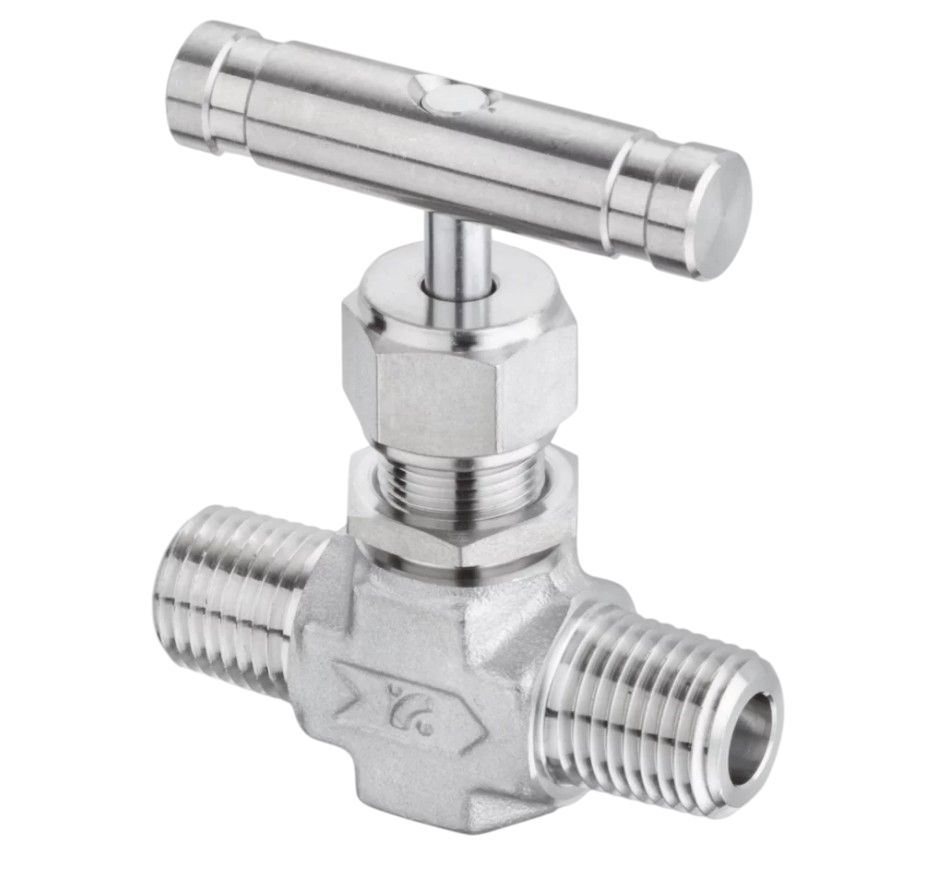

Superlok SINV Needle Valve 0.25" MNPT 316 PTFE (Teflon) Seats Bar Handle Regulating Stem

SINV2-M-4N-RS

Net Price: $59.85 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Valves
Product Subtype Needle Valves
Series SINV Series
Material 316 Stainless Steel
Size 1 0.25"
Connection Type 1 MNPT
Seat Material PTFE (Teflon)
Weight 0.50000

Superlok SINV Dimensional Diagram

SINV2
Part No. Orifice Cv End Connections L A D E F
  (in) (mm) (in) (mm) Inlet Outlet (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
SINV2 S4 0.173 4.40 0.015 0.37 ¼" Tube  2.26 57.40 1.13 28.70 0.44 11.20 0.38 9.70 1.77 45.00
S6M 0.173 4.40 0.015 0.37  6mm Tube 2.26 57.40 1.13 28.70 0.44 11.20 0.38 9.70 1.77 45.00
S8M 0.173 4.40 0.015 0.37  8mm Tube 2.34 59.40 1.17 29.70 0.44 11.20 0.38 9.70 1.77 45.00
M2N 0.173 4.40 0.015 0.37 ⅛" Male NPT   1.62 41.20 0.81 20.60 0.44 11.20 0.38 9.70 1.77 45.00
M4N 0.173 4.40 0.015 0.37 ¼" Male NPT   1.96 49.80 0.98 24.90 0.44 11.20 0.38 9.70 1.77 45.00
M4N-S4 0.173 4.40 0.015 0.37  ¼" Male NPT  ¼" Tube 2.11 53.60 0.98 24.90 0.44 11.20 0.38 9.70 1.77 45.00
