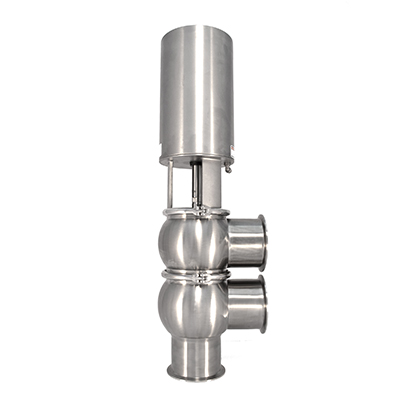

DIVERT VALVE 2" TC TR2 PLUG EPDM SEAL N/C
7610-210SM2H202SRSTES
This item is non-returnable.
$2,938.76 / EA
- Availability:
-
Springfield, MO 0 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 0 EA
Spare Parts
- Total: 2
| Product | Availability |
Price
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SERVICE KIT ACTUATOR UNIQUE SSV N/O N/C 2" 2.5" MAINTAINABLE |
|
$41.43 / EA |
|
||||||||
| SERVICE KIT 2" EPDM UNIQUE SSV TR DIVERT VALVE |
|
$313.23 / EA |
|
- Total: 2
Attributes
- Weight:
- 21.4
- Manufacturer:
- Alfa Laval
- Manufacturer part number:
- 9613360926
Dimensional Data
Unique SSV Changeover 3 Port Tri-Clamp Single Seat Valve
| Nominal Size | A | B | E | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 14.66 | 372.36 | 14.19 | 360.43 | 2.47 | 62.74 | 3.35 | 85.09 |
| 1½ | 38.10 | 15.41 | 391.41 | 14.70 | 373.38 | 2.45 | 62.23 | 3.35 | 85.09 |
| 2 | 50.80 | 18.04 | 458.22 | 17.18 | 436.37 | 2.90 | 73.66 | 4.53 | 115.06 |
| 2½ | 63.50 | 19.57 | 497.08 | 18.70 | 474.98 | 3.69 | 93.73 | 4.53 | 115.06 |
| 3 | 76.20 | 21.57 | 547.88 | 20.51 | 520.95 | 3.89 | 98.81 | 6.20 | 157.48 |
| 4 | 101.60 | 24.33 | 617.98 | 23.27 | 591.06 | 5.19 | 131.83 | 6.20 | 157.48 |
