SHUTOFF VALVE 3" TC TR2 PLUG EPDM SEAL N/C
7610-200SM2H302SRSTES
This item is non-returnable.
$3,439.65 / EA
- Availability:
-
Springfield, MO 0 EA Durham, NC 0 EA Modesto, CA 0 EA Grand Prairie, TX 0 EA
Spare Parts
- Total: 2
| Product | Availability |
Price
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SERVICE KIT ACTUATOR 3" 4" DN80 DN100 UNIQUE SSV MAINTAINABLE N/O N/C ALFA LAVAL |
|
$48.65 / EA |
|
||||||||

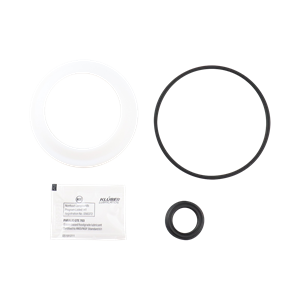

| SERVICE KIT 3" EPDM UNIQUE SSV TR2 SHUTOFF VALVE |
|
$287.55 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|
| Product Type | Valves |
|---|
| Product Subtype | Seat Valves |
|---|
| Series | Unique SSV Series |
|---|
| Size | 3" |
|---|
| Connection Type | Tri-Clamp |
|---|
| Weight | 34.00000 |
|---|
- Manufacturer:
- Alfa Laval
- Manufacturer part number:
- 9613360900
Dimensional Data
Unique SSV Shutoff 2 Port Tri-Clamp Single Seat Valve
| Nominal Size | A | B | E | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 12.89 | 327.41 | 12.30 | 312.42 | 1.97 | 50.04 | 3.35 | 85.09 |
| 1½ | 38.10 | 13.13 | 333.50 | 12.34 | 313.44 | 1.95 | 49.53 | 3.35 | 85.09 |
| 2 | 50.80 | 15.30 | 388.62 | 14.27 | 362.46 | 2.40 | 60.96 | 4.53 | 115.06 |
| 2½ | 63.50 | 16.29 | 413.77 | 15.31 | 388.87 | 3.19 | 81.03 | 4.53 | 115.06 |
| 3 | 76.20 | 17.80 | 452.12 | 16.62 | 422.15 | 3.39 | 86.11 | 6.20 | 157.48 |
| 4 | 101.60 | 19.58 | 497.33 | 18.40 | 467.36 | 4.69 | 119.13 | 6.20 | 157.48 |
Alfa Laval Unique SSV Standard Data Sheet
