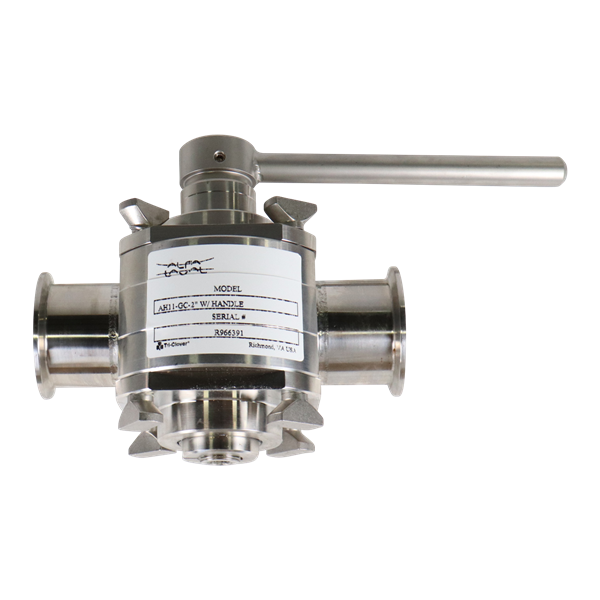

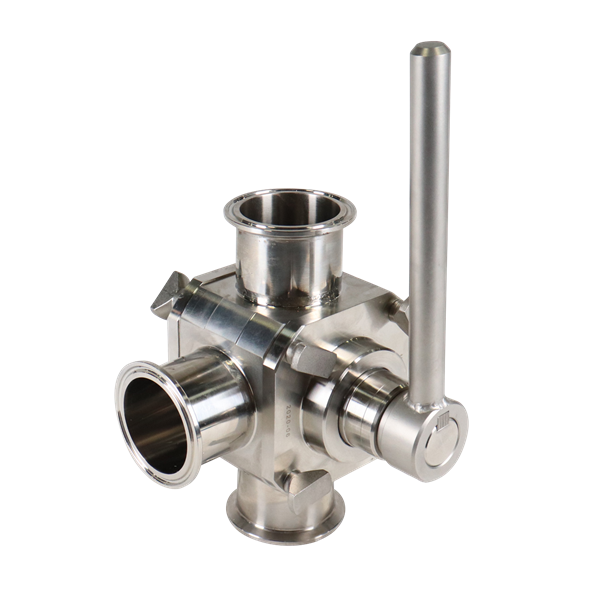

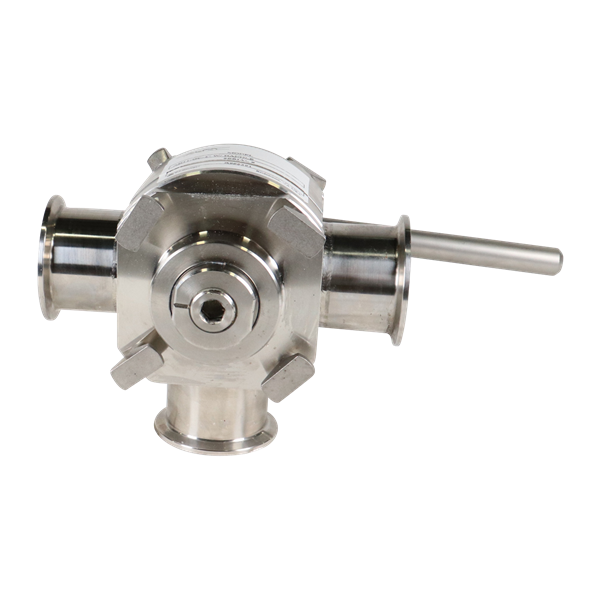

Alfa Laval Koltek Shutter Valve 2.5" Tri-Clamp 316L 32Ra EPDM Seals PTFE (Teflon) Shutter 3-Way with Handle
AH11-GC-E-2.5-T316
- MPN:
- 9634067543
Net Price: $4,944.48 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

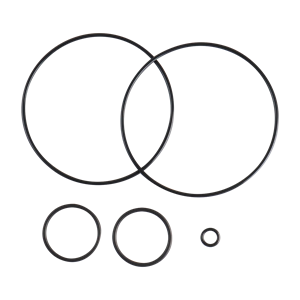

| Alfa Laval O-Ring Kit 2.5" EPDM for Koltek Shutter Valve |
$69.77 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Shutter Valves |
| Series | Koltek Series |
| Material | 316L Stainless Steel |
| Elastomer | EPDM |
| Size 1 | 2.5" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A |
| Weight | 24.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9634067543
Dimensional Data
Koltek Valve TC with Handle
| Nominal Size | A | B | K | G | E | M | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.4 | 4.57 | 116.07 | 2.56 | 65.02 | 5.12 | 130.04 | 4.75 | 120.65 | 1.65 | 41.91 | 0.50 | 12.70 |
| 1½ | 38.1 | 5.87 | 149.09 | 3.54 | 89.91 | 5.12 | 130.04 | 5.83 | 148.08 | 2.20 | 55.88 | 0.50 | 12.70 |
| 2 | 50.8 | 6.34 | 161.03 | 4.02 | 102.10 | 7.09 | 180.08 | 6.82 | 173.22 | 2.44 | 61.97 | 0.50 | 12.70 |
| 2½ | 63.5 | 7.05 | 179.07 | 4.65 | 118.11 | 7.09 | 180.08 | 8.27 | 210.05 | 2.76 | 70.10 | 0.50 | 12.70 |
| 3 | 76.2 | 8.03 | 203.96 | 5.39 | 136.90 | 9.25 | 234.95 | 9.46 | 240.28 | 3.15 | 80.01 | 0.50 | 12.70 |
| 4 | 101.6 | 11.50 | 292.10 | 7.68 | 195.07 | 12.99 | 329.94 | 13.08 | 332.23 | 4.61 | 117.09 | 0.63 | 16.00 |
