Configurable Compact CIP

Compact-CIP

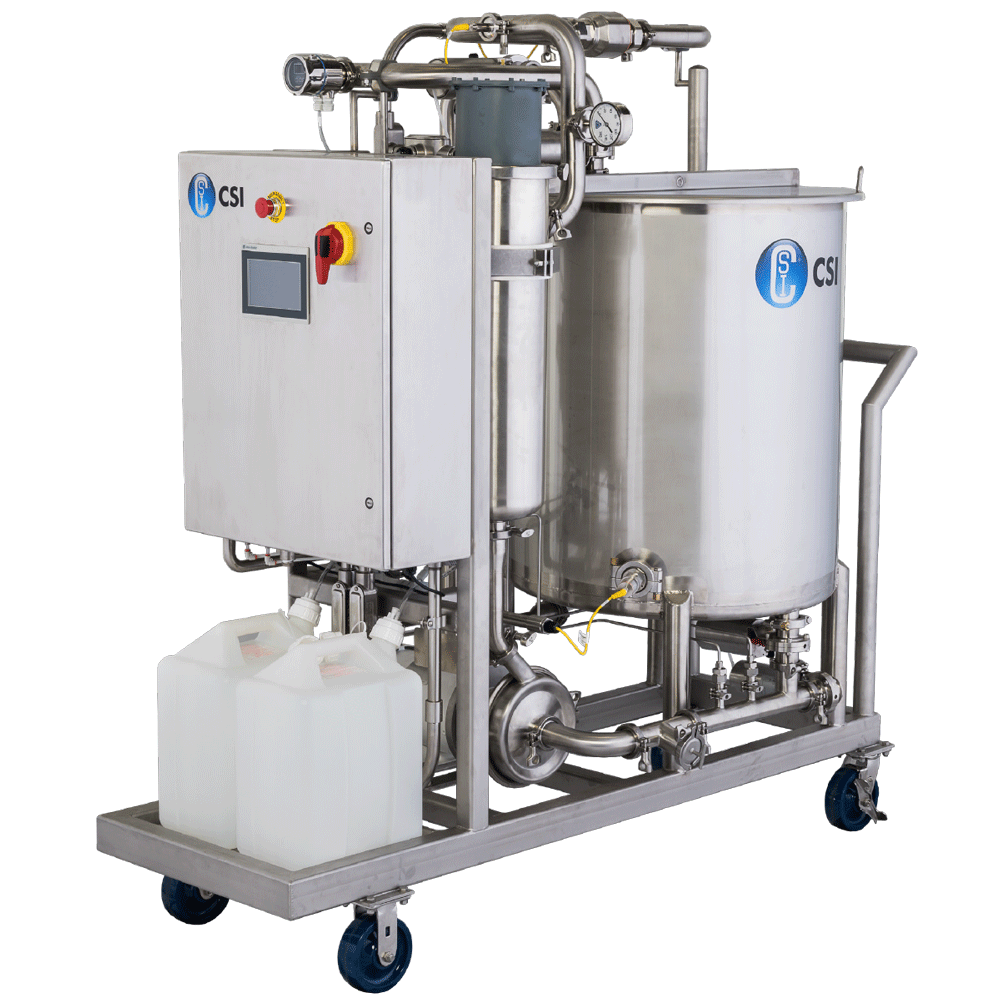

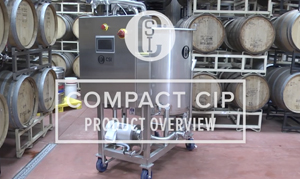

Compact CIP is a mobile, cost effective clean-in-place (CIP) system designed to serve the needs of processors in the sanitary industry without compromising functionality or quality.

The Compact CIP product line was originally conceived for customers new to CIP and for those with smaller budgets. With these customers in mind, mobility and versatility became key features. It has large caster wheels and a small footprint, allowing it to be moved easily.

Compact CIP is also a solution for well-established plants that want to expand their CIP capabilities, but do not want to commit to a hard-piped, centralized CIP system. Plants concerned with allergen crossover can dedicate individual compact CIP skids to different areas of the plant, mitigating any potential for contamination.

Request a Quote

Mobile CIP Systems for System and Tank Cleaning

Compact CIP systems are designed to be highly adaptable, making them suitable for a wide range of industries. These cleaning systems can be customized to meet specific cleaning needs, ensuring optimal performance and efficiency. By understanding the unique application of each process, Compact CIP systems can be tailored to provide the most effective cleaning solutions tailored to specific needs.

Option 1

480V Heat Exchanger
1 Chemical Pump

Option 2

480V Heat Exchanger
No Chemical Pump

Option 3

No Heat Exchanger
1 Chemical Pump

Option 4

No Heat Exchanger
2 Chemical Pumps

Option 5

No Heat Exchanger
No Chemical Pump

Design

The system is built to the same level of hygienic design required for food and beverage industries. The instruments are robust and accurate, ensuring dpendable measurements of temperature, flow, conductivity, and pressure. Flow is controlled via a VFD (Variable Frequency Drive) supplying power to the centrifigual pump.

Controls

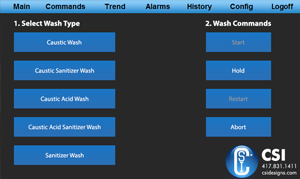

Compact CIP is a mobile unit that also serves as a fully functional, automated CIP system. The seven-inch touchscreen Human Machine Interface (HMI) displays the control interface. From this screen temperature, flow, concentration, and cycle time setpoints can be configured. A number of CIP washes can be selected after the parameters are established. With a touch of a button, the system will run the selected wash automatically, until each parameter is met and the wash is complete. These washes can be monitored, alarms can be viewed, and cycle trends displayed all from the HMI. The information is organized intuitively for quick operator training, configuration, and operation.
