Alfa Laval

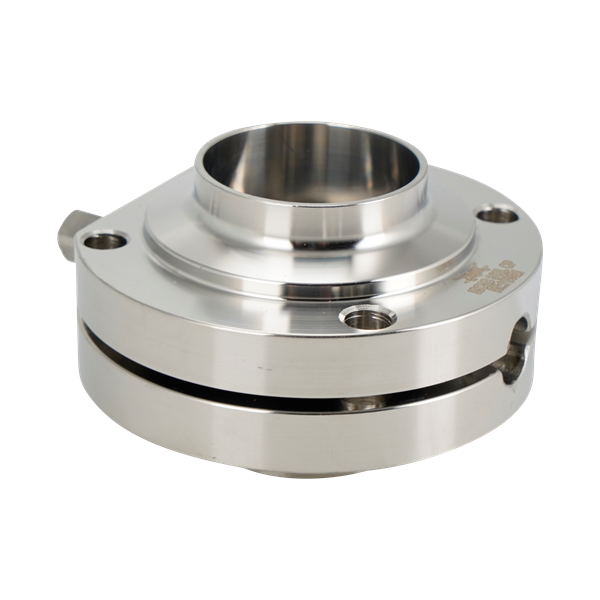

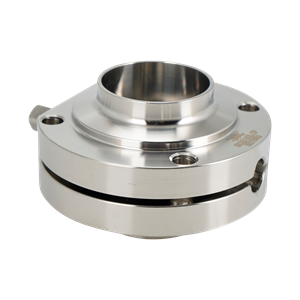

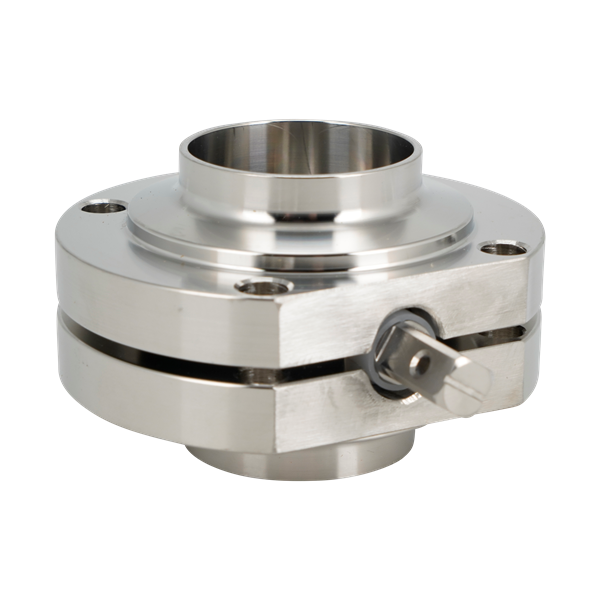

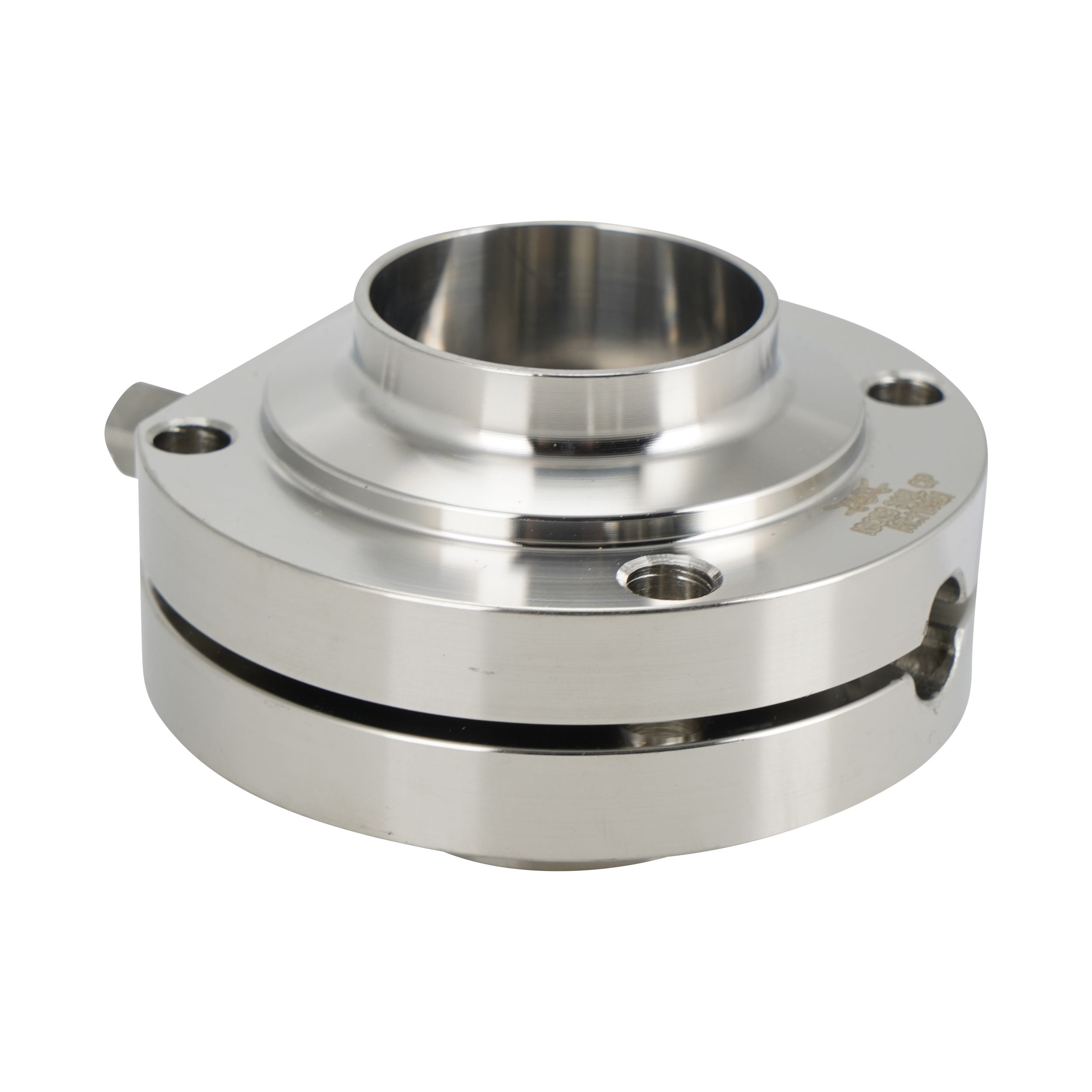

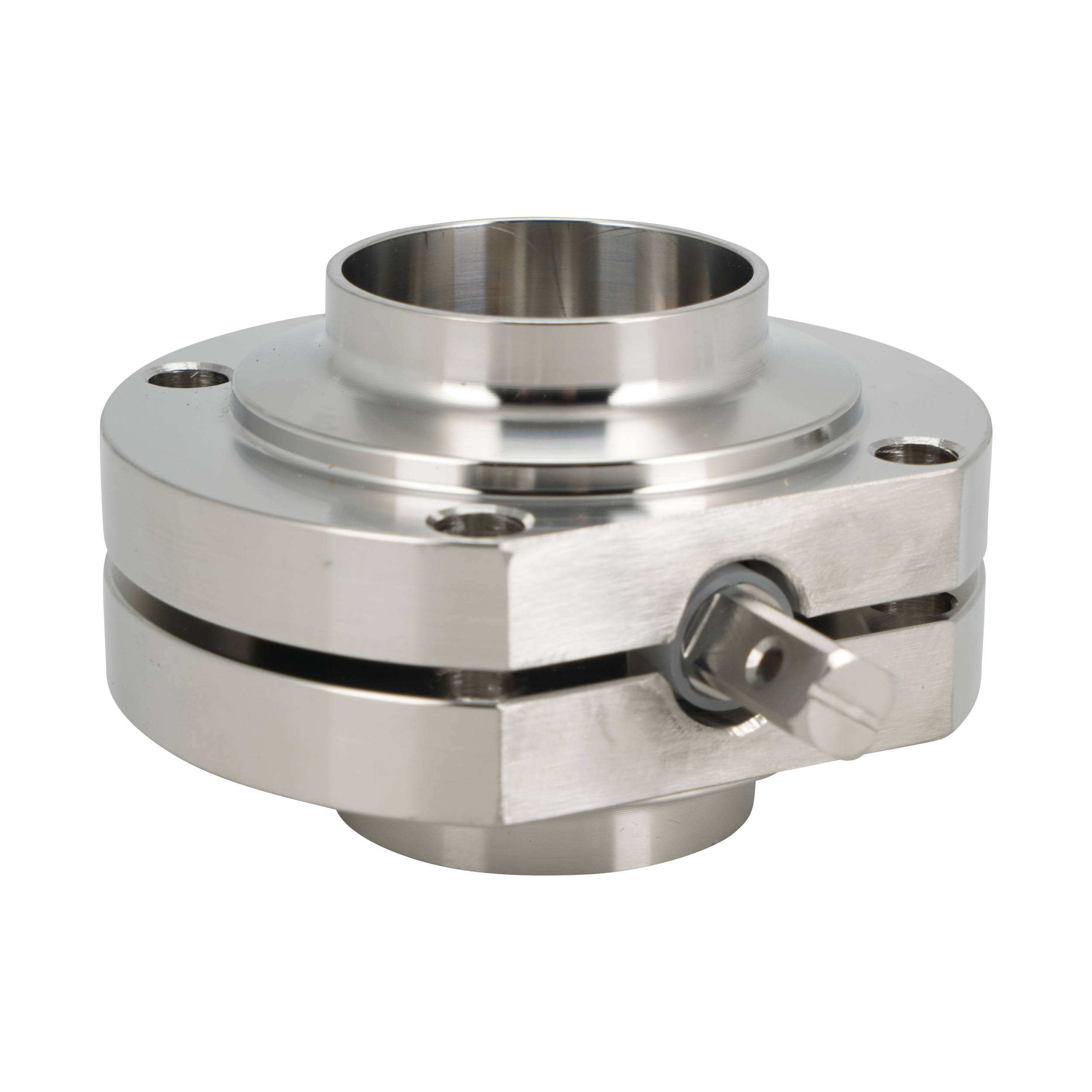

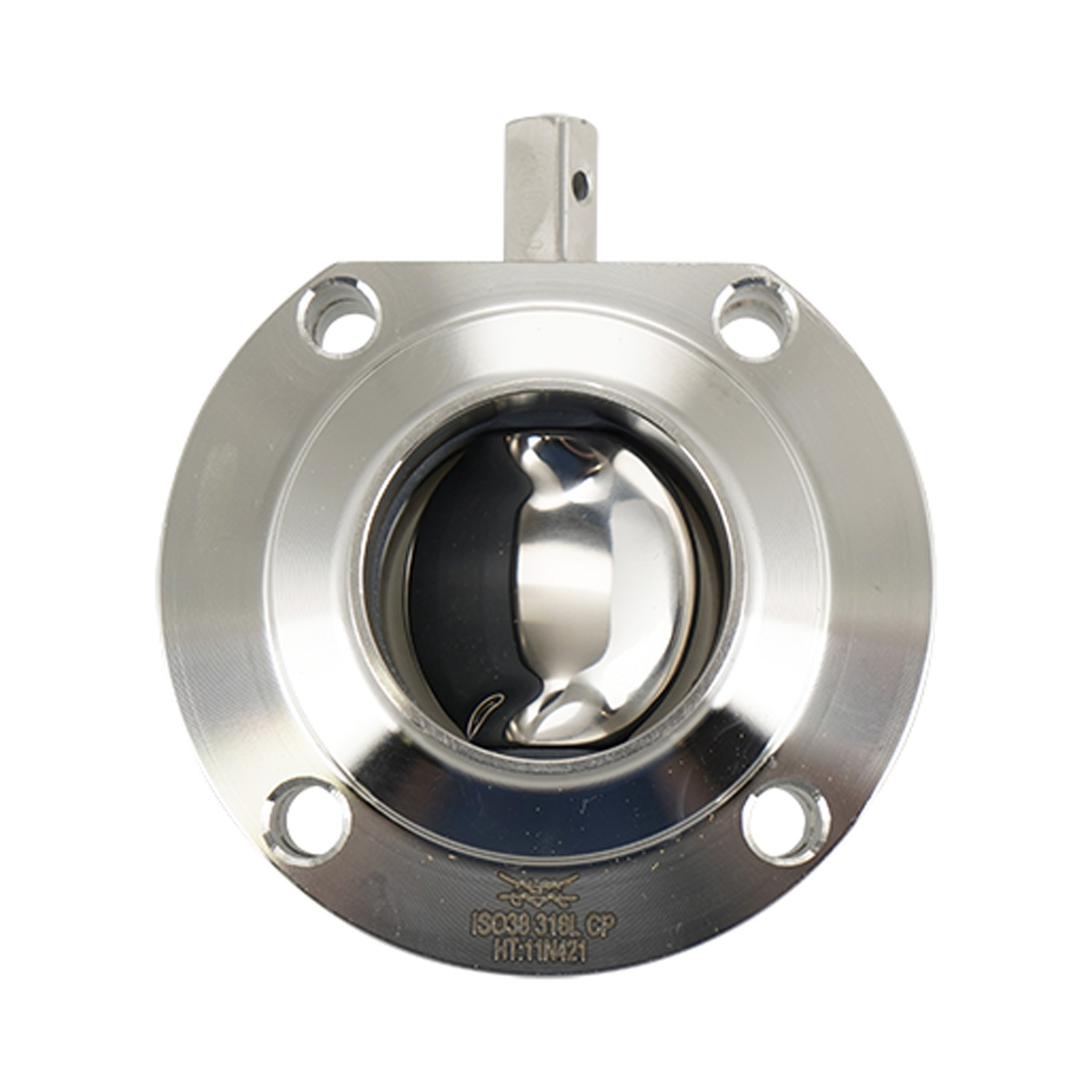

Alfa Laval LKB Butterfly Valve 1.5" Butt Weld 316L FKM (Viton) Seat No Handle
LKB51W-1.5-FY-316L-NH
- MPN:
- 9611444591
Net Price: $97.37 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Butterfly Valves |
| Series | LKB Series |
| Model | LKB51 |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | FKM (Viton) |
| Size 1 | 1.5" |
| Connection Type 1 | Butt Weld |
| Actuator / Handle | No Handle |
| Weight | 1.65000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9611444591
Dimensional Data
LKB Butt Weld Butterfly Valve, No Handle
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 1.85 | 47.00 | 1.28 | 32.50 |
| 1½ | 38.10 | 1.85 | 47.00 | 1.28 | 32.50 |
| 2 | 50.80 | 2.05 | 52.00 | 1.65 | 42.00 |
| 2½ | 63.50 | 2.13 | 54.00 | 2.05 | 52.00 |
| 3 | 76.20 | 2.44 | 62.00 | 2.24 | 57.00 |
| 4 | 101.60 | 3.15 | 80.00 | 3.03 | 77.00 |
| 6 | 152.40 | 3.15 | 80.00 | 4.09 | 104.00 |
Resources
0Data Sheets
Alfa Laval LKB LKB-F Data Sheet
1Manuals
5Spare Part Lists
6Part Configuration
Videos
