Alfa Laval
Alfa Laval LKB Butterfly Valve 6" Tri-Clamp 316L 32Ra ID EPDM N/C Actuator No Control Top
LKB53A-7200-6-E-316L
- MPN:
- 319878
Net Price: $3,058.48 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SERVICE KIT LKB 6" EPDM |
$304.06 / EA |
|
||

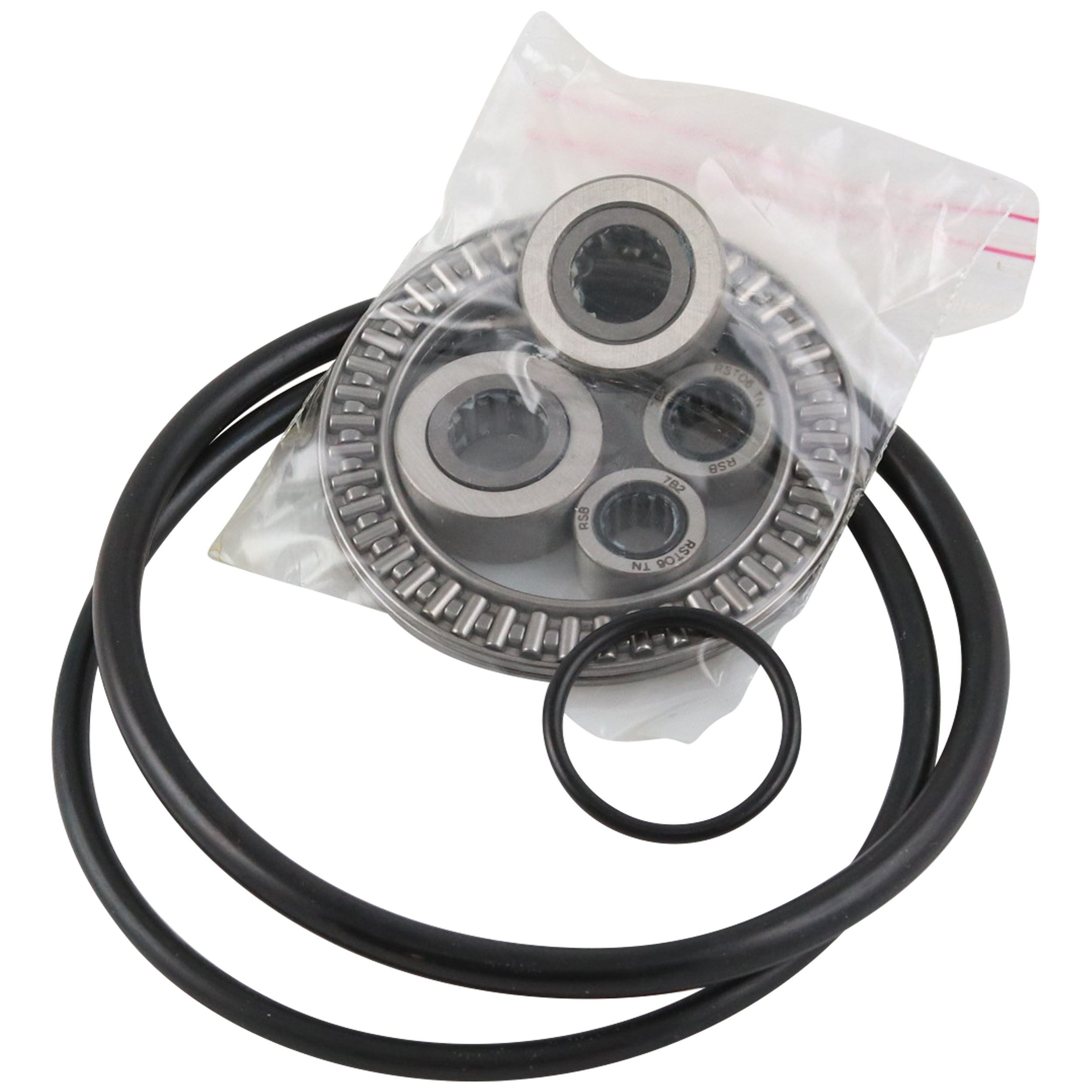

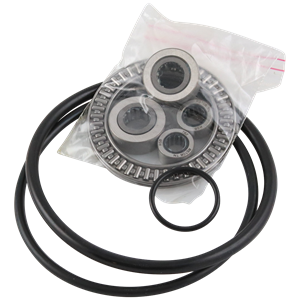

| SERVICE KIT LKB ACTUATOR LKLA 133MM N/O N/C |
$454.57 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Butterfly Valves |
| Series | LKB Series |
| Model | LKB53 |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID |
| Elastomer | EPDM |
| Size 1 | 6" |
| Connection Type 1 | Tri-Clamp |
| Weight | 48.00000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 319878
Dimensional Data
LKB Tri-Clamp Butterfly Valve with Actuator
| Nominal Size | C | D | E | F | G | H | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 (Ø85mm) | 25.40 | 1.75 | 44.45 | 3.50 | 88.90 | 1.53 | 38.86 | 8.56 | 217.42 | 10.13 | 257.30 | 2.72 | 69.09 |
| 3 (Ø85mm) | 76.20 | 2.03 | 51.56 | 4.06 | 103.12 | 2.59 | 65.79 | 9.44 | 239.78 | 12.06 | 306.32 | 3.59 | 91.19 |
| 4 (Ø85mm) | 101.60 | 2.38 | 60.45 | 4.75 | 120.65 | 3.34 | 84.84 | 10.42 | 264.67 | 13.56 | 34.42 | 4.38 | 111.25 |
| 4 (Ø133mm) | 101.60 | 2.38 | 60.45 | 4.75 | 120.65 | 3.34 | 84.84 | 15.38 | 390.65 | 18.70 | 474.98 | 5.60 | 142.24 |
| 6 (85mm) | 152.40 | 3.06 | 77.72 | 6.13 | 155.70 | 4.25 | 107.95 | 11.55 | 293.37 | 15.80 | 401.32 | 5.60 | 142.24 |
| 6 (Ø133mm) | 152.40 | 3.06 | 77.72 | 6.13 | 155.70 | 4.25 | 107.95 | 16.31 | 414.27 | 20.56 | 522.22 | 6.50 | 165.10 |
Alfa Laval LKB LKB-F Data Sheet
