Alfa Laval
Alfa Laval 700 Series Divert Valve 2" Tri-Clamp 316L Buna Normally Closed
761-21M-20L-2-316L
- MPN:
- 740046
Net Price: $4,634.32 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

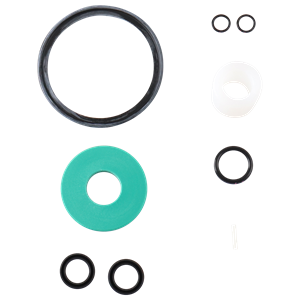

| SERVICE KIT 1.5" 2" BUNA REVERSE ACTING DIVERT 761 771 |
$40.40 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | 700 Series |
| Model | 761 |
| Material | 316L Stainless Steel |
| Elastomer | Buna |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Weight | 31.28000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 740046
Dimensional Data
761-21 Divert Tri-Clamp Single Seat Valve
| Nominal Size | A - Short | A - Long | B | C | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1½ | 38.10 | 20.73 | 526.54 | 24.69 | 627.13 | 4.63 | 117.60 | 2.75 | 69.85 |
| 2 | 50.80 | 21.19 | 538.23 | 25.16 | 639.06 | 4.13 | 104.90 | 3.50 | 88.90 |
| 2½ | 63.50 | 21.85 | 554.99 | 25.81 | 655.57 | 4.50 | 114.30 | 3.50 | 88.90 |
| 3 | 76.20 | 22.85 | 580.39 | 26.81 | 680.97 | 5.00 | 127.00 | 3.75 | 95.25 |
| 4 | 101.60 | 31.00 | 787.40 | 37.09 | 942.07 | 6.00 | 152.40 | 4.00 | 101.60 |
Resources
0Data Sheets
1Manuals
-
Alfa Laval 700 Series Manual
-
Alfa Laval 741 761 762 771 Air Actuated Valves Manual
-
Tri-Clover 700 Series Manual (Legacy)
