Alfa Laval
Alfa Laval 700 Series Shutoff Valve 1.5" Tri-Clamp 316L Buna Normally Closed
761-10M-20S-1.5-316L
- MPN:
- 740005
Net Price: $3,077.31 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|

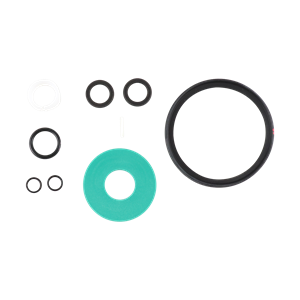

| SERVICE KIT 1.5" BUNA 761 741 771 SERIES 10-30 |
$29.25 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | 700 Series |
| Model | 761 |
| Material | 316L Stainless Steel |
| Elastomer | Buna |
| Size 1 | 1.5" |
| Connection Type 1 | Tri-Clamp |
| Weight | 23.82000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 740005
Dimensional Data
761-10 Shutoff Tri-Clamp Single Seat Valve
| Nominal Size | A - Short | A - Long | C | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 14.88 | 377.95 | N/A | N/A | 2.50 | 63.50 |
| 1½ | 38.10 | 17.13 | 435.10 | 21.09 | 535.69 | 2.75 | 96.85 |
| 2 | 50.80 | 17.63 | 447.80 | 21.56 | 547.62 | 3.50 | 88.90 |
| 2½ | 63.50 | 17.56 | 446.02 | 21.53 | 546.86 | 3.50 | 88.90 |
| 3 | 76.20 | 18.06 | 458.72 | 22.03 | 559.56 | 3.75 | 95.25 |
| 4 | 101.60 | 24.97 | 634.24 | 31.09 | 789.69 | 4.00 | 101.60 |
Resources
0Data Sheets
1Manuals
-
Alfa Laval 700 Series Manual
-
Alfa Laval 741 761 762 771 Air Actuated Valves Manual
-
Tri-Clover 700 Series Manual (Legacy)
