Alfa Laval

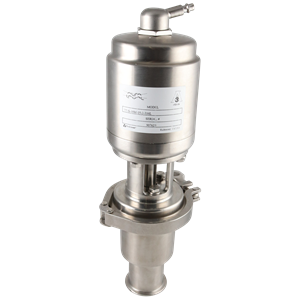

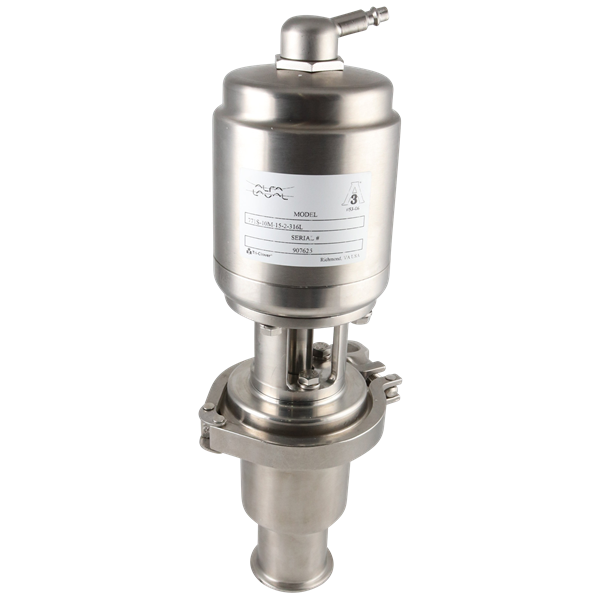

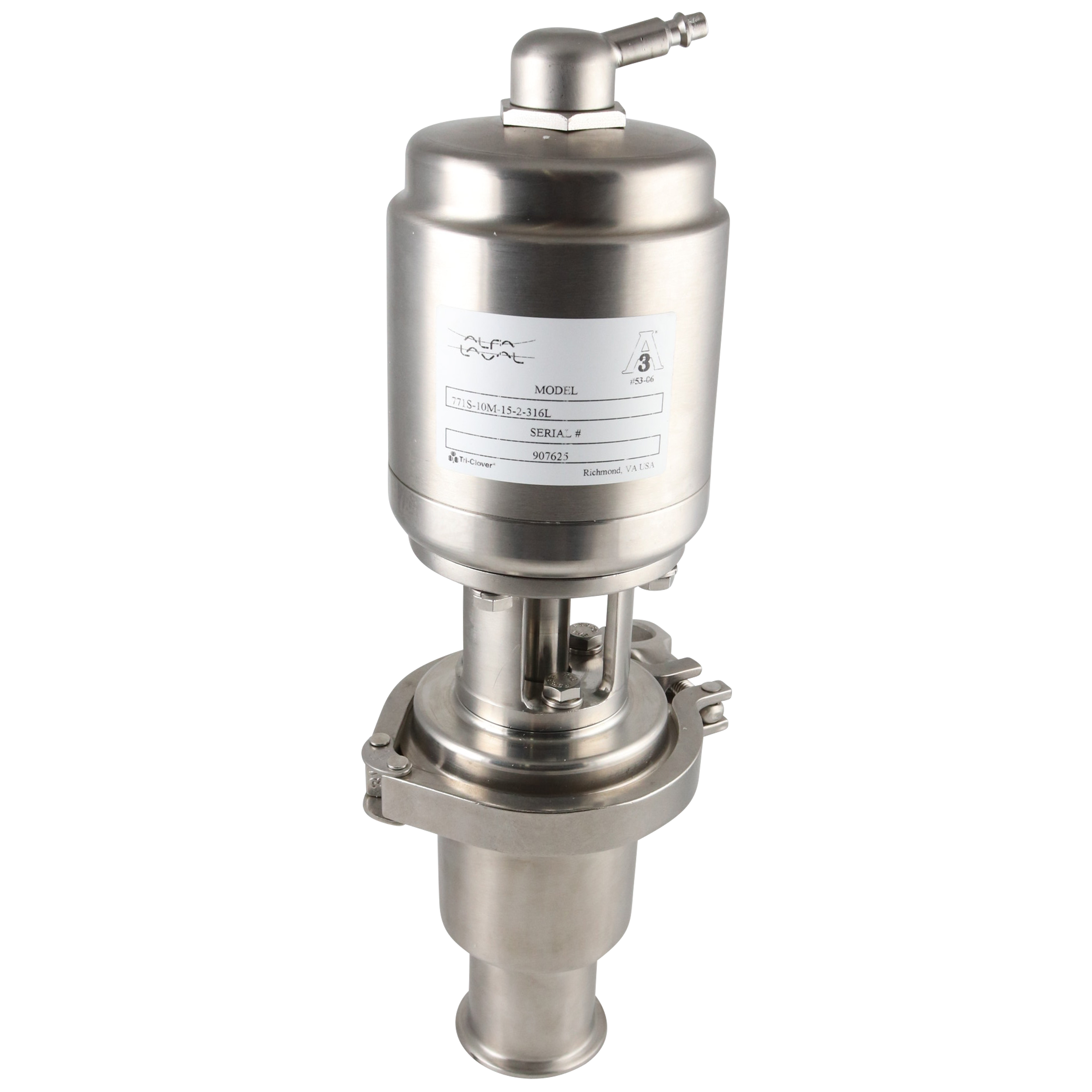

Alfa Laval 700 Series Throttling Valve 2" Tri-Clamp 316L EPDM Normally Open
771S-10M-15-2-E-316L
- MPN:
- 319563
Net Price: $3,744.98 / EA
This item is non-returnable.
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| SERVICE KIT 2" BUNA 761 741 771 10 - 30 SERIES |
$29.25 / EA |
|
- Total: 1
Suggested products
Attributes
| Brand | Alfa Laval |
|---|---|
| Product Type | Valves |
| Product Subtype | Seat Valves |
| Series | 700 Series |
| Model | 771 |
| Material | 316L Stainless Steel |
| Elastomer | EPDM |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Weight | 17.53000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 319563
Dimensional Data
771-10 Shutoff Throttling Tri-Clamp Single Seat Valve
| Nominal Size | A | C | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 14.13 | 358.90 | 2.50 | 63.50 |
| 1½ | 38.10 | 15.06 | 382.52 | 2.75 | 69.85 |
| 2 | 50.80 | 15.56 | 395.22 | 3.50 | 88.90 |
| 2½ | 63.50 | 15.50 | 393.70 | 3.50 | 88.90 |
| 3 | 76.20 | 15.50 | 393.70 | 3.75 | 95.25 |
Resources
0Data Sheets
1Manuals
-
Alfa Laval 700 Series Manual
-
Alfa Laval 741 761 762 771 Air Actuated Valves Manual
-
Tri-Clover 700 Series Manual (Legacy)
