Ampco

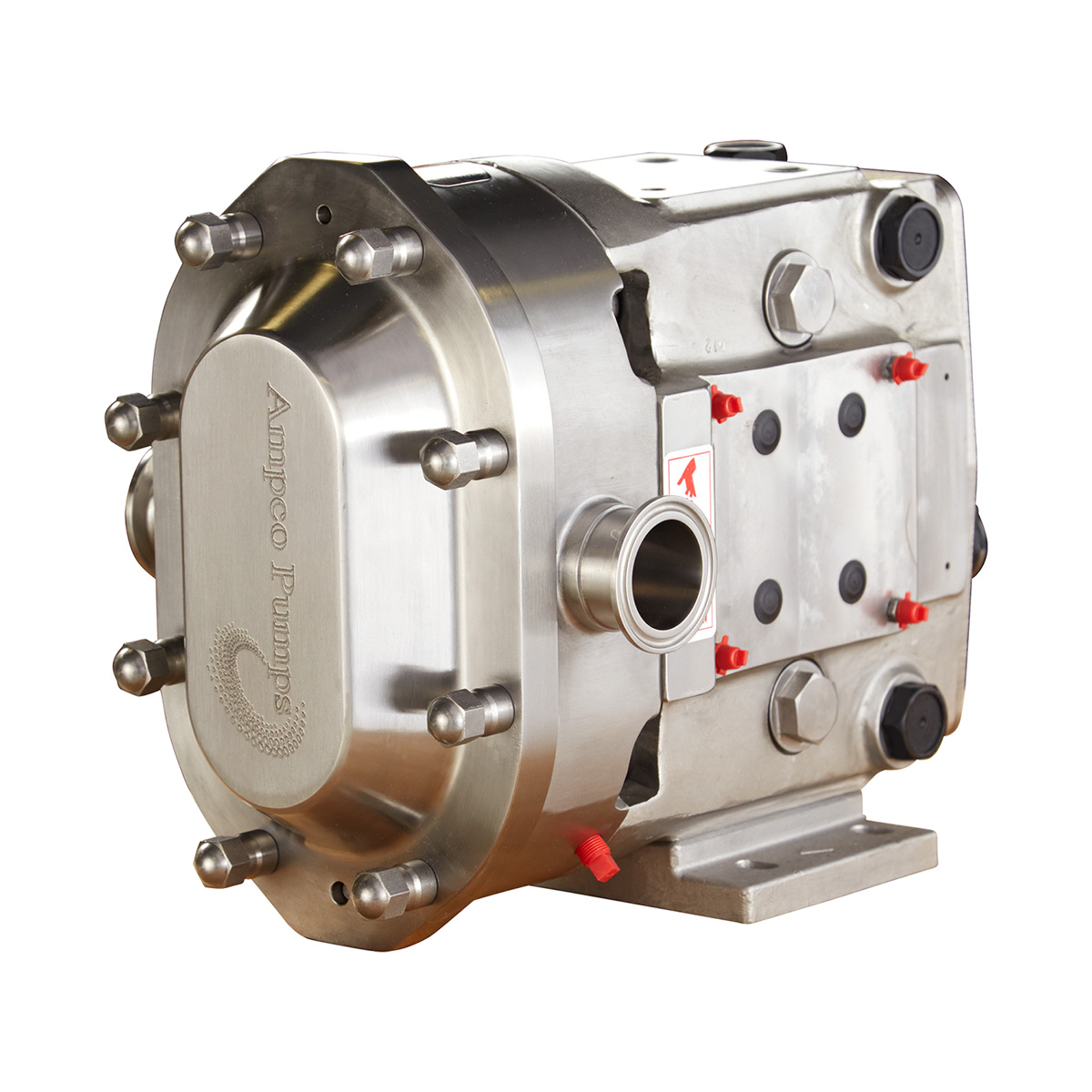

ZP2 030 CIRCUMFERENTIAL PISTON PUMP 2" TC HORIZONTAL PORTS BOTTOM DRIVE STAINLESS GEAR CASE DOUBLE MECHANICAL WITH FLUSH SEAL C/SC VITON BI-WING HOT ALLOY 88 ROTORS JACKETED COVER FLAT BODY PROFILE AMPCO

ZP2030M20CS-DM2Y-2H8-0310

MPN:: ZP2030M20CS-DM2Y-2H8-0310

Net Price: $17,654.00 / EA

Have an account? Login now.

This item is non-returnable.

Availability:

Spare Parts

Page size:

Total: 1

	Product	Item Number	Availability		Price
	SEAL KIT U2 ZP2 MODEL 30 DOUBLE MECHANICAL C/SC VITON AMPCO	WK2-30-DM-2Y		$1,485.00 / EA	Quantity

Total: 1

Suggested products

Attributes

Brand	Ampco
Product Type	Pumps
Product Subtype	Circumferential Piston Pumps
Series	ZP2 Series
Model	030
Material	316L Stainless Steel
Finish	32Ra
Elastomer	FKM (Viton)
Size 1	2"
Connection Type 1	Tri-Clamp
Size 2	2"
Connection Type 2	Tri-Clamp
Orientation / Mount	Horizontal / Bottom
Seal Type	Double Mechanical with Flush
Seal Material	Carbon / Silicon Carbide
Weight	170.00000

Manufacturer:: Ampco Pumps Company
MPN:: ZP2030M20CS-DM2Y-2H8-0310

Dimensional Data

ZP Dimensional Diagram (Dimensions A, F, H, J, N, S, T, U)

Circumferential Piston Pump | ZP2

Size (Model)		A		B		C		D		E		F		G		H		I		J		K		L		M		N		O (Port)		P		Q		R (Key)		S		T		U
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
1.00 (6)	25.40	4.75	120.65	1.95	49.53	3.75	95.25	11.80	299.72	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.61	244.09	2.12	53.85	2.00	50.80	4.21	106.93	1.00	25.40	2.79	70.87	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (15)	38.10	4.75	120.65	1.95	49.53	3.75	95.25	11.80	299.72	5.50	139.70	1.94	49.28	2.31	58.67	0.41	10.41	6.82	173.23	2.93	74.42	9.61	244.09	2.12	53.85	2.00	50.80	4.21	106.93	1.50	38.10	2.79	70.87	0.88	22.23	0.19	4.76	3.49	88.65	6.97	177.04	8.30	210.82
1.50 (30)	38.10	6.25	158.75	2.78	70.61	4.24	107.70	14.58	370.33	6.86	174.24	2.31	58.67	2.56	65.02	0.41	10.41	7.77	197.36	3.56	90.42	11.61	294.89	2.62	66.55	2.32	58.93	5.21	132.33	1.50	38.10	3.84	97.54	1.25	31.75	0.25	6.35	4.25	107.95	8.50	215.90	10.29	261.37
2.00 (45)	50.80	8.25	209.55	3.86	98.04	5.87	149.10	18.56	471.42	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	14.86	377.44	3.50	88.90	2.25	57.15	7.31	185.67	2.00	50.80	4.73	120.14	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.05	15.31	388.87
2.50 (60)	63.50	8.25	209.55	4.14	105.16	5.87	149.10	19.32	490.73	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	15.14	384.56	3.50	88.90	2.25	57.15	7.31	185.67	2.50	63.50	5.01	127.25	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.05	15.31	388.87
3.00 (130)	76.20	8.25	209.55	4.78	121.41	5.87	149.10	20.33	516.38	9.56	242.82	3.50	88.90	4.12	104.65	0.53	13.46	10.13	257.30	5.06	128.52	15.77	400.56	3.50	88.90	2.25	57.15	7.31	185.67	3.00	76.20	5.65	143.51	1.63	41.28	0.38	9.53	5.37	136.40	10.75	273.05	15.31	388.87
3.00 (180)	76.20	8.50	215.90	3.45	87.63	9.00	228.60	23.53	597.66	12.38	314.45	3.75	95.25	7.25	184.15	0.53	13.46	14.05	356.87	6.38	162.05	18.25	463.55	4.50	114.30	2.75	69.85	9.38	238.25	3.00	76.20	4.20	106.68	2.00	50.80	0.50	12.70	6.53	165.86	13.06	331.72	19.13	485.90
4.00 (220)	101.60	8.50	215.90	3.69	93.73	9.00	228.60	24.27	616.46	12.38	314.45	3.75	95.25	7.25	184.15	0.53	13.46	14.05	356.87	6.38	162.05	18.49	469.65	4.50	114.30	2.75	69.85	9.38	238.25	4.00	101.60	4.44	112.78	2.00	50.80	0.50	12.70	6.63	168.40	13.25	336.55	19.13	485.90
