Anderson-Negele

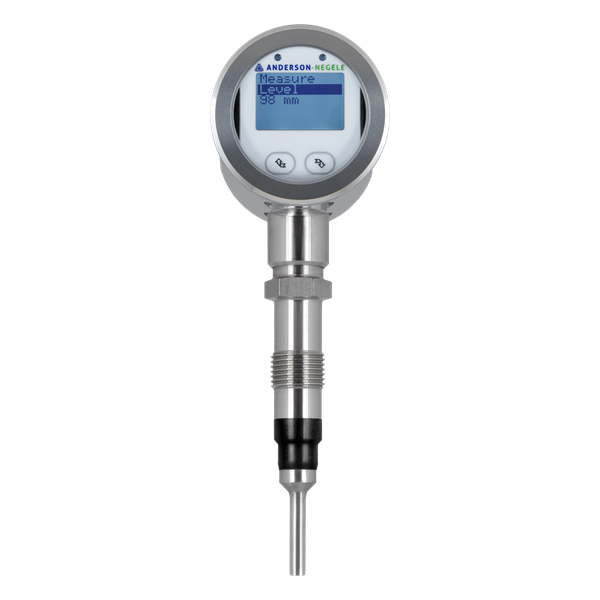

CONTINUOUS LEVEL SENSOR 2" TC 710MM PROBE TOP WITH ISOLATION HEAD VERTICAL 4-20 MA 4 WIRE M12 PLUG 5 PIN PLASTIC CAP NSLF ANDERSON
NSLF000710TC206I42LXXXXX
- MPN:
- NSLF000710TC206I42LXXXXX
Net Price: $3,851.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Anderson-Negele |
|---|---|
| Product Type | Instrumentation |
| Product Subtype | Level Sensors |
| Series | NSL-F Series |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Orientation / Mount | Vertical |
| Weight | 0.00000 |
- Manufacturer:
- Anderson Instrument
- MPN:
- NSLF000710TC206I42LXXXXX
Dimensional Data
NSL-F TC Continuous Level Sensor
| A | B | C | D | E | F | G | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in | (mm) | (in) | (mm) | (in) | (mm) |
| 3.14 | 80.00 | 3.34 | 85.00 | 0.78 | 20.00 | .39 | 10.00 | 2.00 | 50.8 | 2.59 | 66.00 | 0.23 | 6.00 |
Anderson-Negele NSL-F Continuous Level Sensor Data Sheet
