Alfa Laval / Gamajet

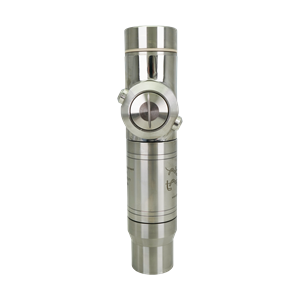

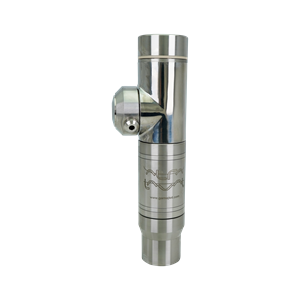

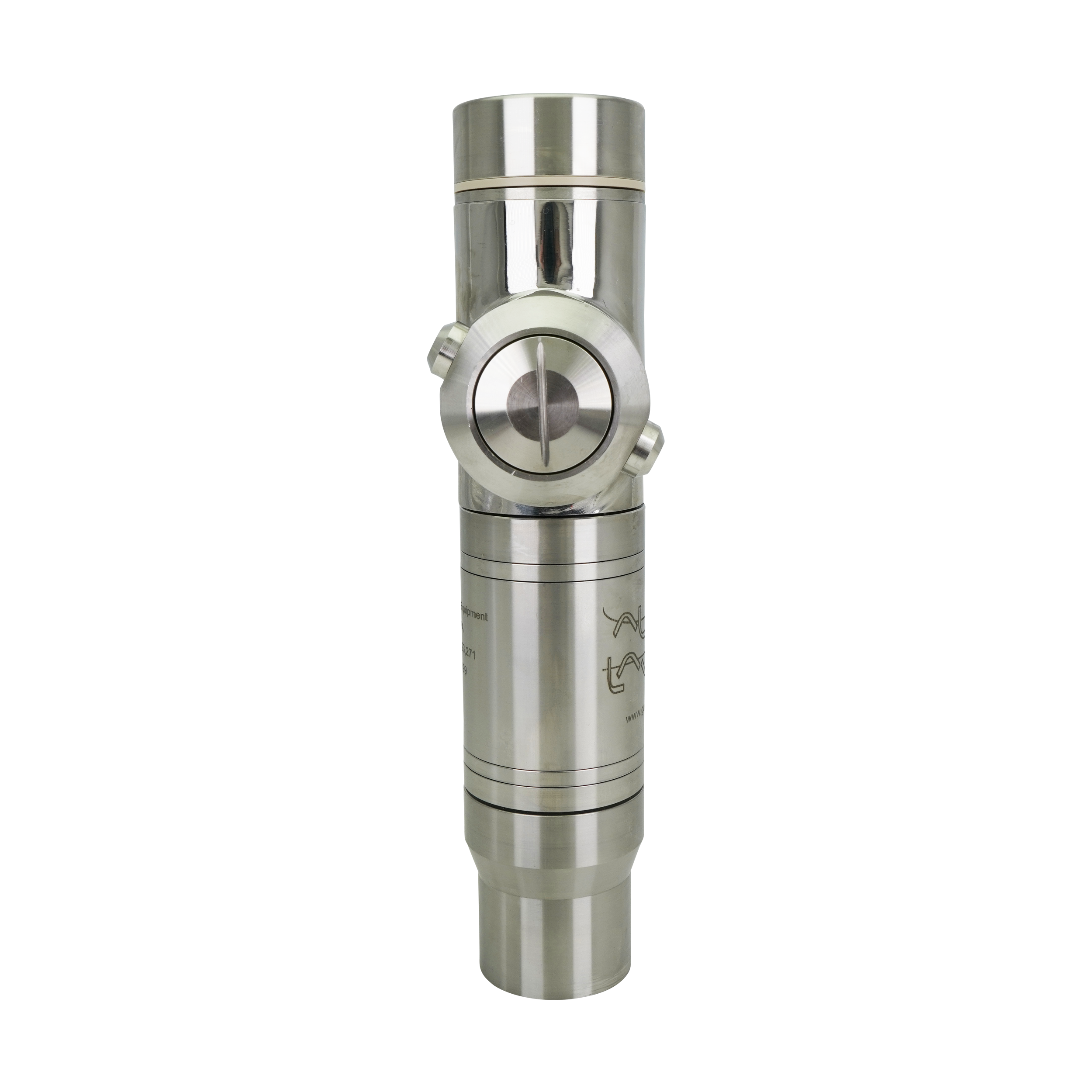

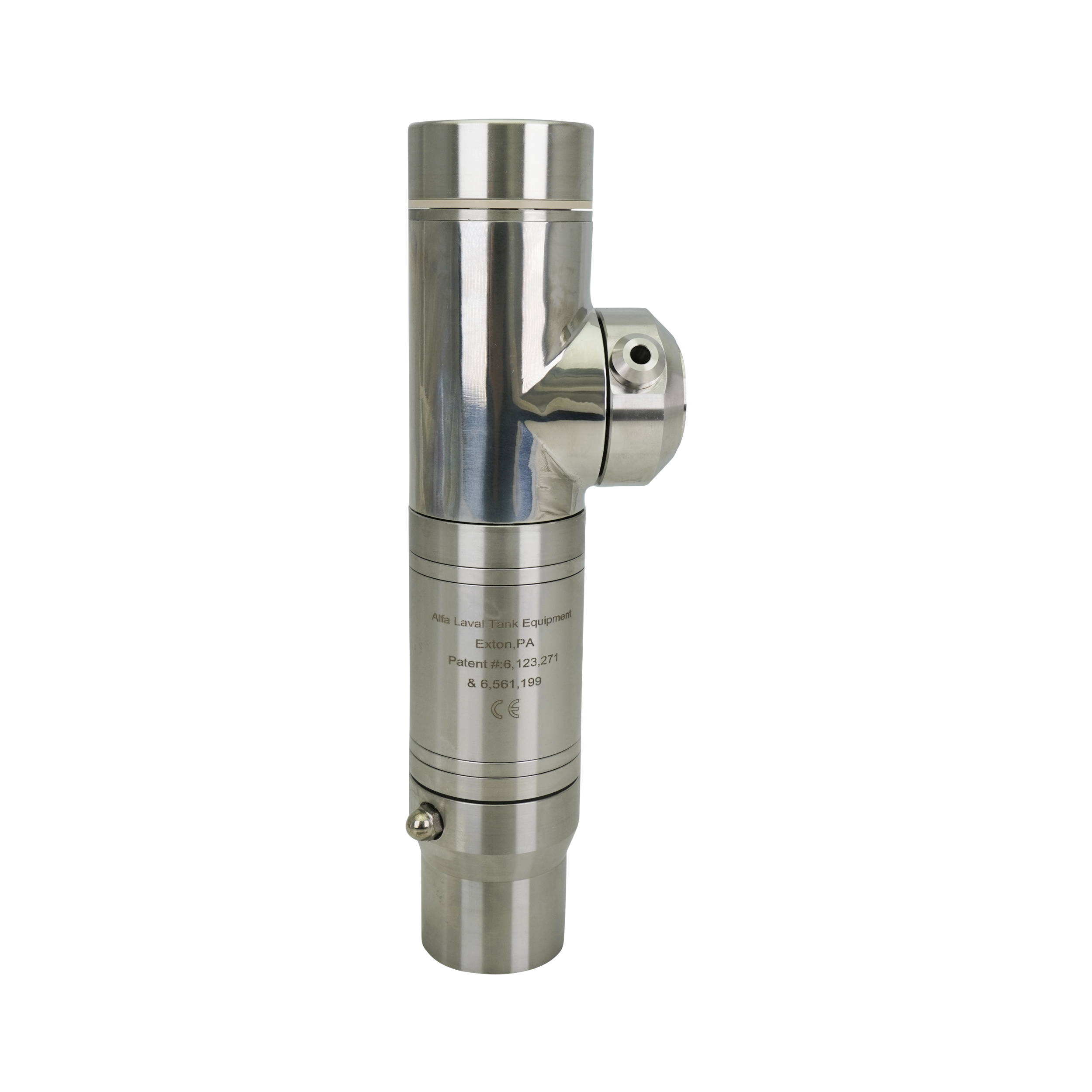

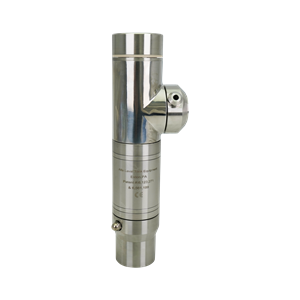

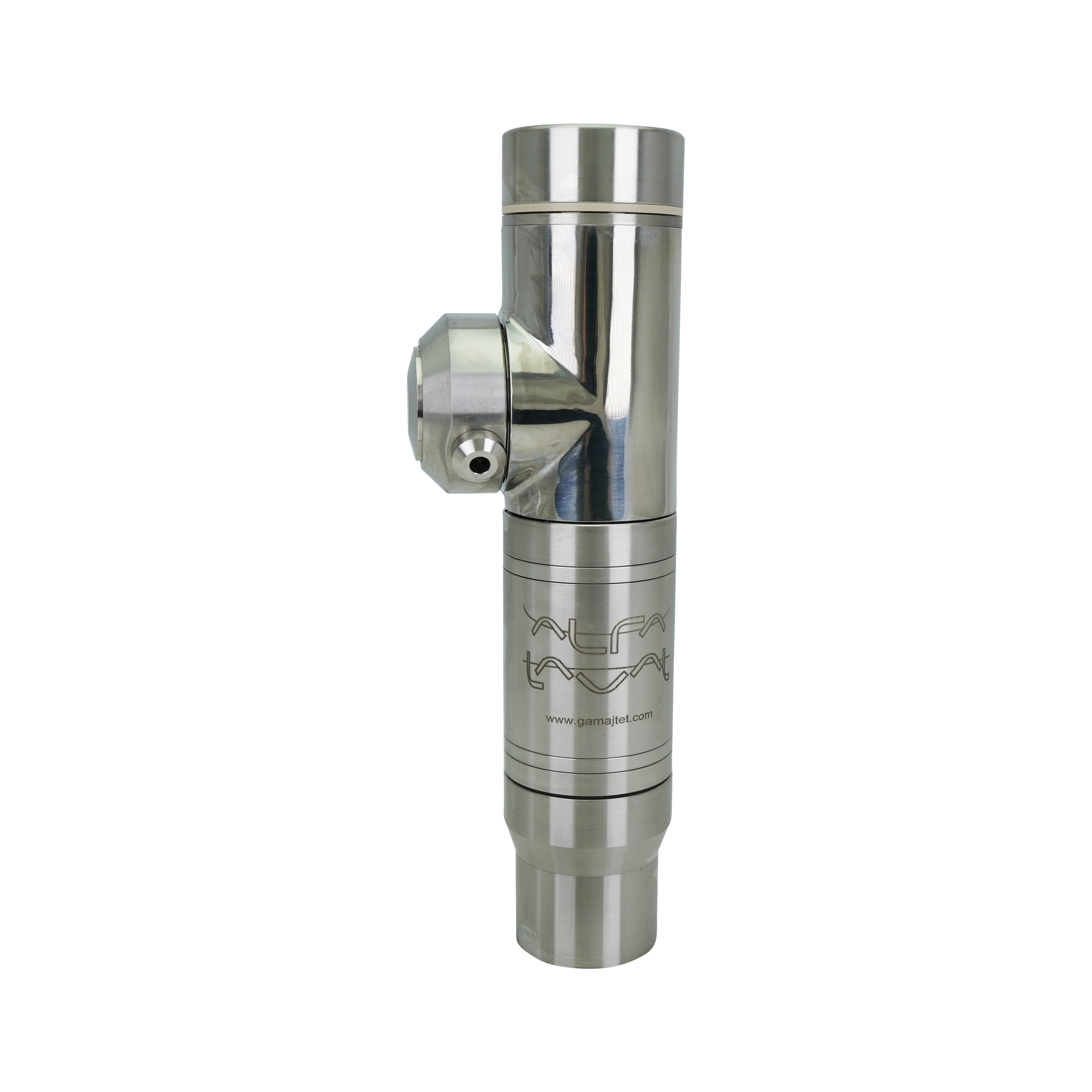

Alfa Laval GJ A6 Rotary Jet Head 1.5" Butt Weld 316L Kalrez Seal 2-Nozzle 0.187" Orifice Standard Pin Drive Gamajet
9614619226
- MPN:
- 9614619226
Net Price: $8,159.74 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Alfa Laval / Gamajet |
|---|---|
| Product Type | Tank Equipment |
| Product Subtype | Jet Cleaners |
| Series | GJ Series |
| Model | GJ A6 |
| Material | 316L Stainless Steel |
| Elastomer | Kalrez® |
| Size 1 | 1.5" |
| Connection Type 1 | Butt Weld |
| Cleaning Radius | 7.5ft |
| Weight | 4.40000 |
- Manufacturer:
- Alfa Laval Inc
- MPN:
- 9614619226
Dimensional Data
GJ A6 Dimensional Diagram
| A | B | C | D | E | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 8.78 | 223.00 | 6.22 | 158.00 | 2.13 | 54.00 | 1.18 | 30.00 | 2.68 | 68.00 |
