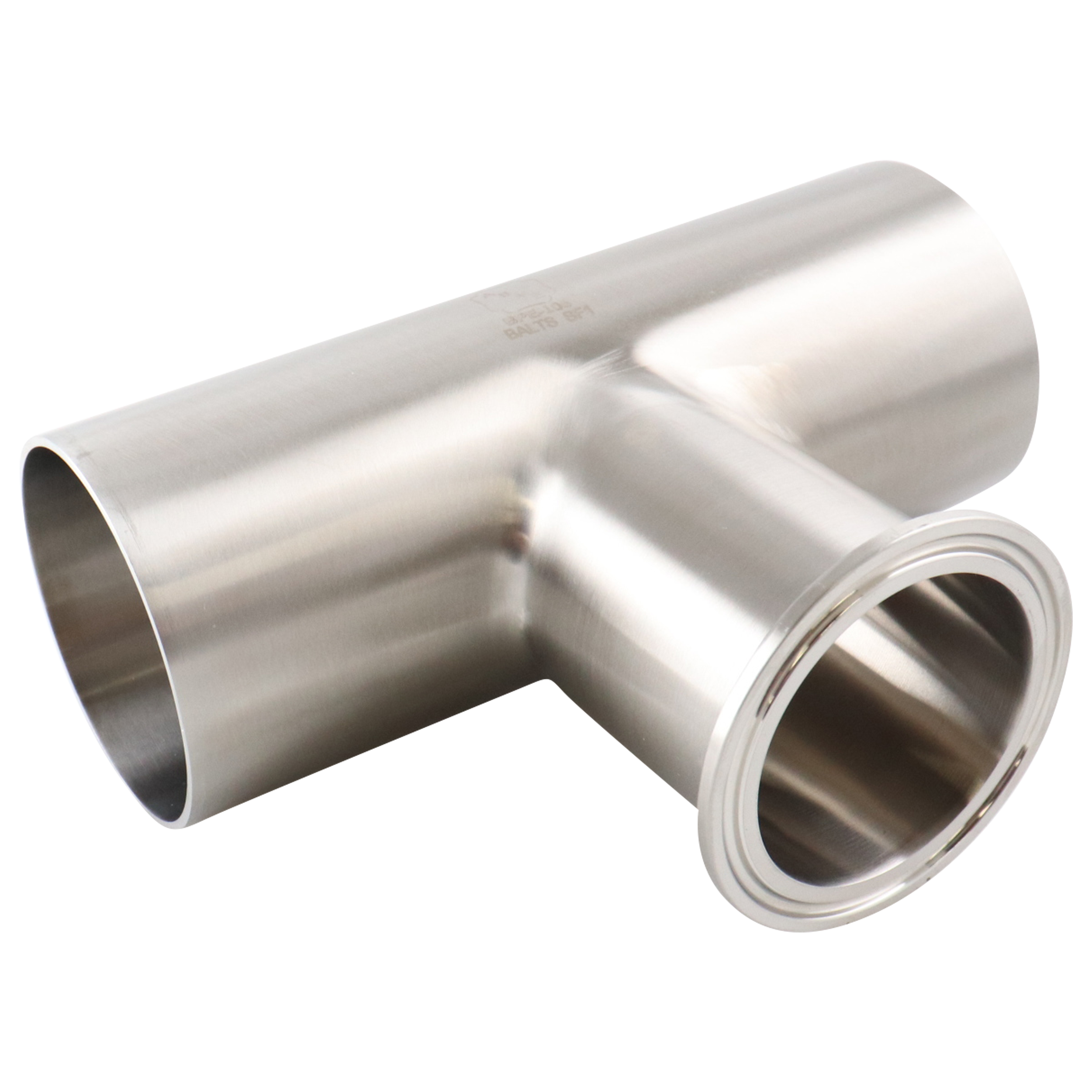

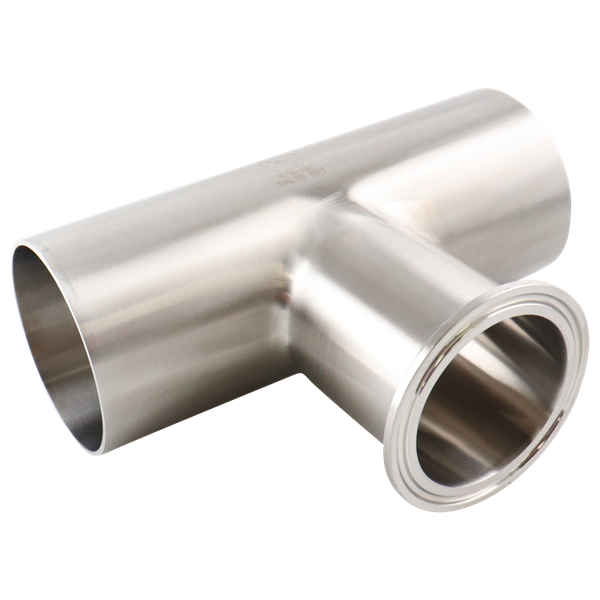

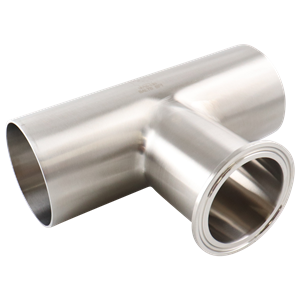

REDUCING TEE 2.5X2 TC BRANCH 316L 20RA ID 32RA OD SF1 BPE

Product Type	Fittings

Product Subtype	Tees & Crosses

Size	2.5"

Connection Type	Weld

Material	316L Stainless Steel

Finish	20Ra ID / 32Ra OD

Specification / Standard	BPE Mechanical Polished

Size 2	2"

Connection Type 2	Tri-Clamp

Weight	1.25000

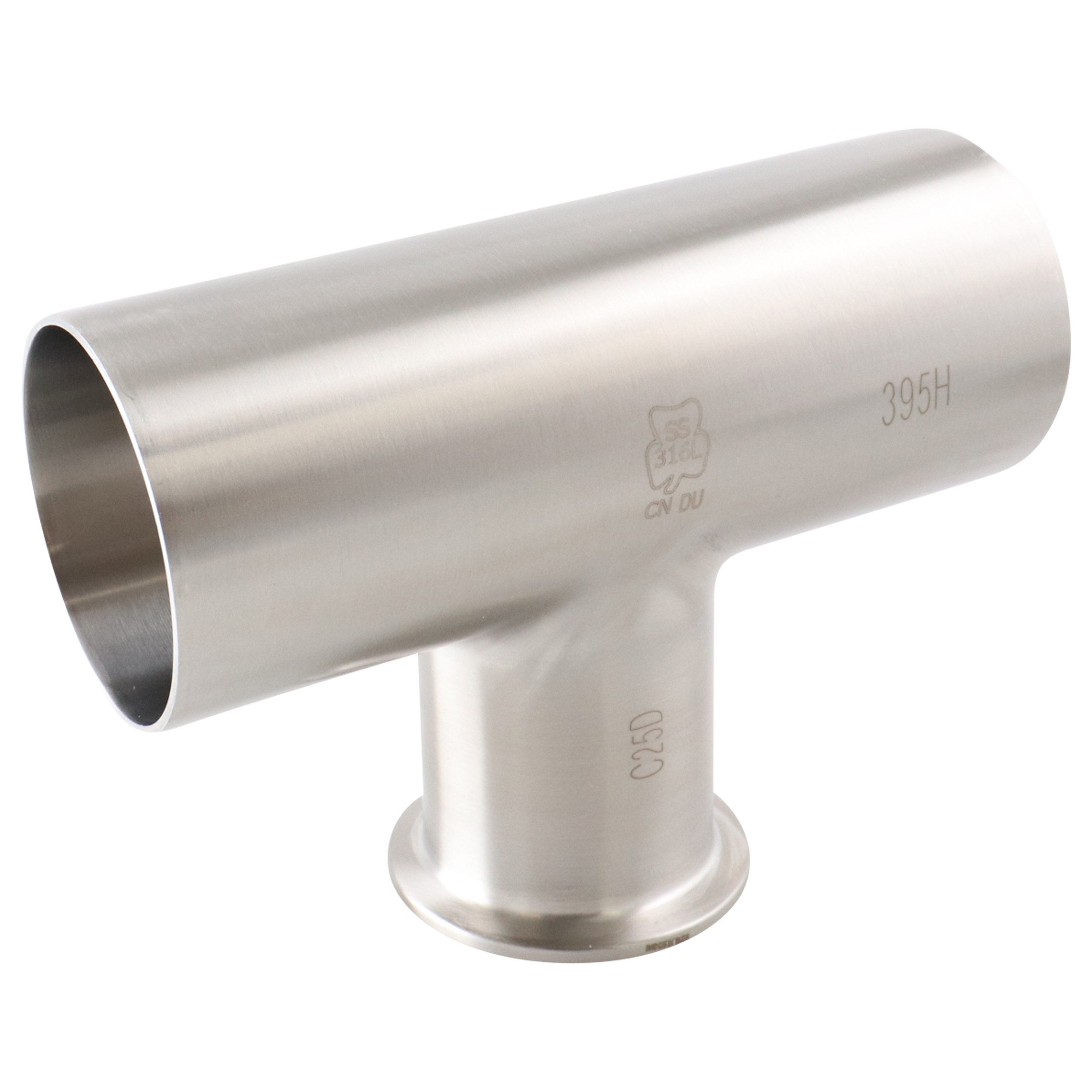

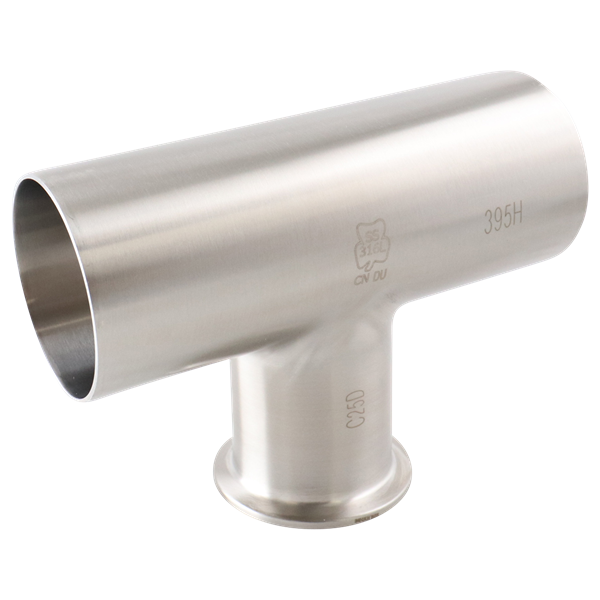

Weld x Weld x Clamp Reducing Tee | B7RWWM-Size-Material-Finish

Nominal Size		A		B
(in)	(mm)	(in)	(mm)	(in)	(mm)
¾ x ½	19.05 x 12.70	2.000	50.80	2.500	63.50
1 x ½	25.40 x 12.70	2.125	53.98	2.625	66.68
1 x ¾	25.40 x 19.05	2.125	53.98	2.625	66.68
1½ x ½	38.10 x 12.70	2.375	60.33	2.875	73.03
1½ x ¾	38.10 x 19.05	2.375	60.33	2.875	73.03
1½ x 1	38.10 x 25.40	2.375	60.33	2.875	73.03
2 x ½	50.80 x 12.70	2.875	73.03	3.125	79.38
2 x ¾	50.80 x 19.05	2.875	73.03	3.125	79.38
2 x 1	50.80 x 25.40	2.875	73.03	3.125	79.38
2 x 1½	50.80 x 38.10	2.875	73.03	3.125	79.38
2½ x ½	63.50 x 12.70	3.125	79.38	3.375	85.73
2½ x ¾	63.50 x 19.05	3.125	79.38	3.375	85.73
2½ x 1	63.50 x 25.40	3.125	79.38	3.375	85.73
2½ x 1½	63.50 x 38.10	3.125	79.38	3.375	85.73
2½ x 2	63.50 x 50.80	3.125	79.38	3.375	85.73
3 x ½	76.20 x 12.70	3.375	85.73	3.625	92.08
3 x ¾	76.20 x 19.05	3.375	85.73	3.625	92.08
3 x 1	76.20 x 25.40	3.375	85.73	3.625	92.08
3 x 1½	76.20 x 38.10	3.375	85.73	3.625	92.08
3 x 2	76.20 x 50.80	3.375	85.73	3.625	92.08
3 x 2½	76.20 x 63.50	3.375	85.73	3.625	92.08
4 x ½	101.60 x 12.70	4.125	104.78	4.125	104.78
4 x ¾	101.60 x 19.05	4.125	104.78	4.125	104.78
4 x 1	101.60 x 25.40	4.125	104.78	4.125	104.78
4 x 1½	101.60 x 38.10	4.125	104.78	4.125	104.78
4 x 2	101.60 x 50.80	4.125	104.78	4.375	111.13
4 x 2½	101.60 x 63.50	4.125	104.78	4.375	111.13
4 x 3	101.60 x 76.20	4.125	104.78	4.375	111.13
6 x 3	152.40 x 76.20	5.625	142.88	5.375	136.53
6 x 4	152.40 x 101.60	5.625	142.88	5.750	146.05
