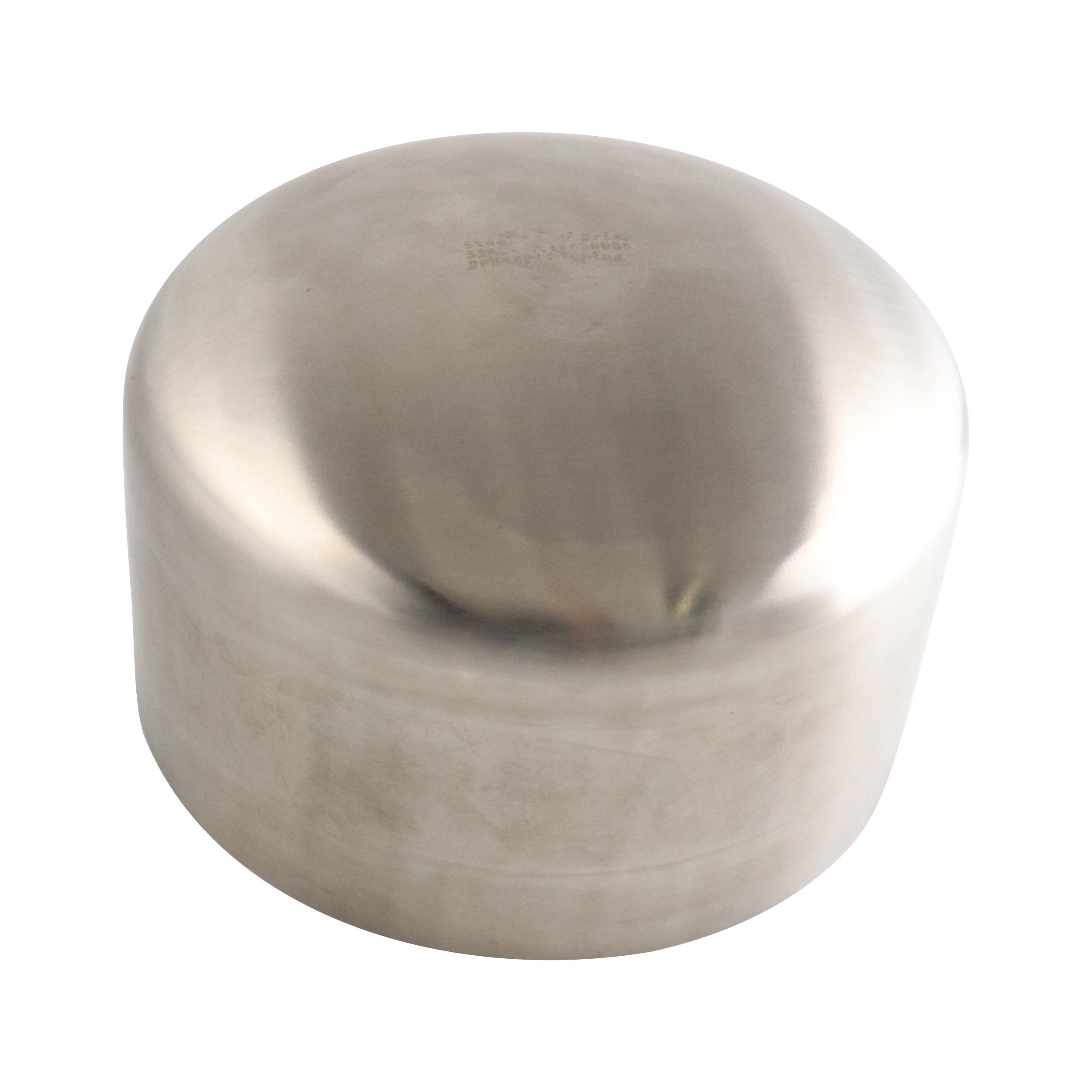

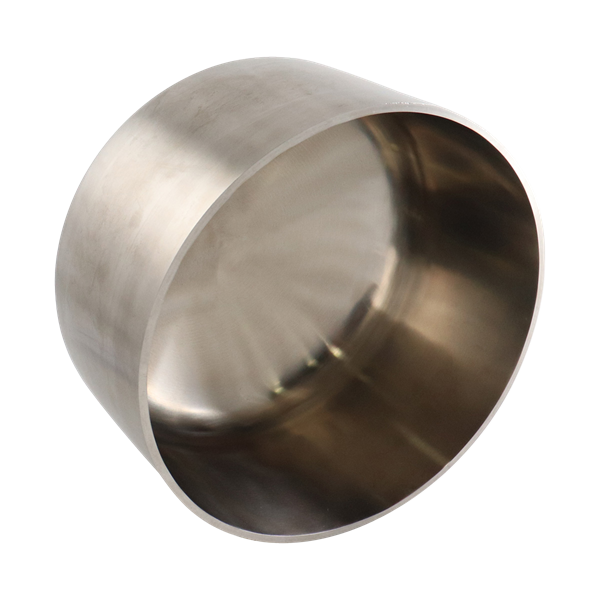

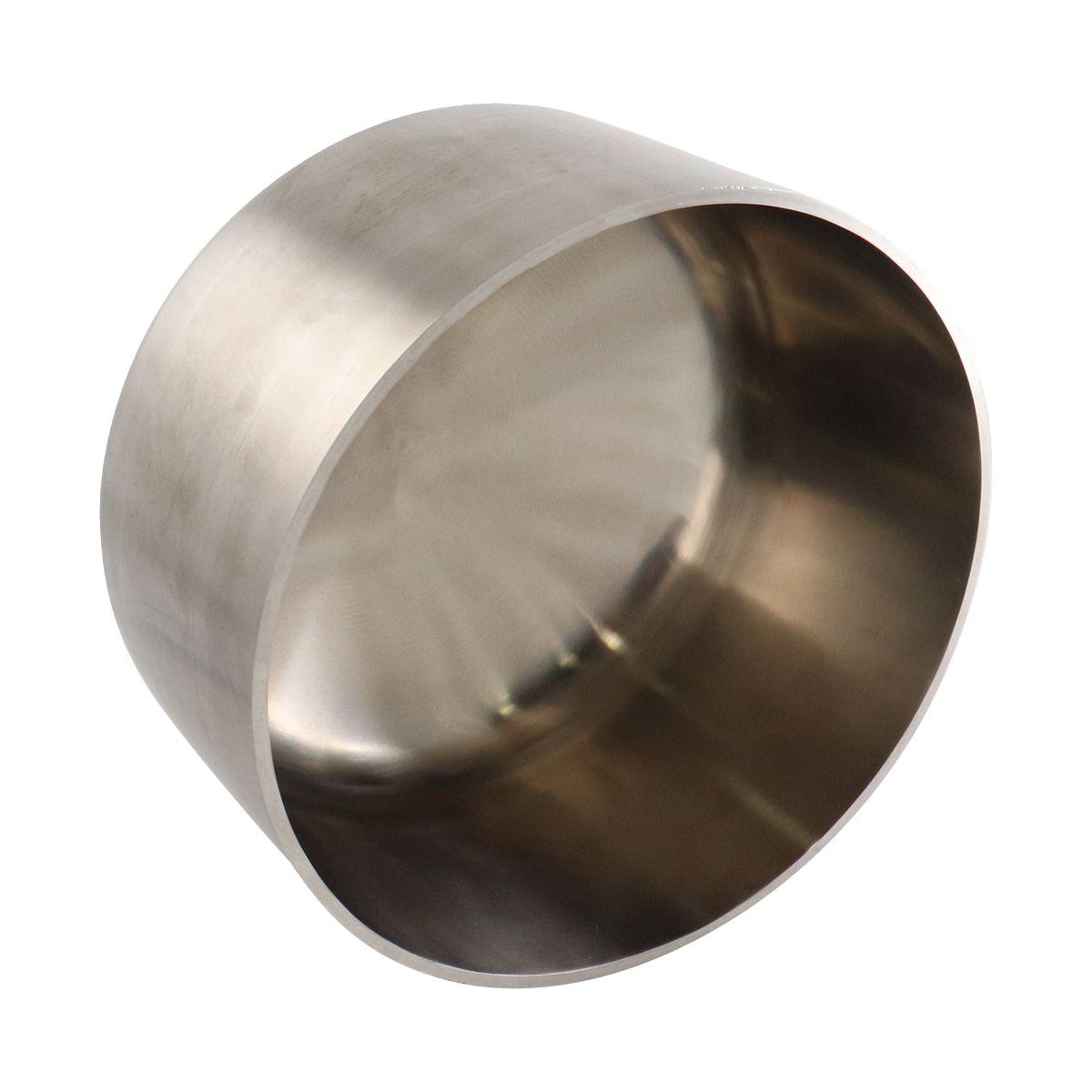

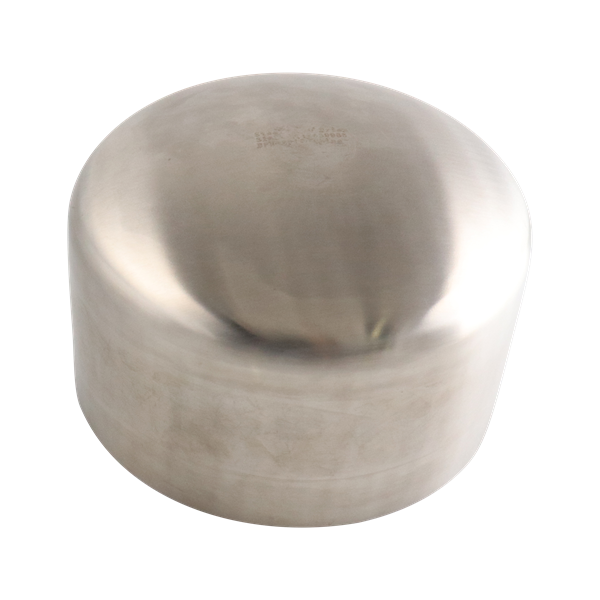

CAP 6" BW 316L 20RA ID 32RA OD SF1 BPE
B16W-6-316L-PL
Net Price: $181.46 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Caps |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 6" |
| Connection Type 1 | Butt Weld |
| Specification / Standard | ASME BPE |
| Fitting Design | B16W |
| Weight | 3.60000 |
Dimensional Data
Butt Weld End Cap | B16W-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 1.500 | 38.10 |
| ¾ | 19.05 | 1.500 | 38.10 |
| 1 | 25.40 | 1.500 | 38.10 |
| 1½ | 38.10 | 1.500 | 38.10 |
| 2 | 50.80 | 1.500 | 38.10 |
| 2½ | 63.50 | 1.500 | 38.10 |
| 3 | 76.20 | 1.750 | 44.45 |
| 4 | 101.60 | 2.000 | 50.80 |
| 6 | 152.40 | 2.500 | 63.50 |
| BPE DT-4.1.5-1 | 2009 BPE DT-30 | |||
B16W-6 3D Model
