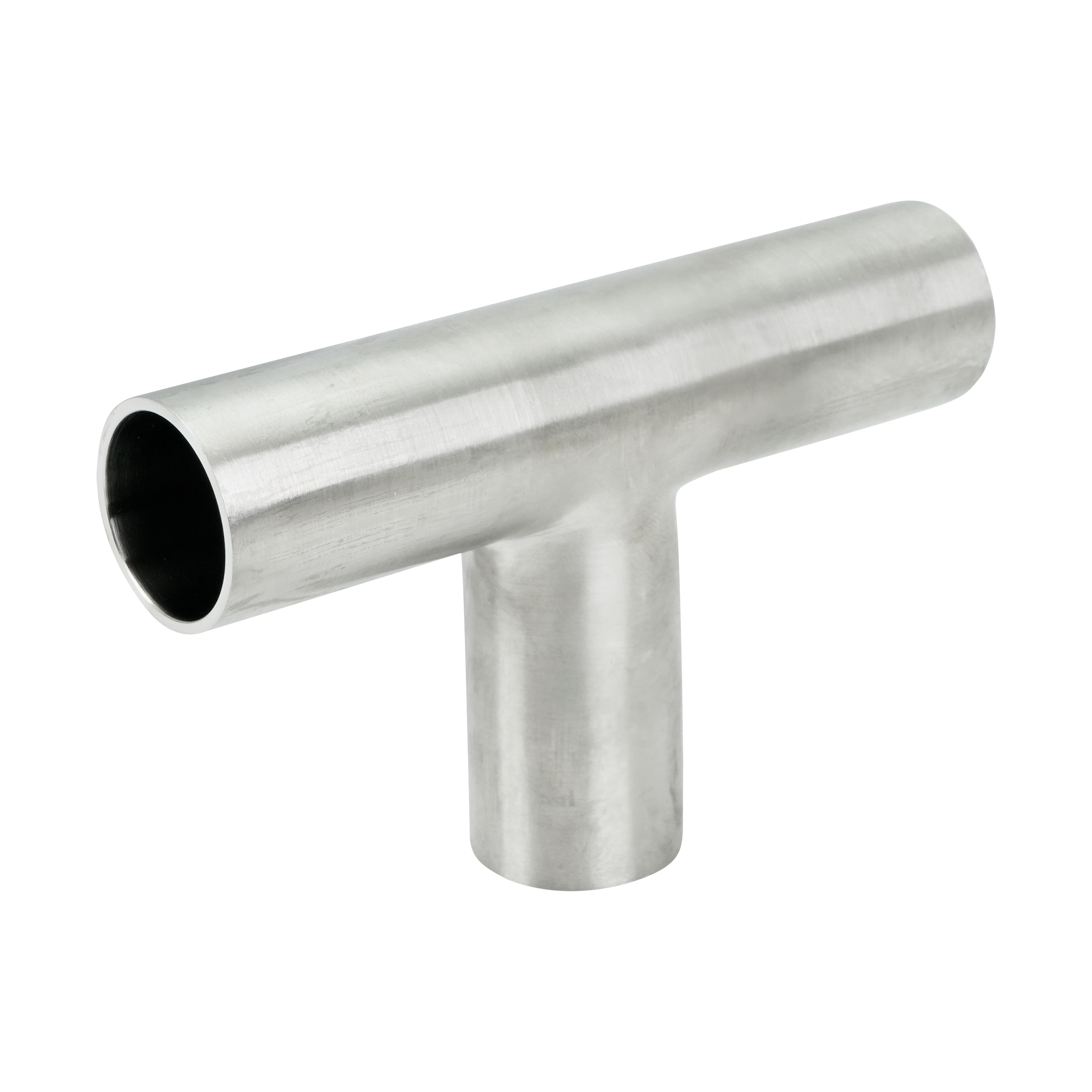

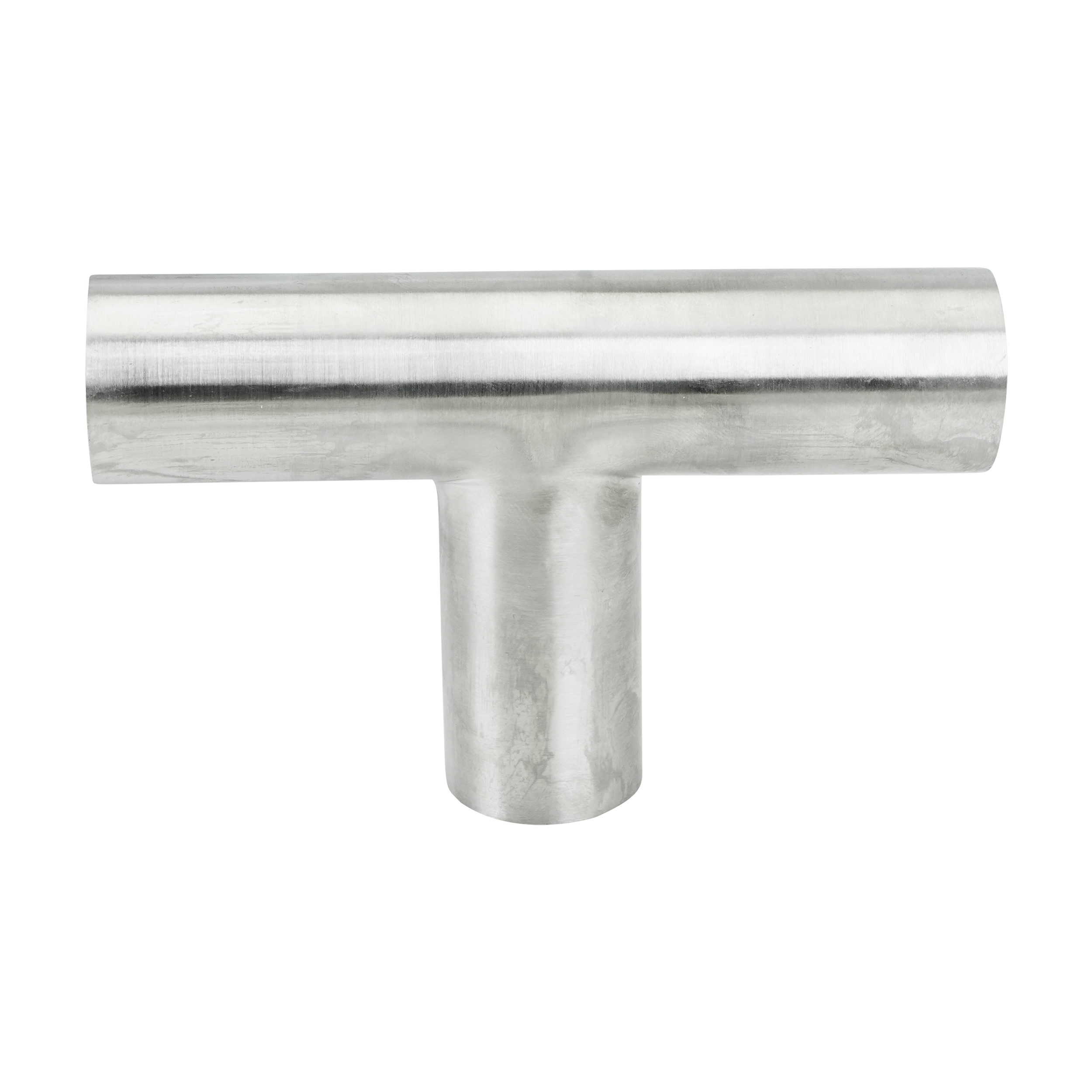

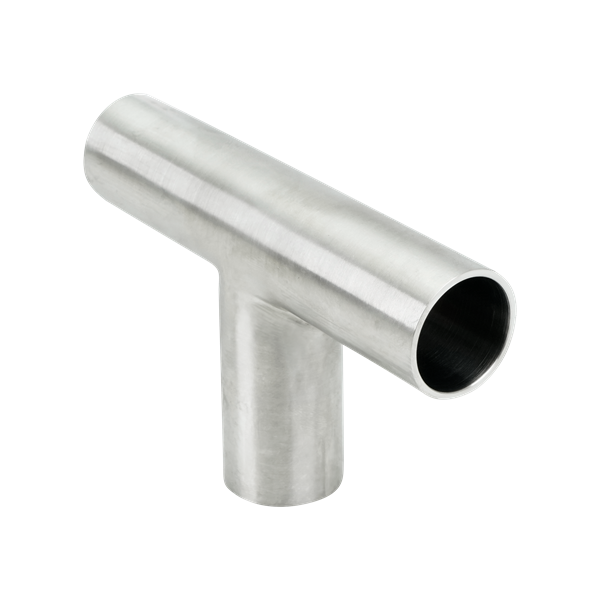

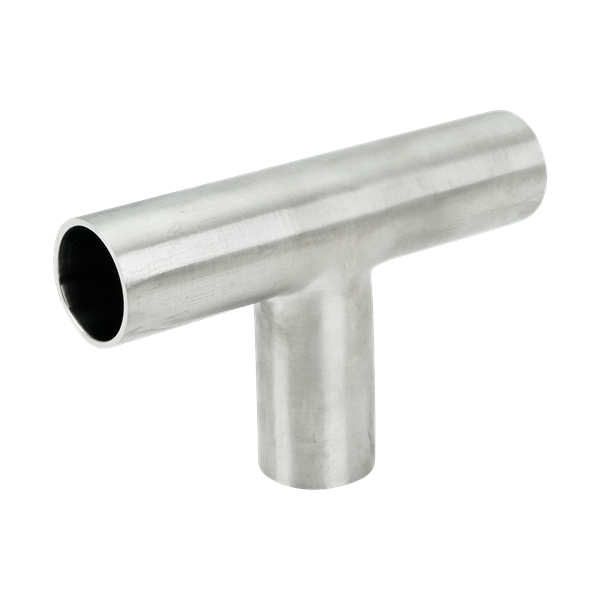

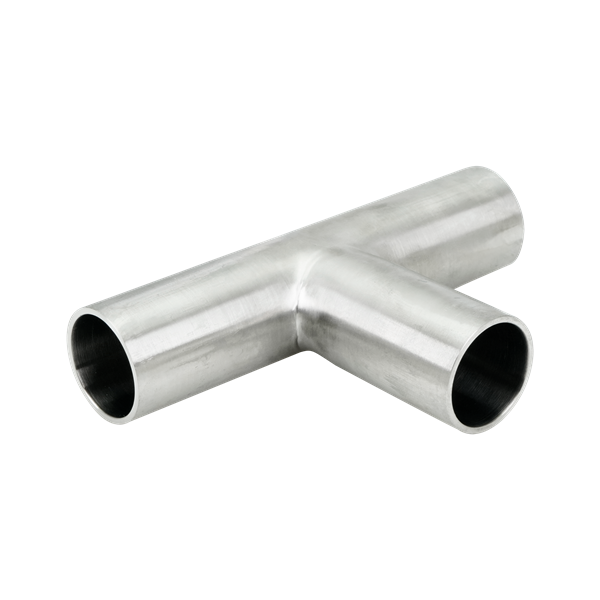

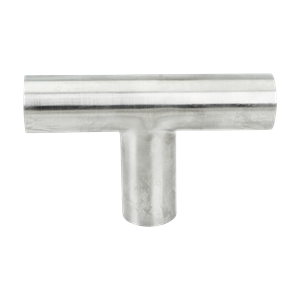

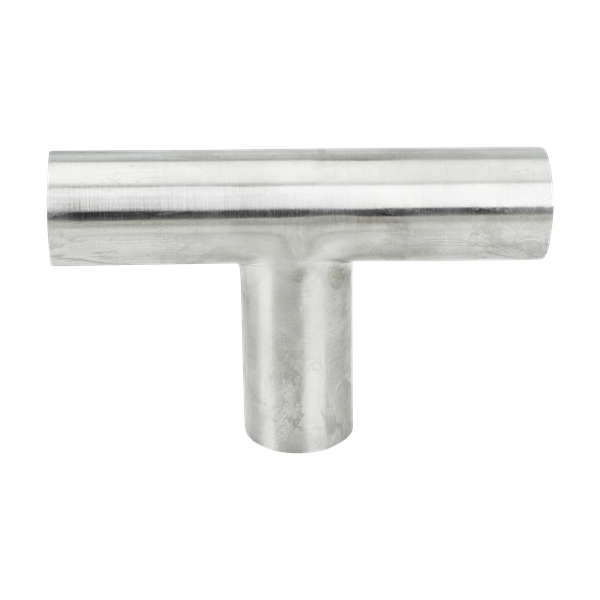

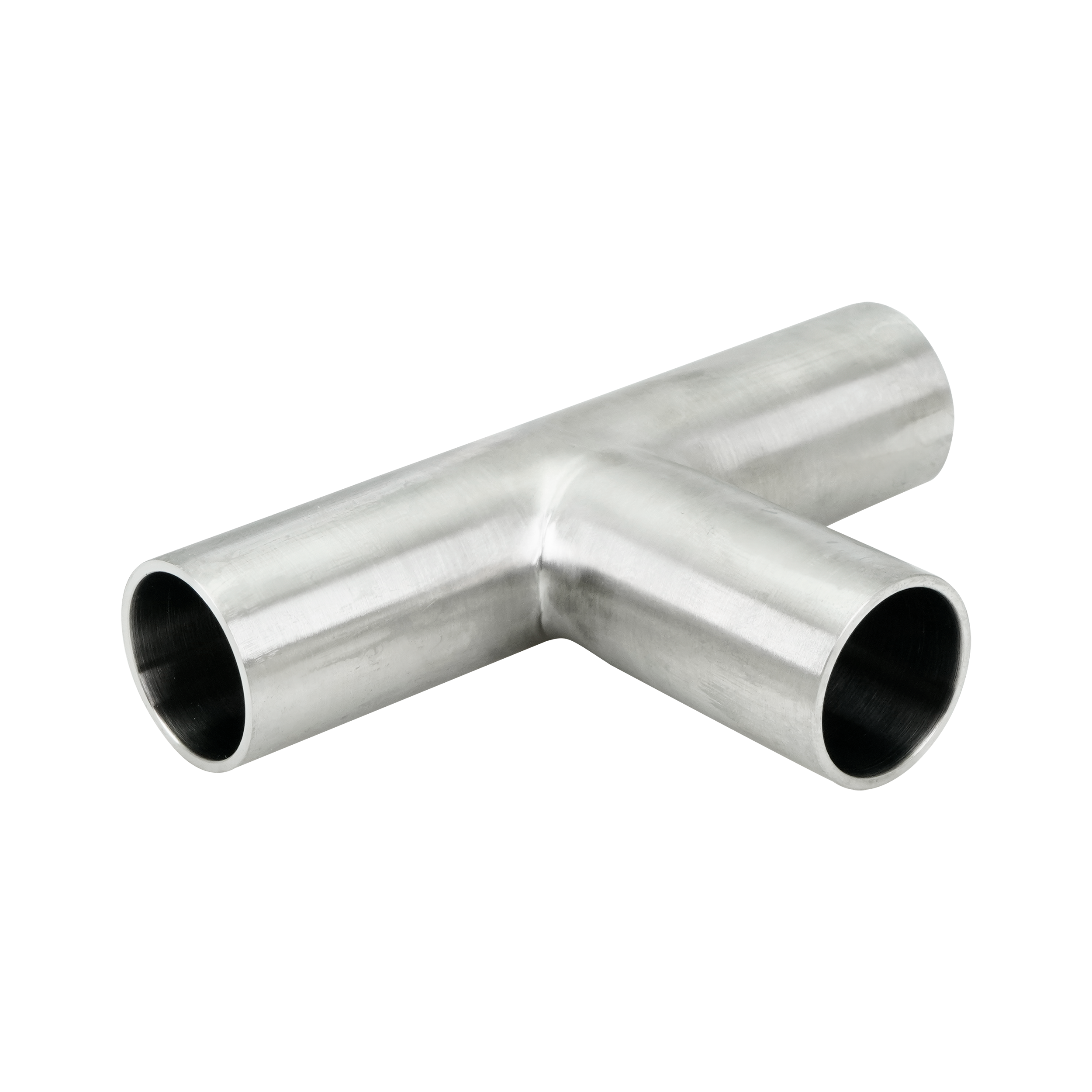

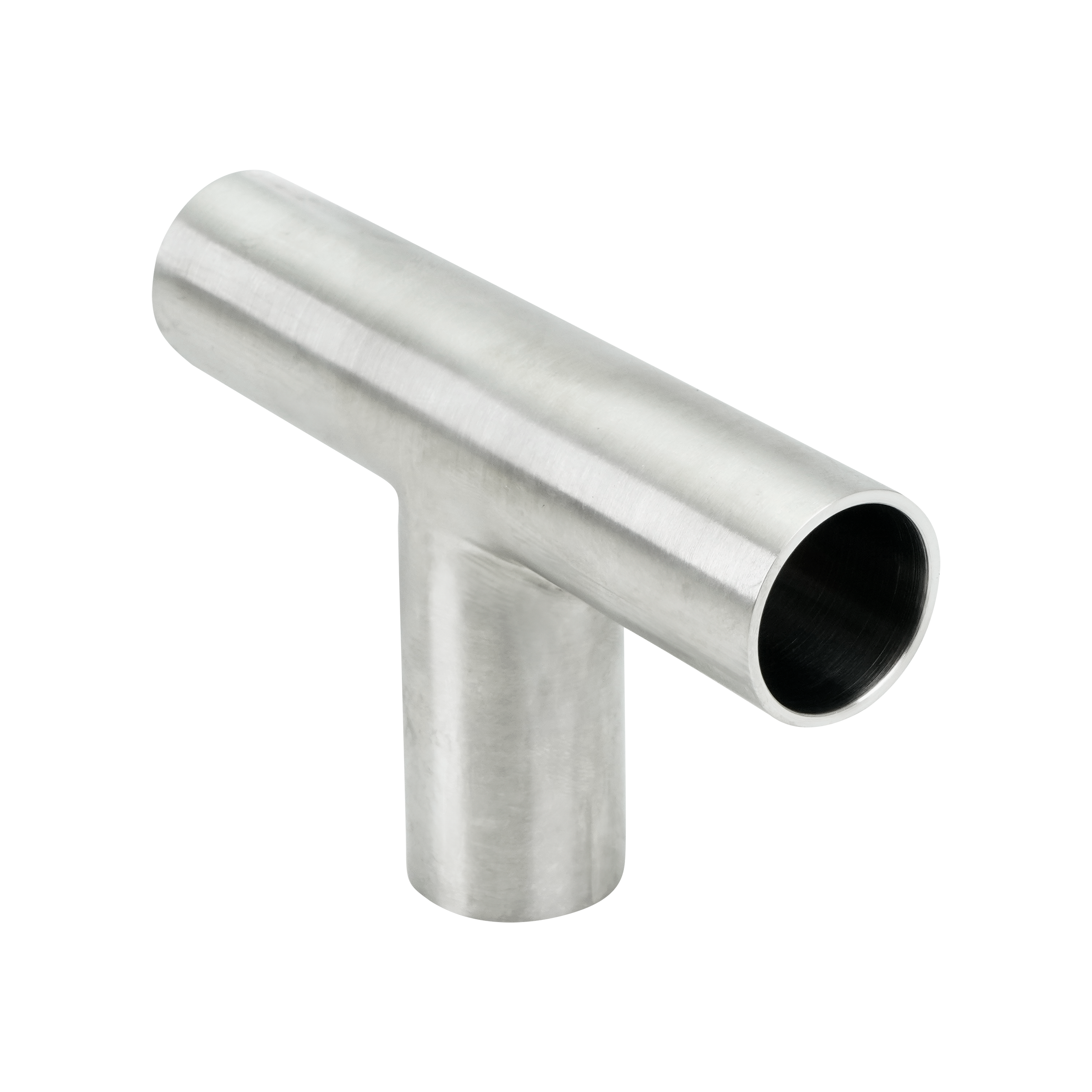

TEE 88 DEGREE 0.75" BW 316L 20RA ID 32RA OD SF1
B7WWW88-0.75-316L-PL
Net Price: $58.05 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 0.75" |
| Connection Type 1 | Butt Weld |
| Size 2 | 0.75" |
| Connection Type 2 | Butt Weld |
| Shape | 88 Degree |
| Fitting Design | B7WWW88 |
| Weight | 0.25000 |
Dimensional Data
Branch Tee | B7WWW8-Size-Material-Finish
| Nominal Size | A | B | ||
|---|---|---|---|---|
| (in) | (in) | (mm) | (in) | (mm) |
| ½ | 1.88 | 47.7 | 1.88 | 47.7 |
| ¾ | 2.00 | 50.8 | 2.00 | 50.8 |
| 1 | 2.13 | 54 | 2.20 | 55.8 |
| 1½ | 2.37 | 60.3 | 2.46 | 62.4 |
| 2 | 2.88 | 73 | 3.01 | 76.4 |
| 2½ | 3.13 | 79.4 | 3.30 | 83.8 |
| 3 | 3.34 | 85.7 | 3.54 | 89.9 |
| 4 | 4.13 | 104.8 | 4.30 | 109.2 |
