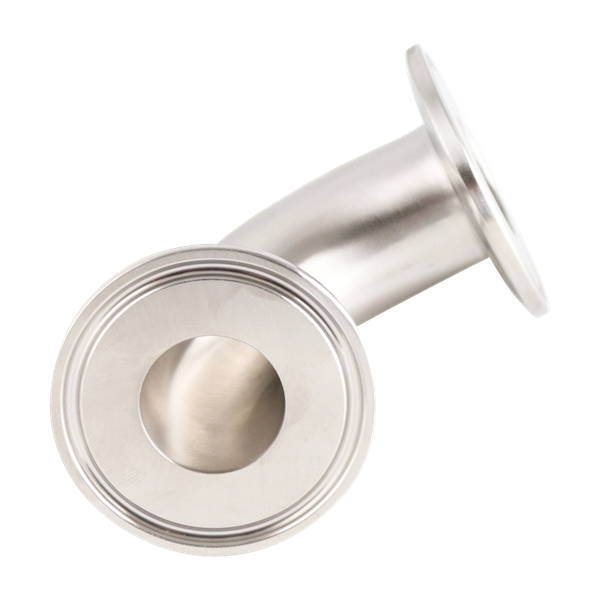

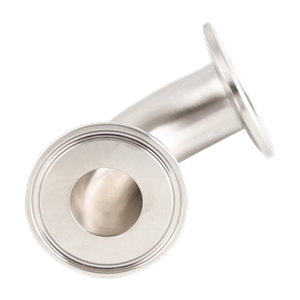

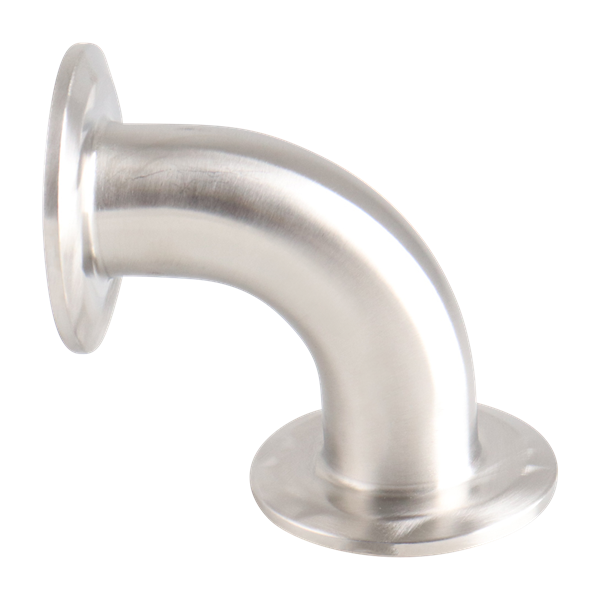

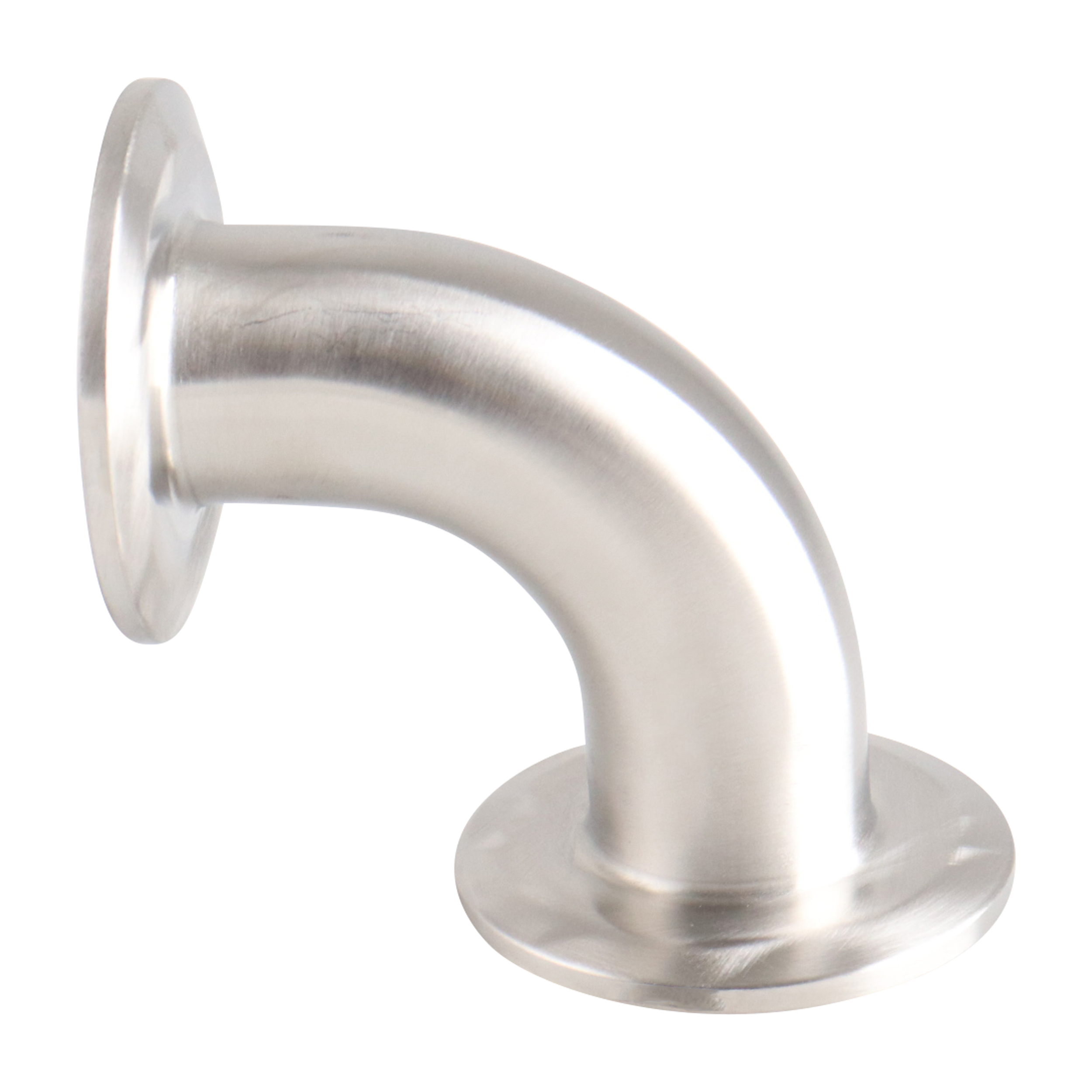

88 DEGREE ELBOW 1" TC 316L 20RA ID 32RA OD SF1 BPE
B2CMP88-1-316L-PL
Net Price: $112.77 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Tri-Clamp |
| Shape | 88 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2CMP88 |
| Weight | 0.40000 |
Dimensional Data
88° Tri-Clamp Elbow | B2CMP88-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 1.586 | 40.28 |
| ¾ | 19.05 | 1.586 | 40.28 |
| 1 | 25.40 | 1.949 | 49.50 |
| 1½ | 38.10 | 2.673 | 67.89 |
| 2 | 50.80 | 3.397 | 86.28 |
| 2½ | 63.50 | 4.121 | 104.67 |
| 3 | 76.20 | 4.846 | 123.09 |
| 4 | 101.60 | 6.419 | 123.09 |
| 6 | 152.40 | 10.507 | 266.88 |
B2CMP88-1 3D Model
