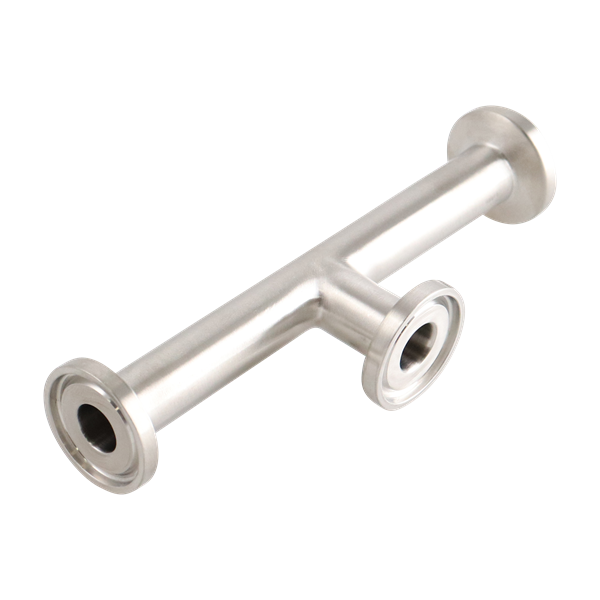

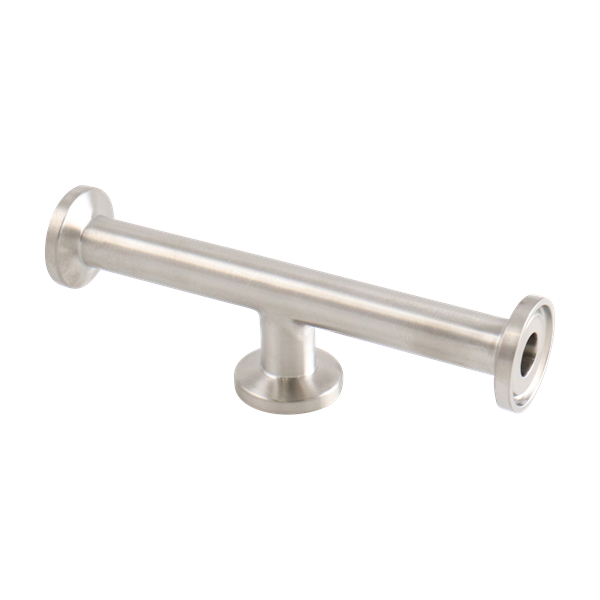

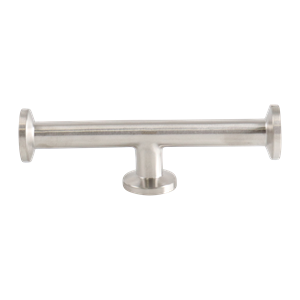

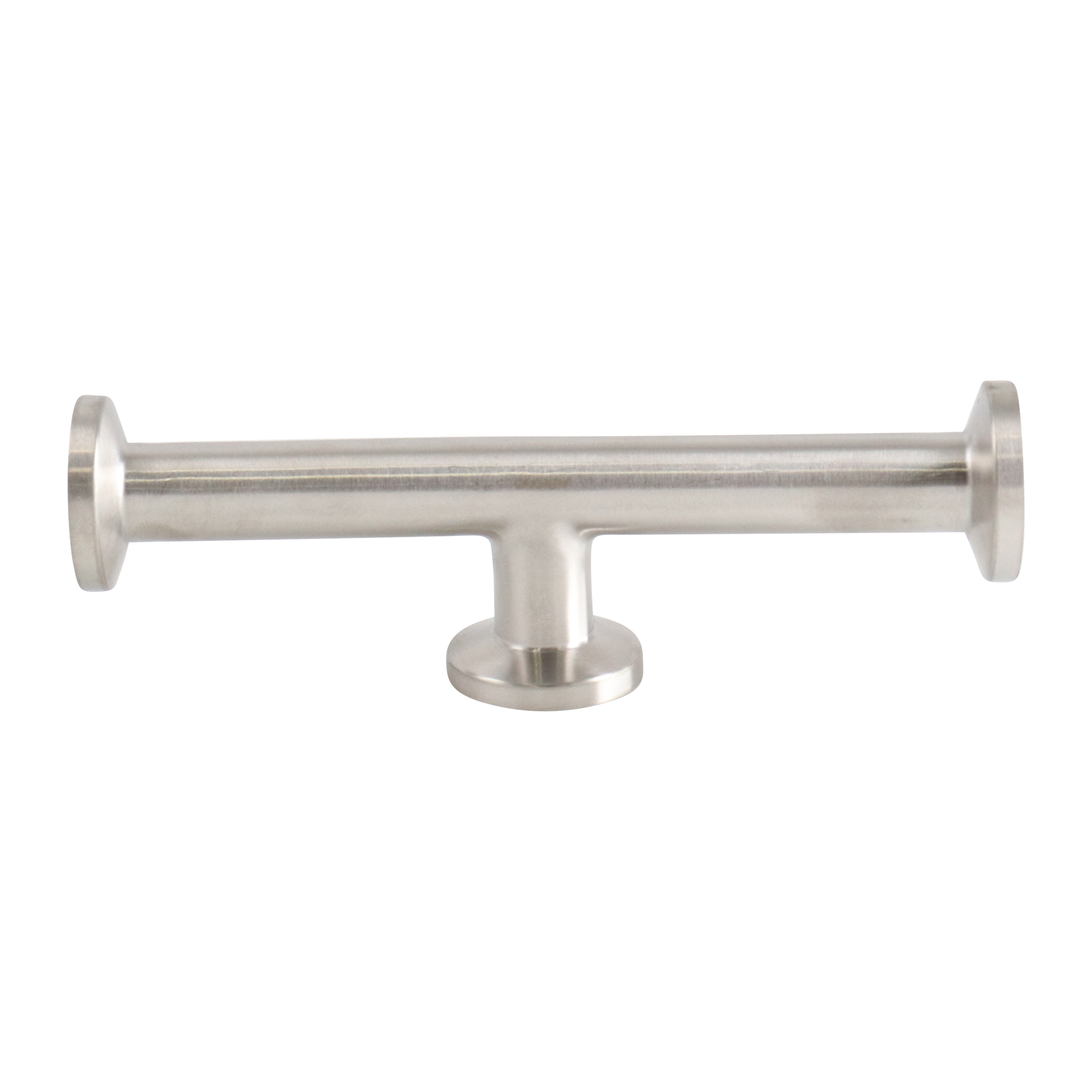

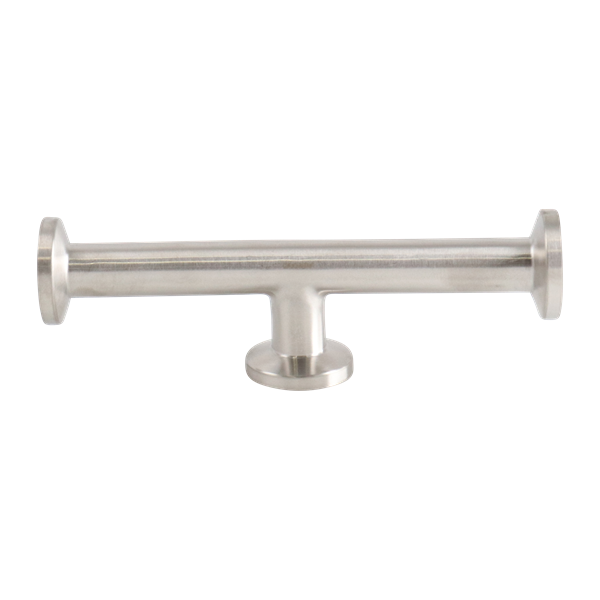

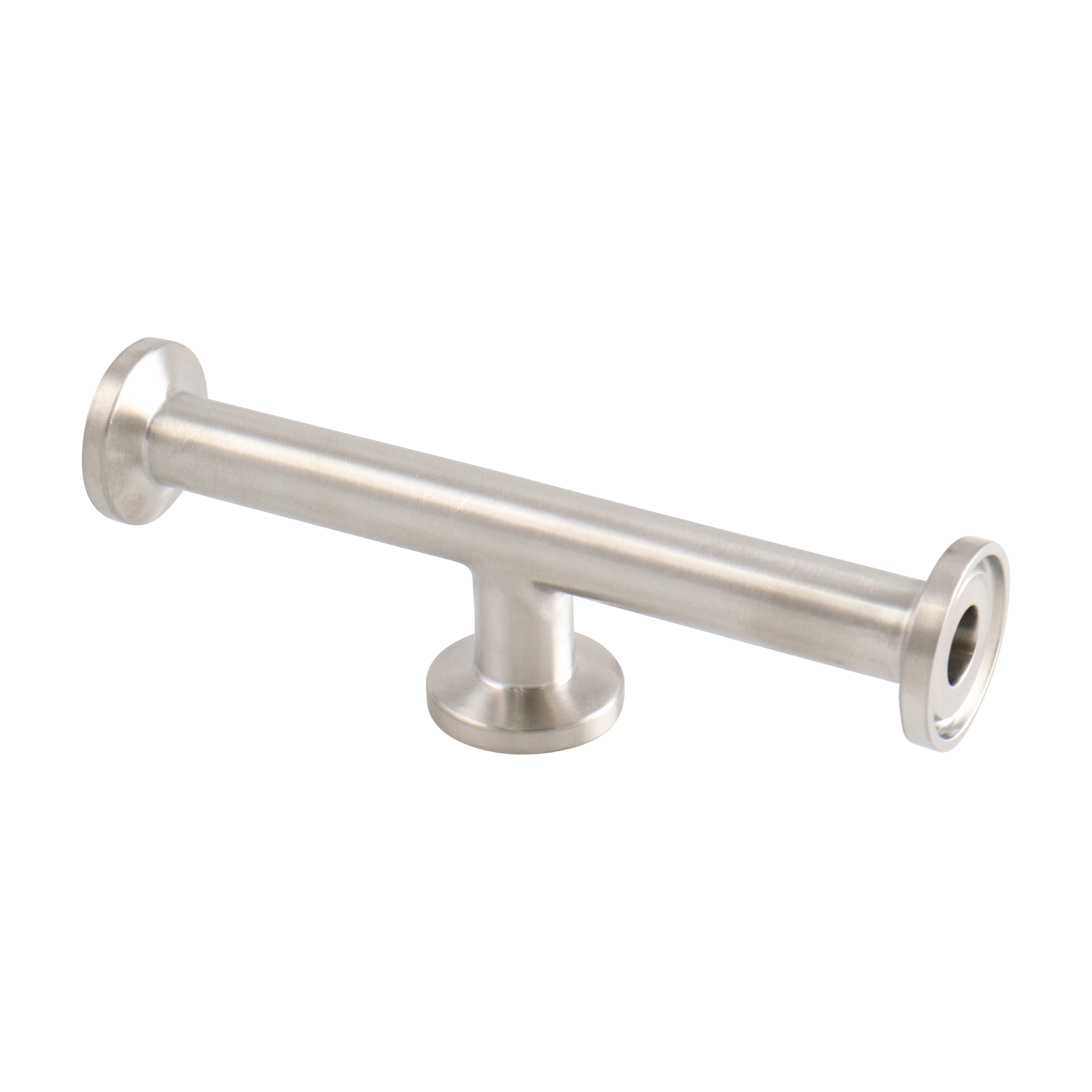

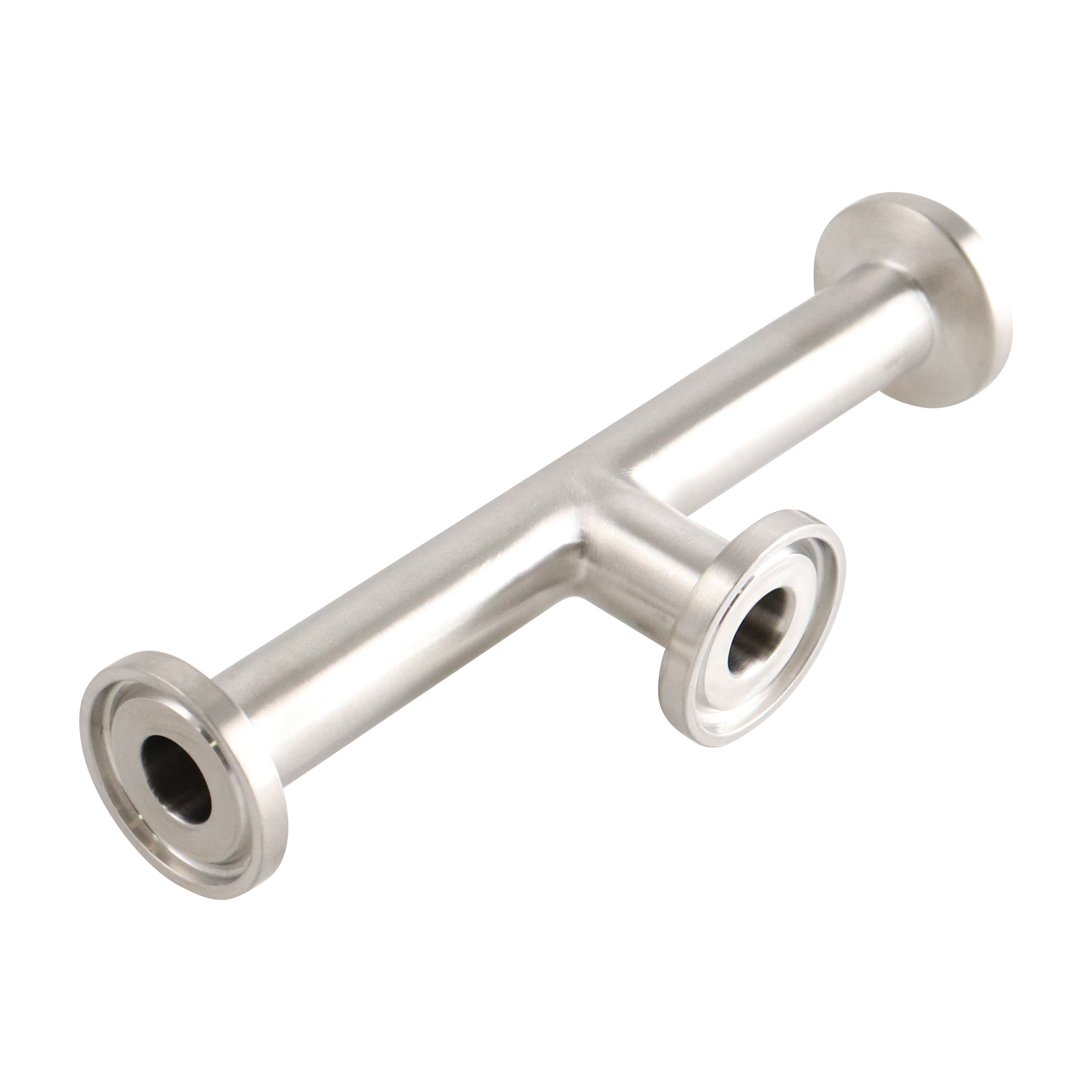

SHORT OUTLET TEE 0.5" TC 316L 20RA ID 32RA OD SF1 BPE
B7MPS-0.5-316L-PL
Net Price: $62.72 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 0.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 0.5" |
| Connection Type 2 | Tri-Clamp |
| Specification / Standard | ASME BPE |
| Fitting Design | B7MPS |
| Weight | 0.26000 |
Dimensional Data
Tri-Clamp Short Outlet Tee | B7MPS-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 2.375 | 60.33 | 1.000 | 25.40 |
| ¾ | 19.05 | 2.500 | 63.50 | 1.125 | 28.58 |
| 1 | 25.40 | 2.625 | 66.68 | 1.125 | 28.58 |
| 1½ | 38.10 | 2.875 | 73.03 | 1.375 | 34.93 |
| 2 | 50.80 | 3.375 | 85.73 | 1.625 | 41.28 |
| 2½ | 63.50 | 3.625 | 92.08 | 1.875 | 47.63 |
| 3 | 76.20 | 3.875 | 98.43 | 2.125 | 53.98 |
| 4 | 101.60 | 4.750 | 120.65 | 2.750 | 69.85 |
| 6 | 152.40 | 7.125 | 180.98 | 4.625 | 117.48 |
| BPE DT-4.1.2-5 | 2009 BPE DT-27 | |||||
B7MPS-0.5 3D Model
