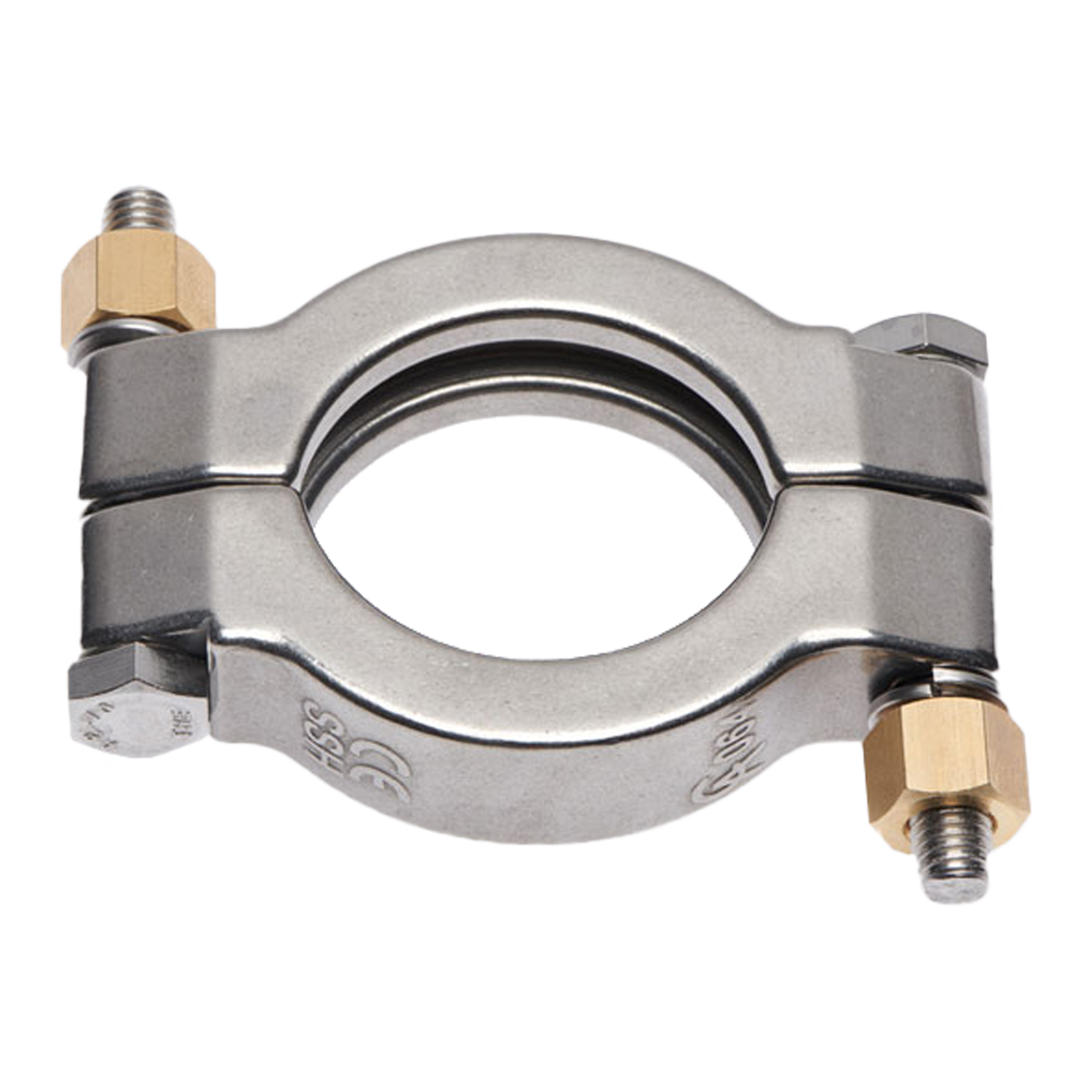

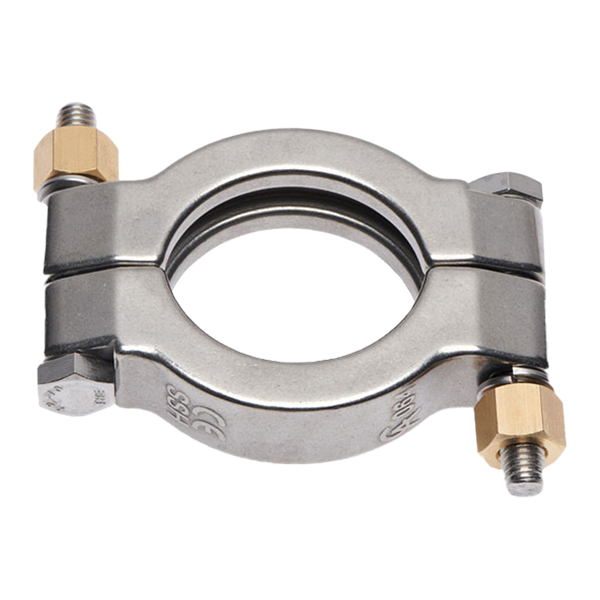

HIGH PRESSURE CLAMP 1" 1.5" SSH SERIES CL.SSH.0100.4 C010.4.SSH ADVANCED COUPLINGS

SSBX0005004

USUALLY SHIPS IN 1-2 DAYS

Net Price: $56.50 / EA

Brand	Advanced Couplings (ACL)
Product Type	Tube Fittings
Product Subtype	Clamps
Material	304 Stainless Steel
Size 1	1"-1.5"
Connection Type 1	Tri-Clamp
Fitting Design	SSH High Pressure Double Bolt
Weight	0.66000

ACL SSH Type Clamp Dimensional Diagram

Size		A		B		C		Width
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
0.50	12.70	1.00	25.40	1.34	34.04	2.56	65.02	0.63	16.00
0.75	19.05	1.00	25.40	1.34	34.04	2.56	65.02	0.71	18.03
0.68	17.20	1.34	34.04	1.54	39.12	2.91	73.91	1.02	25.91
0.84	21.34	1.34	34.04	1.54	39.12	2.91	73.91	1.02	25.91
1.05	26.67	1.34	34.04	1.54	39.12	2.91	73.91	1.02	25.91
1.00	25.40	1.99	50.55	2.36	59.94	4.06	103.12	1.02	25.91
1.50	38.10	1.99	50.55	2.36	59.94	4.06	103.12	1.02	25.91
2.00	50.80	2.52	64.01	2.64	67.06	4.45	113.03	1.02	25.91
2.50	63.50	3.05	77.47	2.95	74.93	5.04	128.02	1.02	25.91
3.00	76.20	3.58	90.93	3.15	80.01	5.39	136.91	1.02	25.91
3.50	88.90	4.17	105.92	3.46	87.88	5.91	150.11	1.02	25.91
4.00	101.60	4.69	119.13	3.66	92.96	6.50	165.10	1.02	25.91
4.50	114.30	5.12	130.05	3.82	97.03	6.85	173.99	1.02	25.91
5.00	127.00	5.69	144.53	4.61	117.09	8.19	208.03	1.02	25.91
5.50	139.70	6.10	154.94	4.72	119.89	8.50	215.90	1.02	25.91
6.00	152.40	6.57	166.88	5.20	132.08	9.45	240.03	1.02	25.91
6.63	168.40	7.20	182.88	5.59	141.99	10.24	260.10	1.02	25.91
8.00	203.20	8.56	217.42	5.91	150.11	11.26	286.00	1.02	25.91
8.63	219.20	9.17	232.92	6.61	167.89	12.52	318.01	1.02	25.91
10.00	254.00	10.55	267.97	7.30	185.42	14.09	357.89	1.18	29.97
10.63	270.00	11.26	286.00	7.71	195.83	14.96	379.98	1.18	29.97
12.00	304.80	12.56	319.02	8.90	226.06	16.34	415.04	1.18	29.97
12.63	320.80	13.31	338.07	8.76	222.50	17.13	435.10	1.18	29.97
