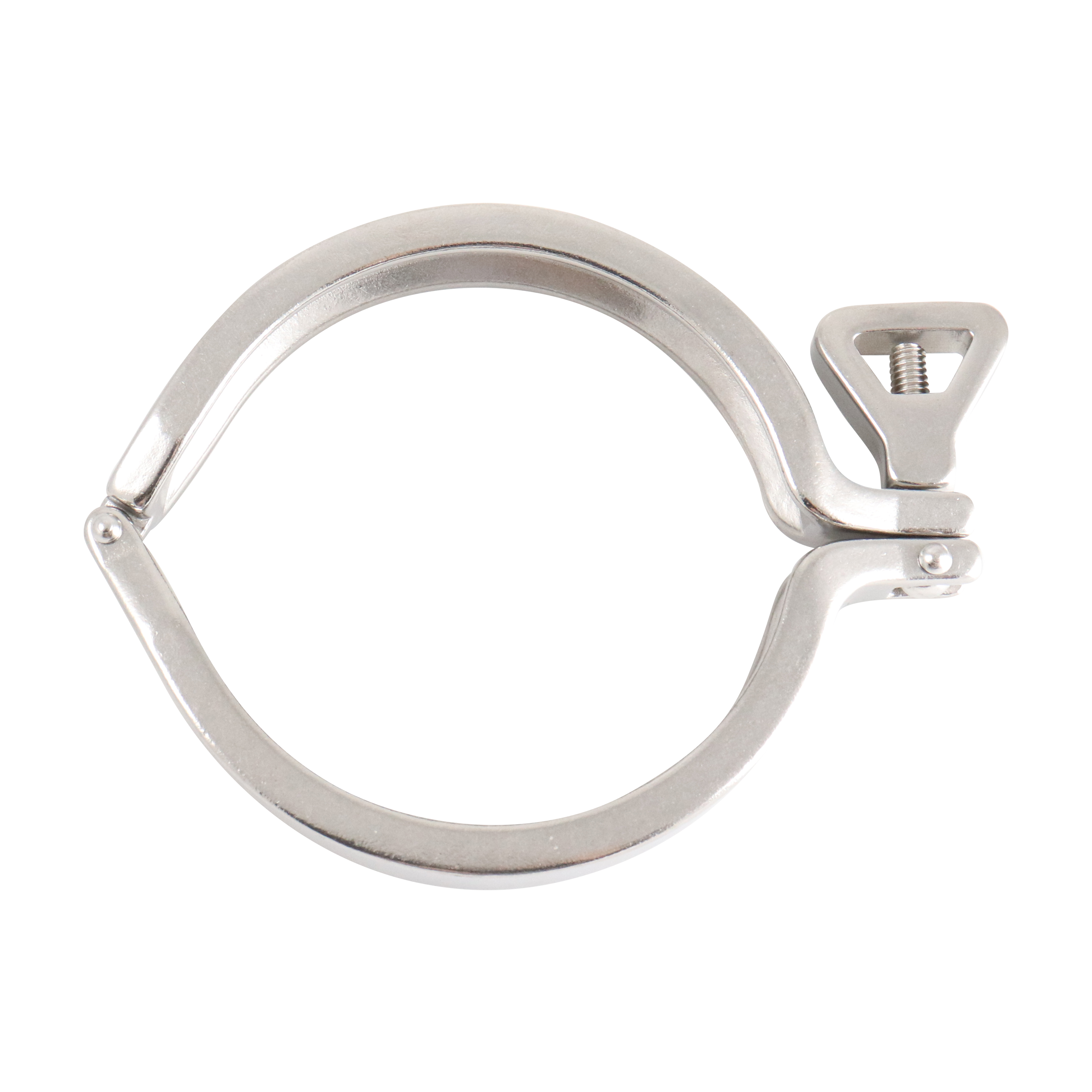

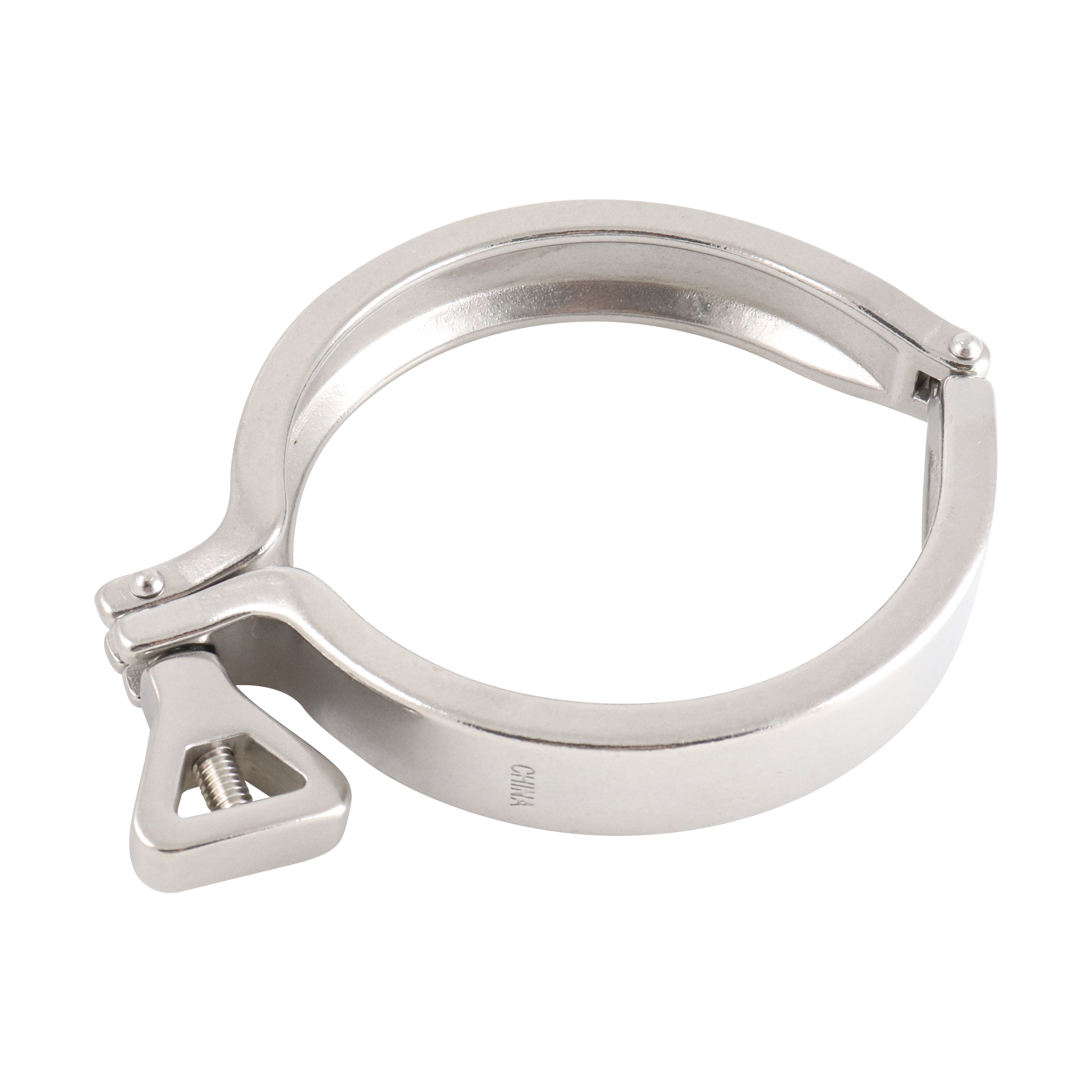

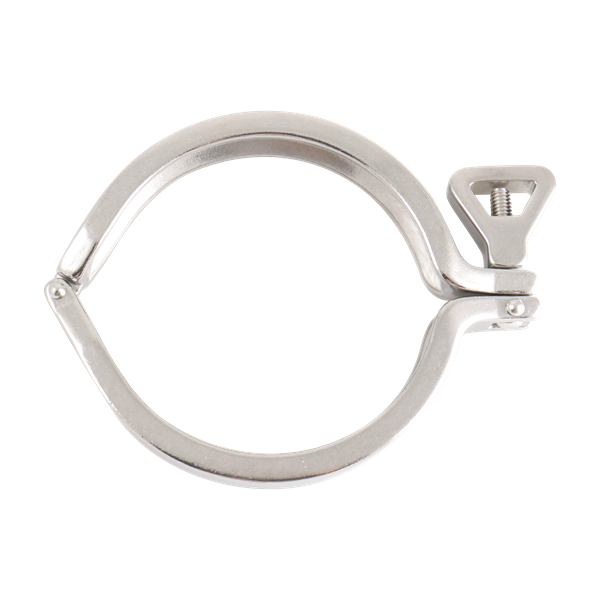

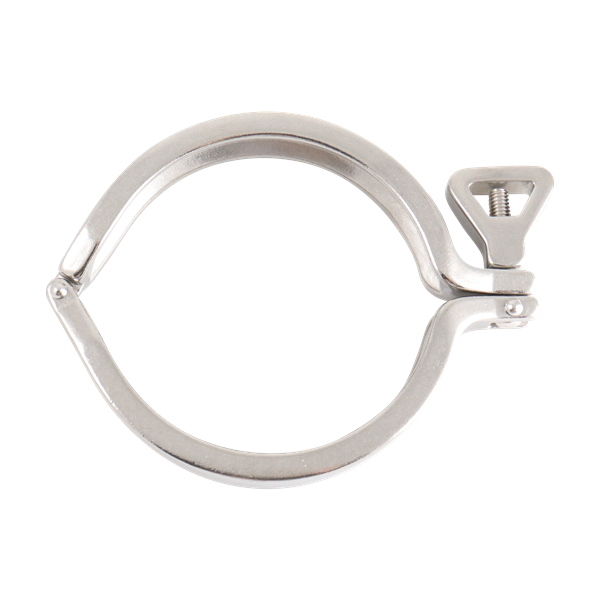

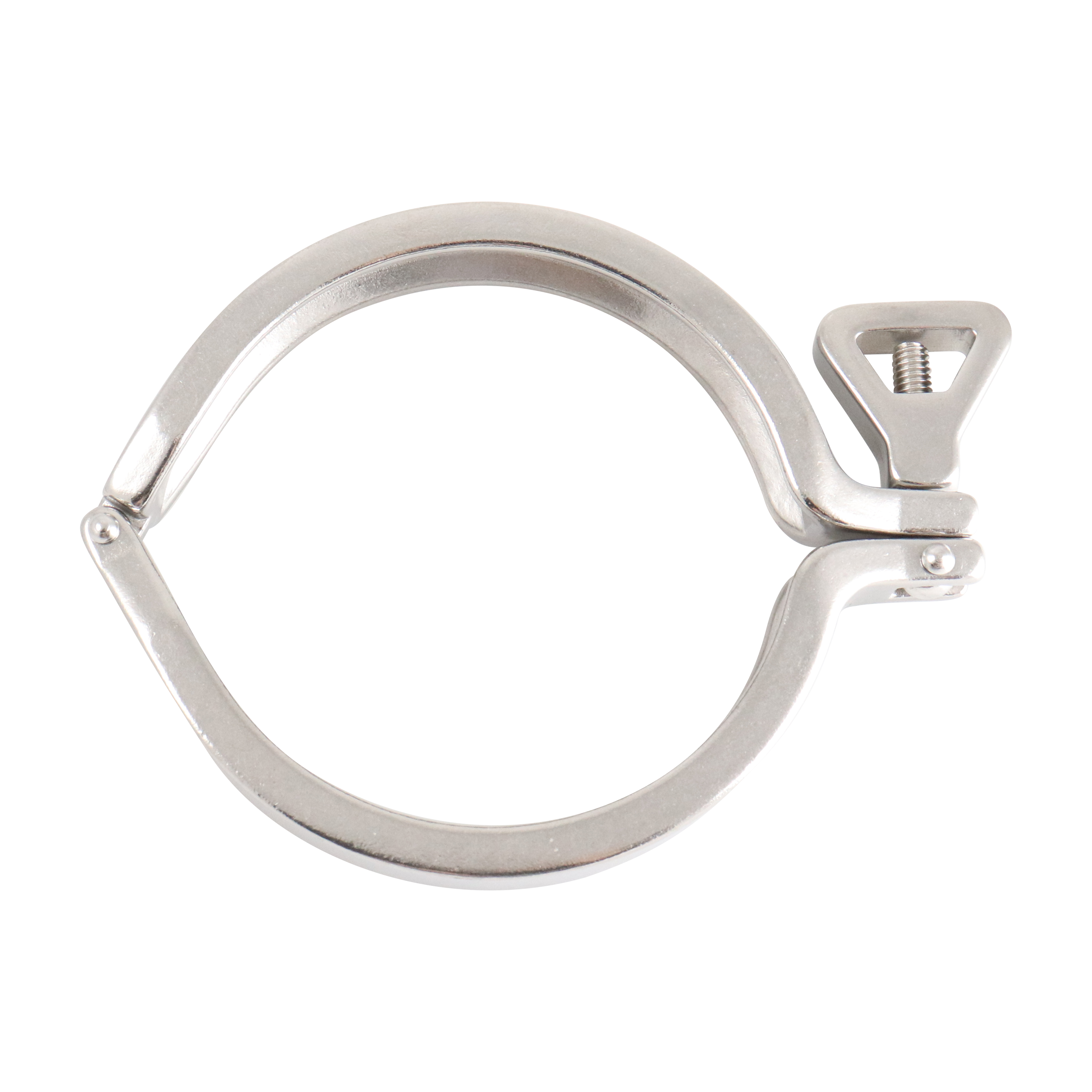

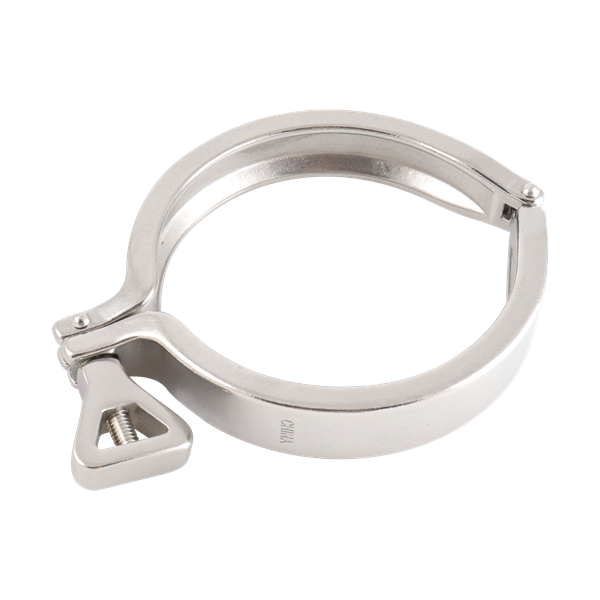

CLAMP I-LINE Q-LINE 4" WING NUT TYPE 304
13IS-4
Net Price: $25.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Clamps |
| Material | 304 Stainless Steel |
| Size 1 | 4" |
| Connection Type 1 | I-Line / Q-Line |
| Fitting Design | 13IS |
| Weight | 2.00000 |
Dimensional Data
I-Line Clamp| 13IS-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1½ | 38.10 | 1.75 | 44.40 |
| 2 | 50.80 | 2.37 | 60.14 |
| 2½ | 63.50 | 3.10 | 78.62 |
| 3 | 76.20 | 3.66 | 93.06 |
| 4 | 101.60 | 4.67 | 118.60 |
| 6 | 152.40 | 7.00 | 178.30 |
