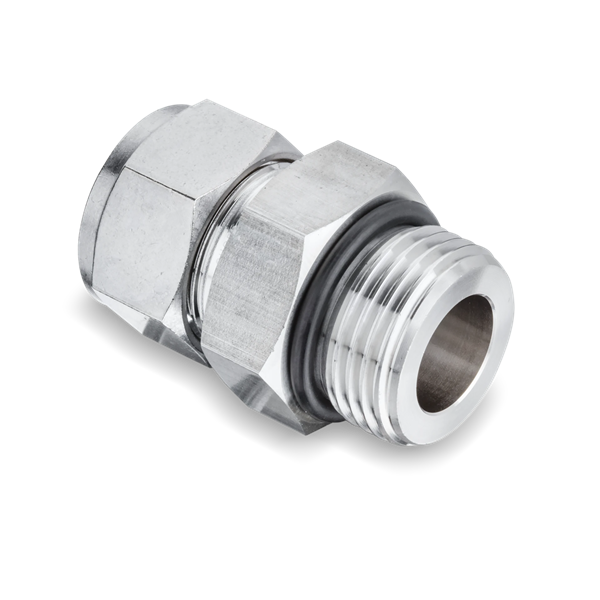

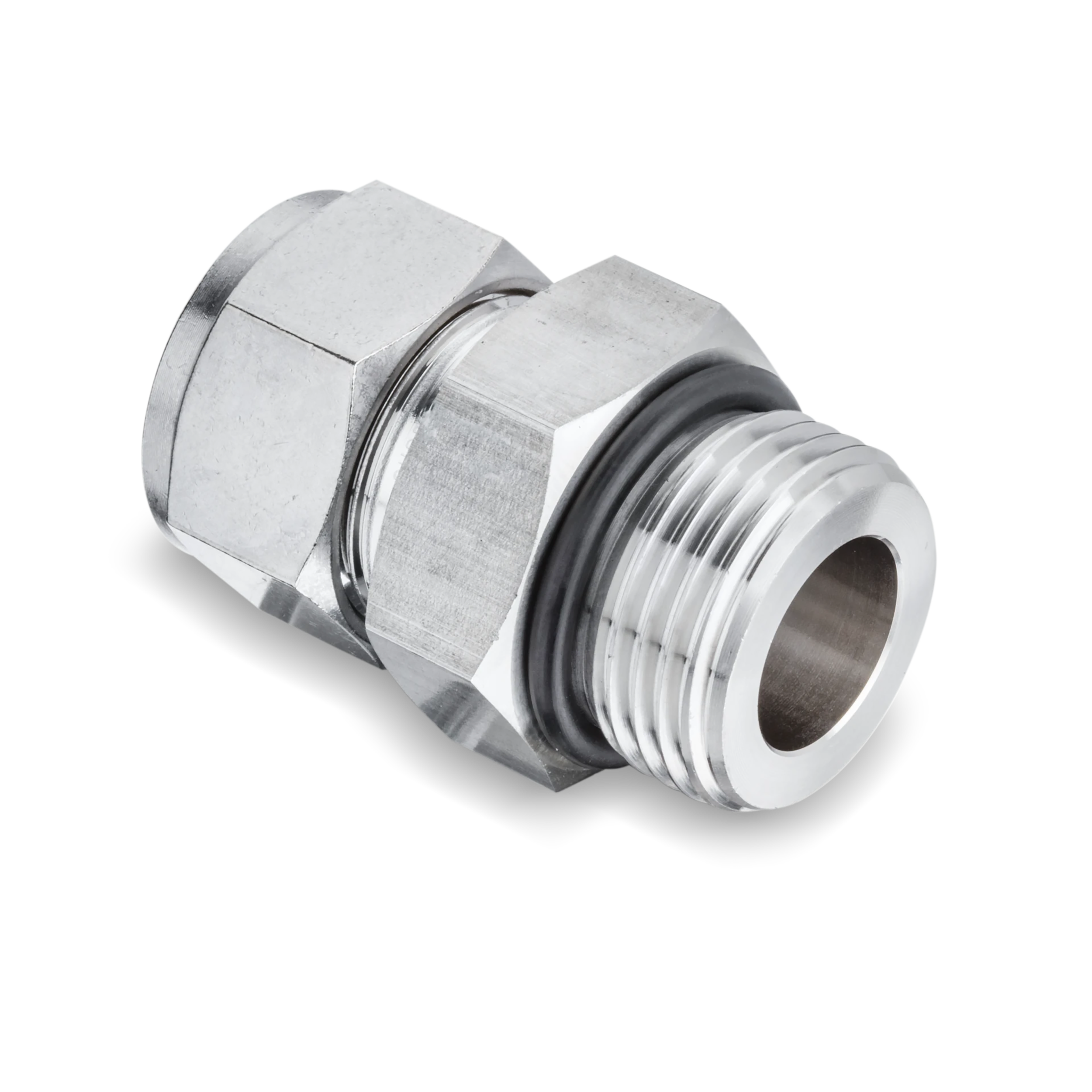

Superlok Male Connector 1/4" Compression Tube x 7/16-20 Male SAE With O-Ring 316 Equal to SS-400-1-4ST

SSMC-4-4U

Net Price: $8.43 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Connectors
Material 316 Stainless Steel
Size 1 0.25"
Connection Type 1 Compression Tube
Size 2 0.4375"
Connection Type 2 Male SAE
Fitting Design SSMC
Weight 0.10000

superlok ssmc dimensional diagram

Male SAE x Compression Tube Connector | SSMC
Tube Size Male SAE Size A B  C
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
⅛ 3.17 ⅛ 3.17 0.92 23.36 0.09 2.29 1.18 29.97
¼ 6.35 ¼ 6.35 1.05 26.67 0.19 4.83 1.34 34.03
¼ 6.35 ⁵⁄₁₆ 7.94 1.11 28.19 0.19 4.83 1.40 35.56
¼ 6.35 ½ 12.70 1.19 30.22 0.19 4.83 1.48 37.59
¼ 6.35 ⅝ 15.88 1.31 33.27 0.19 4.83 1.60 40.64
⁵⁄₁₆ 7.94 ⁵⁄₁₆ 7.94 1.08 27.43 0.25 12.70 1.37 34.79
⅜ 9.52 ¼ 6.35 1.11 28.19 0.20 5.08 1.40 35.56
⅜ 9.52 ⅜ 9.52 1.17 29.71 0.28 7.11 1.46 37.08
⅜ 9.52 ½ 12.70 1.24 31.75 0.28 7.11 1.54 39.11
⅜ 9.52 ⅝ 15.88 1.37 34.79 0.28 7.11 1.66 42.16
½ 12.70 ⅜ 9.52 1.14 28.95 0.28 7.11 1.54 39.11
½ 12.70 ½ 12.70 1.25 31.75 0.41 10.41 1.65 41.91
½ 12.70 ⅝ 15.88 1.37 34.79 0.41 10.41 1.77 44.95
½ 12.70 ¾ 19.05 1.53 38.86 0.41 10.41 1.93 49.02
⅝ 15.88 ½ 12.70 1.25 31.75 0.42 10.67 1.65 41.91
⅝ 15.88 ⅝ 15.88 1.38 35.05 0.50 12.70 1.78 45.21
¾ 19.05 ½ 12.70 1.41 35.81 0.42 10.67 1.81 45.97
¾ 19.05 ¾ 19.05 1.53 38.86 0.62 15.75 1.93 49.02
⅞ 22.22 ⅝ 15.88 1.53 38.86 0.72 18.29 1.93 49.02
1 25.40 ¾ 19.05 1.62 41.14 0.66 16.76 2.10 53.34
1 25.40 1 25.40 1.66 42.16 0.88 22.35 2.14 54.35
