Superlok

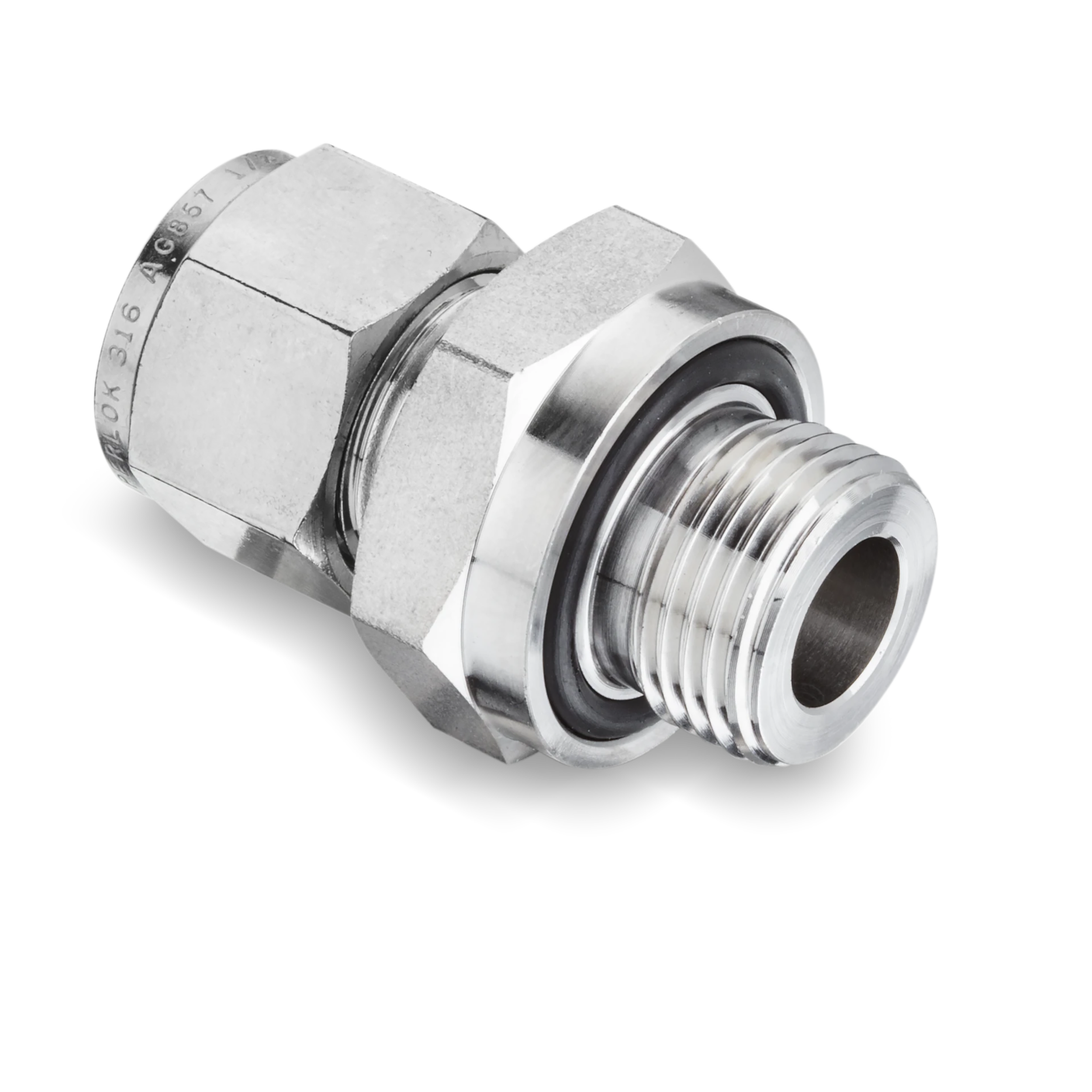

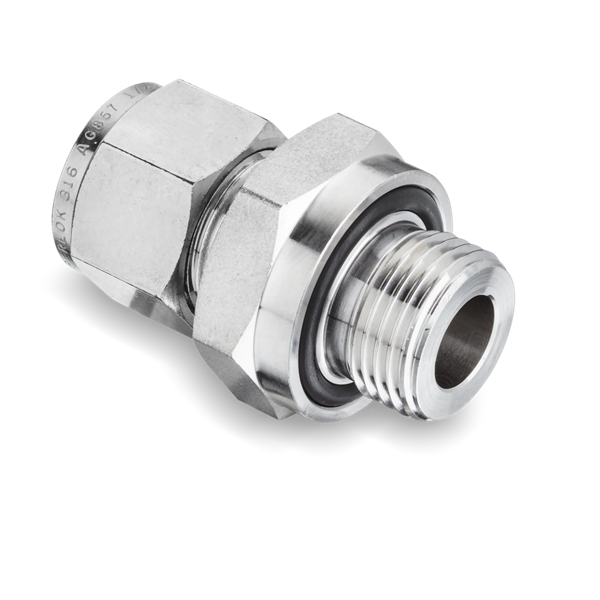

Superlok O-Seal Male Connector 1/2" Compression Tube x 3/4-16 Male SAE Straight Thread 316 Equal to SS-810-1-OR
SOSC-8-8U
Net Price: $22.49 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Superlok |
|---|---|
| Product Type | Compression Fittings |
| Product Subtype | Connectors |
| Material | 316 Stainless Steel |
| Size 1 | 0.5" |
| Connection Type 1 | Compression Tube |
| Size 2 | 0.75" |
| Connection Type 2 | Male SAE |
| Fitting Design | SOSC |
| Weight | 0.10000 |
Dimensional Data

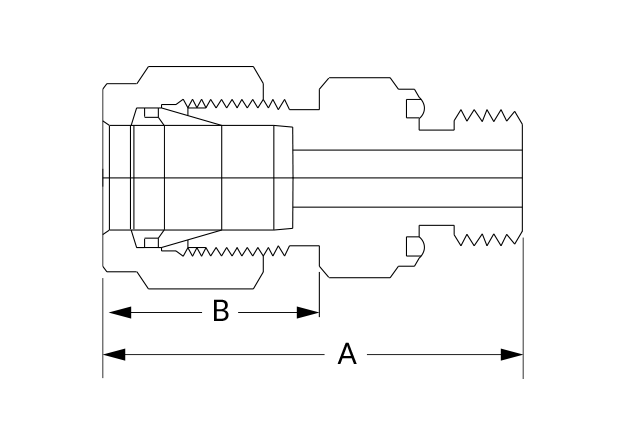

SOSC Dimensional Diagram
| Tube Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ⅛ | 3.175 | 1.29 | 32.76 | 0.60 | 15.24 |
| ³⁄₁₆ | 4.76 | 1.35 | 34.29 | 0.63 | 16.00 |
| ¼ | 6.35 | 1.51 | 38.35 | 0.70 | 17.78 |
| ⁵⁄₁₆ | 7.938 | 1.60 | 40.64 | 0.73 | 18.54 |
| ⅜ | 9.525 | 1.67 | 42.41 | 0.76 | 19.30 |
| ½ | 12.70 | 1.81 | 45.97 | 0.86 | 21.84 |
| ¾ | 19.05 | 2.06 | 52.32 | 0.86 | 21.84 |
| 1 | 25.40 | 2.29 | 58.16 | 1.04 | 26.41 |
