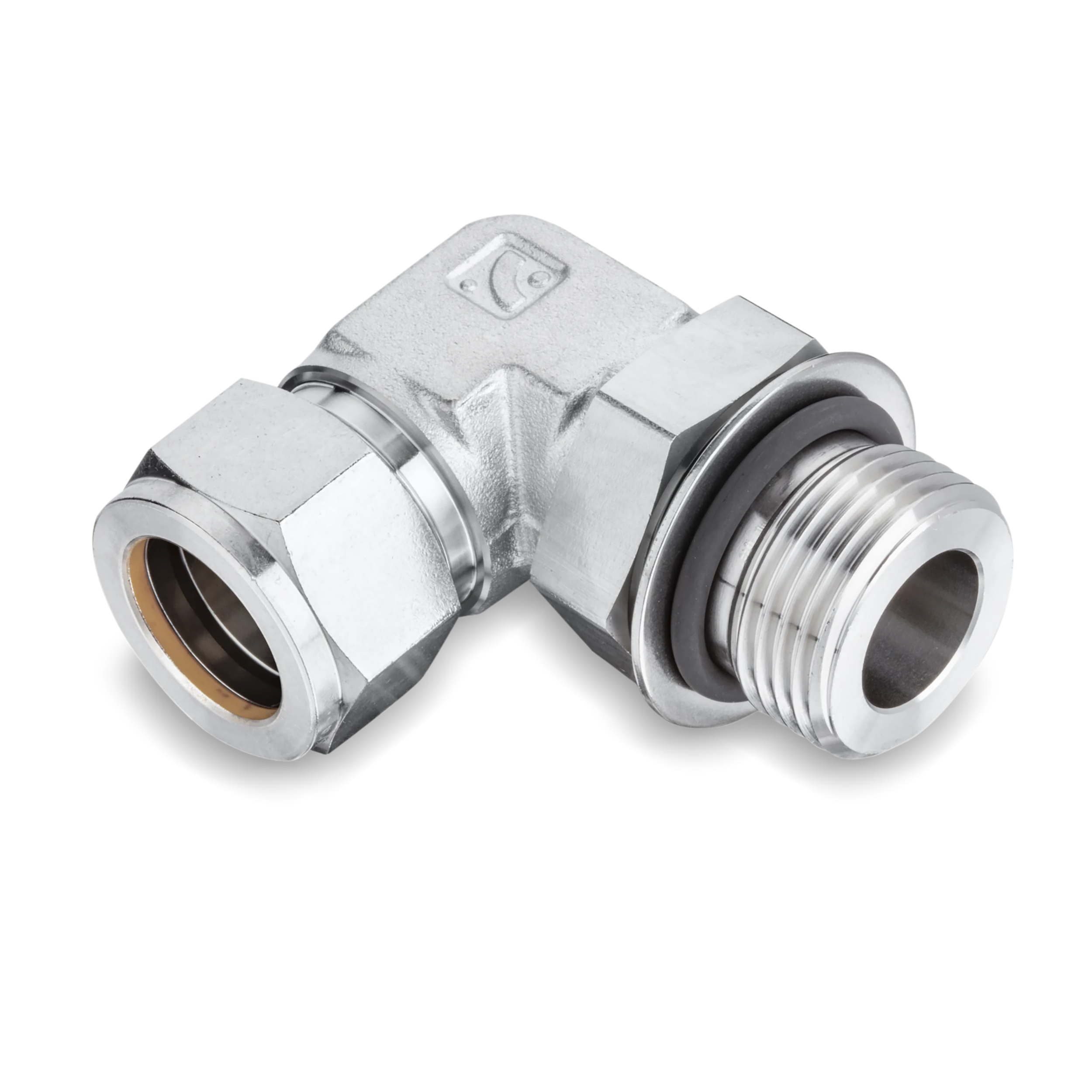

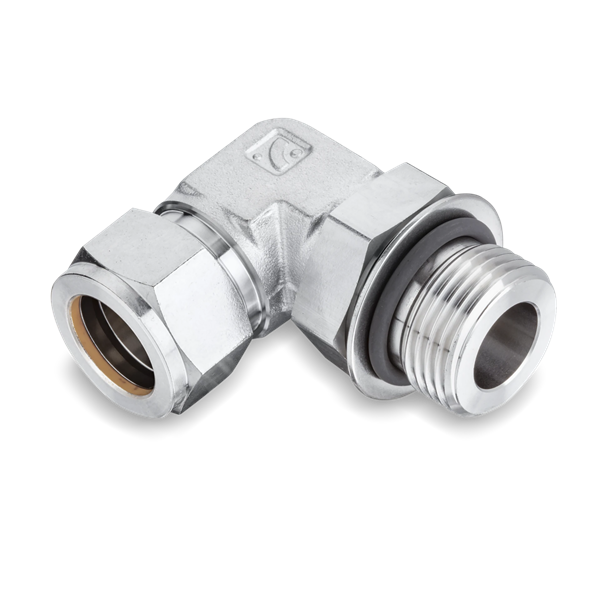

Superlok 90 Degree Positionable Male Elbow 1/4" Compression Tube x 3/4-16 Male SAE 316 Equal to SS-400-2-8ST

SPME-4-8U

Net Price: $42.18 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Elbows
Material 316 Stainless Steel
Size 1 0.25"
Connection Type 1 Compression Tube
Size 2 0.75"
Connection Type 2 Male SAE
Fitting Design SPME
Weight 0.10000

superlok spme dimensional diagram

90° Male Threaded x Compression Tube Positionable Elbow | SPME
Tube Size Male Thread A B  C
(in) (mm) (in) (in) (mm) (in) (mm) (in) (mm)
¼ 6.35 7/16-20 1.12 28.45 1.12 28.45 0.65 16.51
¼ 6.35 9/16-18 1.18 30.48 1.27 32.26 0.79 20.07
⁵⁄₁₆ 7.94 1/2-20 1.19 30.23 1.16 29.46 0.72 18.29
⅜ 9.52 9/16-18 1.26 32.00 1.27 32.26 0.79 20.07
⅜ 9.52 3/4-16 1.37 34.80 1.49 37.85 1.01 25.65
½ 12.70 3/4-16 1.48 37.59 1.49 37.85  1.01 25.65
⅝ 15.88 7/8-14  1.56 39.62  1.71 43.43  1.16 29.46
¾ 19.05 1-1/16-12  1.63 41.40 1.92 48.77 1.44 36.58
⅞ 22.22 3/16-12  1.70 43.18  1.99  50.55 1.59 40.39
1 25.40 1-5/16-12 1.99 50.55  2.11 53.59 1.73 43.94
1¼ 31.75 1-5/8-12  2.67 67.82 2.29 58.17 2.16 54.86
1½ 38.10  1-7/8-12  3.07 77.98 2.38  60.45 2.45 62.23
2 50.80  2-1/2-12  4.22 107.19  2.82 71.63  3.16 80.26
