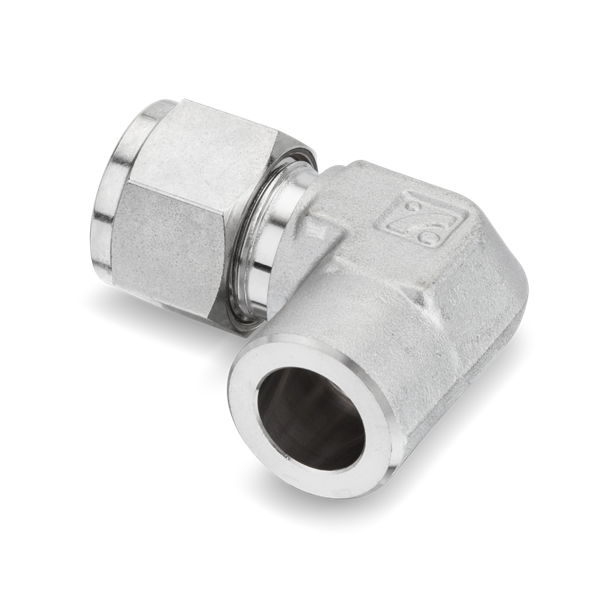

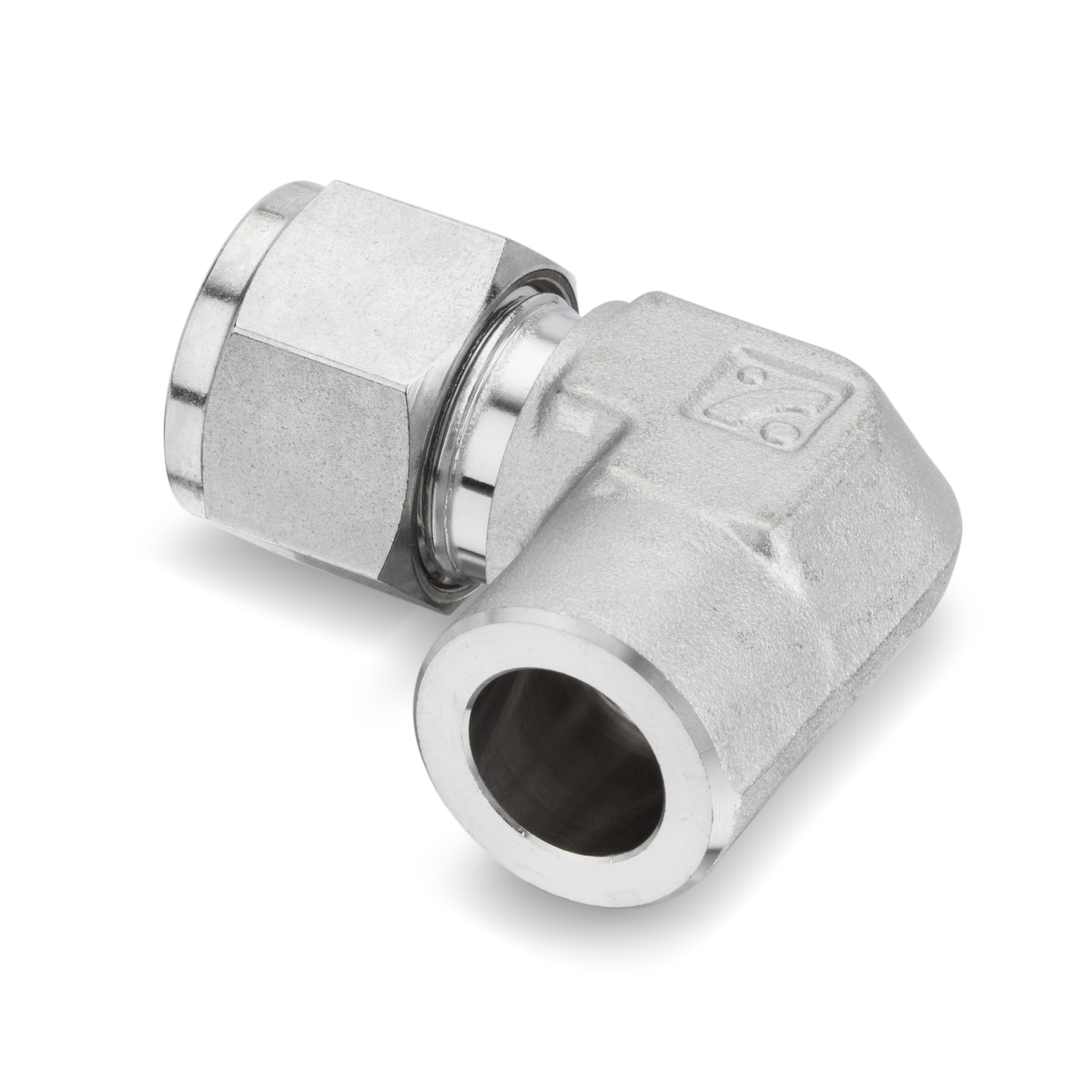

Superlok 90 Degree Elbow 3/4" Compression Tube x 3/4" Socket Weld Tube 316 Equal to SS-400-9-4W

SSWE-12

Net Price: $64.89 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Elbows
Material 316 Stainless Steel
Size 1 0.75"
Connection Type 1 Compression Tube
Size 2 0.75"
Connection Type 2 Socket Weld Tube
Fitting Design SSWE
Weight 0.10000

superlok sswe dimensional diagram

90° Socket Weld x Compression Tube Elbow | SSWE
Nominal Size A B C
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
¼ 6.35 1.06 26.92 0.77 19.56 0.50 12.70
⅜ 9.52 1.20 30.48 0.91 23.11 0.62 15.75
½ 12.70 1.42 36.06 1.05 26.67 0.81 20.57
¾ 19.05 1.57 39.87 1.17 29.72 1.06 26.92
1 25.40 1.93 49.02 1.45 36.83 1.38 34.54
