Superlok

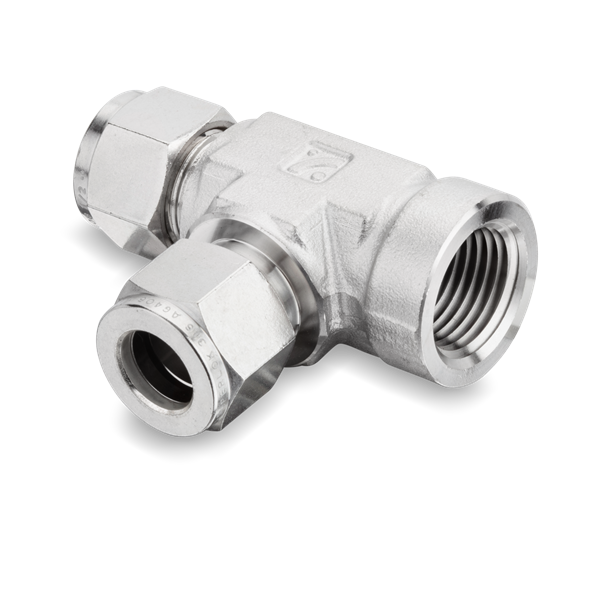

Superlok Female Run Tee 3/4" Compression Tube x 3/4" FNPT 316 Equal to SS-1210-3TFT
SFRT-12-12N
Net Price: $88.15 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Superlok |
|---|---|
| Product Type | Compression Fittings |
| Product Subtype | Tees |
| Material | 316 Stainless Steel |
| Size 1 | 0.75" |
| Connection Type 1 | Compression Tube |
| Size 2 | 0.75" |
| Connection Type 2 | FNPT |
| Fitting Design | SFRT |
| Weight | 0.10000 |
Dimensional Data

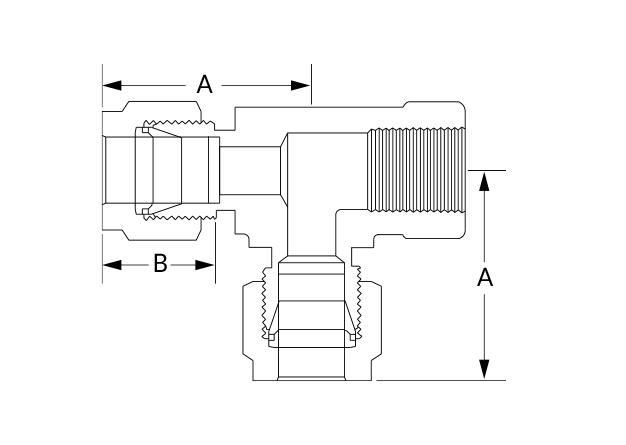

SFRT Dimensional Diagram
| Tube Size | NPT | A | B | ||||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ⅛ | 3.175 | ⅛ | 3.175 | 0.97 | 24.63 | 0.50 | 12.70 |
| ¼ | 6.35 | ⅛ | 3.175 | 1.06 | 26.92 | 0.60 | 15.24 |
| ¼ | 6.35 | ¼ | 6.35 | 1.17 | 29.71 | 0.60 | 15.24 |
| ⅜ | 9.525 | ¼ | 6.35 | 1.23 | 31.24 | 0.66 | 16.76 |
| ½ | 12.70 | ⅜ | 9.525 | 1.42 | 36.06 | 0.90 | 22.86 |
| ½ | 12.70 | ½ | 12.70 | 1.57 | 39.87 | 0.90 | 22.86 |
| ¾ | 19.05 | ¾ | 19.05 | 1.76 | 44.70 | 0.96 | 24.38 |
| 1 | 25.40 | ¾ | 19.05 | 1.93 | 49.02 | 1.23 | 31.24 |
| 1 | 25.40 | 1 | 25.40 | 2.11 | 53.59 | 1.23 | 31.24 |
