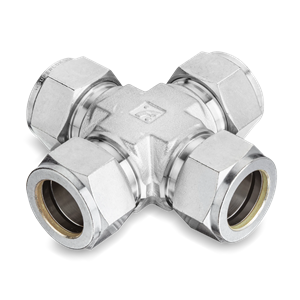

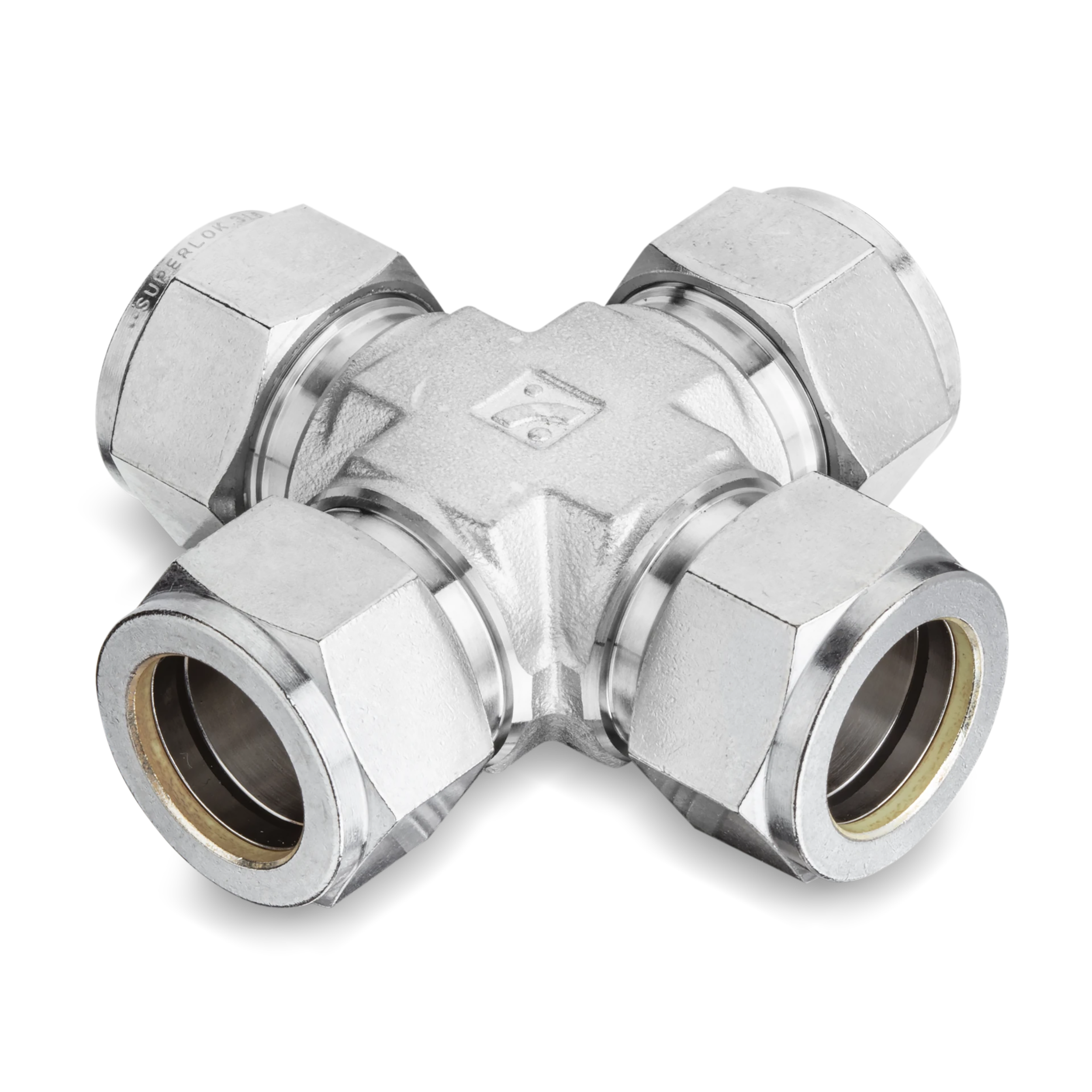

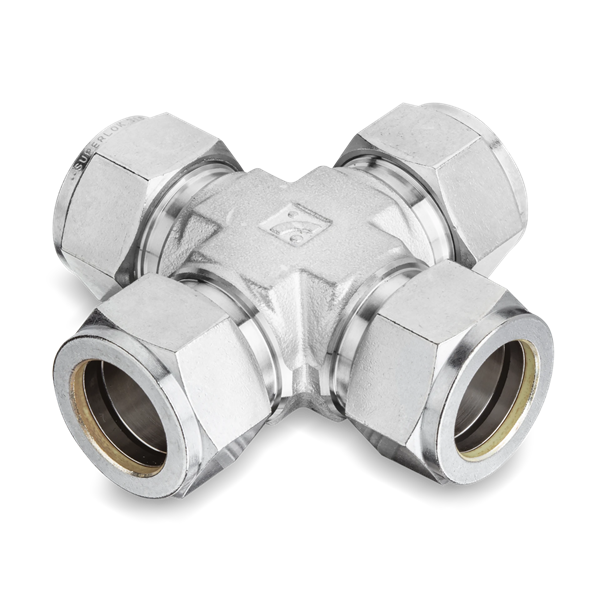

Superlok Union Cross 1" Compression Tube 316 Equal to SS-1610-4

SUC-16

Net Price: $158.68 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Crosses
Material 316 Stainless Steel
Size 1 1"
Connection Type 1 Compression Tube
Fitting Design SUC
Weight 0.10000

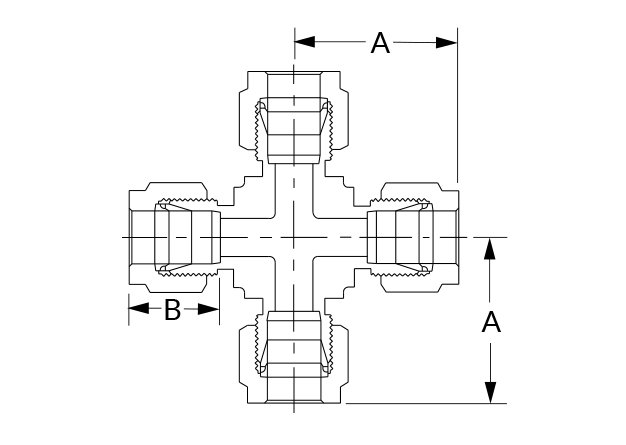

SUC Dimensional Diagram

Compression Tube Union Cross | SUC
Nominal Size A B
(in) (mm) (in) (mm) (in) (mm)
¹⁄₁₆ 1.59 0.71 18.03 0.34 8.68
⅛ 3.17 0.88 22.35 0.50 12.70
³⁄₁₆ 4.76 0.99 25.14 0.54 13.71
¼ 6.35 1.06 26.92 0.60 15.24
⁵⁄₁₆ 7.94 1.17 29.71 0.64 16.25
⅜ 9.52 1.20 30.48 0.66 16.76
½ 12.70 1.42 36.06 0.90 22.86
⅝ 15.88  1.53 38.80 0.96 24.38
¾ 19.05 1.57 39.87 0.96 24.38
⅞ 22.22  1.76 44.70 1.02 25.90
1 25.40 1.93 49.02 1.23 31.24
