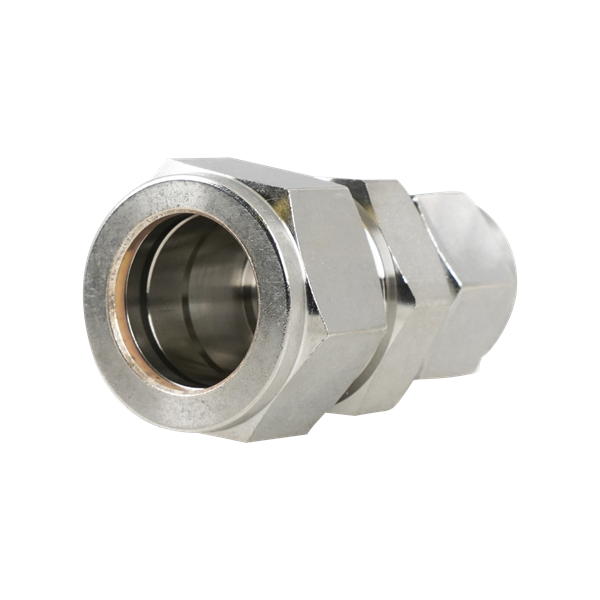

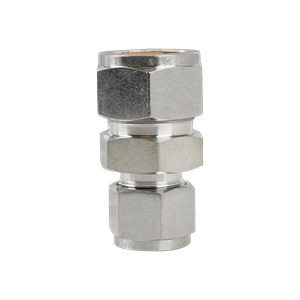

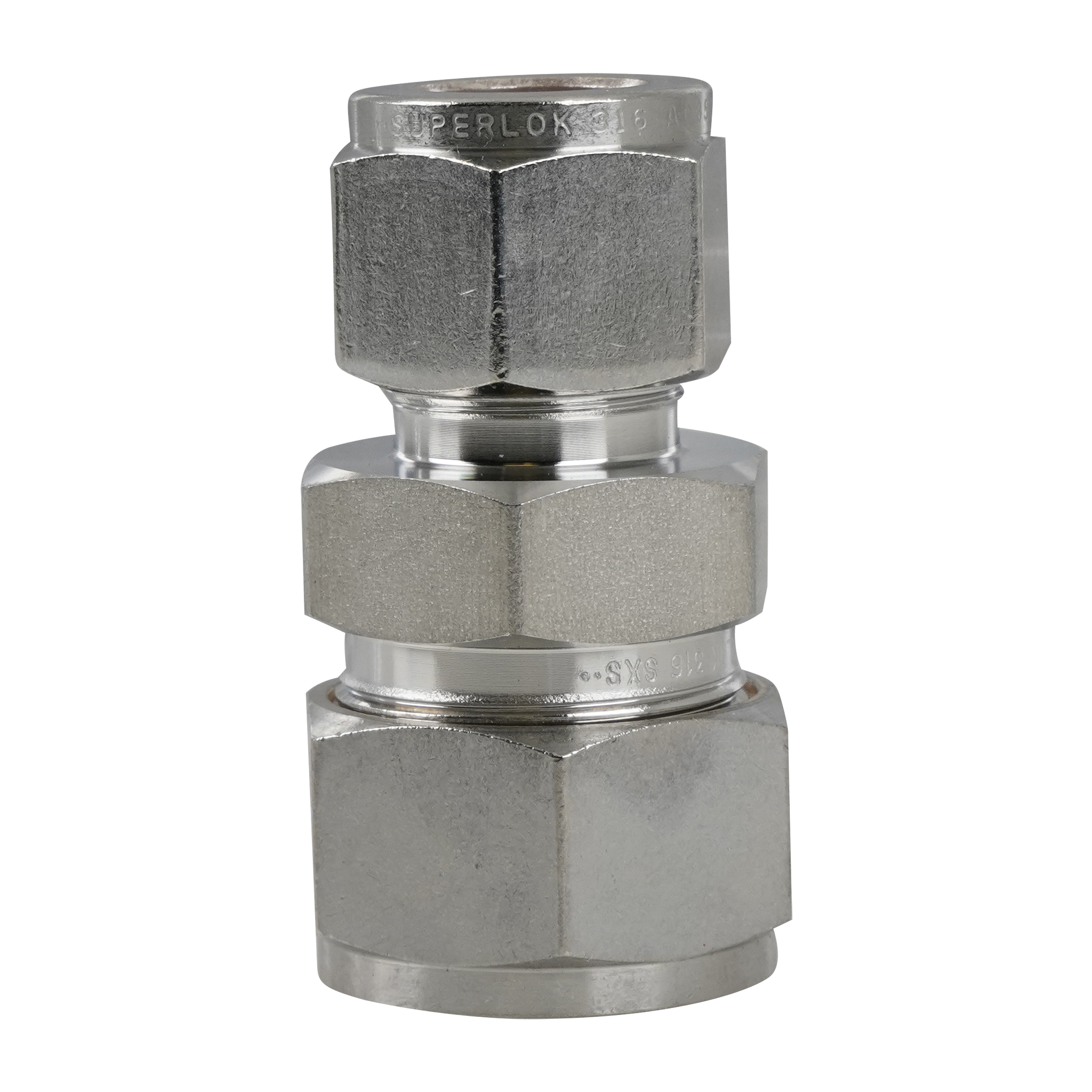

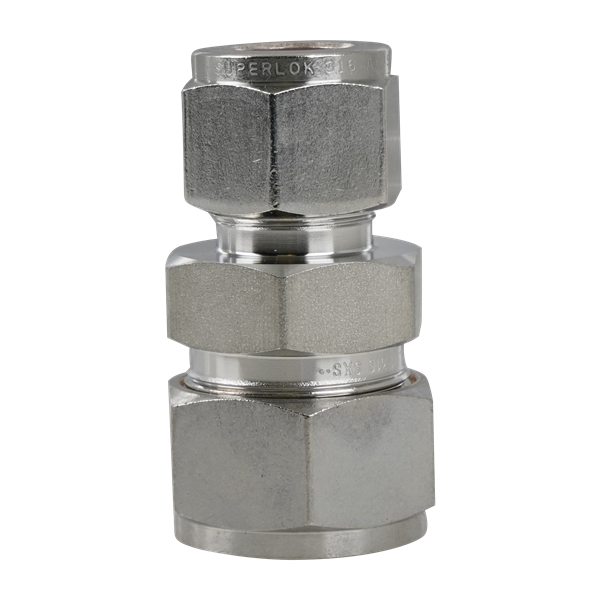

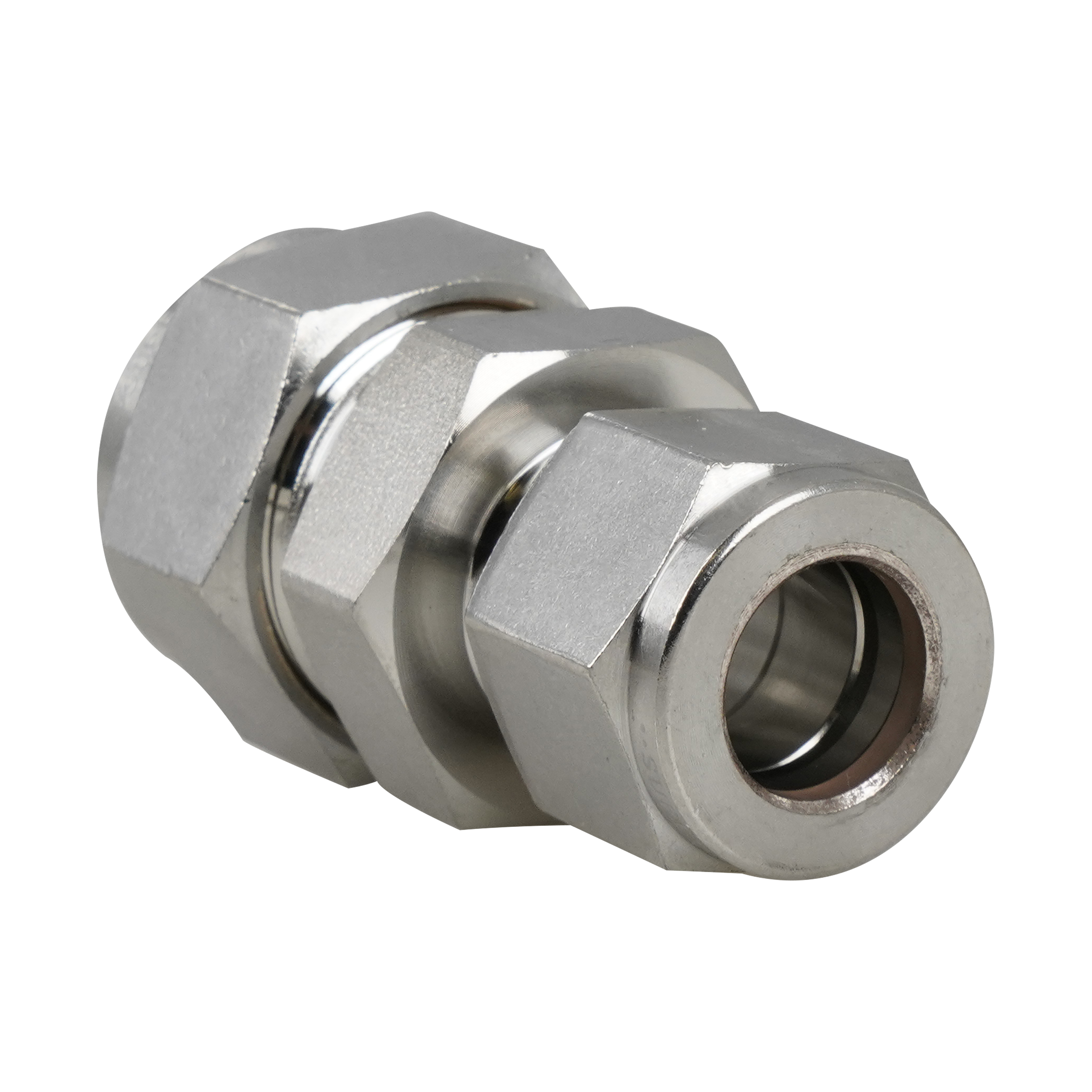

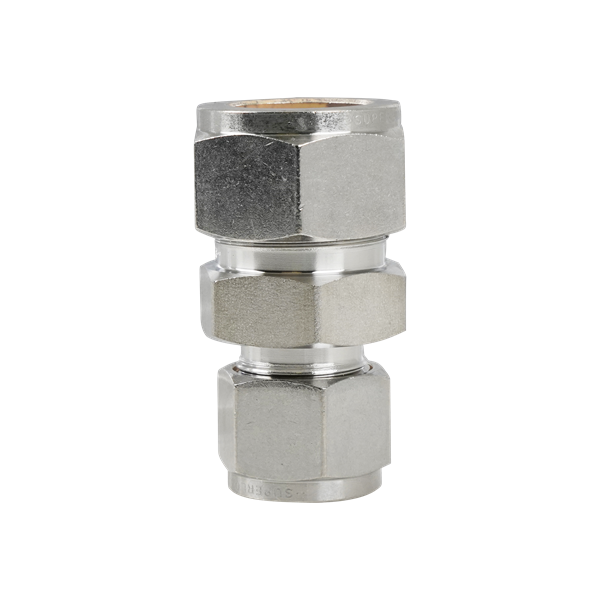

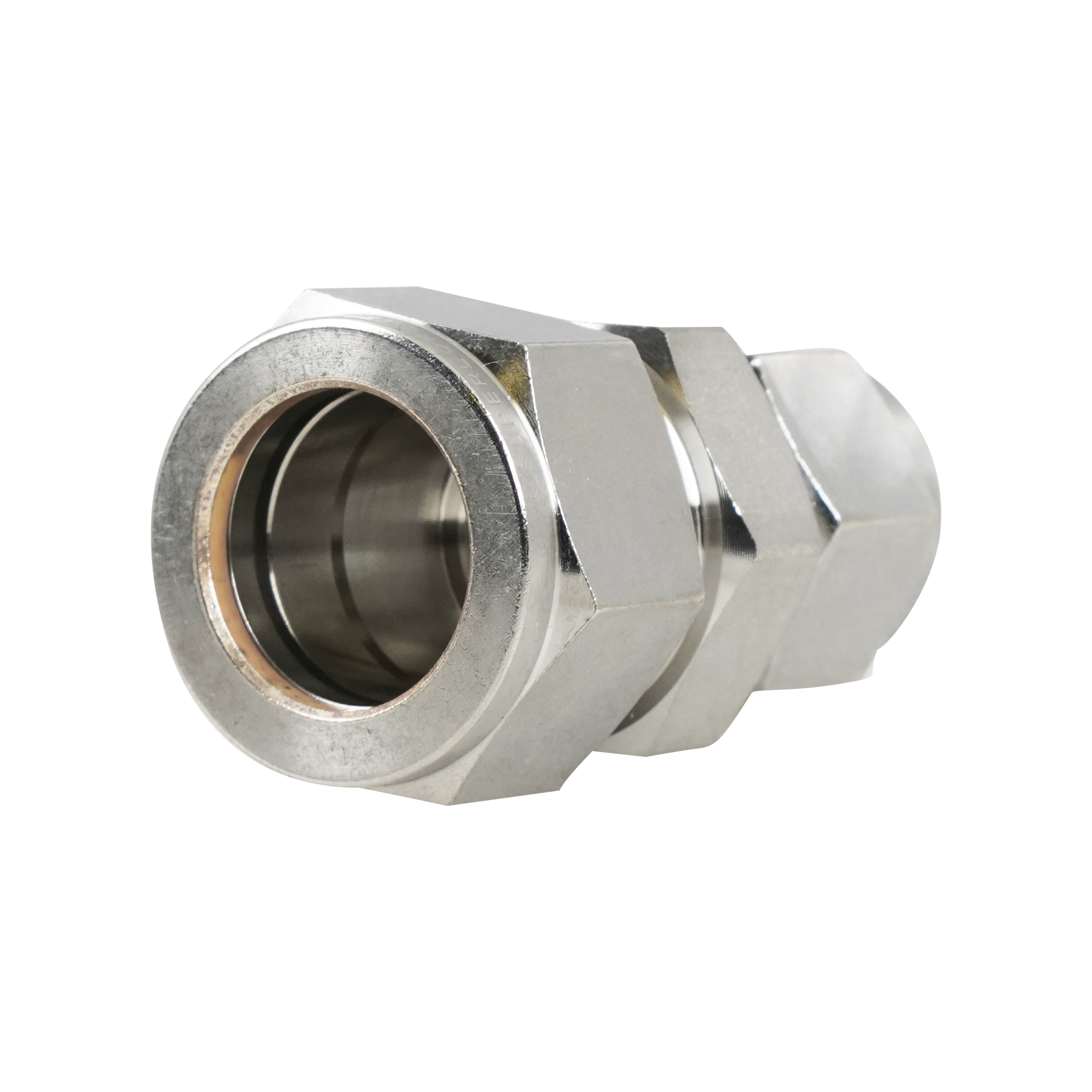

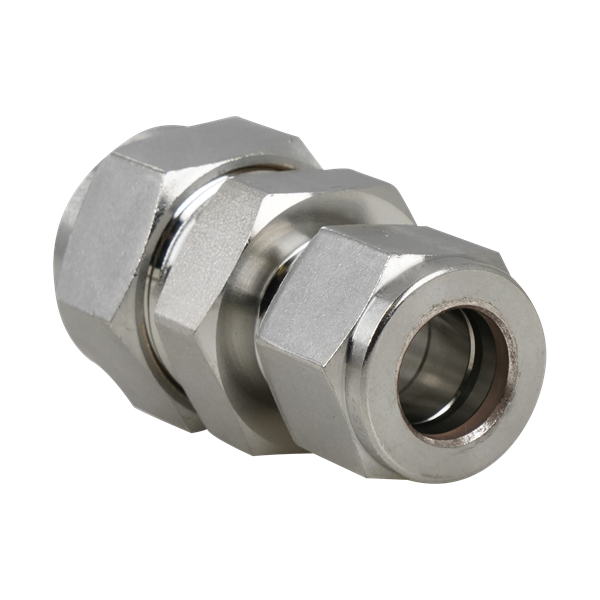

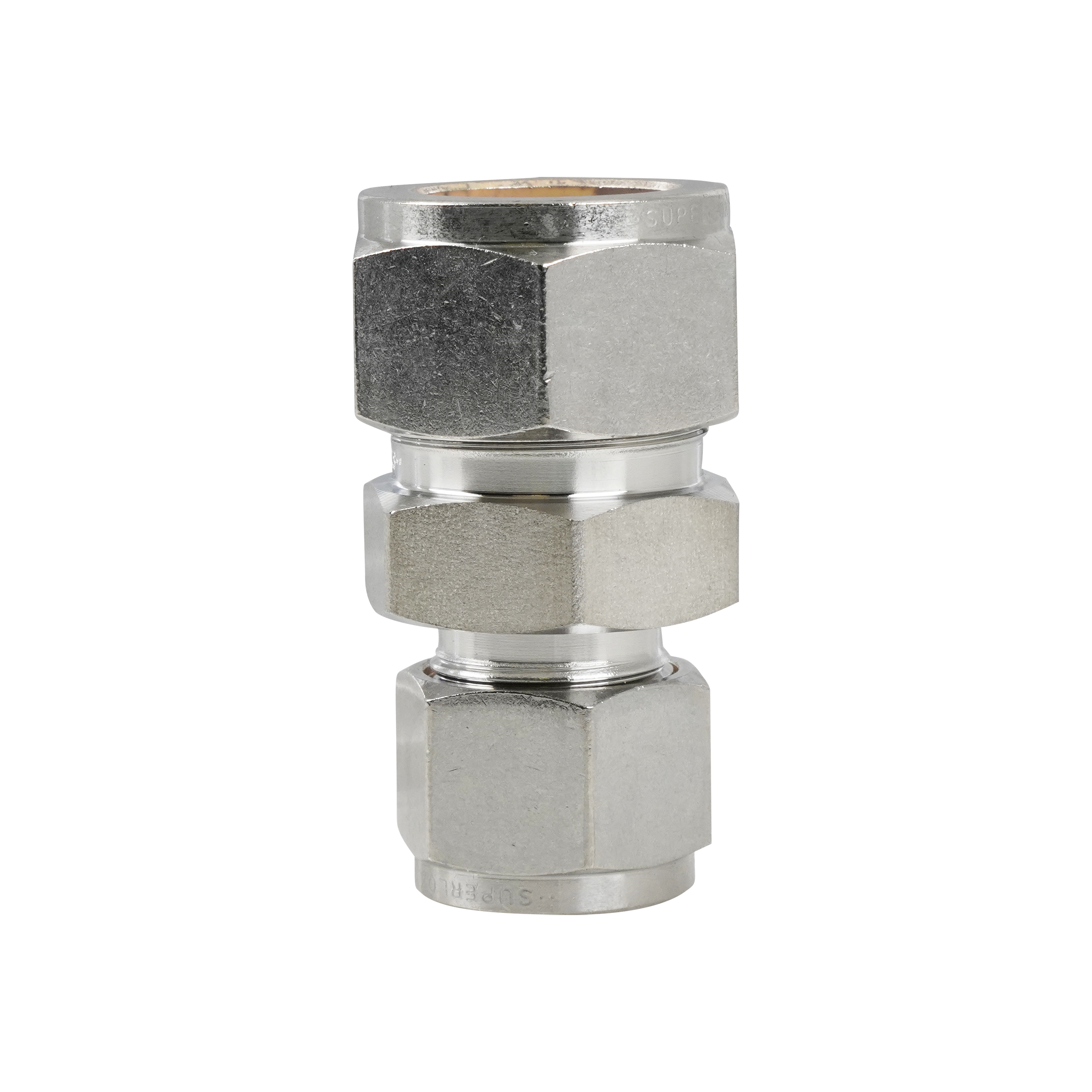

Superlok Reducing Union 3/4" x 1/2" Compression Tube 316 Equal to SS-1210-6-8

SRU-12-8

Net Price: $35.04 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Reducing Unions
Material 316 Stainless Steel
Size 1 0.75"
Connection Type 1 Compression Tube
Size 2 0.5"
Connection Type 2 Compression Tube
Fitting Design SRU
Weight 0.10000

SRU Dimensional Diagram

SRU Union
Tube Size Reducing Tube Size A B  C
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
⅛ 3.18 1/16  1.58 0.81 20.60 0.05  1.27 1.22 31.00
³⁄₁₆ 4.76 ⅛  3.18 0.92 23.36 0.09 2.29 1.44 36.57
¼ 6.35 ⅛ 3.18 0.97 24.63 0.09 2.29 1.52 38.60
¼ 6.35 ³⁄₁₆ 4.76 1.00 25.40 0.12 3.05 1.55 39.37
⁵⁄₁₆ 7.94 ⅛ 3.18 1.02 25.90 0.09 2.29 1.57 39.87
⁵⁄₁₆ 7.94 ¼ 6.35 1.08  27.43  0.19 4.83 1.66 42.16
⅜ 9.52 ⅛ 3.18 1.06 26.92  0.09 2.29 1.61 40.89
⅜ 9.52 ¼ 6.35 1.12 28.44 0.19 4.83  1.70  43.18
⅜ 9.52 ⁵⁄₁₆ 7.94 1.16  29.46  0.25 6.35 1.74 44.19
½ 12.70 ⅛ 3.18 1.12 28.44  0.09 2.29  1.78 45.21
½ 12.70 ¼ 6.35 1.16 29.46 0.19 4.83 1.85 46.99
½ 12.70 ⅜ 9.52 1.22  30.98 0.28 7.11  1.91 48.51
⅝ 15.88 ⅜ 9.52 1.25 31.75  0.28 7.11 1.94 49.27
⅝ 15.88 ½ 12.70 1.25 31.75 0.71 18.03  2.05 52.07
¾ 19.05 ¼ 6.35 1.25 31.75 0.19 4.83  1.94 49.27
¾ 19.05 ⅜ 9.52 1.31 33.27 0.28 7.11  2.00 50.80
¾ 19.05 ½ 12.70 1.31  33.27 0.41 10.41  2.11 53.59
¾ 19.05 ⅝ 15.88 1.31 33.27  0.50 12.70  2.11 53.59
 1 25.40 ½ 12.70 1.56 39.50  0.41 10.41  2.49 63.24
 1 25.40 ¾  19.05 1.54  39.00  0.62 15.75  2.47 62.73
