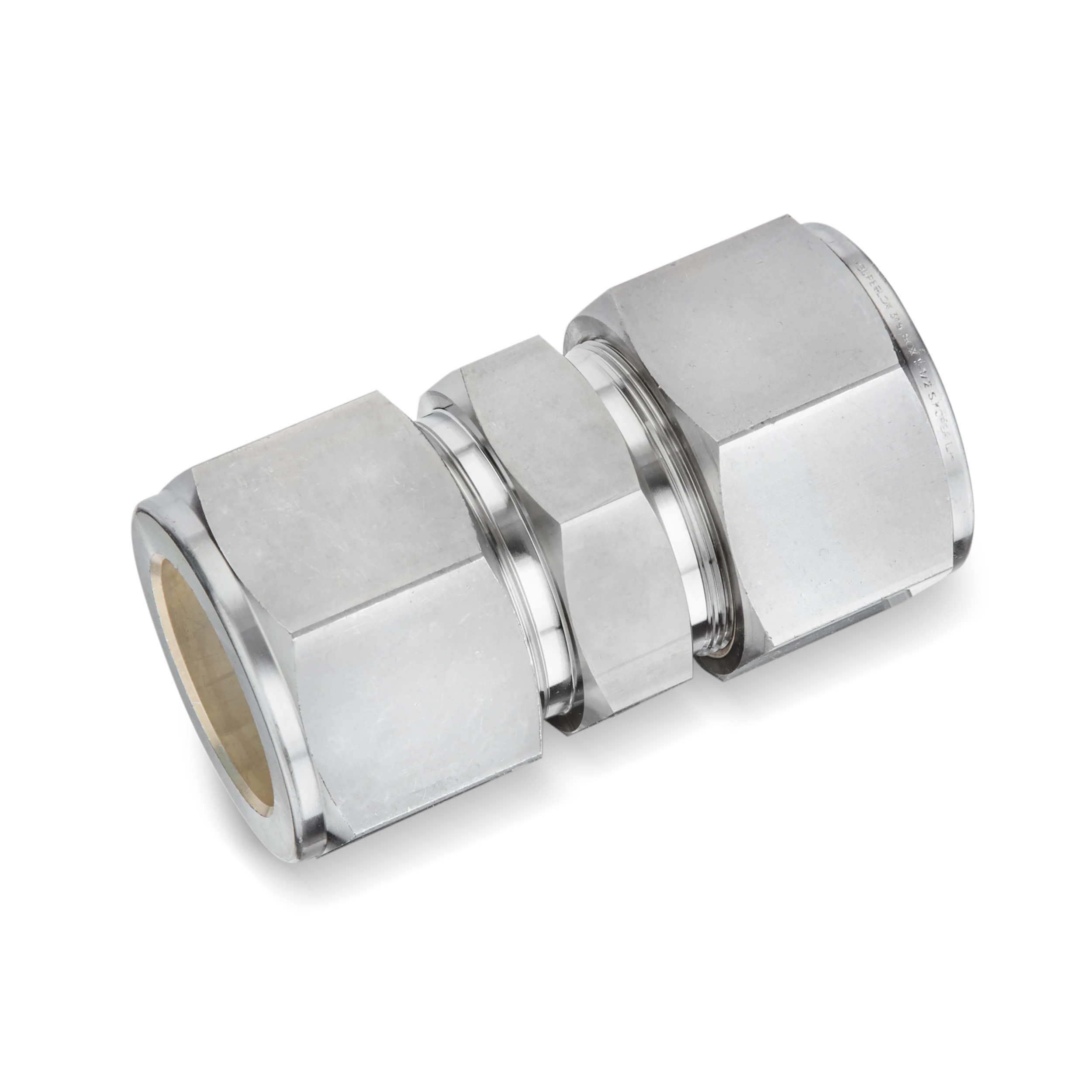

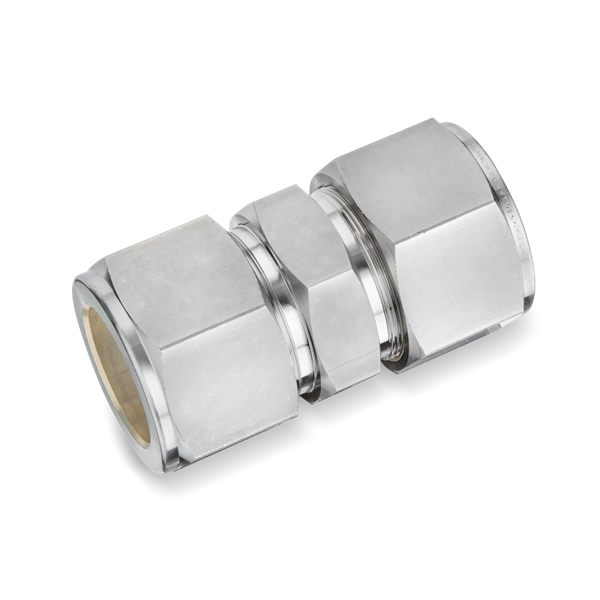

Superlok Union 7/8" Compression Tube 316 Equal to SS-1410-6

SU-14

Net Price: $53.08 / EA

Have an account? Login now.

Availability:
Brand Superlok
Product Type Compression Fittings
Product Subtype Unions
Material 316 Stainless Steel
Size 1 0.875"
Connection Type 1 Compression Tube
Fitting Design SU
Weight 0.10000

Superlok SU Dimensional Diagram

Compression Tube Union | SU
Nominal Size A B  C
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
¹⁄₁₆ 1.59 0.69 17.52 0.06 1.59 0.99 25.15
⅛ 3.17 0.88 22.35 0.13 3.17 1.40 35.56
³⁄₁₆ 4.76 0.95 24.13 0.19 4.76 1.47 37.33
¼ 6.35 1.03 26.16 0.25 6.35 1.61 40.89
⁵⁄₁₆ 7.94 1.11 28.19 0.31 7.94 1.69 42.92
⅜ 9.52 1.19  30.22  0.36 9.52 1.77  44.95
½ 12.70 1.22  30.98  0.50 12.70 2.02 51.30
⅝ 15.88  1.25  31.75 0.63 15.88  2.05  52.07
¾ 19.05 1.31  33.27  0.75 19.05 2.11 53.59
⅞ 22.22 1.37 34.79  0.88 22.22 2.17  55.11
1 25.40 1.59  40.38 1.00 25.40 2.55 64.77
1¼ 31.75 1.89  48.00 1.25 31.75 3.63  92.20
1½ 38.10 2.11  53.59  1.50 38.10 4.25 107.95
2 50.80 2.94  74.68  2.00 50.80 5.88  149.35
